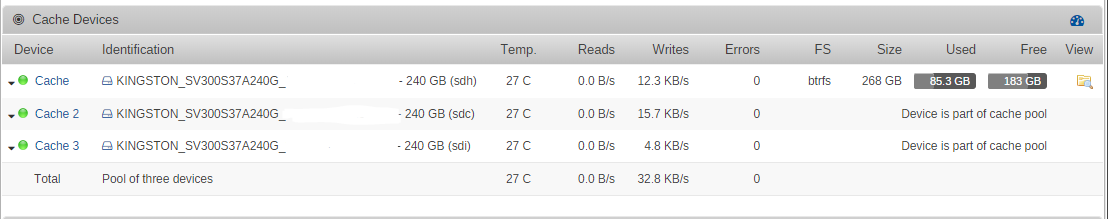

December 8, 20178 yr Hello, Sorry if this has been asked/answered before but I just setup an unRaid box. I have three SSDs (240GB) setup for cache. I figured I would get (360GB) usable space but its reporting that I only have 268GB. I've attached a photo for reference. When I click on Cache its showing that the btrfs filesystem df is: Data, RAID1: total=81.00GiB, used=80.48GiB System, RAID1: total=32.00MiB, used=16.00KiB Metadata, RAID1: total=1.00GiB, used=12.03MiB GlobalReserve, single: total=16.00MiB, used=0.00B If you need any more information. let me know. Thanks.
December 8, 20178 yr Community Expert Probably the GUI is reporting incorrect capacity, can you post the output of: df -h /mnt/cache
December 8, 20178 yr Author Sorry for the delay. Here's the results... Filesystem Size Used Avail Use% Mounted on /dev/sdh1 336G 86G 172G 34% /mnt/cache Also, since last night in the GUI the total size increased to 277GB
December 8, 20178 yr Community Expert Total size is correctly reported by df, but available is not, I did some quick testing with raid1 only and the issue seems limited to pools with an odd number of devices, you can still use all the space, but both total and free space are incorrectly reported on the GUI, the reported free and used spaces will get closer to real as the pool gets filled. One possible issue is if you do a transfer from e.g. Windows where the total transfer size is below the actual free space but above the reported free space will get an out of space error. Correct free space is reported by btrfs usage, if you run this you'll get it: btrfs fi usage /mnt/cache Don't know if it's possible for LT to display the GUI stats from that in the future.
December 8, 20178 yr 2 hours ago, johnnie.black said: Don't know if it's possible for LT to display the GUI stats from that in the future. I have a cache pool of 4x 250GB devices, configured in raid10 mode. # df --si /mnt/cache Filesystem Size Used Avail Use% Mounted on /dev/sdn1 501G 132G 369G 27% /mnt/cache # btrfs filesystem usage --si /mnt/cache Overall: Device size: 1.00TB Device allocated: 268.57GB Device unallocated: 731.67GB Device missing: 0.00B Used: 265.97GB Free (estimated): 366.36GB (min: 366.36GB) Data ratio: 2.00 Metadata ratio: 2.00 Global reserve: 101.32MB (used: 0.00B) Data,RAID10: Size:133.14GB, Used:132.62GB /dev/sdf1 33.28GB /dev/sdi1 33.28GB /dev/sdn1 33.28GB /dev/sdp1 33.28GB Metadata,RAID10: Size:1.07GB, Used:366.15MB /dev/sdf1 268.43MB /dev/sdi1 268.43MB /dev/sdn1 268.43MB /dev/sdp1 268.43MB System,RAID10: Size:67.11MB, Used:16.38kB /dev/sdf1 16.78MB /dev/sdi1 16.78MB /dev/sdn1 16.78MB /dev/sdp1 16.78MB Unallocated: /dev/sdf1 216.49GB /dev/sdi1 216.49GB /dev/sdn1 216.49GB /dev/sdp1 216.49GB Seems to me that df reports the correct size, while btrfs is not. Care to explain?
December 8, 20178 yr Community Expert 3 hours ago, bonienl said: Seems to me that df reports the correct size, while btrfs is not. Care to explain? It's correct on btrfs usage: free space 3 hours ago, bonienl said: Free (estimated): 366.36GB (min: 366.36GB) df reports 369GB used space you must divide by 2 since all data is duplicated: 3 hours ago, bonienl said: Used: 265.97GB So used it's about 133GB, df reports 132GB Small differences but close enough.
December 8, 20178 yr Community Expert Just now, bonienl said: Is the same true for: Device size / Data ratio = 1TB / 2 = 500GB Yes , you can use this to calculate: 3 hours ago, bonienl said: Data ratio: 2.00 Say it's raid0, this value will be one, so total size and used size needs to be divided by the data ratio.
December 8, 20178 yr Author Here are the results from btrfs Overall: Device size: 670.71GiB Device allocated: 204.06GiB Device unallocated: 466.65GiB Device missing: 0.00B Used: 183.63GiB Free (estimated): 242.52GiB (min: 242.52GiB) Data ratio: 2.00 Metadata ratio: 2.00 Global reserve: 16.00MiB (used: 0.00B) Data,RAID1: Size:101.00GiB, Used:91.80GiB /dev/sdc1 68.00GiB /dev/sdh1 67.00GiB /dev/sdi1 67.00GiB Metadata,RAID1: Size:1.00GiB, Used:17.19MiB /dev/sdc1 1.00GiB /dev/sdh1 1.00GiB System,RAID1: Size:32.00MiB, Used:16.00KiB /dev/sdc1 32.00MiB /dev/sdh1 32.00MiB Unallocated: /dev/sdc1 154.54GiB /dev/sdh1 155.54GiB /dev/sdi1 156.57GiB I'm guessing everything is okay. Although I would have figured the Device size would be 720GB instead of 670.71GB
December 8, 20178 yr 30 minutes ago, Trites said: I'm guessing everything is okay. Although I would have figured the Device size would be 720GB instead of 670.71GB 670.71GiB is more or less 720GB. :-)
December 8, 20178 yr Community Expert 670.71GiB is more or less 720GB. :-) Correct, if you want the results in GB you can use: btrfs fi usage --si /mnt/cache
December 9, 20178 yr 3 hours ago, Trites said: I'm guessing everything is okay. Although I would have figured the Device size would be 720GB instead of 670.71GB You're not paying attention to the units. GiB is not the same as GB. https://en.wikipedia.org/wiki/Gibibit 1 gibibit = 230 bits = 1073741824bits 670.71 Gib = 720 169 378 775 bits 1 gigabit = 109bits = 1000000000bits. 720GB = 720 000000000 bits
December 9, 20178 yr Author 1 hour ago, BRiT said: You're not paying attention to the units. GiB is not the same as GB. https://en.wikipedia.org/wiki/Gibibit 1 gibibit = 230 bits = 1073741824bits 670.71 Gib = 720 169 378 775 bits 1 gigabit = 109bits = 1000000000bits. 720GB = 720 000000000 bits Ya... For some reason my brain didn't register the "i" in GiB.
December 9, 20178 yr 6 hours ago, BRiT said: You're not paying attention to the units. GiB is not the same as GB. https://en.wikipedia.org/wiki/Gibibit 1 gibibit = 230 bits = 1073741824bits 670.71 Gib = 720 169 378 775 bits 1 gigabit = 109bits = 1000000000bits. 720GB = 720 000000000 bits ...and B is not the same as b
