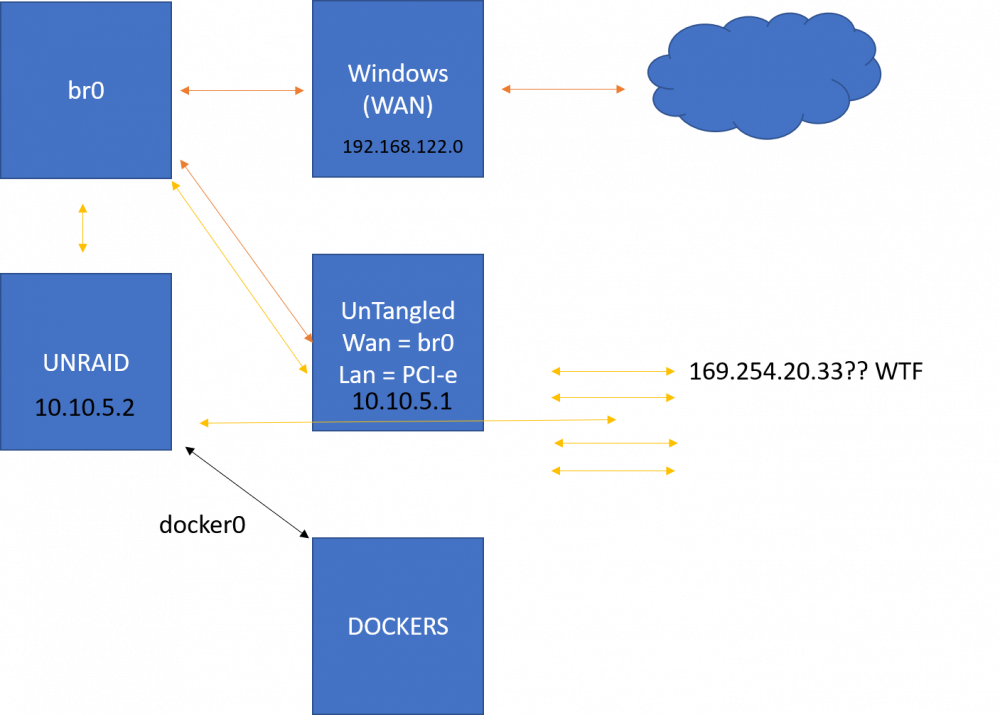

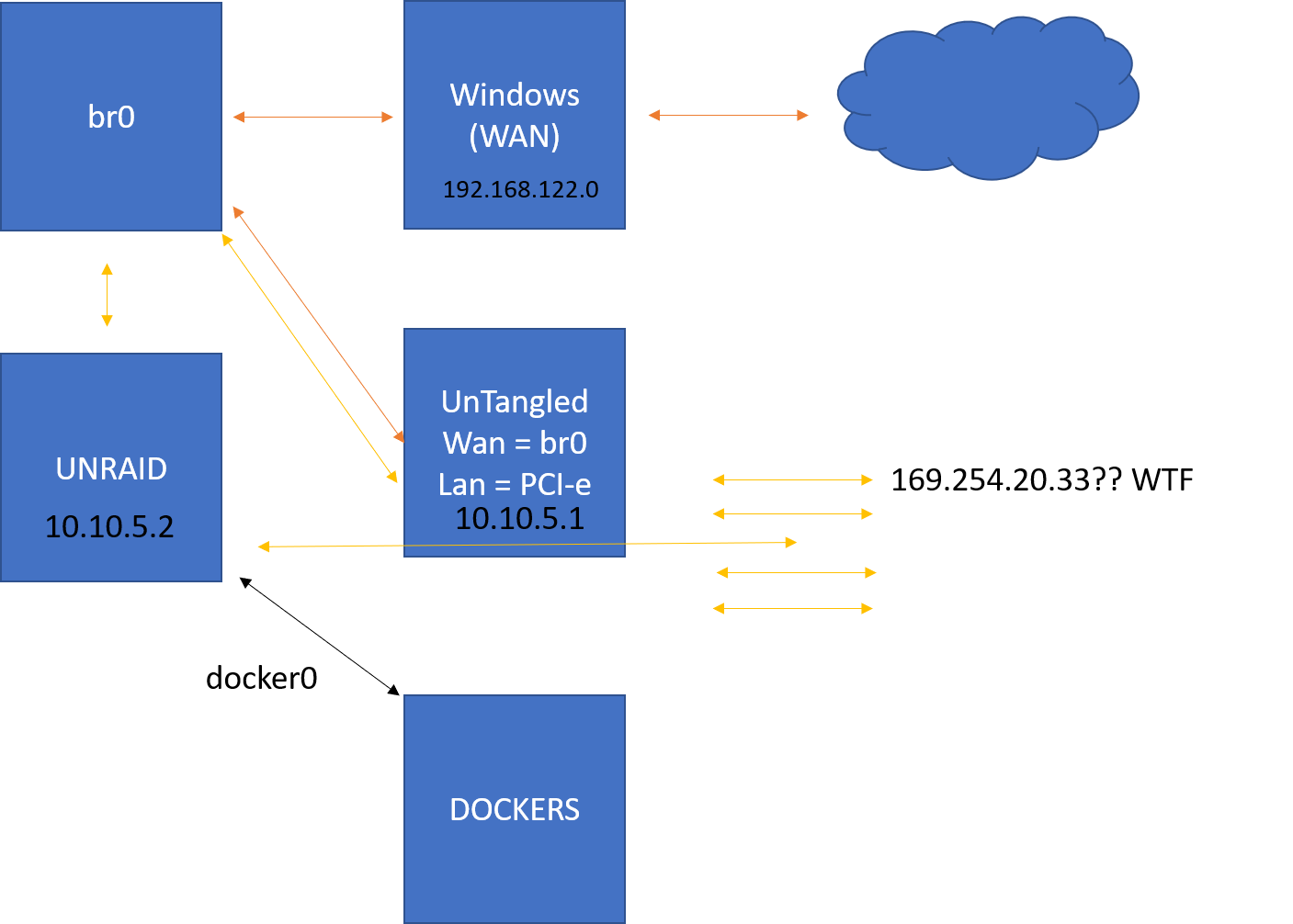

pyrater Posted February 3, 2018 Posted February 3, 2018 I built a small NAS server (u-nas 810A) to take with me all over the world as i tend to travel to places with multiple crappy internet connections (100-200 kbps) . I am trying to do a fairly weird setup so if anyone can help i would greatly appreciate it. This may be a bit confusing so thank you for sticking with me, here goes: Windows VM Running Speedify (software) with 4 passthrough wifi Cards and 1 virtual NIC shared on br0. This VM takes the 4 wifi cards and does packet based bonding over a VPN connection to a speed server located elsewhere in the world. (this works fine) I have this connection shared out to the network using hotspot max (software) and its creating a dhcp server on the br0 in the 192.127.x.x range. So far this all works. Untangled router VM This vm has 4 RJ45 ports via external PCI-e card which has been passed through and a virtual nic on br0 The external or wan port (192.127.x.x) is set to be the virtual nic on br0, this works and pulls an ip from the windows VM and untangled can ping the internet though the wan port to the virtual adapter to the windows vm through the bonded connection. everything is good SO FAR. The issue is with getting untangle to serve lan clients. I have the RJ45 port 1 set to internal and dhcp serving on 10.10.5.1/24 . However when i plug in a cat5 cable to any external device it will not pull an IP from the untangled VM. I see a correct ARP entry matching my MAC addy and the correct ip subnet that i set, however the laptop / pc will never actually get the IP. The unraid box has a network as such using an additional onboard RJ45 10.10.5.2 255.255.255.0 10.10.5.1 Default -> 10.10.5.0 10.10.5.1 -> br0 I am at a loss, if you have any tips or thoughts please let me know. Basicly without the untangled VM up i will be unable to access unraid webgui, and the untangled webgui unless i use a local monitor and keyboard / mouse.
JonathanM Posted February 3, 2018 Posted February 3, 2018 2 hours ago, pyrater said: dhcp server on the br0 in the 192.127.x.x range. Dunno if this has anything to do with your specific issue, but it's bad practice to use live internet addresses that you don't own on your private network. That address range is owned and used by NCR corporation. Use private non-routable addresses instead. https://www.arin.net/knowledge/address_filters.html
pyrater Posted February 3, 2018 Author Posted February 3, 2018 Jon, i dunno where that address even came from. I did mistype it it was actually 192.168.217.102 though i didnt set it and its getting it somewhere. I assume its in the network settings of br0 and unraid.... Either way thats on the wrong side of the issue. The issue is with the lan side.
pyrater Posted February 3, 2018 Author Posted February 3, 2018 NVM it got the weird IP from the windows VM doing DHCP / NAT
