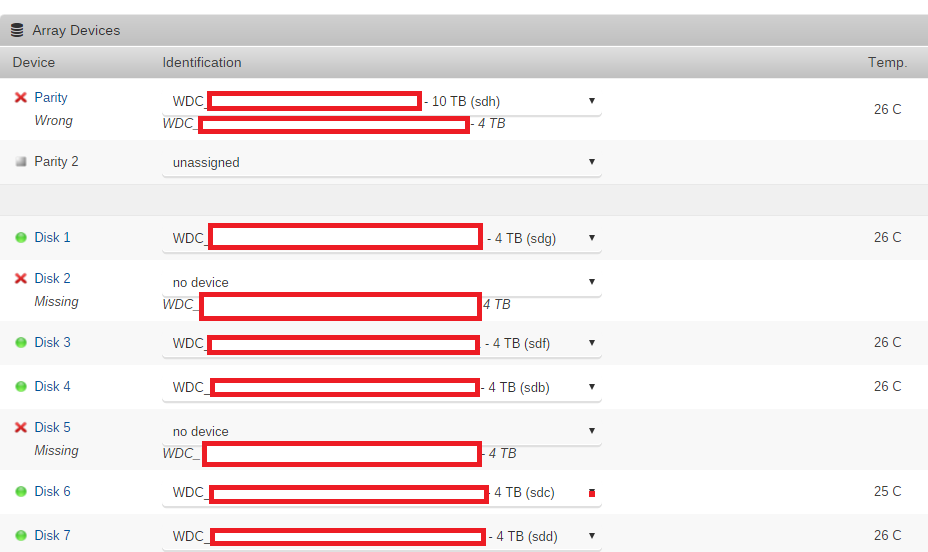

June 12, 20188 yr Hi, I performed a clean shutdown, pulled all of the cables from the back and let the system become fully powered down. - 45-50 minutes to be safe. I pulled the 4TB WD RED Parity Drive (all labelled) from the case (hot-swap) and I inserted my brand new 10TB WD RED Parity Drive until I heard the click. - 100% connected. I plugged all of the cables back in and let UnRAID 6.5.2 boot properly. I am then greeted by this (see screenshot). The drive that I have pulled, is now available for Disk 2 and 5. Does anyone have a clue whats going on and how I can fix it? Thanks ~ RS - I have two 10TB drives to install.
June 13, 20188 yr Community Expert 8 hours ago, Rick Sanchez said: The drive that I have pulled, is now available for Disk 2 and 5. That would suggest you pulled the wrong drive, please post your diagnostics: Tools -> Diagnostics
June 13, 20188 yr Author The model/serial numbers all match. I've definitely pulled the correct drive. diagnostics.zip
June 14, 20188 yr Community Expert It is on the diags you posted: [name] => parity ... [idSb] => WDC_WD40EFRX-68WT0N0_WD-WCC4E1548015 === START OF INFORMATION SECTION === Model Family: Western Digital Red Device Model: WDC WD40EFRX-68WT0N0 Serial Number: WD-WCC4E1548015 LU WWN Device Id: 5 0014ee 25f689222 Firmware Version: 80.00A80 User Capacity: 4,000,787,030,016 bytes [4.00 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 5400 rpm Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-2 (minor revision not indicated) SATA Version is: SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Wed Jun 13 15:46:33 2018 PDT SMART support is: Available - device has SMART capability. SMART support is: Enabled AAM feature is: Unavailable APM feature is: Unavailable Rd look-ahead is: Enabled Write cache is: Enabled DSN feature is: Unavailable ATA Security is: Disabled, NOT FROZEN [SEC1] Wt Cache Reorder: Enabled
