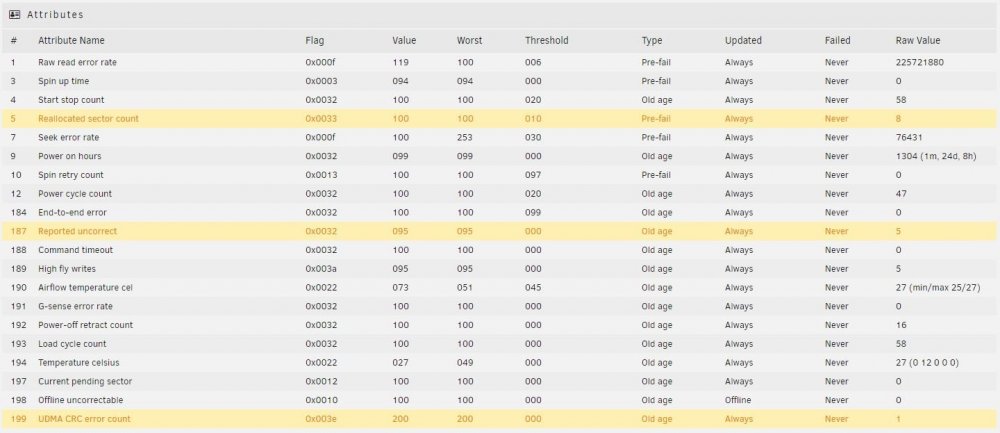

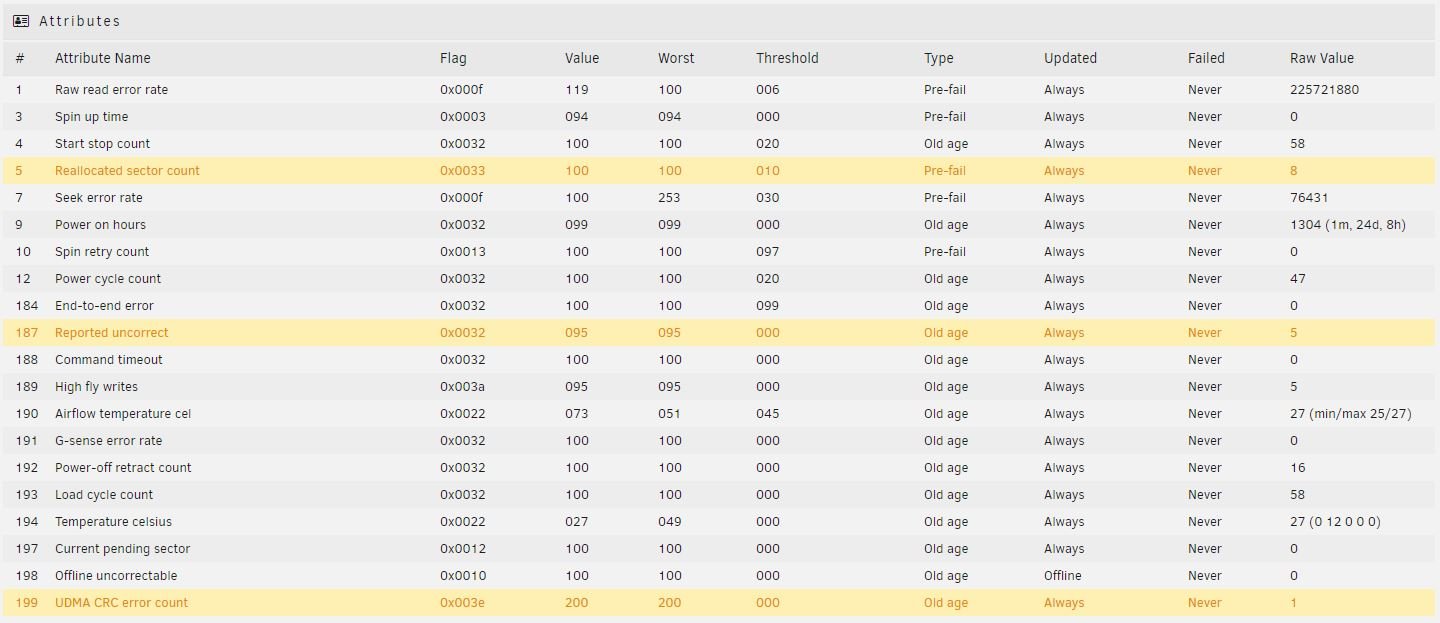

January 14, 20197 yr Can someone help me understand Smart Drive Data? I've got some errors. I've attached the log files and posted the short self-test data below: I've tried swapping out the cable. The Hard Drive is a Seagate Ironwolf 3TB and it's brand new. My config is four 3TB Seagate Ironwolfs 3 are acting as storage and 1 is parity. I also have a 500gb Samsung Evo acting as a cache drive. The four Seagate drives are connected to a controller (I/O Crest 4 Port SATA III PCI-e 2.0 x1 Controller Card Marvell 9215 Non-Raid SI-PEX40064) The first two drive and the parity drive all have not had any issues and I ran pre-clear on all four drives when setting my system up. Thanks for your help! tower-smart-20190114-1505.zip
January 14, 20197 yr This is all you need to look at: Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Short offline Completed: read failure 90% 1303 5469842936 Failed SMART test = failed drive
January 14, 20197 yr Author 12 minutes ago, johnnie.black said: This is all you need to look at: Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Short offline Completed: read failure 90% 1303 5469842936 Failed SMART test = failed drive Sorry, I'm still not understanding are you saying the drive has failed and that I should replace it? Edited January 14, 20197 yr by jh1987
January 15, 20197 yr 43 minutes ago, jh1987 said: are you saying the drive has failed and that I should replace it? yes
January 15, 20197 yr 1 hour ago, jh1987 said: I/O Crest 4 Port SATA III PCI-e 2.0 x1 Controller Card Marvell 9215 Non-Raid SI-PEX40064 That may or may not be an ongoing issue for you. Some people have nothing but issues with Marvell based cards in newer linux systems.
January 16, 20197 yr Author On 1/14/2019 at 4:38 PM, trurl said: yes Got it. I have a replacement on order from Seagate. I'll give it a swap. Appreciate your help.
January 16, 20197 yr Author On 1/14/2019 at 5:01 PM, jonathanm said: That may or may not be an ongoing issue for you. Some people have nothing but issues with Marvell based cards in newer linux systems. I was wondering the same thing. Is there a card you recommend for someone on a budget?
January 16, 20197 yr 10 minutes ago, jh1987 said: I was wondering the same thing. Is there a card you recommend for someone on a budget? You can get good server pulls from eBay. There are many models of LSI chipset-based cards that work well with unRAID. LSI-9211-8i, LSI 9207-8i, LSI 930x-8i (anything based on the 2008/2308/3008 chipsets) and clones of the 9211-8i such as the Dell H310 and IBM M1015 are popular choices with unRAID users. The clones need to be flashed with IT firmware. I just bought a Dell H310 on eBay for $30 and flashed it to 9211-8i IT firmware. You can also find pre-flashed cards for a bit more. Edited January 16, 20197 yr by Hoopster
