6.7.0 RC5 (and 4,3,2,1, and last stable) Getting the following issues, is my USBstick dying?


Recommended Posts

This is what the log is spitting out on repeat:

ErrorWarningSystemArrayLogin


Feb 28 15:24:26 SERVERPRIME kernel: fat__get_entry: 1430 callbacks suppressed
Feb 28 15:24:26 SERVERPRIME kernel: FAT-fs (sda1): Directory bread(block 30558) failed
Feb 28 15:24:26 SERVERPRIME kernel: FAT-fs (sda1): Directory bread(block 30559) failed
Feb 28 15:24:26 SERVERPRIME kernel: FAT-fs (sda1): Directory bread(block 30560) failed
Feb 28 15:24:26 SERVERPRIME kernel: FAT-fs (sda1): Directory bread(block 30561) failed
Feb 28 15:24:26 SERVERPRIME kernel: FAT-fs (sda1): Directory bread(block 30562) failed
Feb 28 15:24:26 SERVERPRIME kernel: FAT-fs (sda1): Directory bread(block 30563) failed
Feb 28 15:24:26 SERVERPRIME kernel: FAT-fs (sda1): Directory bread(block 30564) failed
Feb 28 15:24:26 SERVERPRIME kernel: FAT-fs (sda1): Directory bread(block 30565) failed
Feb 28 15:24:26 SERVERPRIME kernel: FAT-fs (sda1): Directory bread(block 30566) failed
Feb 28 15:24:26 SERVERPRIME kernel: FAT-fs (sda1): Directory bread(block 30567) failed
Feb 28 15:24:26 SERVERPRIME root: Starting Samba: /usr/sbin/nmbd -D
Feb 28 15:24:26 SERVERPRIME root: /usr/sbin/smbd -D
Feb 28 15:24:26 SERVERPRIME root: /usr/sbin/winbindd -D
Feb 28 15:24:27 SERVERPRIME emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/3D printer.cfg
Feb 28 15:24:27 SERVERPRIME emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/Software.cfg
Feb 28 15:24:27 SERVERPRIME emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/appdata.cfg
Feb 28 15:24:27 SERVERPRIME emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/audiobooks.cfg
Feb 28 15:24:27 SERVERPRIME emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/backups.cfg
Feb 28 15:24:27 SERVERPRIME emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/books.cfg
Feb 28 15:24:27 SERVERPRIME emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/data.cfg
Feb 28 15:24:27 SERVERPRIME emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/domains.cfg
Feb 28 15:24:27 SERVERPRIME emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/downloads.cfg
Feb 28 15:24:27 SERVERPRIME emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/isos.cfg
Feb 28 15:24:27 SERVERPRIME emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/misc.cfg
Feb 28 15:24:27 SERVERPRIME emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/movies.cfg
Feb 28 15:24:27 SERVERPRIME emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/music.cfg
Feb 28 15:24:27 SERVERPRIME emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/pictures.cfg
Feb 28 15:24:27 SERVERPRIME emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/system.cfg
Feb 28 15:24:27 SERVERPRIME emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/test.cfg
Feb 28 15:24:27 SERVERPRIME emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/tv.cfg
Feb 28 15:24:27 SERVERPRIME emhttpd: Starting services...
Feb 28 15:24:27 SERVERPRIME emhttpd: shcmd (68448): /etc/rc.d/rc.samba restart
Feb 28 15:24:27 SERVERPRIME root: cp: cannot create regular file '/boot/config': Input/output error
Feb 28 15:24:27 SERVERPRIME kernel: FAT-fs (sda1): FAT read failed (blocknr 662)
Feb 28 15:24:29 SERVERPRIME root: Starting Samba: /usr/sbin/nmbd -D
Feb 28 15:24:29 SERVERPRIME root: /usr/sbin/smbd -D
Feb 28 15:24:29 SERVERPRIME root: /usr/sbin/winbindd -D

I can resolve this issue by shutting the server down, removing the usbstick. plugging it into a windows machine (no errors found) then placing it back in the server and it tends to go again for a day or 2.

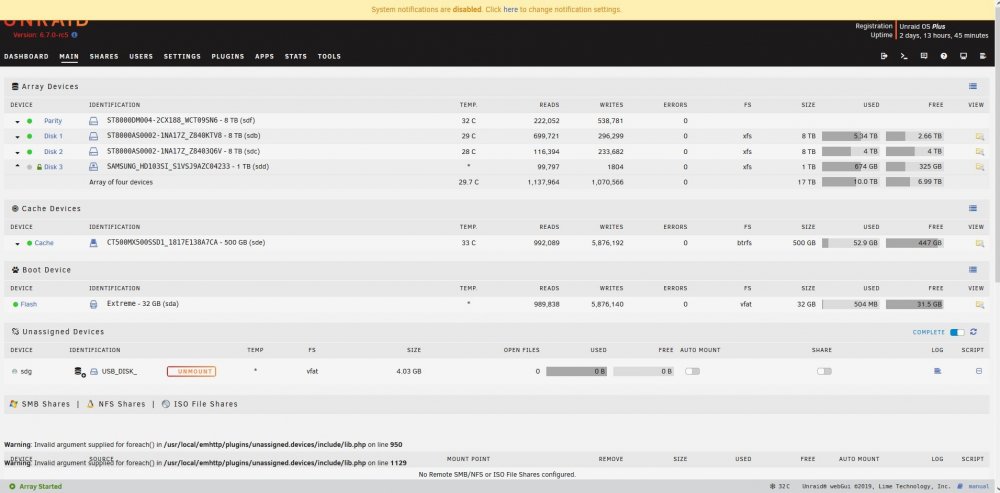

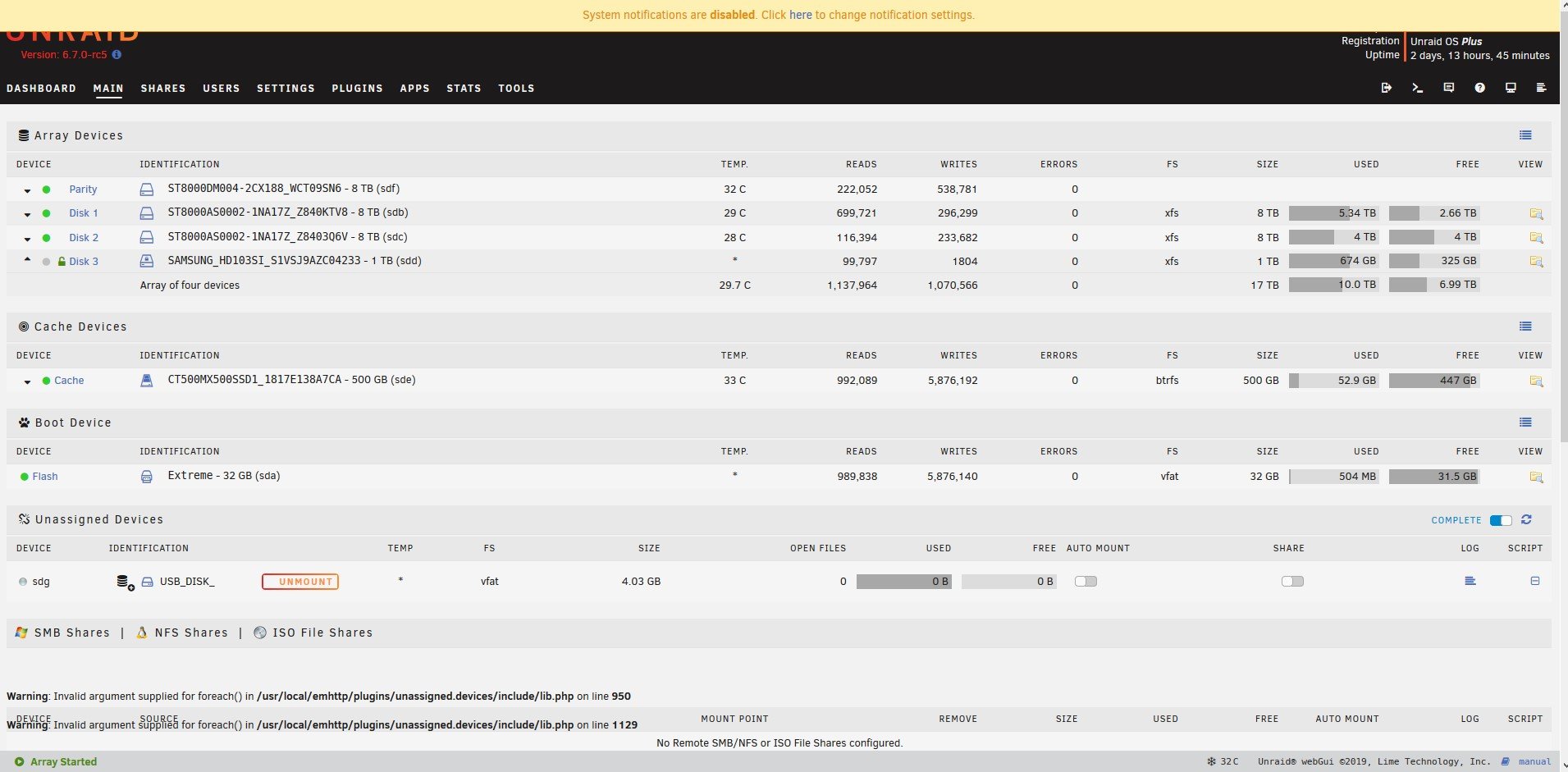

I attached a screenshot of my desktop view. its weird.



Annotation 2019-02-28 152404.jpg

Link to comment

yes tried different usb ports. I originally had it on the internal motherboards 2.0 usb header and it worked perfectly for 7+ months.



this problem also occured twice on the usb 2.0 header.



Now I have been swapping usb ports but those are all 3.1 gen1 or gen 2.

https://www.asrock.com/MB/Intel/H370M-ITXac/index.asp



attached are the diagnostics

serverprime-diagnostics-20190228-1602.zip

Edited by BelgarionNL
Link to comment

You don't mention what flash, but I have had several (not in Unraid) of those especially small ones fail, probably due to overheating. Is it hot when you pull it? Do you have anything writing a lot to flash, such as Fix Common Problems Troubleshooting mode? The Unraid OS itself doesn't access flash a lot. Just when you boot, start/stop the array, or change something in the webUI.

Link to comment

Its a 'big/long' sandisk 16gb and the last time I pulled it out, I didn't notice it was warm. Furthermore the usbstick is sitting right in front of one of those new 30 dollar noctua fans so it gets at least some cooling from it.



- I dont think I write a lot of data to the usbstick, I do have fix common problems but it checks weekly and the rest is set to default. Additionally I have CA Backup/Restore which is running a daily copy to my second flash drive.



- Could that be causing the problem? (edit: I disabled backup to second usbdrive to see if that fixes the issue.)



My problem is that I want to try and swap out the usb stick for a brand new one. BUT what happens when that one fails because we can only change over the license key once a year. Am I then screwed and forced to buy a new license?





My plan: Its doing a parity check and with 8gb drives that takes a while so I will wait until it finishes before I switch to a new usbstick. I really haven't tinkered with the server at all except for normal OS updates. So I think the usbstick could be logical conclusion unless you guys come up with something better :)



I will follow this thread closely for the next few days in the hope you guys come up with an alternative to using a new USB stick.

Please let me know how I can contribute more data to find the cause because I really want to fix this issue seeing how everything runs on this machine from my pfsense router to my lights (home assistant) When my server goes dark I pretty much go dark... *unfortunately literally go dark :P*



Edited by BelgarionNL
additional info
Link to comment
14 hours ago, BelgarionNL said:

My problem is that I want to try and swap out the usb stick for a brand new one. BUT what happens when that one fails because we can only change over the license key once a year. Am I then screwed and forced to buy a new license?

The automatic process is once a year. If you do experience another failure you can email limetech and explain the situation, they will transfer it manually to another stick for you.



I've had a similar thing happen with one of my sticks, (bread errors) and it calmed down on its own for no discernible reason. However, your symptoms and progression definitely sound like a failing stick to me.



I'd do the transfer now (after the parity check) to a new stick, not wait and continue to have issues.

Link to comment
