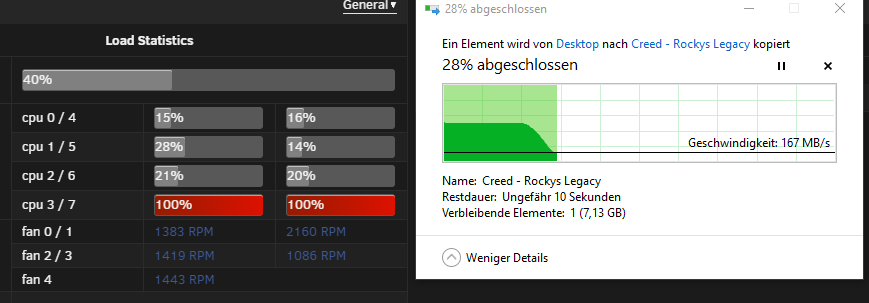

redQs Posted April 18, 2019 Share Posted April 18, 2019 Hello, i installed an Mellanox ConnectX - 2 10gbit NIC at my Unraid and my PC. I just use it directly between my Unraid and my windows PC. If 1 datei is on my ssd cach i can copy it over the 10gig to my pc ssd with full speed. it works just normal / fine. The problem is if i try to write to my share / ssd cache it starts good but than it drops after some sec like you can see in the picture. I saw that my CPU is going to but some cores to 100%. but it change the cores the hole time till the copy is finish. Do you know why my copy to the share is droping like this? Is my CPU singel core speed to bad? Its an I7 3770k. Do you think my ssd is broken? I got 18 retired blocks. Thanks for your answer right now. redQs Link to comment
JorgeB Posted April 18, 2019 Share Posted April 18, 2019 First few seconds are cached to RAM, default is 20% free RAM, after that you are limited by the actual write speed of the SSD, you didn't mentioned the SSD model, but most models can't sustain 500MB/s, sometimes nowhere near that, also it's important to trim it regularly. Link to comment
redQs Posted April 18, 2019 Author Share Posted April 18, 2019 its my old OCZ-VERTEX3. So you think its the writing speed of the ssd. So i need new one. but why is the cpu at 100%? Is once a week triming enough? Wich one can sutain like 500mb/s the hole copy prozess? Link to comment
skaterpunk0187 Posted April 19, 2019 Share Posted April 19, 2019 6 hours ago, redQs said: its my old OCZ-VERTEX3. So you think its the writing speed of the ssd. I have 10GBe as well. I have tried dozens of sata ssd's, and even the high end ones like the Samsung 860 Pro, don't have great sustained write speed. You'll need to go with an NVMe or a PCIe AIC. 6 hours ago, redQs said: but why is the cpu at 100%? The Mellanox ConnectX offloads processing to the CPU. 6 hours ago, redQs said: Is once a week trimming enough? Once a week should be fine. Even less of you don't write to it often. 6 hours ago, redQs said: Which one can sustain like 500mb/s the hole copy process? I'm using an older Xeon board so no M.2 slots so I went with this: https://www.intel.com/content/www/us/en/products/memory-storage/solid-state-drives/gaming-enthusiast-ssds/optane-900p-series/900p-280gb-aic-20nm.html I get around 550-610 Mb/s transfer to my Unraid box. And that's only limited to the read speed of my lower end NVMe drive in my desktop. Link to comment
redQs Posted April 19, 2019 Author Share Posted April 19, 2019 thanks for your answer. Thats all i want to know So i need to buy an PCI SSD or i go for a card like this: https://www.asus.com/Motherboard-Accessories/HYPER-M-2-X16-CARD-V2/ and buy an NVMe ssd. thanks a lot! Link to comment
skaterpunk0187 Posted April 19, 2019 Share Posted April 19, 2019 That card would work it does only support M.2 SSD. this card is NVMe compatible https://www.amazon.com/dp/B07NQBQB6Z/?coliid=I1HGOE3XIBG8FK&colid=E4L84U552910&psc=0&ref_=lv_ov_lig_dp_it For best performance you'll want to use a good NVMe drive like the Intel Optane NVMe or a Samsung 870 Pro. You can also use multiple SSD/NVMe drives in your cache and make them RAID0 instead of RAID1. That will give you better performance but loose the redundancy if one cache drive fails. Also check your BIOS and make sure the PCIe slot you want to install it in can be configured to a 4x4x4x4x and not just a 16x slot. If it can not break out the PCIe lanes that card will still work but it will only work with one SSD, but if the lanes can be split you can have 4 SSDs for cache or whatever else. Link to comment
