rhard Posted April 14, 2020 Share Posted April 14, 2020 Sorry, my mistake. Yes, I meant -P 8 option on the client. Quote Link to comment
Supacon Posted April 15, 2020 Author Share Posted April 15, 2020 (edited) Something else I thought I'd try was to create a share on a Windows 10 VM running on Unraid (which is stored on the SSD). My 100MB small file test copied in 1m50s, peaking around 8MB/s. This is by far the fastest of any test with this set of files I've run so far. On an Unraid share that lives exclusively on cache this took 5m31s. Three times longer. What does this tell you? I guess the problems aren't really on the Mac's side after all. Obviously the hardware on my machine is capable of great speed, even through a virtualization layer into Unraid but there's something about Unraid or Samba severely limiting the performance. I'm not sure what this tells me about what I can actually do to solve this, however. Edited April 15, 2020 by Supacon Quote Link to comment
rhard Posted April 15, 2020 Share Posted April 15, 2020 Yes, I'm also very unhappy. Last month I started to search for home server solution. Mainly as a backup for photo/video archive, plus some docker and couple VM's. First I wanted to buy QNAP, but changed to fan-less design and better hardware. So I started to search all possible software solutions. UNRAID still remains my favorite. I tried OMV and Proxmox. OpenNAS don't want because of OpenBSD. But SMB performance is bad. I expected to run some projects over 10GbE from NVME. But was very disappointed waiting 20+ hours for my 450GB Apple Photos library transferring to UNRAID. Now I want to try custom linux build. I don't need any kind of parity or RAID. Will just rsync the data from one 10TB drive to another. Probably, I will try LVM cache with NVME to the main HDD, because UNRAID cache is also not what I expected. But I like UNRAID UI and Docker/VM management. Theoretically, I can live with performance issues, but generally speaking, I would like to have more support from the devs. At least some acknowledge. Quote Link to comment
Supacon Posted April 15, 2020 Author Share Posted April 15, 2020 (edited) @rhard it seems like you've really evaluated the bulk of other options on the market. I've got some experience with QNAP but I liked the idea of building something on my own for less money with much better specs, Linus Sebastian of LTT speaks highly of Unraid, which is how I discovered this OS. I found an old server locally for cheap that seemed to be a perfect fit. Everything came together so easily in my initial testing. Pop the installer on a USB drive, plug it in, boot, and you're good to go! I really like the Unraid web-based UI (which is high praise from me, as a web developer), the OS is familiar enough to me as I used to administer Linux systems, Unraid has a host of great capabilities, an excellent community of helpful users and developers (@SpaceInvaderOne is awesome), and a broad selection of handy plugins that are easy to install. I'd say that Unraid would be damned near perfect if it wasn't for the alarming fact that (in its current state, in my configuration) it can't seem to reliably and efficiently do the primary thing for which it is designed - share files over SMB! All this might not necessarily be a deal-breaker, though, as it serving as backup for things I rarely access, a self-contained media server that can handle BitTorrent and Plex and later, possibly host a video surveillance VM. So far it seems to work very well at these things. The worst part of actually using it for me was getting a few TB of data moved over to it, which required many restarts, many attempts, and a lot of waiting and restarting. One would think that something like dragging and dropping a few folders from macOS's Finder shouldn't completely kill a high-end computer on a super fast network connection. Hopefully there's just some kind of bug (in my configuration, in macOS, Samba, or in Unraid itself) that will become apparent and be fixed in time, but man, this experience with moving large numbers of files is a major disappointment. Edited April 15, 2020 by Supacon Quote Link to comment
MatzeHali Posted July 6, 2020 Share Posted July 6, 2020 Hey Supacon, did you find a solution fixing your problems, already? I'm having somehow similar problems, with shares I can write to very fast, but reading is capped without any chance to get faster, and also, when starting multiple copies in Finder to the UnRAID server, it really craps out sometimes. Would be good to know, if you found a solution, already. thx, M Quote Link to comment
Supacon Posted July 6, 2020 Author Share Posted July 6, 2020 No, I don’t think I ever got this working at a level I am satisfied with. In practice it doesn’t affect me all that much because I only use SMB occasionally to write large files. For keeping some things synced automatically I use Resilio with a Docker in Unraid and it’s very fast compared to SMB. Quote Link to comment
jeremyn Posted December 29, 2021 Share Posted December 29, 2021 Has anyone managed to make any headway here? My experience with larges numbers of files over SMB to or from a Mac is bordering on useless, especially since they dropped AFP (which actually handles large numbers of files quite well). I attempted to copy my large iPhoto library with hundreds of thousands of files and it said it would take several weeks. It's only a couple of TB. And I'm beginning to regret going with Unraid. If I had a 2nd server to copy my 250TB of stuff over to temporarily, I'd be switching. But alas, I don't so I'm trying to figure this out. I tried to get AFP/Netatalk working via Docker, but that's over my head and unfortunately I wasn't able to get any help on these forums. Feeling stuck. Quote Link to comment

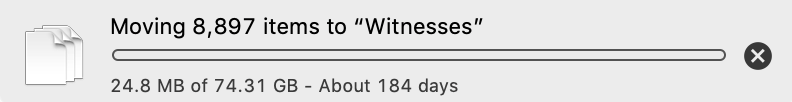

jeremyn Posted December 29, 2021 Share Posted December 29, 2021 I just tried another folder with a large but still reasonable number of files (under 10,000) and not a lot of data. 184 days to copy 8,887 files and only 47.31 GB over SMB to my Unraid server. The same folder to a 14 year old MacPro running AFP took a few min. Seriously WTF. Quote Link to comment
Maxrad Posted December 29, 2021 Share Posted December 29, 2021 I refer you to my post here: Search of SMB shares not working (MacOS client) This this solution improved my experience on macOS working with files on Unraid. I too experienced much frustration shifting away from AFP to SMB as the experience seemed much slower. However, with the right configuration changes (both client-side and server-side) I discovered SMB can be as good, if not superior, to AFP. I hope it helps you out. Quote Link to comment
jeremyn Posted December 29, 2021 Share Posted December 29, 2021 Thank you for the link and info, I reconfigured my SMB share with these settings, (customizing to my share paths as needed) and I'm sad to report zero difference. It takes about 5 - 30 seconds just to start copying each file. Quote Link to comment
Maxrad Posted December 29, 2021 Share Posted December 29, 2021 (edited) Sorry to read problem not yet solved. Did you also apply the SMB Signing (MacOS 10.11.4 and Before) tip on the 45Drives page? Well worth doing on the macOS computer to improve SMB performance. These commands typed in using Terminal on macOS. echo "[default]" >> /etc/nsmb.conf echo "signing_required=no" >> /etc/nsmb.conf …and restart macOS for changes to take effect. Edited December 29, 2021 by Maxrad Quote Link to comment
jeremyn Posted December 30, 2021 Share Posted December 30, 2021 I saw that in the page, but since I'm running a newer OS than MacOS 10.11.4 (I'm running 10.14.6), I didn't try it. But as it turns out, I just looked and I already had that in my numb.conf file. Quote Link to comment
Maxrad Posted December 30, 2021 Share Posted December 30, 2021 1 hour ago, jeremyn said: I saw that in the page, but since I'm running a newer OS than MacOS 10.11.4 (I'm running 10.14.6), I didn't try it. But as it turns out, I just looked and I already had that in my numb.conf file. You can check the file exists and its contents typing the following command into manOS Terminal: less /etc/nsmb.conf And it should work fine with any new-ish macOS. I'm running macOS 12.1 Quote Link to comment
ChasakisD Posted February 4, 2022 Share Posted February 4, 2022 On 12/30/2021 at 1:08 AM, jeremyn said: Thank you for the link and info, I reconfigured my SMB share with these settings, (customizing to my share paths as needed) and I'm sad to report zero difference. It takes about 5 - 30 seconds just to start copying each file. I have the same problem with SMB and MacOS. Did you manage to resolve it? Quote Link to comment
Maxrad Posted February 4, 2022 Share Posted February 4, 2022 I have experience significant performance improvement using macOS Finder connecting to Unraid SMB shares by applying configuration changes detailed here and (most importantly) here. I hope this helps. Quote Link to comment
Ralph456 Posted February 28, 2022 Share Posted February 28, 2022 I On 2/4/2022 at 6:06 PM, Maxrad said: I have experience significant performance improvement using macOS Finder connecting to Unraid SMB shares by applying configuration changes detailed here and (most importantly) here. I hope this helps. ITS 2022 and this problem is still very much alive. My nsmb.conf has the changes you suggested, and i'm also adding my complete samba extra on unraid at the bottom of this post. I don't know that what else to do other than completely moving on to something else. HERE IS THE USE CASE: Picture this , pro wedding photographer here, so i upload anywhere from 5000-12000 raw files depending on the wedding into subfolder categories by year and date to the server (chenbro nr12000 with cache) here is the problem, MAC OS FINDER basically stops, mac os becomes unresponsive when I access the shares containing the raw files. Why is that, now I understand its not entirely an unraid problem but I wish they would come up with a fix even if they charged for it. I did find a workaround by using file browser pro, but now, the server disconnects randomly when upload or download using file browser pro. [global] min protocol = SMB2 server multi channel support = Yes server signing = No read raw = Yes write raw = Yes min receivefile size = 16384 strict allocate = Yes use sendfile = Yes aio read size = 0 aio write size = 16384 allocation roundup size = 4096 use sendfile = Yes ea support = Yes vfs objects = catia fruit streams_xattr fruit:resource = file fruit:metadata = stream fruit:locking = none fruit:encoding = native fruit:model = MacSamba fruit:posix_rename = yes fruit:veto_appledouble = no fruit:wipe_intentionally_left_blank_rfork = yes fruit:delete_empty_adfiles = yes fruit:aapl = yes fruit:zero_file_id = yes fruit:nfs_aces = no spotlight backend = tracker [RLABS_RAW] path = /mnt/user/RLABS_RAW spotlight = yes veto files = /._*/.DS_Store/ delete veto files = yes Quote Link to comment
teakmeister Posted December 26, 2022 Share Posted December 26, 2022 Is there similar tuning that can be done to improve performance copying from unraid SMB to Windows? Trying to copy back some photos (only 1.4GB/930 files) and getting big bouts of no activity, it's taking ~25mins to copy the files. Quote Link to comment
JorgeB Posted December 27, 2022 Share Posted December 27, 2022 15 hours ago, teakmeister said: Is there similar tuning that can be done to improve performance copying from unraid SMB to Windows? Are you using v6.11? Quote Link to comment
Mossshine Posted January 16, 2023 Share Posted January 16, 2023 (edited) Having the same issue in windows - I have 60K~ folders with 2 files in a single folder B on array and writing another file into B folder next to the 60K folders is now so slow, that its transfering at speed of few hundred kilobytes. It's impossible to work with relatively big amounts of folders/files as the performance degrades significally. First 20k files were processed in about 1.5h, the next 40k are processing forth day. I have around 100k to go. I feel like its gonna take whole year. Is there a solution? I thought that I could use Unraid as archival software, but lately it seems like that wasn't a bright idea. Edit: And yes, creating another empty folder next to the folder B and outputting my processed files there is way faster. I would need to merge them later tho, which is still not a solution, but simple workaround. Edited January 16, 2023 by Mossshine Quote Link to comment
teakmeister Posted February 9, 2023 Share Posted February 9, 2023 On 12/27/2022 at 8:26 AM, JorgeB said: Are you using v6.11? Yes. I found a work around by using WinSCP to grab the files Quote Link to comment
zaelnorth Posted February 12, 2023 Share Posted February 12, 2023 Same issue here with Win11 Pro and Unraid 6.11.5 - also had to resort to WinSCP to transfer files via FTP, if you set it to background and increase the parallel connections to 9, it goes very fast! Quote Link to comment
