my First UnRaid Setup

[Hari.B]

Hello everyone,



i would like to use this setup for video archive storage. 40TB or above using 6TB hard drives



help me to buy right hardware. i'm mentioning hardware which is available with me



1 gigabit nework switch

-

Intel Core i3-2100
2gbx2 = 4GB RAM
i would like to use WD GREEN SATA SSD 240GB drive for cache



i have 3x6TB hard disks (need to buy another 5x6TB hard disks)

-----

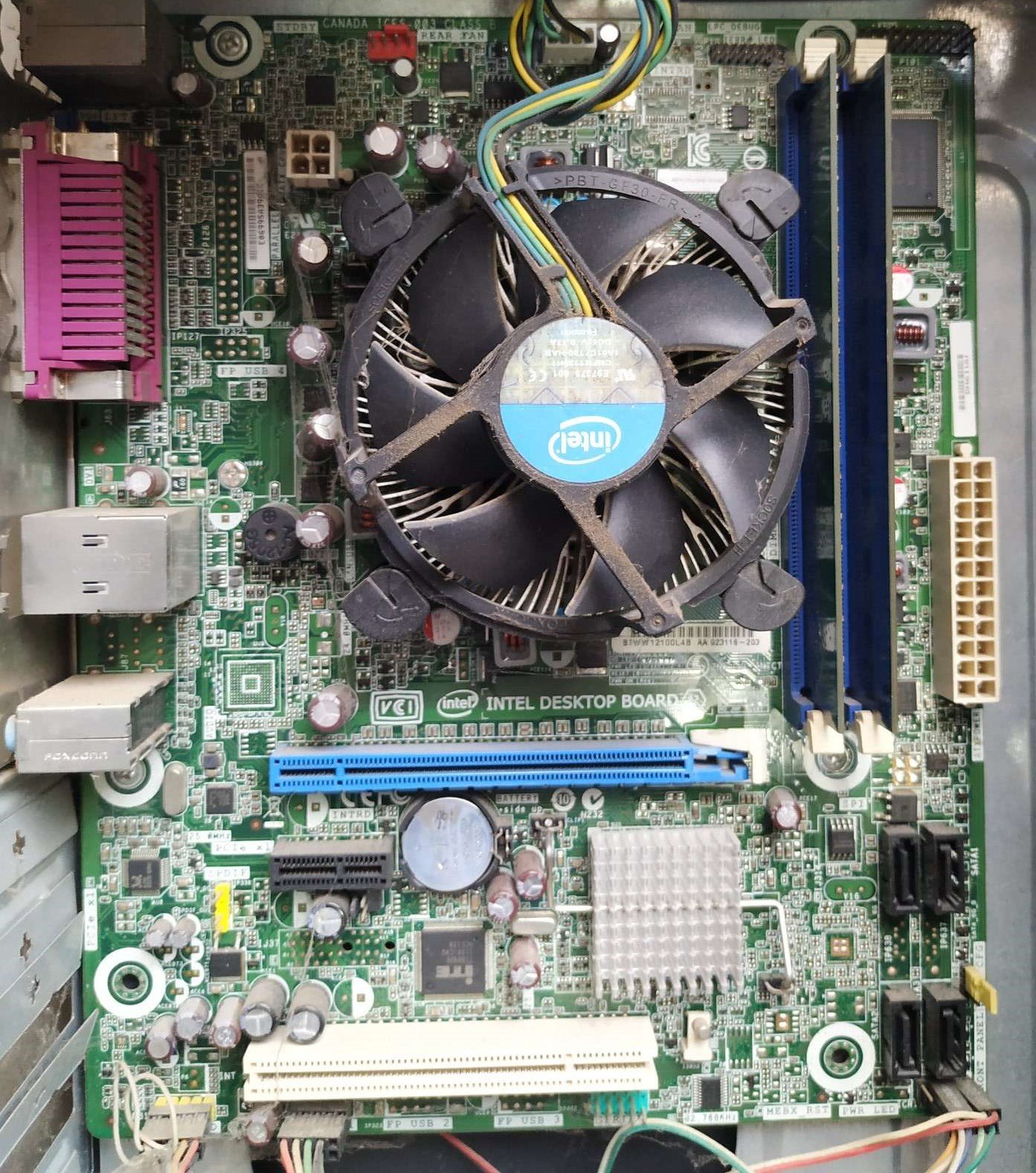

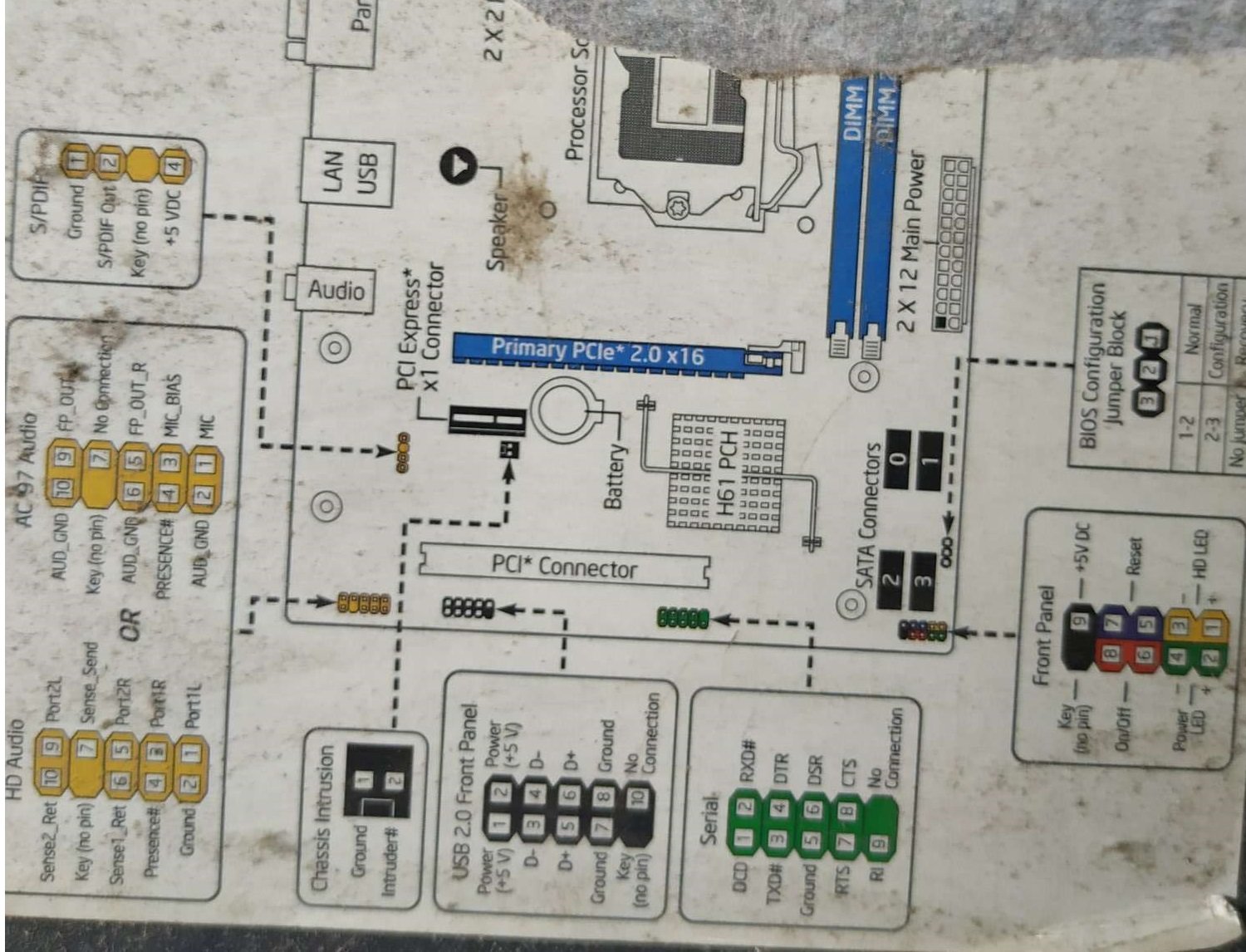

mother board has 4 sata ports, i need another 4 or 8 sata ports for my setup. i have gone through few old discussions and unraid compatibility list



i am unable to chose good adapter to expand sata ports . please recommend me a ideal one for my setup



Pci-e PCI Express Controller Card IDE SATA eSATA Internal External RAID Adapter

https://www.amazon.in/Technotech-Express-Controller-Internal-External/dp/B07873ZPYS/ref=sr_1_3?dchild=1&keywords=pci+to+sata&qid=1601376230&sr=8-3



pci express to 4 usb 3.0 ports

https://www.amazon.in/InfiZoneTM-PCI-USB-3-0-Connector/dp/B084KRSH44/ref=sr_1_12?dchild=1&keywords=pci+to+sata&qid=1601376230&sr=8-12



pci-e express to 4 sata ports

https://www.amazon.in/Docooler-Expansion-Adapter-Express-Controller/dp/B07MMBK3ZJ/ref=sr_1_15?dchild=1&keywords=pci+to+sata&qid=1601376230&sr=8-15





instead of pci to sata shall i buy PCI to USB 3.0 card ?? i want to do this because i need not to buy additional power supply unit .



wd my drive comes with its own power adapter .. i want to power it using power adapter connect it over usb drive

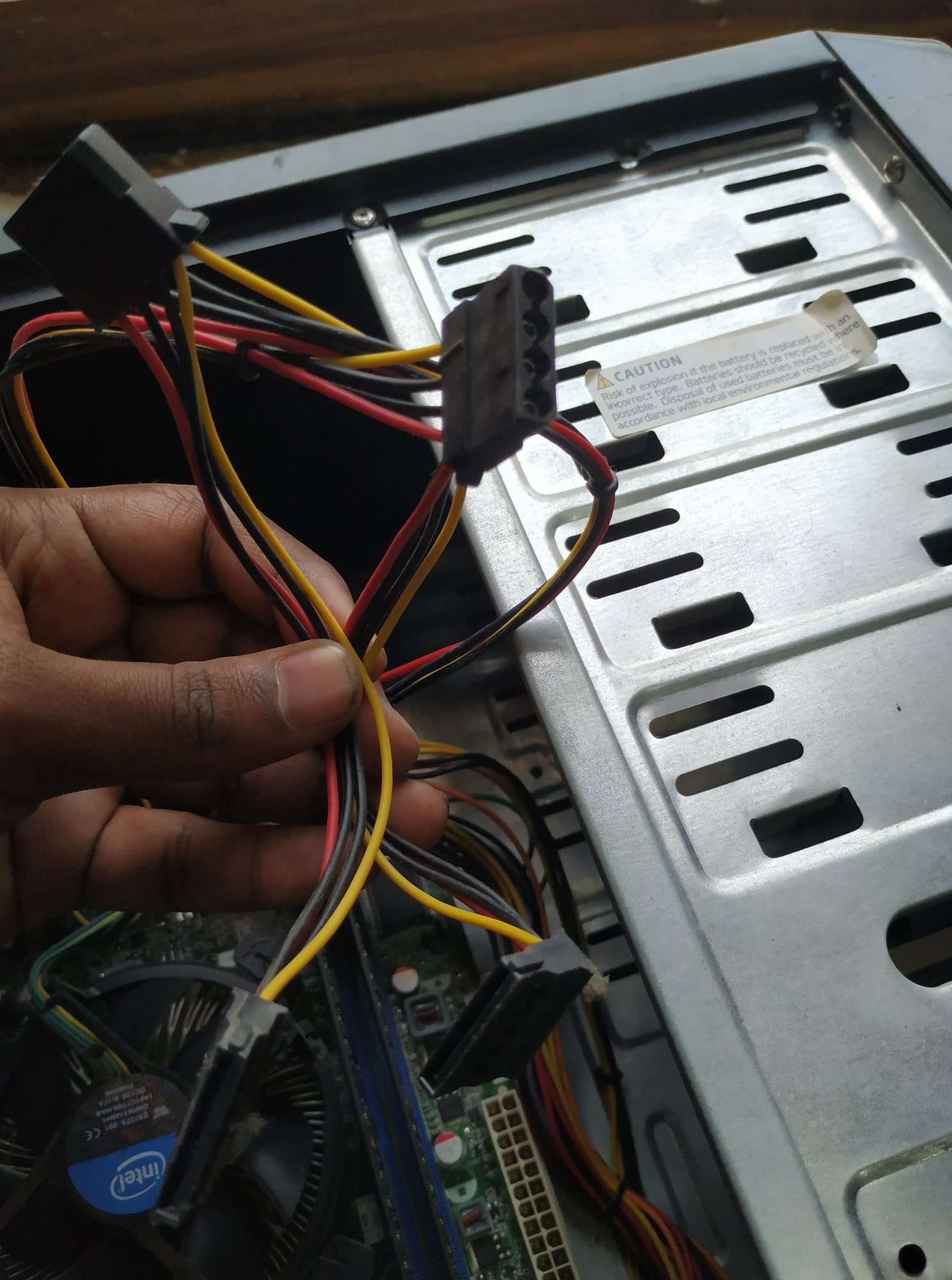

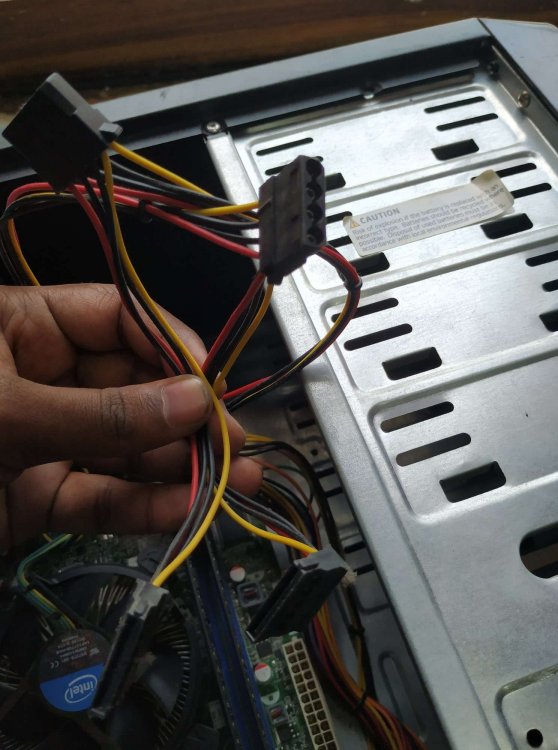

if unraid doesn't take usb drives while making pool drive .. recommend me a power supply unit too



how can i add a gigabit Ethernet port if i use PCI slot for extra sata ?







Edited September 29, 2020 by Hari.B
added image

[trurl]

USB is not a reliable permanent connection which is required for parity array or cache pool.



Usually you power drives from the same power supply as the motherboard.



You might want more RAM if you want to try docker or VM.

[Hari.B]

i am coming from WD my cloud nas .. i do not need more features. can i use UNraid like wd my cloud nas .. or do i need to put more efforts to maintain unraid ?



4gb ram good enough for this build ?



i'm not interested in docker or vm





[Hari.B]

1 hour ago, Hari.B said:

pci-e express to 4 sata ports

https://www.amazon.in/Docooler-Expansion-Adapter-Express-Controller/dp/B07MMBK3ZJ/ref=sr_1_15?dchild=1&keywords=pci+to+sata&qid=1601376230&sr=8-15

should i go with this ?

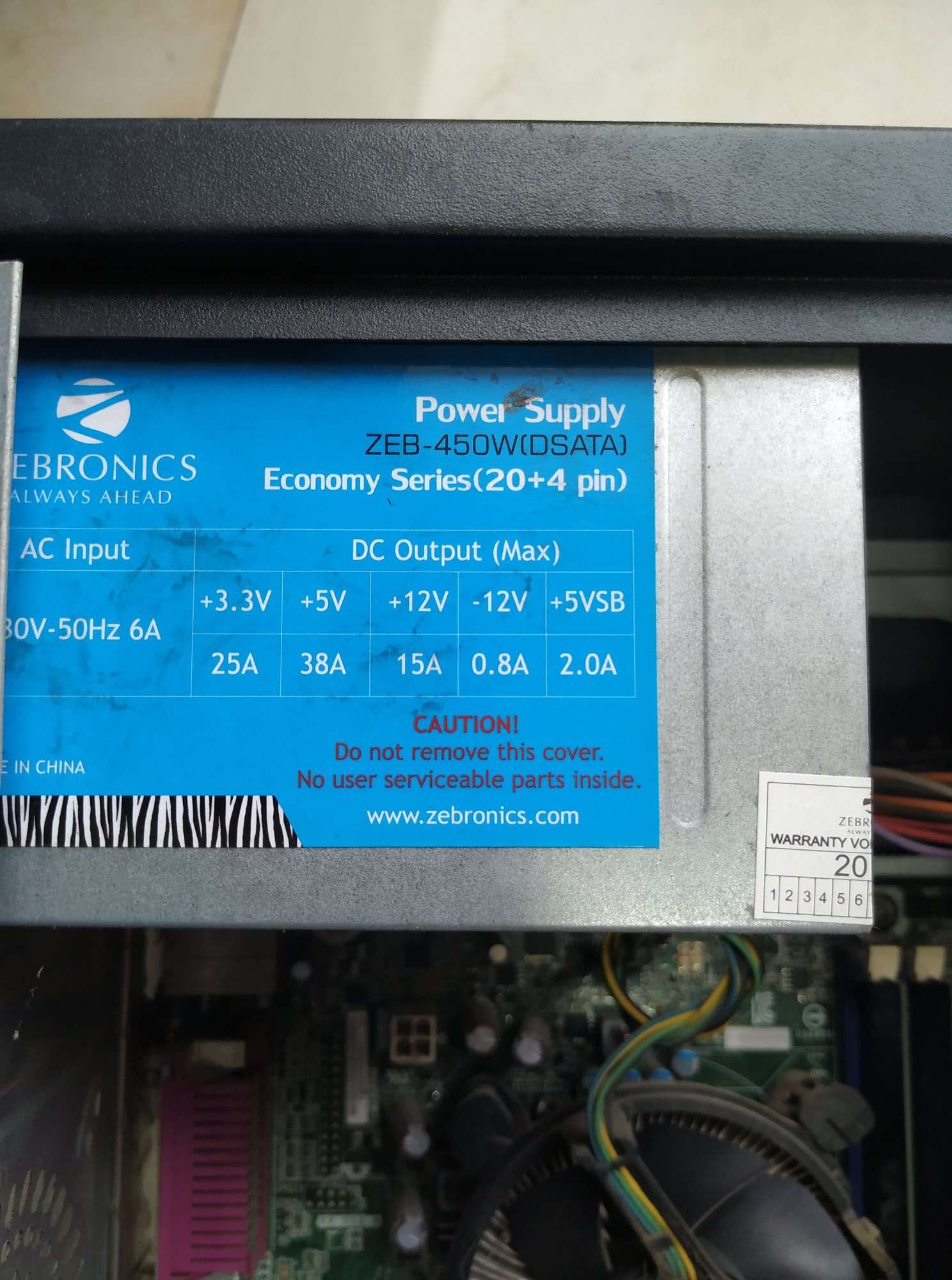

and which power supply unit you recommend to power 8 hard disks and mother board ?

[trurl]

Not enough information in that Amazon listing to decide whether to recommend or not. You could try it.

[JonathanM]

There is a very high chance that controller is marvell chipset, so not recommended. I don't know of any 4 port controllers that will work well. Your options are asmedia based 2 port, or JMB585 based 5 port cards, or LSI based 8 port cards.



There are some asmedia 4 port cards, but they use port multipliers, so also not recommended.



This should work. https://www.amazon.in/CREST-Internal-Non-Raid-Controller-Bracket/dp/B07ST9CPND/ref=sr_1_2?dchild=1&keywords=JMB585&qid=1601386545&sr=8-2

[Hari.B]



3 hours ago, jonathanm said:

Your options are asmedia based 2 port, or JMB585 based 5 port cards, or LSI based 8 port cards.

all these will cost more than $160 USD right ? .. any cheaper suggestions would be really appropriated for my motherboard  .. please do recommend



instead of buying sata extension card shall i buy new mother board with more sata ports compatible with my processor ?

Edited September 29, 2020 by Hari.B

[Hari.B]

ok, i would like to limit my requirement to 24TB (16tb or above)



can i use on board 4sata ports and expect 100MBPS speed with 4gb ram ?

Edited September 30, 2020 by Hari.B
16tb or above

[trurl]

Each disk is independent so read will be at the speed of the disk containing the file. Write speed somewhat slower due to parity updates. Nothing about this changes regardless of how much storage you have or how much RAM. Basic NAS functionality should be fine with only 4GB RAM.

[Hari.B]

4x6TB = 24TB with 6tb parity  .. how much write speed i can expect over FTP .. gigabit network connection

Edited October 1, 2020 by Hari.B

[trurl]

6 hours ago, Hari.B said:

4x6TB = 24TB with 6tb parity  .. how much write speed i can expect over FTP .. gigabit network connection

22 hours ago, trurl said:

Each disk is independent so read will be at the speed of the disk containing the file. Write speed somewhat slower due to parity updates. Nothing about this changes regardless of how much storage you have



Why would you use FTP?
