  • [6.7.0-rc1] misreading cache drive size/used/free

    Can0n

    By Can0n

      • Solved Minor

    just took the plunge on 6.7.0-rc1 on 1 server with a 1TB SSD for Cache and thought I read somewhere else someone is seeing the same issue but cant find it (sorry if this is a duplicate).

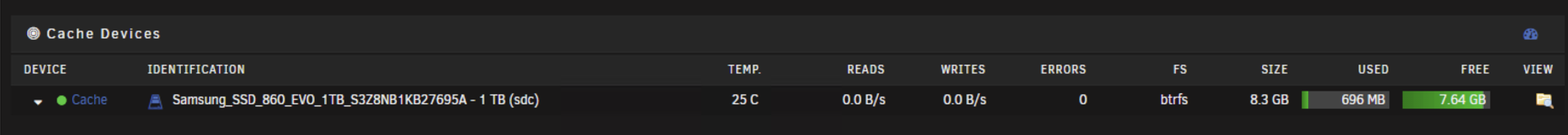

    my 1TB is being reported as a 8.3GB drive showing an unsually low amount of used and free I have tried the BTRS balance and Scrub without a change





    Screen Shot 2019-01-24 at 6.32.40 AM.png



    My disk Log:



    Jan 24 04:44:40 Freya kernel: ata2: SATA max UDMA/133 abar m2048@0xfe705000 port 0xfe705180 irq 35
    Jan 24 04:44:40 Freya kernel: ata2: SATA link up 6.0 Gbps (SStatus 133 SControl 300)
    Jan 24 04:44:40 Freya kernel: ata2.00: supports DRM functions and may not be fully accessible
    Jan 24 04:44:40 Freya kernel: ata2.00: ATA-11: Samsung SSD 860 EVO 1TB, S3Z8NB1KB27695A, RVT02B6Q, max UDMA/133
    Jan 24 04:44:40 Freya kernel: ata2.00: 1953525168 sectors, multi 1: LBA48 NCQ (depth 32), AA
    Jan 24 04:44:40 Freya kernel: ata2.00: supports DRM functions and may not be fully accessible
    Jan 24 04:44:40 Freya kernel: ata2.00: configured for UDMA/133
    Jan 24 04:44:40 Freya kernel: ata2.00: Enabling discard_zeroes_data
    Jan 24 04:44:40 Freya kernel: sd 2:0:0:0: [sdc] 1953525168 512-byte logical blocks: (1.00 TB/932 GiB)
    Jan 24 04:44:40 Freya kernel: sd 2:0:0:0: [sdc] Write Protect is off
    Jan 24 04:44:40 Freya kernel: sd 2:0:0:0: [sdc] Mode Sense: 00 3a 00 00
    Jan 24 04:44:40 Freya kernel: sd 2:0:0:0: [sdc] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
    Jan 24 04:44:40 Freya kernel: ata2.00: Enabling discard_zeroes_data
    Jan 24 04:44:40 Freya kernel: sdc: sdc1
    Jan 24 04:44:40 Freya kernel: ata2.00: Enabling discard_zeroes_data
    Jan 24 04:44:40 Freya kernel: sd 2:0:0:0: [sdc] Attached SCSI disk
    Jan 24 04:44:40 Freya kernel: BTRFS: device fsid 9b666354-df3d-4e58-a3a7-f79a6d727f7b devid 1 transid 2889 /dev/sdc1
    Jan 24 04:44:57 Freya emhttpd: Samsung_SSD_860_EVO_1TB_S3Z8NB1KB27695A (sdc) 512 1953525168
    Jan 24 04:44:57 Freya emhttpd: import 30 cache device: (sdc) Samsung_SSD_860_EVO_1TB_S3Z8NB1KB27695A
    Jan 24 04:45:01 Freya kernel: BTRFS info (device sdc1): disk space caching is enabled
    Jan 24 04:45:01 Freya kernel: BTRFS info (device sdc1): has skinny extents
    Jan 24 04:45:01 Freya kernel: BTRFS info (device sdc1): enabling ssd optimizations
    Jan 24 04:45:01 Freya kernel: BTRFS info (device sdc1): resizing devid 1
    Jan 24 04:45:01 Freya kernel: BTRFS info (device sdc1): new size for /dev/sdc1 is 1000204853248
    Jan 24 04:45:01 Freya kernel: BTRFS info (device sdc1): resizing devid 2
    Jan 24 04:45:01 Freya kernel: BTRFS info (device sdc1): new size for /dev/sdd1 is 256060481536
    Jan 24 04:50:47 Freya emhttpd: shcmd (113): /usr/sbin/hdparm -S0 /dev/sdc
    Jan 24 04:50:47 Freya root: /dev/sdc:
    Jan 24 04:51:26 Freya emhttpd: Samsung_SSD_860_EVO_1TB_S3Z8NB1KB27695A (sdc) 512 1953525168
    Jan 24 04:51:26 Freya emhttpd: import 30 cache device: (sdc) Samsung_SSD_860_EVO_1TB_S3Z8NB1KB27695A
    Jan 24 04:51:42 Freya kernel: BTRFS info (device sdc1): allowing degraded mounts
    Jan 24 04:51:42 Freya kernel: BTRFS info (device sdc1): disk space caching is enabled
    Jan 24 04:51:42 Freya kernel: BTRFS info (device sdc1): has skinny extents
    Jan 24 04:51:42 Freya kernel: BTRFS info (device sdc1): enabling ssd optimizations
    Jan 24 04:51:42 Freya kernel: BTRFS info (device sdc1): resizing devid 1
    Jan 24 04:51:42 Freya kernel: BTRFS info (device sdc1): new size for /dev/sdc1 is 1000204853248
    Jan 24 04:51:42 Freya kernel: BTRFS info (device sdc1): resizing devid 2
    Jan 24 04:51:42 Freya kernel: BTRFS info (device sdc1): new size for /dev/sdd1 is 256060481536
    Jan 24 04:51:42 Freya kernel: BTRFS info (device sdc1): balance: force reducing metadata integrity
    Jan 24 04:51:42 Freya kernel: BTRFS info (device sdc1): relocating block group 4316987392 flags system|raid1
    Jan 24 04:51:43 Freya kernel: BTRFS info (device sdc1): relocating block group 2169503744 flags data|raid1
    Jan 24 04:51:43 Freya kernel: BTRFS info (device sdc1): found 66 extents
    Jan 24 04:51:43 Freya kernel: BTRFS info (device sdc1): found 66 extents
    Jan 24 04:51:43 Freya kernel: BTRFS info (device sdc1): relocating block group 1095761920 flags metadata|raid1
    Jan 24 04:51:43 Freya kernel: BTRFS info (device sdc1): found 8 extents
    Jan 24 04:51:43 Freya kernel: BTRFS info (device sdc1): device deleted: /dev/sdd1

    DONE





    freya-diagnostics-20190124-0546.zip

    Go to reports Prereleases

    User Feedback

    Recommended Comments

    trurl

    I think the other reports had to do with displaying much larger than true, as in PB instead of TB.



    Where are your diagnostics?

    • Like 1
    Link to comment
    JorgeB

    Looks to me like some confusion because you removed one of the cache devices and that device was later mounted and unmounted by UD, rebooting should clear the issue.

    Link to comment
    Can0n

    i did have a 256GB SSD on there from 6.6.6 and kept it until the 6.7.0-rc1 install I then stopped the array



    removed the 256GB one (hated loosing 500GB to the raid 1 setup) and started the array (did not use New Config)...there was a check box to allow the missing cache by the start array option...

    thanks for the advice ill reboot after the mover is done and current downloads from sabnzbd are completed.




    Link to comment
    dlandon
    1 hour ago, trurl said:

    I think the other reports had to do with displaying much larger than true, as in PB instead of TB.

    That issue was with the UD plugin and didn't apply to array drives.

    Link to comment
