Trainerbert

Yes, it is a B760M Mainboard with 2.5 GB Realtek NIC.

So I tested now a lot of scenarios: 1. M2 first slot no c state at all. 2. M2 second slot C8. 3. M2 second slot and asm1166 card with ssd 2tb C10 - wtf 4. M2 second slot and asm1166 card with ssd 2tb and 3x16 hdd - C8 5. M2 second slot without asm1166card with ssd 2tb and 3x16 hdd - also C8 It looks like the asm1166 card isn't necessary for me. I am running now some dockers like plex, arrs and C8 is being held while using 15 watts. Thats impressive. I think I am going to use my 2tb ssd only for cache and vms and removing the m2s totally.

I detached HDMI but didn't reach C10. Maybe I would have to wait longer than 3 minutes 😄. But I am pretty happy with C8. Now I will put every drive little by little and check every time if I keep the c state.

You were right. I downgraded to 6.12.4 and I am now reaching C8 with 10 Watt. Thanks! But is it really the problem of this motherboard or with every motherboard at the current version? Did someone ever reached C10 😄?

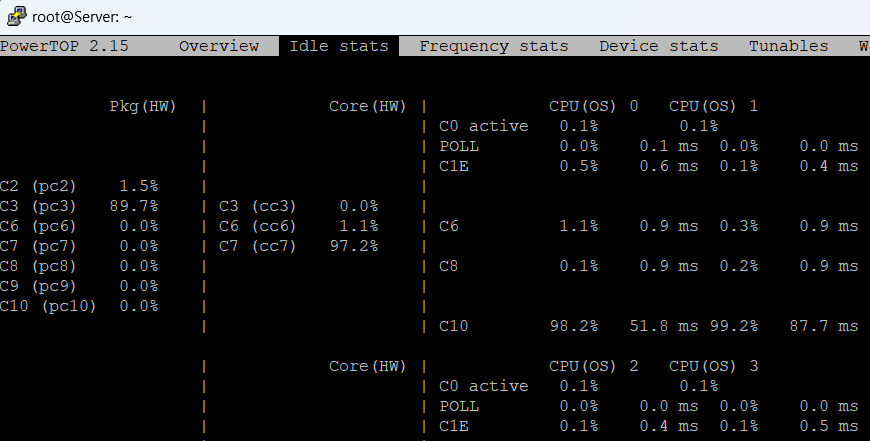

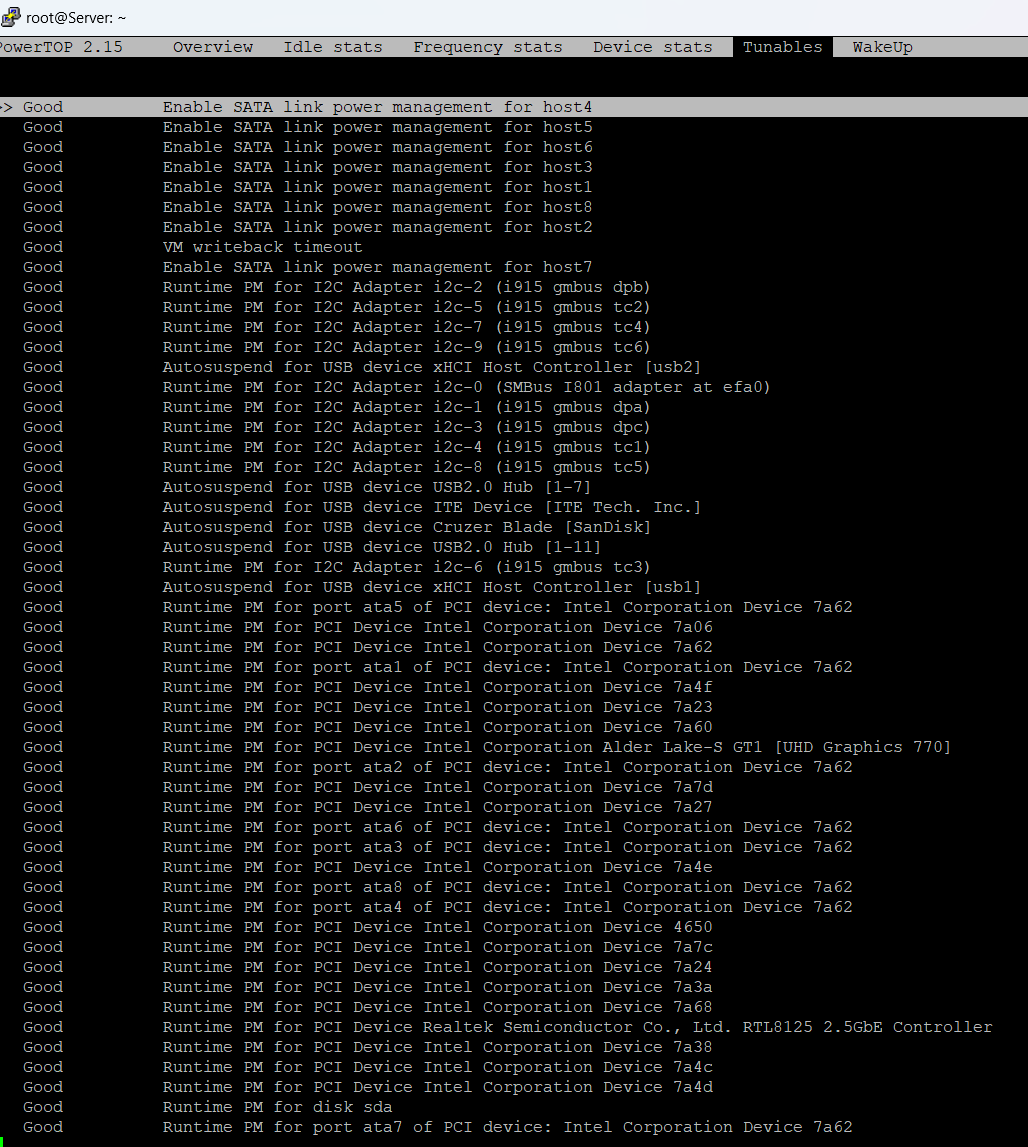

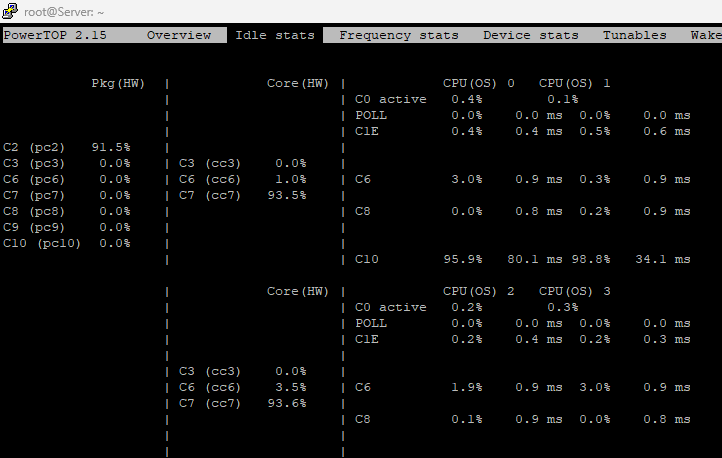

Hey there, I built a new server with this config: Hardware: Gigabyte B760M Gaming X DDR4 Intel i7-12500T 2x M2 Patriot P300 M.2 PCIe Gen 3x4 256 GB SSD (MirroredCache) PNY CS900-2TB (VMs) 3x16 TB Toshiba Enterprise MG08ACA (Parity & Storage) BeQuiet PURE POWER 12 M 750W ASM1166 6xSATA Card I set the Bios Settings like mgutt but I can't even reach C-State 3. I stopped the VMs, Dockers,their services and the hdds connecting via ssh to watch with powertop. The setup is running in this stage with 30w. I removed every storage except one m2 Patriot. Still the same C2 but with 28W Idle. Then I removed the m2. Now I can get to C3 with 18W. But how is this possible that even without anything except the usb flash I still can't go lower than C3? EDIT: I removed all Plugins to be sure that nothing blocks this. But same result as before. EDIT2: I did a bios update from F15 to F16 without a change. What is different to mgutt settings is that PEG PCH DMI ASPM are enabled but greyed out. So maybe a problem with the Intel 12th series like someone stated here.

Ich habe mir gerade einen ähnlichen Server gebaut und habe noch zu hohe Last im Idle (28w). Wenn ich das richtig verstanden habe ist der Verbrauch mit den internen Mainboard Anschlüssen also höher als mit der geflashten ASM1166 Karte? Dann hätte ich zumindest schon mal eine Fehlerquelle.

Server: Minisforum HM80 Ryzen 4800U 16GB DDR4 So I figured out the problem but don't have a solution. The problem is the core perfomance boost. If I disable it the server doesn't crash. If I enable it the server will crash and also runs of course way hotter. But now the funny part. With CPB enabled windows doesn't crash. For me it would be okay to limit the TDP to lower the boost speed but I don't have the option in my bios. I found out that Ryzen Controller would be able to do that under Linux but have no clue how to do this in Unraid? I installed CoreFreq but don't know where I could limit the TDP.

This means hardware issue?

The system runned smooth for 2 weeks and now 4 freezes in 2 days. I recognized one freeze live at 23:00. But the logs doesn't show anything at this time. I copied the syslog before the new boot syslog_after_crash_before_bootand after the boot syslog_after_crash_after_boot. Also the diagnostics after the reboot server-diagnostics-20231217-2321.zip. How do I capture them before the reboot?

I think it is an error from ProFTP. I uninstalled this yesterday. I used it to copy my security camera footage to the shared folder "Aufnahmen".

Hey, my Unraid System is crashing randomly. Sometimes it takes weeks, sometimes only few hours. I enabled Syslog to locate the error. Maybe you guys could help :). syslog

Hey there, my Unraid server (Minisforum HM80) freezes pretty accurate every 3 days. The server was running stable over months. The only relevant change that comes in my mind is a homeassistant VM. I think that maybe is the problem. I enabled syslog. Did you guys had similar problems? syslog
