Unable to mount 6 new 1TB drives

[DieFalse]

Diagnostics attached - I have 6 brand new blank drives that are Dell Seagate's.   They wont attach, mount, or select.

gsa-diagnostics-20210719-0249.zip

[JorgeB]

All disks are failing to read sector 0, see if they have some kind of protection/encryption enable.



[DieFalse]

6 hours ago, JorgeB said:

All disks are failing to read sector 0, see if they have some kind of protection/encryption enable.





Great call out - any way for me to check from within unraid?   They're new, so wiping them is ok also.

[JorgeB]

See if it's the same as this:

https://forums.unraid.net/topic/110835-solved-help-with-a-sas-drive/?do=findComment&comment=1011689



[DieFalse]

This does not seem to be the case, no PSID on the drive and smartctl doesnt show protection:



root@GSA:~# smartctl -i /dev/sdaa
smartctl 7.1 2019-12-30 r5022 [x86_64-linux-5.10.28-Unraid] (local build)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Vendor:               SEAGATE
Product:              ST91000642SS
Revision:             ASF9
Compliance:           SPC-4
User Capacity:        1,000,204,886,016 bytes [1.00 TB]
Logical block size:   512 bytes
Rotation Rate:        7200 rpm
Form Factor:          2.5 inches
Logical Unit id:      0x5000c50055ca49d3
Serial number:        9XG36YA6
Device type:          disk
Transport protocol:   SAS (SPL-3)
Local Time is:        Mon Jul 19 12:48:33 2021 CDT
SMART support is:     Available - device has SMART capability.
SMART support is:     Enabled
Temperature Warning:  Enabled

[JorgeB]

Then don't knwon, sorry, except for a couple of SSDs I don't use SAS devices.

[DieFalse]

Ok.  So even though it read that it was not protected,  I did get this:

sg_format failed: Data protect


So it seems there is some sort of protection but how to clear it.  I will try the raid controller next,  need to open it for ram removal anyways.

[SimonF]

Looks like you have got the fips version which are sed enabled. You need to remove SED protection.



SED FIPS 140-2 Models
ST91000642SS
ST9500622SS



there is a PSID printed on the disk.  i used this to reset the disk, by usng the below command where <PSIDNODASHS> is the PSID on the disk and device> is the device



sedutil-cli --PSIDrevertAdminSP <PSIDNODASHS> /dev/<device>



I am not sure where to get sedutil



[SimonF]

24 minutes ago, fmp4m said:

Ok.  So even though it read that it was not protected,  I did get this:

sg_format failed: Data protect


So it seems there is some sort of protection but how to clear it.  I will try the raid controller next,  need to open it for ram removal anyways.

Found download here



https://github.com/Drive-Trust-Alliance/sedutil/wiki/Executable-Distributions



Download linux, copy to unraid



installpkg sedutil_LINUX.tgz

Quote

root@unraid:/sedutil/Release_x86_64/GNU-Linux# ls
sedutil-cli*
root@unraid:/sedutil/Release_x86_64/GNU-Linux#



[DieFalse]

@SimonF there is no PSID on the disk that I can find unless its under the "Tamper Evident Label" which I find to be weird, these are new replacement drives from Dell, so its possible.



I did download the sedutil to see if I could get any info, but can't run it on unraid.



The Kernel flag libata.allow_tpm is not set correctly
Please see the readme note about setting the libata.allow_tpm
Invalid or unsupported disk /dev/sdz


[JorgeB]

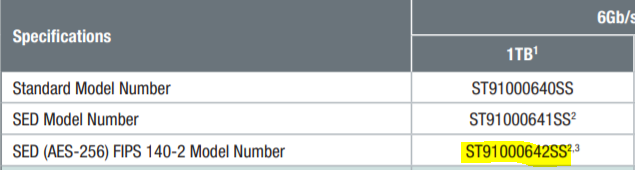

See if you can replace the with the standard non encrypted model, these encrypted models can be a pain:







[DieFalse]

38 minutes ago, JorgeB said:

See if you can replace the with the standard non encrypted model, these encrypted models can be a pain:









This seems to be my best option.  Thanks all for the support.  I wonder if they don't release or cover the PSID's for security now?  Strange indeed.
