greenflash24 Posted October 25, 2021 Share Posted October 25, 2021 (edited) Yesterday I had experienced a crash of the WebGUI from Unraid. Except the Webgui the server run fine, all docker containers were responsive and all VMs worked just fine. Only the WebGUI was not accessible. The Browser tried to load the WebGUI and after about 1-2 minutes unraid responded with a HTTP 500 Error. SSH access was possible, so i tried to shutdown all docker containers and VMs via comandline: docker stop $(docker ps -q) virsh shutdown domain I was not sure how to stop the array gracefully and perform a gracefull shutdown, but i tried poweroff. Unfortunately this was not the correct shutdown procedure via comandline, so i ended up with an unclean shutdown, which results a parity check. I managed to make a copy of /var/log/syslog to the array before my reboot, which could be investigated after the reboot. I already had a look into the syslog and i noticed some kernel BUGs / ERRORs (kernel NULL pointer dereference) at Oct 24 10:59:45, which was the time when the WebGUI stoped responding. (The full syslog file is attatched to this post). ... Oct 24 10:59:45 Home-Server kernel: BUG: kernel NULL pointer dereference, address: 0000000000000060 Oct 24 10:59:45 Home-Server kernel: #PF: supervisor read access in kernel mode Oct 24 10:59:45 Home-Server kernel: #PF: error_code(0x0000) - not-present page Oct 24 10:59:45 Home-Server kernel: PGD 1433d2067 P4D 1433d2067 PUD 7317d5067 PMD 0 Oct 24 10:59:45 Home-Server kernel: Oops: 0000 [#1] SMP NOPTI Oct 24 10:59:45 Home-Server kernel: CPU: 9 PID: 9434 Comm: lsof Tainted: G U W I 5.10.28-Unraid #1 Oct 24 10:59:45 Home-Server kernel: Hardware name: ASUSTeK COMPUTER INC. System Product Name/WS Z390 PRO, BIOS 1203 07/08/2021 Oct 24 10:59:45 Home-Server kernel: RIP: 0010:d_path+0x2f/0x127 Oct 24 10:59:45 Home-Server kernel: Code: 89 e5 53 48 83 ec 28 48 8b 7f 08 89 54 24 04 65 48 8b 04 25 28 00 00 00 48 89 44 24 20 31 c0 48 63 c2 48 01 f0 48 89 44 24 08 <48> 8b 47 60 48 85 c0 74 21 48 8b 40 48 48 85 c0 74 18 48 3b 7f 18 Oct 24 10:59:45 Home-Server kernel: RSP: 0018:ffffc90024497d60 EFLAGS: 00010296 Oct 24 10:59:45 Home-Server kernel: RAX: ffff88869ec17000 RBX: ffff888108c84780 RCX: 0000000000000264 Oct 24 10:59:45 Home-Server kernel: RDX: 0000000000000d9c RSI: ffff88869ec16264 RDI: 0000000000000000 Oct 24 10:59:45 Home-Server kernel: RBP: ffffc90024497d90 R08: ffff88874f628968 R09: ffff88874f628968 Oct 24 10:59:45 Home-Server kernel: R10: 0000000005f5e100 R11: 0000000000000001 R12: ffffffff81ddbf16 Oct 24 10:59:45 Home-Server kernel: R13: ffff888168b5bb80 R14: ffff888101082280 R15: ffff888101082258 Oct 24 10:59:45 Home-Server kernel: FS: 000014fd34967540(0000) GS:ffff889feec40000(0000) knlGS:0000000000000000 Oct 24 10:59:45 Home-Server kernel: CS: 0010 DS: 0000 ES: 0000 CR0: 0000000080050033 Oct 24 10:59:45 Home-Server kernel: CR2: 0000000000000060 CR3: 00000007517fc001 CR4: 00000000003726e0 Oct 24 10:59:45 Home-Server kernel: DR0: 0000000000000000 DR1: 0000000000000000 DR2: 0000000000000000 Oct 24 10:59:45 Home-Server kernel: DR3: 0000000000000000 DR6: 00000000fffe0ff0 DR7: 0000000000000400 Oct 24 10:59:45 Home-Server kernel: Call Trace: Oct 24 10:59:45 Home-Server kernel: ? seq_put_decimal_ull_width+0x63/0x79 Oct 24 10:59:45 Home-Server kernel: seq_path+0x42/0x90 Oct 24 10:59:45 Home-Server kernel: show_map_vma+0x7a/0x12f Oct 24 10:59:45 Home-Server kernel: show_map+0x5/0x8 Oct 24 10:59:45 Home-Server kernel: seq_read_iter+0x260/0x339 Oct 24 10:59:45 Home-Server kernel: seq_read+0xf3/0x116 Oct 24 10:59:45 Home-Server kernel: vfs_read+0xa0/0xff Oct 24 10:59:45 Home-Server kernel: ksys_read+0x71/0xba Oct 24 10:59:45 Home-Server kernel: do_syscall_64+0x5d/0x6a Oct 24 10:59:45 Home-Server kernel: entry_SYSCALL_64_after_hwframe+0x44/0xa9 Oct 24 10:59:45 Home-Server kernel: RIP: 0033:0x14fd3488778e Oct 24 10:59:45 Home-Server kernel: Code: c0 e9 f6 fe ff ff 50 48 8d 3d 16 5e 0a 00 e8 f9 fd 01 00 66 0f 1f 84 00 00 00 00 00 64 8b 04 25 18 00 00 00 85 c0 75 14 0f 05 <48> 3d 00 f0 ff ff 77 5a c3 66 0f 1f 84 00 00 00 00 00 48 83 ec 28 Oct 24 10:59:45 Home-Server kernel: RSP: 002b:00007ffe8e7e54f8 EFLAGS: 00000246 ORIG_RAX: 0000000000000000 Oct 24 10:59:45 Home-Server kernel: RAX: ffffffffffffffda RBX: 00000000004292c0 RCX: 000014fd3488778e Oct 24 10:59:45 Home-Server kernel: RDX: 0000000000001000 RSI: 0000000000488210 RDI: 0000000000000004 Oct 24 10:59:45 Home-Server kernel: RBP: 000014fd3495d420 R08: 0000000000000004 R09: 0000000000000000 Oct 24 10:59:45 Home-Server kernel: R10: 0000000000000000 R11: 0000000000000246 R12: 00000000004292c0 Oct 24 10:59:45 Home-Server kernel: R13: 000014fd3495c820 R14: 0000000000000d68 R15: 0000000000000d68 ... WebGUI stops responding: Oct 24 11:02:01 Home-Server nginx: 2021/10/24 11:02:01 [error] 13535#13535: *213870 upstream timed out (110: Connection timed out) while reading response header from upstream, client: 10.1.1.58, server: , request: "POST /webGui/include/DashUpdate.php HTTP/2.0", upstream: "fastcgi://unix:/var/run/php5-fpm.sock", host: "10.1.1.10", referrer: "https://10.1.1.10/Dashboard" Oct 24 11:02:17 Home-Server nginx: 2021/10/24 11:02:17 [error] 13535#13535: *213870 upstream timed out (110: Connection timed out) while reading response header from upstream, client: 10.1.1.58, server: , request: "POST /webGui/include/DashUpdate.php HTTP/2.0", upstream: "fastcgi://unix:/var/run/php5-fpm.sock", host: "10.1.1.10", referrer: "https://10.1.1.10/Dashboard" Oct 24 11:02:33 Home-Server nginx: 2021/10/24 11:02:33 [error] 13535#13535: *214147 upstream timed out (110: Connection timed out) while reading response header from upstream, client: 10.1.1.58, server: , request: "POST /webGui/include/DashUpdate.php HTTP/2.0", upstream: "fastcgi://unix:/var/run/php5-fpm.sock", host: "10.1.1.10", referrer: "https://10.1.1.10/Dashboard" Oct 24 11:02:49 Home-Server nginx: 2021/10/24 11:02:49 [error] 13535#13535: *214147 upstream timed out (110: Connection timed out) while reading response header from upstream, client: 10.1.1.58, server: , request: "POST /webGui/include/DashUpdate.php HTTP/2.0", upstream: "fastcgi://unix:/var/run/php5-fpm.sock", host: "10.1.1.10", referrer: "https://10.1.1.10/Dashboard" Oct 24 11:03:05 Home-Server nginx: 2021/10/24 11:03:05 [error] 13535#13535: *214426 upstream timed out (110: Connection timed out) while reading response header from upstream, client: 10.1.1.58, server: , request: "POST /webGui/include/DashUpdate.php HTTP/2.0", upstream: "fastcgi://unix:/var/run/php5-fpm.sock", host: "10.1.1.10", referrer: "https://10.1.1.10/Dashboard" Oct 24 11:03:21 Home-Server nginx: 2021/10/24 11:03:21 [error] 13535#13535: *214426 upstream timed out (110: Connection timed out) while reading response header from upstream, client: 10.1.1.58, server: , request: "POST /webGui/include/DashUpdate.php HTTP/2.0", upstream: "fastcgi://unix:/var/run/php5-fpm.sock", host: "10.1.1.10", referrer: "https://10.1.1.10/Dashboard" Oct 24 11:03:37 Home-Server nginx: 2021/10/24 11:03:37 [error] 13535#13535: *214426 upstream timed out (110: Connection timed out) while reading response header from upstream, client: 10.1.1.58, server: , request: "POST /webGui/include/DashUpdate.php HTTP/2.0", upstream: "fastcgi://unix:/var/run/php5-fpm.sock", host: "10.1.1.10", referrer: "https://10.1.1.10/Dashboard" Oct 24 11:03:53 Home-Server nginx: 2021/10/24 11:03:53 [error] 13535#13535: *214711 upstream timed out (110: Connection timed out) while reading response header from upstream, client: 10.1.1.58, server: , request: "POST /webGui/include/DashUpdate.php HTTP/2.0", upstream: "fastcgi://unix:/var/run/php5-fpm.sock", host: "10.1.1.10", referrer: "https://10.1.1.10/Dashboard" Oct 24 11:04:09 Home-Server nginx: 2021/10/24 11:04:09 [error] 13535#13535: *214711 upstream timed out (110: Connection timed out) while reading response header from upstream, client: 10.1.1.58, server: , request: "POST /webGui/include/DashUpdate.php HTTP/2.0", upstream: "fastcgi://unix:/var/run/php5-fpm.sock", host: "10.1.1.10", referrer: "https://10.1.1.10/Dashboard" Oct 24 11:04:23 Home-Server dhcpcd[2045]: br0: Router Advertisement from fe80::3a10:d5ff:fe7e:50c4 Oct 24 11:04:25 Home-Server nginx: 2021/10/24 11:04:25 [error] 13535#13535: *214711 upstream timed out (110: Connection timed out) while reading response header from upstream, client: 10.1.1.58, server: , request: "POST /webGui/include/DashUpdate.php HTTP/2.0", upstream: "fastcgi://unix:/var/run/php5-fpm.sock", host: "10.1.1.10", referrer: "https://10.1.1.10/Dashboard" ... So now my question(s): - Is this anything i have to worry about, or was this probably a one time crash of the WebGUI? - If this happens again, how can I perform a clean shutdown? -> is there a comandline command for stopping the array gracefully (or to force stop the array) -> how do I reboot my server gracefully via SSH -> Can the WebGUI be restarted via SSH - What are these Kernel BUGs in the syslog? Was this the cause of the WebGUI crashing? I would appreciate any help on this topic. syslog.txt Edited November 9, 2021 by greenflash24 Quote Link to comment
greenflash24 Posted November 7, 2021 Author Share Posted November 7, 2021 (edited) Today I have experieced my third crash, while beeing in the middle of a parity check correcting errors form the second crash which was yesterday. These crashes were on 6.10.0-rc2 to which I have upgraded after my first crash to see if it makes a difference. This time not only the WebGui was not accessible, but also the server would not respond to any pings. All VMs and Docker containers would also not respond this time. But ssh was working just fine. I tried to capture diagnostics this time via terminal, but no luck. I could only make a copy of /var/log/syslog to the array before my reboot, which could be investigated after the reboot. (See attachment syslog-2) I could really need some help with these lookups, as I do not fully understand form where they are comming from. Edited November 7, 2021 by greenflash24 Quote Link to comment
JorgeB Posted November 7, 2021 Share Posted November 7, 2021 Nov 7 10:54:15 Home-Server kernel: macvlan_broadcast+0x116/0x144 [macvlan] Nov 7 10:54:15 Home-Server kernel: macvlan_process_broadcast+0xc7/0x10b [macvlan] Macvlan call traces are usually the result of having dockers with a custom IP address, upgrading to v6.10 and switching to ipvlan might fix it (Settings -> Docker Settings -> Docker custom network type -> ipvlan (advanced view must be enable, top right)), or see below for more info. https://forums.unraid.net/topic/70529-650-call-traces-when-assigning-ip-address-to-docker-containers/ See also here: https://forums.unraid.net/bug-reports/stable-releases/690691-kernel-panic-due-to-netfilter-nf_nat_setup_info-docker-static-ip-macvlan-r1356/ Quote Link to comment
greenflash24 Posted November 9, 2021 Author Share Posted November 9, 2021 (edited) @JorgeB Thanks for your help with my problem! I have tried switching my docker network type form macvlan to ipvlan. Unfortunately my consumer-grade router is not happy when the same physical network interface of the unraid host tried to get multiple IP addresses for the docker-containers, which have a static ip configured. This bricked my port-forwarding in my router, so that i could not use ipvlan as docker network type. -> Therefore i have switched it back to macvlan for now. I also did not have any problems with macvlan in the past on my system. Maybe there is another possible cause for these crashes, as in my initial crash i also did not see any kernel errors related to macvlan 🤔 But at this time I have another issue which worries me much more than "just" the crashes alone: As I have explained earlier I had to cut power to my server to regain control after the lockup, which resulted in an unclean shutdown. When the server was back up, a parity check has to be started. As it was an unclean shutdown, there were parity errors found, which should have been corrected. To my surprise there were a lot of parity errors found (>200 parity errors), which was a lot more then i had from unclean shutdowns in the past (there i had never more then 3 errors after a unclean shutdoen). Unfortunately i could not complete this parity check, as the system has locked up (this was the lockup descriped in my second post) at arround 70% of parity checking. So I rebooted (unclean) an rerun the parity check (with the option to correct the errors on parity enabled). Yesterday it finished after about 28 hours finding and correcting?? 426 errors. Later that day I have experienced an issue where /mnt/user/ was not available and i got the error "endpoint not connected". Probably this issue: Everything else was working this time, so I was able to capture diagnostics before i rebooted the server. (I can share the diagnostics for debugging but i would prefer to send them via PM and not have the diagnostics publicly available at the forum). This time I could shutdown all VMs and containers and i could stop the array without any problems. So this reboot should NOT be a unclean reboot. As i have restarted everything I wanted to run the parity check again, to see if my 426 parity errors disapperard and were fixed. At this time i am at ~ 45% of parity checking and there were 374 errors found until this point. How could this be?? Why has the parity check before my reboot not fixed these 426 errors? Should I be worried, that there are more problems, which caused these parity errors not getting corrected? Edited November 9, 2021 by greenflash24 Quote Link to comment
JorgeB Posted November 9, 2021 Share Posted November 9, 2021 24 minutes ago, greenflash24 said: To my surprise there were a lot of parity errors found (>200 parity errors), Perfectly normal, up to a few thousand can be normal, depends if the array was writing during the shutdown. Auto-parity check after an unclean shutdown is always non correct. 1 Quote Link to comment
greenflash24 Posted November 9, 2021 Author Share Posted November 9, 2021 2 minutes ago, JorgeB said: Perfectly normal, up to a few thousand can be normal, depends if the array was writing during the shutdown. Thank you a lot for your quick reply! That gives me some hope. So I will now wait until the currently running parity check (this time i have definitely checked the "correct parity" option) completes. After that I will rerun another parity check and given that there are no unforeseeable unclean shutdowns inbetween, parity should be valid and without any errors on this parity check. 2 minutes ago, JorgeB said: Auto-parity check after an unclean shutdown is always non correct. Okay, good to know that. I thought i have stopped the automatic parity check and restarted it with "correct parity" option enabled. Is there a way to see wether the last parity check was run with the "correct parity" option enabled or not? Quote Link to comment
JorgeB Posted November 9, 2021 Share Posted November 9, 2021 1 hour ago, greenflash24 said: Is there a way to see wether the last parity check was run with the "correct parity" option enabled or not? By looking at the syslog, any sync errors will be logged as "incorrect" for non correcting check, and "corrected" for a correcting check. Quote Link to comment

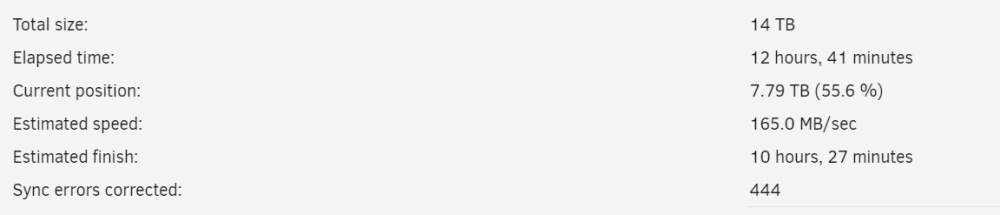

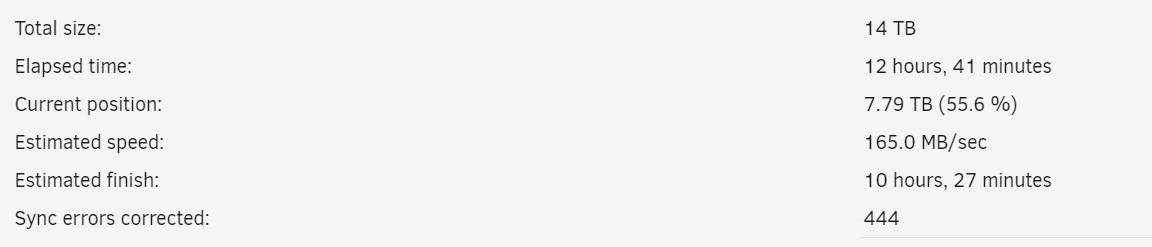

greenflash24 Posted November 9, 2021 Author Share Posted November 9, 2021 (edited) 17 minutes ago, JorgeB said: By looking at the syslog, any sync errors will be logged as "incorrect" for non correcting check, and "corrected" for a correcting check. But if I look in the syslog of my second post I see the following: Nov 7 02:44:50 Home-Server kernel: md: recovery thread: PQ corrected, sector=10131125568 Nov 7 02:48:55 Home-Server kernel: md: recovery thread: PQ corrected, sector=10208980120 Nov 7 02:51:08 Home-Server kernel: md: recovery thread: PQ corrected, sector=10251646944 Nov 7 02:56:50 Home-Server kernel: md: recovery thread: PQ corrected, sector=10359425024 Nov 7 02:57:04 Home-Server kernel: md: recovery thread: PQ corrected, sector=10363971744 Nov 7 03:09:39 Home-Server kernel: md: recovery thread: PQ corrected, sector=10600788760 Nov 7 03:27:01 Home-Server kernel: md: recovery thread: PQ corrected, sector=10925648832 Nov 7 03:27:15 Home-Server kernel: md: recovery thread: PQ corrected, sector=10929617064 Nov 7 03:39:44 Home-Server kernel: md: recovery thread: PQ corrected, sector=11156873136 Nov 7 03:41:13 Home-Server kernel: md: recovery thread: PQ corrected, sector=11183558968 Nov 7 03:43:15 Home-Server kernel: md: recovery thread: PQ corrected, sector=11220069440 Nov 7 03:45:01 Home-Server kernel: md: recovery thread: PQ corrected, sector=11251872560 Nov 7 03:52:29 Home-Server kernel: md: recovery thread: PQ corrected, sector=11386424240 Nov 7 03:53:21 Home-Server kernel: md: recovery thread: PQ corrected, sector=11401817800 Nov 7 03:53:30 Home-Server kernel: md: recovery thread: PQ corrected, sector=11404475304 Nov 7 03:55:52 Home-Server kernel: md: recovery thread: PQ corrected, sector=11446669072 Nov 7 03:58:29 Home-Server kernel: md: recovery thread: PQ corrected, sector=11493457136 Nov 7 03:59:26 Home-Server kernel: md: recovery thread: PQ corrected, sector=11510510632 Nov 7 04:01:46 Home-Server kernel: md: recovery thread: PQ corrected, sector=11551985920 Nov 7 04:03:01 Home-Server kernel: md: recovery thread: PQ corrected, sector=11574569616 Nov 7 04:05:30 Home-Server kernel: md: recovery thread: PQ corrected, sector=11619463408 Nov 7 04:14:06 Home-Server kernel: md: recovery thread: PQ corrected, sector=11775728160 Nov 7 04:17:55 Home-Server kernel: md: recovery thread: PQ corrected, sector=11845403800 Nov 7 04:26:48 Home-Server kernel: md: recovery thread: PQ corrected, sector=12005106232 Nov 7 04:33:24 Home-Server kernel: md: recovery thread: PQ corrected, sector=12122775560 Nov 7 04:38:49 Home-Server kernel: md: recovery thread: PQ corrected, sector=12219312464 There I see "corrected"! So shouldn't these errors be corrected by the first parity check, which was according to the syslog indeed a correcting check. Also now until this point there are more sync errors found (and corrected ??) as in the last parity check: Maybe there are other issues which caused these parity invalidations 🤔 But what could these be? Edited November 9, 2021 by greenflash24 Quote Link to comment
JorgeB Posted November 9, 2021 Share Posted November 9, 2021 Yes, it was a correcting check, run two consecutive correcting checks without rebooting, if the second one still finds errors there's likely a hardware issue, most commonly is bad RAM, but could also be controller/disc related. Quote Link to comment
itimpi Posted November 9, 2021 Share Posted November 9, 2021 2 hours ago, greenflash24 said: Is there a way to see wether the last parity check was run with the "correct parity" option enabled or not? Not with stock Unraid unless you still have the syslog available covering that period. If you have the Parity Check Tuning plugin installed then the parity history shows extra information including the type of check that was run. Quote Link to comment
