[6.11.1] Wireguard VPN: Local Tunnel Firewall

[seriphic]

Hello,



I can't seem to get the "Local Tunnel Firewall" to work at all. It passes all traffic, regardless of Allow or Deny rule.

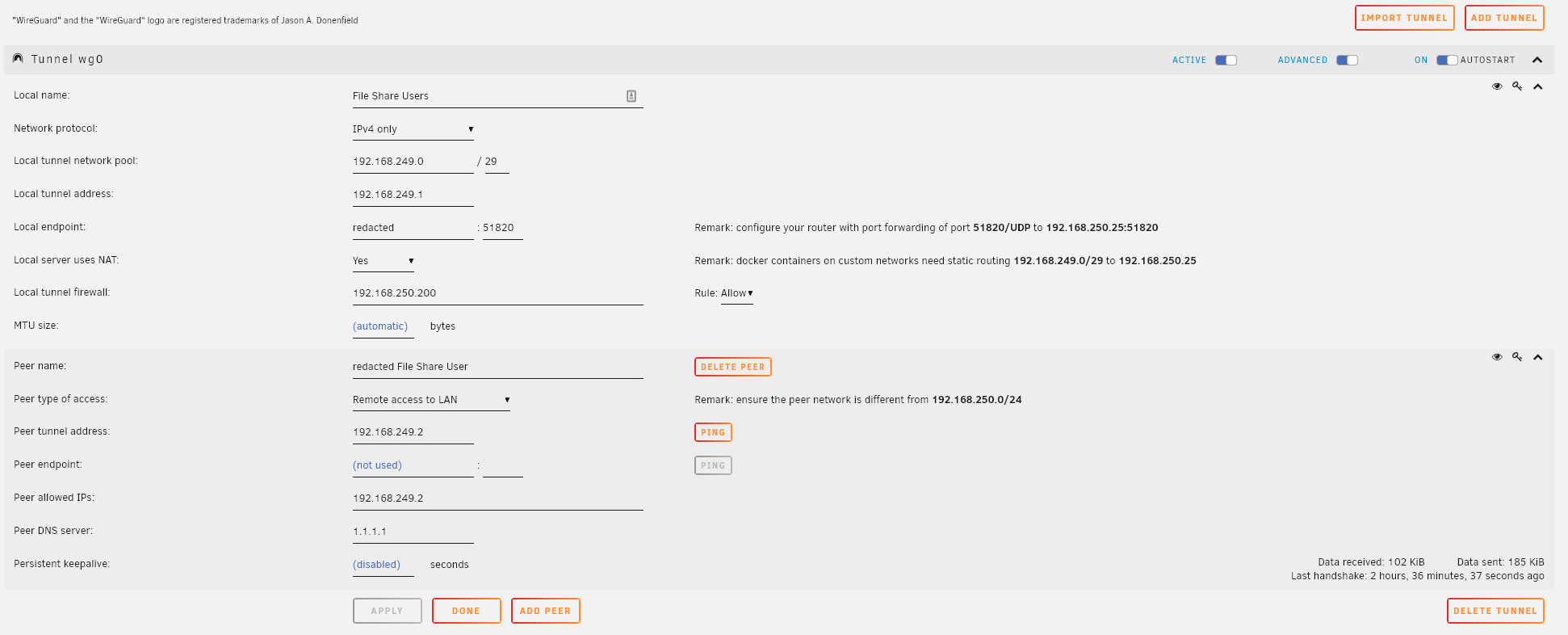

As you can see in the screenshot below, I have the host 192.168.250.200 allowed only. It still passes traffic to all the other hosts. I've tried this with NAT enabled and NAT disabled, with no functionality difference.





Is this a known issue, or am I misunderstanding how this feature works? Checking the iptables report shows the entries in there, but they don't seem to do anything.



root@hostname:/mnt/user/Docker# iptables -S
-P INPUT ACCEPT
-P FORWARD ACCEPT
-P OUTPUT ACCEPT
-N DOCKER
-N DOCKER-ISOLATION-STAGE-1
-N DOCKER-ISOLATION-STAGE-2
-N DOCKER-USER
-N LIBVIRT_FWI
-N LIBVIRT_FWO
-N LIBVIRT_FWX
-N LIBVIRT_INP
-N LIBVIRT_OUT
-N WIREGUARD
-N WIREGUARD_DROP_WG0
-A INPUT -j LIBVIRT_INP
-A FORWARD -j DOCKER-USER
-A FORWARD -j DOCKER-ISOLATION-STAGE-1
-A FORWARD -o br-1ee3c09348c9 -m conntrack --ctstate RELATED,ESTABLISHED -j ACCEPT
-A FORWARD -o br-1ee3c09348c9 -j DOCKER
-A FORWARD -i br-1ee3c09348c9 ! -o br-1ee3c09348c9 -j ACCEPT
-A FORWARD -i br-1ee3c09348c9 -o br-1ee3c09348c9 -j ACCEPT
-A FORWARD -o docker0 -m conntrack --ctstate RELATED,ESTABLISHED -j ACCEPT
-A FORWARD -o docker0 -j DOCKER
-A FORWARD -i docker0 ! -o docker0 -j ACCEPT
-A FORWARD -i docker0 -o docker0 -j ACCEPT
-A FORWARD -j LIBVIRT_FWX
-A FORWARD -j LIBVIRT_FWI
-A FORWARD -j LIBVIRT_FWO
-A FORWARD -j WIREGUARD
-A OUTPUT -j LIBVIRT_OUT
-A DOCKER -d 172.17.0.2/32 ! -i docker0 -o docker0 -p tcp -m tcp --dport 443 -j ACCEPT
-A DOCKER -d 172.17.0.2/32 ! -i docker0 -o docker0 -p tcp -m tcp --dport 3000 -j ACCEPT
-A DOCKER -d 172.17.0.2/32 ! -i docker0 -o docker0 -p tcp -m tcp --dport 81 -j ACCEPT
-A DOCKER -d 172.17.0.2/32 ! -i docker0 -o docker0 -p tcp -m tcp --dport 80 -j ACCEPT
-A DOCKER -d 172.17.0.3/32 ! -i docker0 -o docker0 -p tcp -m tcp --dport 58946 -j ACCEPT
-A DOCKER -d 172.17.0.3/32 ! -i docker0 -o docker0 -p udp -m udp --dport 58946 -j ACCEPT
-A DOCKER -d 172.17.0.3/32 ! -i docker0 -o docker0 -p tcp -m tcp --dport 58846 -j ACCEPT
-A DOCKER -d 172.17.0.3/32 ! -i docker0 -o docker0 -p tcp -m tcp --dport 8118 -j ACCEPT
-A DOCKER -d 172.17.0.3/32 ! -i docker0 -o docker0 -p tcp -m tcp --dport 8112 -j ACCEPT
-A DOCKER -d 172.17.0.4/32 ! -i docker0 -o docker0 -p tcp -m tcp --dport 4545 -j ACCEPT
-A DOCKER-ISOLATION-STAGE-1 -i br-1ee3c09348c9 ! -o br-1ee3c09348c9 -j DOCKER-ISOLATION-STAGE-2
-A DOCKER-ISOLATION-STAGE-1 -i docker0 ! -o docker0 -j DOCKER-ISOLATION-STAGE-2
-A DOCKER-ISOLATION-STAGE-1 -j RETURN
-A DOCKER-ISOLATION-STAGE-2 -o br-1ee3c09348c9 -j DROP
-A DOCKER-ISOLATION-STAGE-2 -o docker0 -j DROP
-A DOCKER-ISOLATION-STAGE-2 -j RETURN
-A DOCKER-USER -j RETURN
-A LIBVIRT_FWI -d 192.168.122.0/24 -o virbr0 -m conntrack --ctstate RELATED,ESTABLISHED -j ACCEPT
-A LIBVIRT_FWI -o virbr0 -j REJECT --reject-with icmp-port-unreachable
-A LIBVIRT_FWO -s 192.168.122.0/24 -i virbr0 -j ACCEPT
-A LIBVIRT_FWO -i virbr0 -j REJECT --reject-with icmp-port-unreachable
-A LIBVIRT_FWX -i virbr0 -o virbr0 -j ACCEPT
-A LIBVIRT_INP -i virbr0 -p udp -m udp --dport 53 -j ACCEPT
-A LIBVIRT_INP -i virbr0 -p tcp -m tcp --dport 53 -j ACCEPT
-A LIBVIRT_INP -i virbr0 -p udp -m udp --dport 67 -j ACCEPT
-A LIBVIRT_INP -i virbr0 -p tcp -m tcp --dport 67 -j ACCEPT
-A LIBVIRT_OUT -o virbr0 -p udp -m udp --dport 53 -j ACCEPT
-A LIBVIRT_OUT -o virbr0 -p tcp -m tcp --dport 53 -j ACCEPT
-A LIBVIRT_OUT -o virbr0 -p udp -m udp --dport 68 -j ACCEPT
-A LIBVIRT_OUT -o virbr0 -p tcp -m tcp --dport 68 -j ACCEPT
-A WIREGUARD -o br0 -j WIREGUARD_DROP_WG0
-A WIREGUARD_DROP_WG0 -s 192.168.249.0/29 -d 192.168.250.200/32 -j ACCEPT
-A WIREGUARD_DROP_WG0 -s 192.168.249.0/29 -j DROP
-A WIREGUARD_DROP_WG0 -j RETURN
root@hostname:/mnt/user/Docker#



[ChatNoir]

There is a known issue with 6.11.1, did you look into that ?

https://forums.unraid.net/topic/129257-6111-vpn-tunnel-failing/page/2/#comment-1182737

(not sure if it applies to your case, I don't use WG)



[seriphic]

So far, I have not seemed to have run into that specific bug. VPN works perfectly fine, it's just not blacklisting the IPs that I define and still passes traffic to them regardless of my preference.
