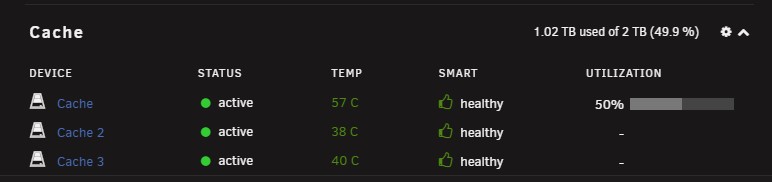

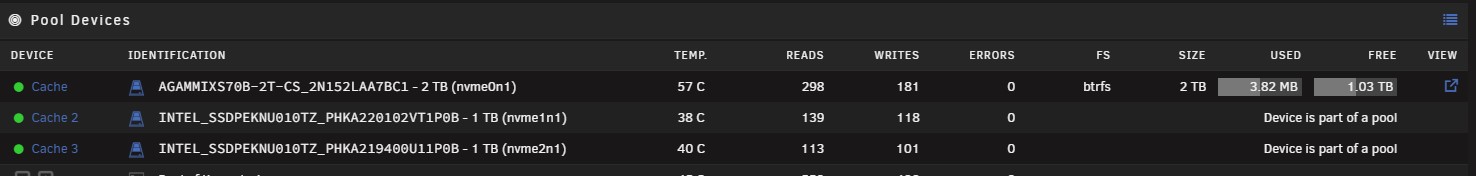

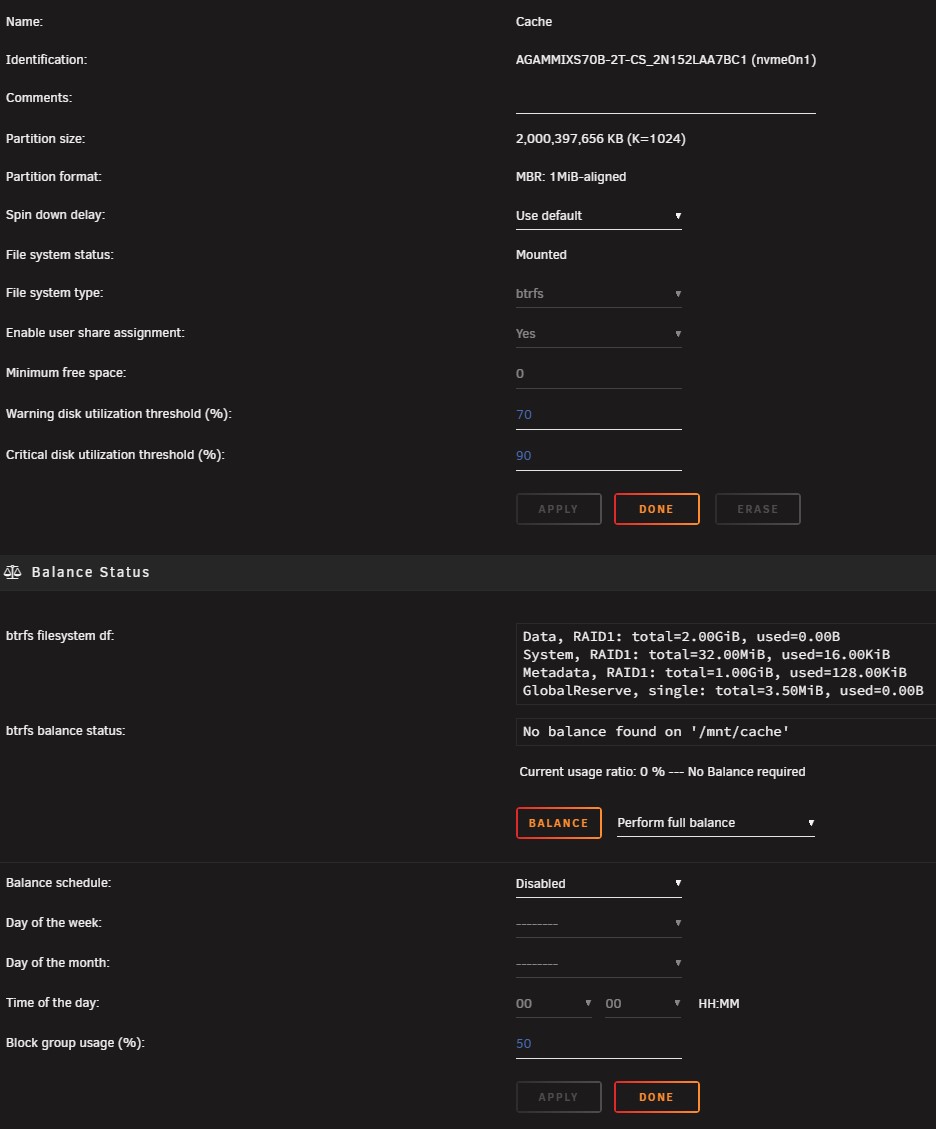

g33kf3r Posted June 5, 2023 Share Posted June 5, 2023 Hello everyone, I have been using unraid for about 5 months now and I decided to upgrade from a single SSD to 3 m.2 drives to my unraid. AGAMMIXS70B-2T-CS1 - 2 TB (nvme0n1) 2INTEL_SSDPEKNU010TZ - 1 TB (nvme1n1) 2INTEL_SSDPEKNU010TB - 1 TB (nvme2n1) After I moved everything from my cache to the array which it was about 100Gb from a 1TB SSD. I added those m.2 drives without any issues. I assigned the drives to the new cache pool and to my surprice is that out of the 3 drives which total 4TBs - I see that only 1TB is Free with 3.82MB used right away and It says 50% utilization already - mind you I have not even move anything from the arrays to the cache pool. Double check on the cache folder and nothing is there. Filesystem Size Used Avail Use% Mounted on /dev/nvme0n1p1 1.9T 3.7M 955G 1% /mnt/cache My questions are - Did i do something wrong while setting up that cache pool? What can I do to fix this? Thank you Quote Link to comment
trurl Posted June 5, 2023 Share Posted June 5, 2023 Default for multidisk pool is raid1 mirror so 2TB capacity is correct Quote Link to comment
Solution JorgeB Posted June 5, 2023 Solution Share Posted June 5, 2023 Free space will be wrong with an odd number of devices and raid1, it's a btrfs issue, used space will be correct and free space will get closer to real as the pool gets filled up. Quote Link to comment
g33kf3r Posted June 10, 2023 Author Share Posted June 10, 2023 Thank you for the replies. Quote Link to comment
