sazrocks Posted June 18, 2023 Share Posted June 18, 2023 Unraid version: 6.11.5 I have two NICs in my system; a 1G NIC built into the motherboard which is unused, and a 2.5G NIC on an external card which is the primary network connection. Originally, I had the 2.5G NIC setup as eth0 and the 1G NIC setup as eth1, which bridging, etc. turned on on eth0 for my VMs. However I discovered that after a reboot my VM wasn't able to connect to the network and upon further investigation it seems that the NICs have switched places, with the 1G NIC becoming eth0 and the 2.5G card becoming eth1, which has bridging disabled. Is there a way to lock a NIC to a particular interface so that it doesn't change at reboot? Quote Link to comment
JorgeB Posted June 18, 2023 Share Posted June 18, 2023 If you go to Settings -> Network Settings -> Interface Rules and set eth0 and eth1 the way you want and then reboot the settings won't keep? Quote Link to comment

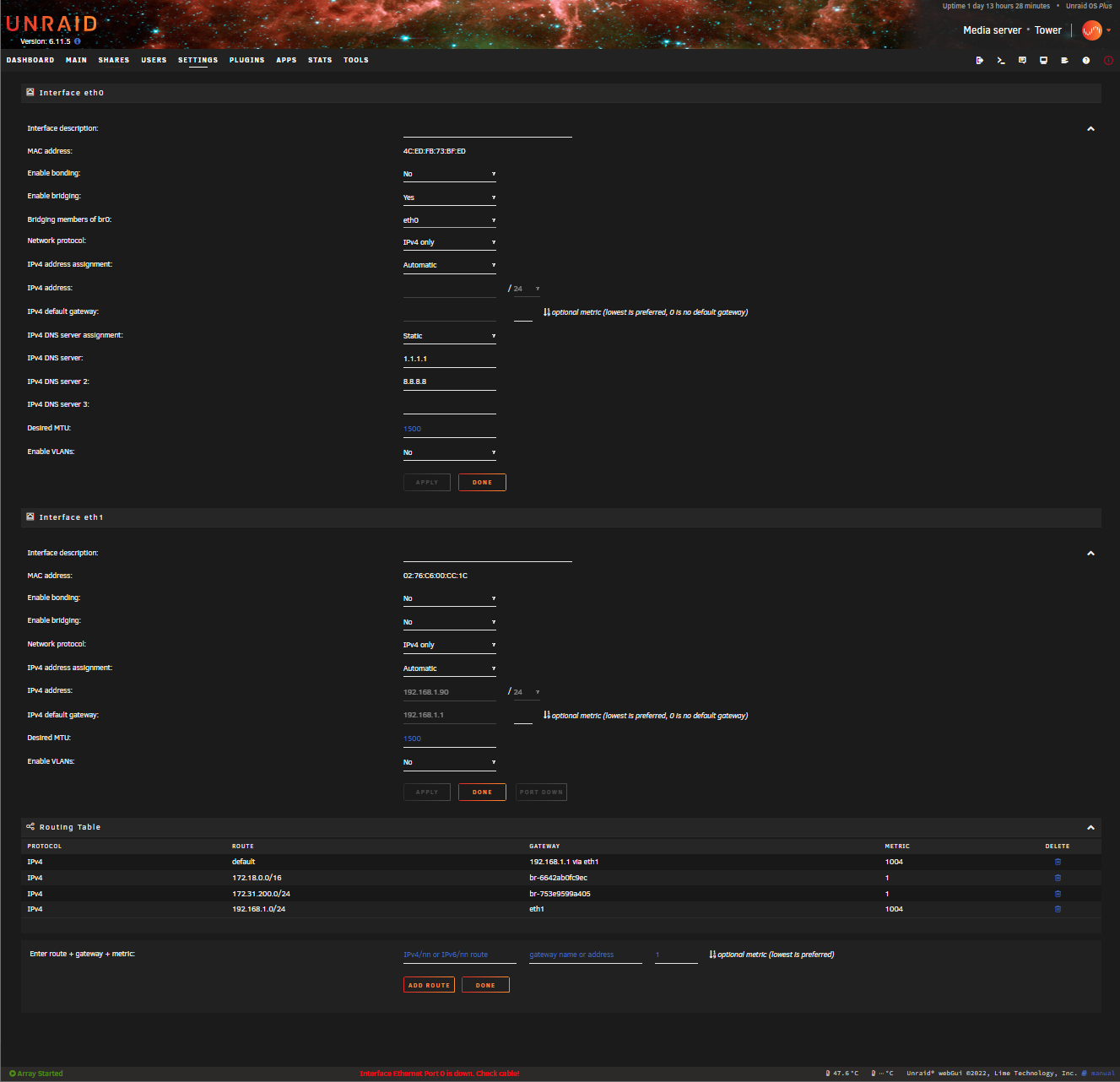

sazrocks Posted June 18, 2023 Author Share Posted June 18, 2023 5 hours ago, JorgeB said: set eth0 and eth1 the way you want I'm sorry, I must be missing something obvious but how do I do that on this page? The 2.5G NIC is being set as eth1 in this SS, I want it to be eth0. Quote Link to comment
JorgeB Posted June 19, 2023 Share Posted June 19, 2023 It's missing that setting, delete/rename /boot/config/network.cfg (and network-rules.cfg if it exists) and reboot, note that network settings will go to default DHCP. Quote Link to comment
sazrocks Posted June 29, 2023 Author Share Posted June 29, 2023 On 6/18/2023 at 11:51 PM, JorgeB said: It's missing that setting, delete/rename /boot/config/network.cfg (and network-rules.cfg if it exists) and reboot, note that network settings will go to default DHCP. Renamed the network config to a different name. Finally got the chance to reboot. The interfaces switched places again, but I still don't see the setting to assign the interfaces. Any ideas what would cause this? Quote Link to comment
Frank1940 Posted June 29, 2023 Share Posted June 29, 2023 In your new post, attach your diagnostics file. Be sure that this file includes the time period when you updated the configuration with the desired settings. Quote Link to comment
sazrocks Posted June 30, 2023 Author Share Posted June 30, 2023 17 hours ago, Frank1940 said: In your new post, attach your diagnostics file. Be sure that this file includes the time period when you updated the configuration with the desired settings. Diagnostics attached. Not really sure what you mean by "when you updated the configuration"; I can't update the configuration to assign a NIC to eth0 because the menu to do so isn't there. tower-diagnostics-20230629-2011.zip Quote Link to comment
sazrocks Posted July 3, 2023 Author Share Posted July 3, 2023 Bump. Anyone know why the NIC assignment menu is missing? Quote Link to comment
itimpi Posted July 3, 2023 Share Posted July 3, 2023 Just now, sazrocks said: Bump. Anyone know why the NIC assignment menu is missing? Had you stopped the array? Not currently in a position to check, but I suspect that is needed. Quote Link to comment
sazrocks Posted July 3, 2023 Author Share Posted July 3, 2023 1 minute ago, itimpi said: Had you stopped the array? Not currently in a position to check, but I suspect that is needed. Yes the array was stopped. If the array isn’t stopped then all the NIC configuration fields get grayed out and a message tells you to stop the array. Quote Link to comment
JorgeB Posted July 3, 2023 Share Posted July 3, 2023 Network-rules.cfg is not getting created, without that you won't have an option to select the NICs, you can try deleting network.cfg and reboot to try again or update to v6.12 to see if it's any different. Quote Link to comment
sazrocks Posted July 3, 2023 Author Share Posted July 3, 2023 37 minutes ago, JorgeB said: Network-rules.cfg is not getting created, without that you won't have an option to select the NICs, you can try deleting network.cfg and reboot to try again or update to v6.12 to see if it's any different. No dice. I guess I’ll go to 6.12.2 now. Hopefully I don’t see stuff spontaneously disappear like others have… Quote Link to comment
sazrocks Posted July 3, 2023 Author Share Posted July 3, 2023 1 hour ago, JorgeB said: Network-rules.cfg is not getting created, without that you won't have an option to select the NICs, you can try deleting network.cfg and reboot to try again or update to v6.12 to see if it's any different. Upgraded to 6.12.2, still no menu to set the NIC assignments. Also 6.12.2 caused my array to no longer stop properly, fun Quote Link to comment
JorgeB Posted July 4, 2023 Share Posted July 4, 2023 If 6.12 doesn't help with creating network-rules.cfg you can downgrade. Quote Link to comment
sazrocks Posted July 4, 2023 Author Share Posted July 4, 2023 13 hours ago, JorgeB said: If 6.12 doesn't help with creating network-rules.cfg you can downgrade. Went ahead and did that, I can successfully stop the array now. Still no interface rules though. Quote Link to comment
JorgeB Posted July 5, 2023 Share Posted July 5, 2023 You'd need to try with a different NIC/board, unfortunately this is known to sometimes happen. Quote Link to comment
sazrocks Posted July 5, 2023 Author Share Posted July 5, 2023 8 hours ago, JorgeB said: You'd need to try with a different NIC/board, unfortunately this is known to sometimes happen. Um, ok? Is there a list of officially supported NICs? I thought I would be safe with the Intel I211 in my motherboard and Intel I225-V in my 2.5G card… Quote Link to comment
JorgeB Posted July 5, 2023 Share Posted July 5, 2023 It's not NIC specific, I have those same NIC without issues, possibly could be more board related, but it's just my opinion. Quote Link to comment
