Sh3rL0cK Posted June 20, 2023 Share Posted June 20, 2023 Hi Guys, Going through some movement on my array. Long story short I had a jbod case of about 24 1.2TB 2.5" SAS drives. Wanted to get away from using 2.5" drives because... obvously the limited sizes and lifespane of them and move back to my 4TB 3.5" drives. I used to have a chembro case with 12 3.5" bays but the mobo crapped the bed on me and I switched over to a dell R640 1U with an HBA card connected to a Dell PS6400 that I made a mod on to use the Dell MD2100 controllers so I could just use the 6400 chassis as a jbod. Anyway long story short that was a really bad idea.... now onto my next really bad idea. Using the Dell H200 HBA card I realized I can just use the backplane of my chembro case and some mini SAS to SATA adapters to just take the mobo out and use it as a JBOD inclosure by jumping the PSU. Well im in the process of swapping out each of the low numbered drive from the 1.2 TB to the 4TB drives. I can't add any more because I maxxed out the 30 drive limit. So I am slowy moving the data off of a 1.2 on to the 4TB drives and then replacing the 1.2s with the 4TB then letting the parity rebuild each time. When I get all 12 of the 4TBs in there I am going to pull the remaining 1.2 TB drives and then create a new config because I am too chicken to do it the other way of just making a new config with the 4TB drives not already in the array. Just worries me that the parity would not be able to rebuld because of to many changes. So I already as you may have guessed replaced the old 1.2 parity drive with a 4TB one. Today now on my 8th 4TB drive my parity drive threw a smart pending sector count error. It is only 1 right now and the reallocated sector count is still at 0..... So I humbly ask what is your opinion of this do you think I am screwed.... I have about 6 hours of the current parity rebuild. I was thinking after this parity rebuild to replace that parity drive with a new on and rebuild again. Any consern about something messing up at that point? What do you think I should do/best couse of action? Quote Link to comment
trurl Posted June 20, 2023 Share Posted June 20, 2023 attach diagnostics to your NEXT post in this thread Do any of your other disks have SMART warnings ( 👎 ) on the Dashboard page? Quote Link to comment

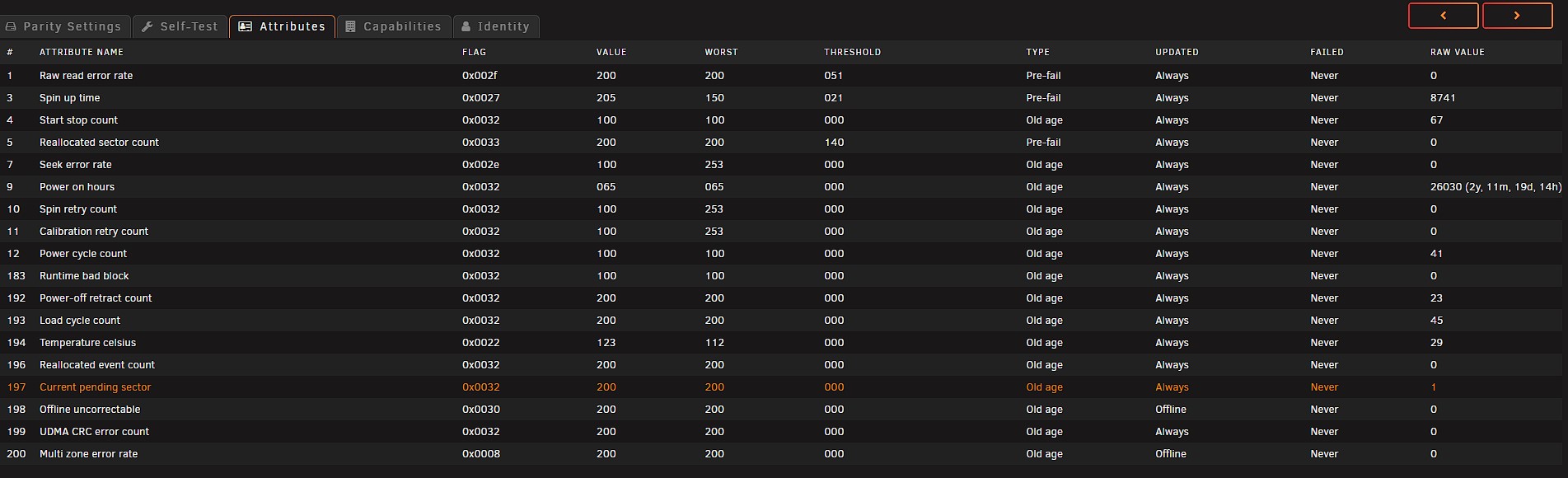

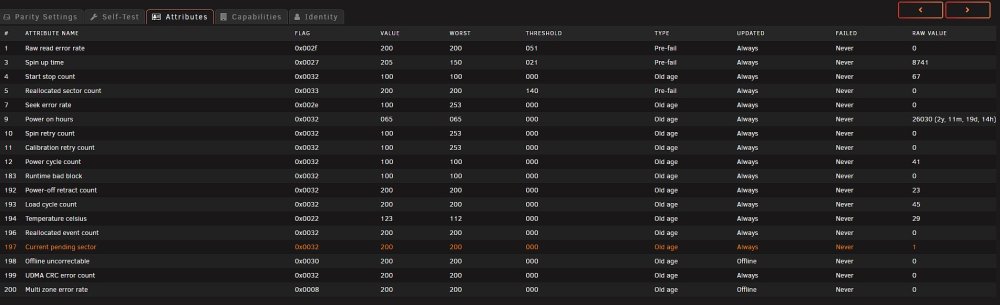

Sh3rL0cK Posted June 21, 2023 Author Share Posted June 21, 2023 (edited) Yes I have one but when I go to attributes it doesn't say anything highlited like this one. Diag attached. The drive in question is ParityWDC_WD4000F9YZ-09N20L0_WD-WMC130117163 - 4 TB (sdal) jarvis-diagnostics-20230620-2117.zip Edited June 21, 2023 by Sh3rL0cK Quote Link to comment
Sh3rL0cK Posted June 21, 2023 Author Share Posted June 21, 2023 Also disk ST91000640NS_9XG3ZG3E-20230620-2117 disk25 (sdc) has a relocated sector count of 3, but that is one of the drives i'm trying to get rid of. I just installed 2 new 8TB Seagate ironwolf drives. As soon as this parity check was over (have 2 hours remaing) I was going to check the data on the disks and swap the parity drive with one of the new IW drives. Do you think I am ok to do that or is it a risky move at this time? Quote Link to comment
JorgeB Posted June 21, 2023 Share Posted June 21, 2023 12 hours ago, Sh3rL0cK said: ParityWDC_WD4000F9YZ-09N20L0_WD-WMC130117163 - 4 TB (sdal) Run an extended SMART test, it will confirm if the pending sector is real or a false positive. 12 hours ago, Sh3rL0cK said: disk25 (sdc) has a relocated sector count of 3, This one should be OK but you can also run an extended SMART test to confirm. Quote Link to comment
Sh3rL0cK Posted June 21, 2023 Author Share Posted June 21, 2023 Jorge, Any issue you think with just swaping it out? I purchased 2 new 8TBs that I wanted to upgrade to. I know I need to swap the Parity out first so could I just do it now and not worry about this? Quote Link to comment
JorgeB Posted June 21, 2023 Share Posted June 21, 2023 13 minutes ago, Sh3rL0cK said: so could I just do it now and not worry about this? You can do that. Quote Link to comment
Sh3rL0cK Posted June 21, 2023 Author Share Posted June 21, 2023 Thanks for the help! Parity drive swapped out and rebuilding 21 hours to go Quote Link to comment
