November 27, 20232 yr I am in Unraid version 6.12.2 because 6.12.4 make my unraid crash every day.... Good news for the next release 6.12.5

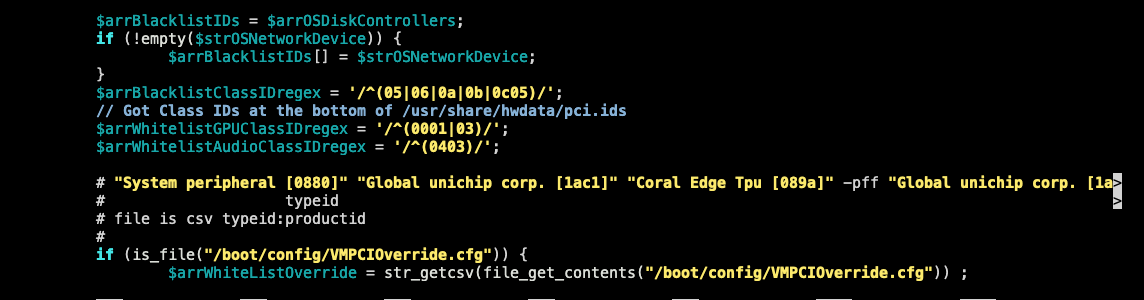

July 18, 20241 yr I have followed K Niesten solution works as Coral TPU is now on the white list see below: $arrBlacklistClassIDregex = '/^(05|06|0a|0b|0c05)/'; // Got Class IDs at the bottom of /usr/share/hwdata/pci.ids $arrWhitelistGPUClassIDregex = '/^(0001|03)/'; $arrWhitelistAudioClassIDregex = '/^(0403)/'; # "System peripheral [0880]" "Global unichip corp. [1ac1]" "Coral Edge Tpu [089a]" -pff "Global unichip corp. [1a> # typeid > # file is csv typeid:productid # if (is_file("/boot/config/VMPCIOverride.cfg")) { $arrWhiteListOverride = str_getcsv(file_get_contents("/boot/config/VMPCIOverride.cfg")) ; } $arrWhiteListOverride[] = "0880:089a" ; However, the Coral TPU does not appear on the template to edit. Is there something that i am missing ?? Any advicse would be appreciated.
July 18, 20241 yr Community Expert 8 hours ago, mikey6283 said: I have followed K Niesten solution works as Coral TPU is now on the white list see below: $arrBlacklistClassIDregex = '/^(05|06|0a|0b|0c05)/'; // Got Class IDs at the bottom of /usr/share/hwdata/pci.ids $arrWhitelistGPUClassIDregex = '/^(0001|03)/'; $arrWhitelistAudioClassIDregex = '/^(0403)/'; # "System peripheral [0880]" "Global unichip corp. [1ac1]" "Coral Edge Tpu [089a]" -pff "Global unichip corp. [1a> # typeid > # file is csv typeid:productid # if (is_file("/boot/config/VMPCIOverride.cfg")) { $arrWhiteListOverride = str_getcsv(file_get_contents("/boot/config/VMPCIOverride.cfg")) ; } $arrWhiteListOverride[] = "0880:089a" ; However, the Coral TPU does not appear on the template to edit. Is there something that i am missing ?? Any advicse would be appreciated. Which version of unraid are using? Also have you bound to vfio was add in a 6.12.6 You can create the following file boot/config/VMPCIOverride.cfg 0880:089a,xxxx:yyyy where x and y match vendor and product id.
July 18, 20241 yr Community Expert 20 minutes ago, mikey6283 said: Version 6.12.5 updated some info above

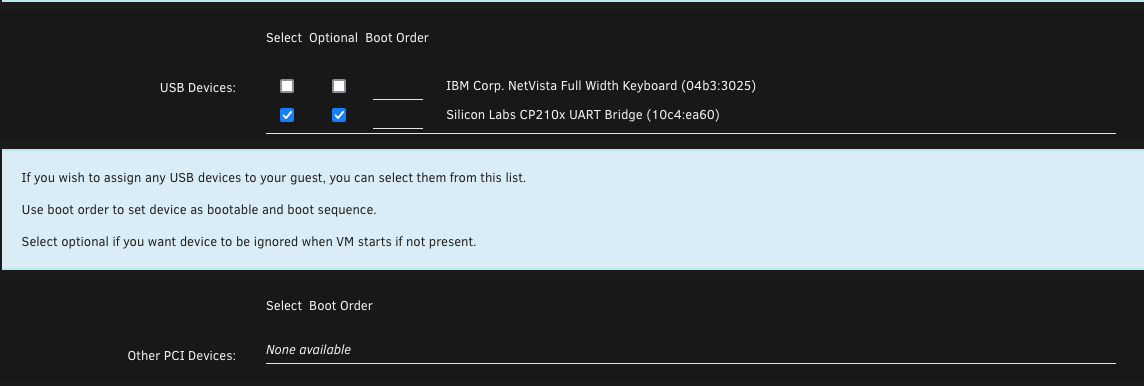

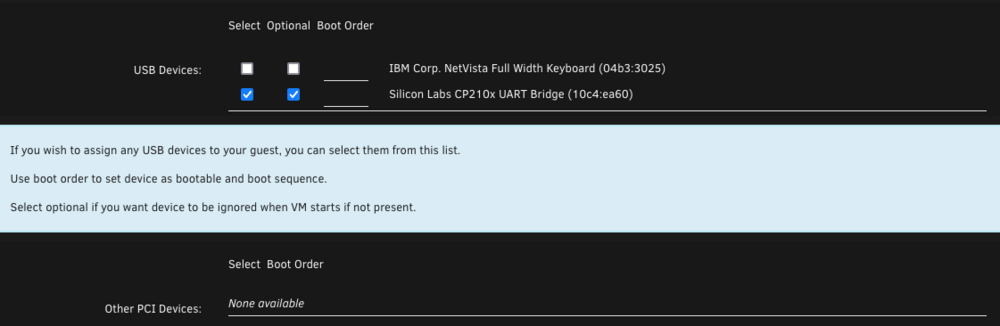

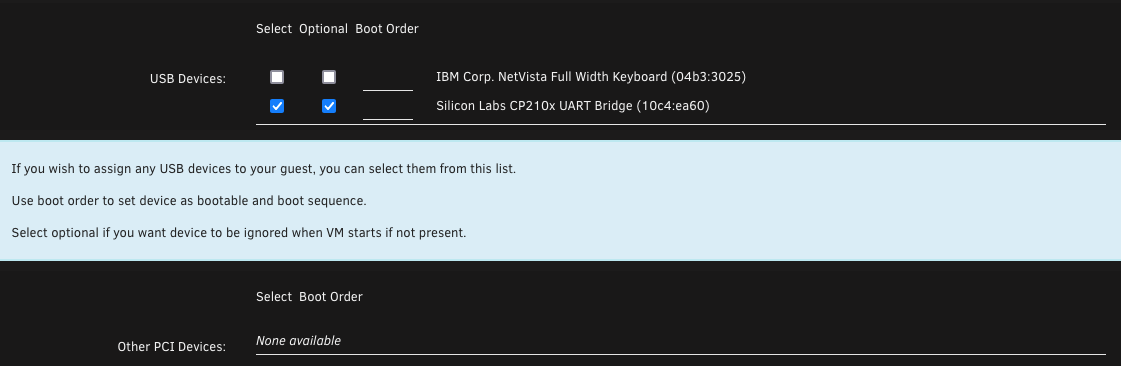

July 18, 20241 yr 1 hour ago, SimonF said: updated some info above Sorry please advise what information do you require? I have an issue with Coral TPU no being found in HA after looking a the logs Frigate Logs .Previously it was ok without having to pass-through. I found this thread which prompted me to follow the solution. I removed /08 and save check to see if it was save and saw that /08 was added to the whitelist. Went to HA to changed the template the Coral TPU was found so that i can add the PCIE. The Coral TPU is greyed out there for it being used by unraid . Hope this helps?
July 18, 20241 yr Community Expert 21 minutes ago, mikey6283 said: Sorry please advise what information do you require? I have an issue with Coral TPU no being found in HA after looking a the logs Frigate Logs .Previously it was ok without having to pass-through. I found this thread which prompted me to follow the solution. I removed /08 and save check to see if it was save and saw that /08 was added to the whitelist. Went to HA to changed the template the Coral TPU was found so that i can add the PCIE. The Coral TPU is greyed out there for it being used by unraid . Hope this helps? Can you provide some screen prints.

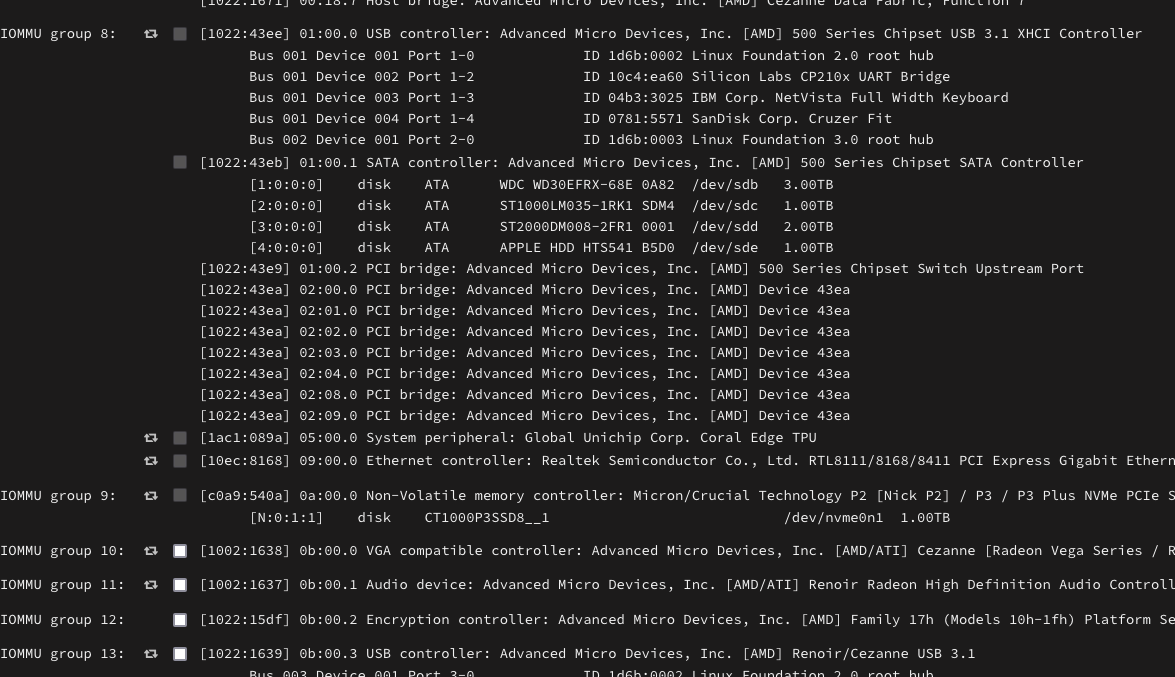

July 18, 20241 yr 14 minutes ago, SimonF said: Can you provide some screen prints. Hope that this helps i appreciate your time. I did notice that you were dealing with a similar siatutaion back in september 2023?
July 18, 20241 yr Community Expert 6 minutes ago, mikey6283 said: Hope that this helps i appreciate your time. I did notice that you were dealing with a similar siatutaion back in september 2023? It needs lto be in its own iommu group. You could try using the pci acs override option im the vm settings to see if that will split it up.
July 18, 20241 yr 1 hour ago, SimonF said: It needs lto be in its own iommu group. You could try using the pci acs override option im the vm settings to see if that will split it up. Hi i changed the Pcie acs to Both and it worked so i wrongly changed it back to disabled due to the error message that it shoud be set to disabled. Now i cannot get back into unraid after the reboot as there is an error message on booting unraid regardon etho. Not surew hat i have done wrong. I get unraid running again can i leave pcie acs running ?
July 18, 20241 yr Error message on loading says that no IPV4 is set. I assume it is due to ETH0 ? Any idea on resetting it? I later here now so i will look into tomrrow . if you would n't mind replying ?
July 19, 20241 yr Community Expert 8 hours ago, mikey6283 said: Error message on loading says that no IPV4 is set. I assume it is due to ETH0 ? Any idea on resetting it? I later here now so i will look into tomrrow . if you would n't mind replying ? You can edit or delete root@computenode:~# ls /boot/config/net* /boot/config/network.cfg root@computenode:~# Reboot and it will default to stock dchp.

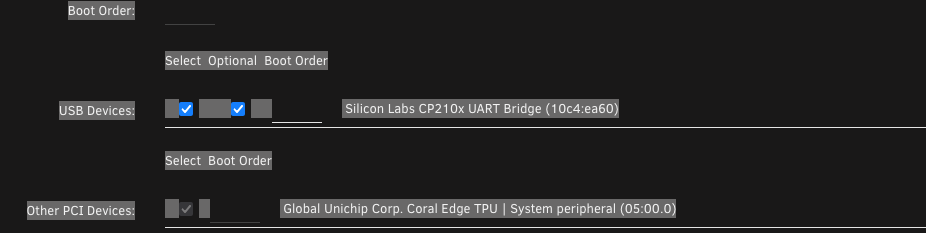

July 22, 20241 yr On 7/19/2024 at 7:18 AM, SimonF said: You can edit or delete root@computenode:~# ls /boot/config/net* /boot/config/network.cfg root@computenode:~# Reboot and it will default to stock dchp. Hi Finally have Coral TPU bonded.,but still have the follwoing errors i have included details of the installation. Any idea where i an going wrong ? Logs showing error in container

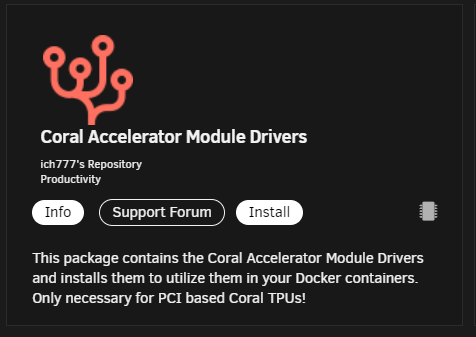

July 22, 20241 yr Community Expert 1 hour ago, mikey6283 said: Hi Finally have Coral TPU bonded.,but still have the follwoing errors i have included details of the installation. Any idea where i an going wrong ? Logs showing error in container 6.97 kB · 1 download So you are not connecting to a VM? If you are running in a container you need to install this plugin. Also you cannot bond to vfio.

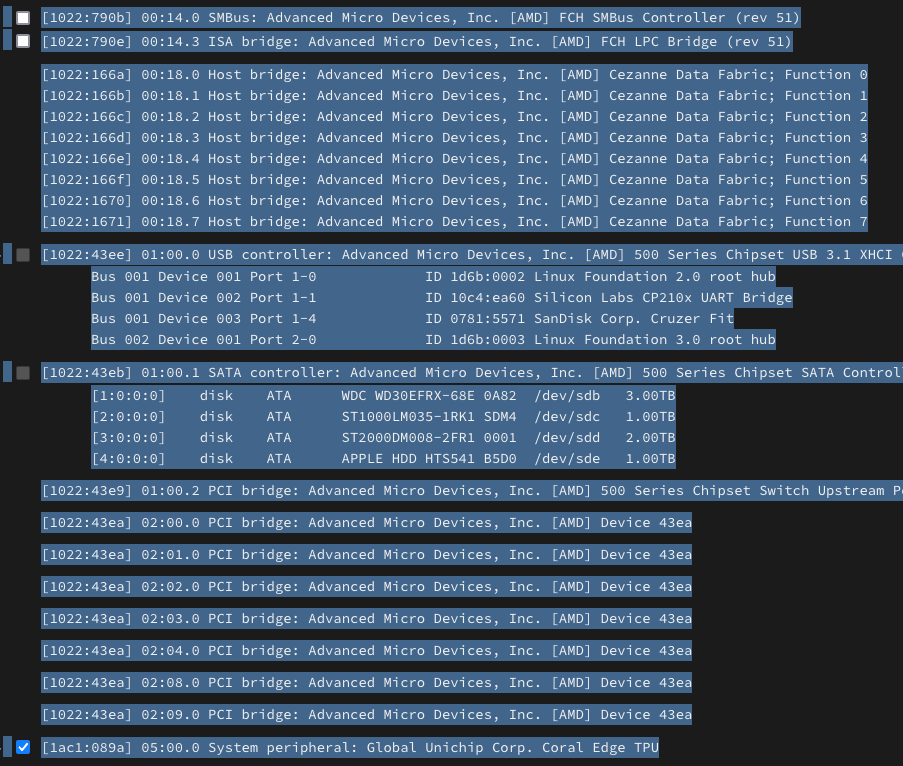

July 22, 20241 yr 3 hours ago, SimonF said: So you are not connecting to a VM? If you are running in a container you need to install this plugin. Also you cannot bond to vfio. My first issue was i couldn't pass-thru my pci to show up in HA vm. as the pci card was not showing up as avaiable in the VM even though it was on unraid. So i used pci acs override option as mentioned and bonded the Coral to HA as below. immou no is the bridge for the Coral Do i tick these to be bonded to coral ? I have Coral drivers in stalled but they too cannot find the Coral. Any ideas on where i am going wrong? I had it all work upto recently without have to bond the pci ? Your help is accpreciated.
July 23, 20241 yr On 7/18/2024 at 5:35 PM, SimonF said: Which version of unraid are using? Also have you bound to vfio was add in a 6.12.6 You can create the following file boot/config/VMPCIOverride.cfg 0880:089a,xxxx:yyyy where x and y match vendor and product id. Sorry i missed your reply, where would i write this file to ? I am assuming that the details are 0880:0089a,1ac1:089a ?? Version 6.12.10 installed now I checked the libvirt_helpers.php file it has been white listed : $arrBlacklistClassIDregex = '/^(05|06|08|0a|0b|0c05)/'; // Got Class IDs at the bottom of /usr/share/hwdata/pci.ids $arrWhitelistGPUClassIDregex = '/^(0001|03)/'; $arrWhitelistAudioClassIDregex = '/^(0403)/'; # "System peripheral [0880]" "Global unichip corp. [1ac1]" "Coral Edge Tpu [089a]" -pff "Global unichip corp. [1a> # typeid > # file is csv typeid:productid # if (is_file("/boot/config/VMPCIOverride.cfg")) { $arrWhiteListOverride = str_getcsv(file_get_contents("/boot/config/VMPCIOverride.cfg")) ; } $arrWhiteListOverride[] = "0880:089a" ;
July 23, 20241 yr Community Expert 14 minutes ago, mikey6283 said: Sorry i missed your reply, where would i write this file to ? I am assuming that the details are 0880:0089a,1ac1:089a ?? Version 6.12.10 installed now I checked the libvirt_helpers.php file it has been white listed : $arrBlacklistClassIDregex = '/^(05|06|08|0a|0b|0c05)/'; // Got Class IDs at the bottom of /usr/share/hwdata/pci.ids $arrWhitelistGPUClassIDregex = '/^(0001|03)/'; $arrWhitelistAudioClassIDregex = '/^(0403)/'; # "System peripheral [0880]" "Global unichip corp. [1ac1]" "Coral Edge Tpu [089a]" -pff "Global unichip corp. [1a> # typeid > # file is csv typeid:productid # if (is_file("/boot/config/VMPCIOverride.cfg")) { $arrWhiteListOverride = str_getcsv(file_get_contents("/boot/config/VMPCIOverride.cfg")) ; } $arrWhiteListOverride[] = "0880:089a" ; /boot/config/VMPCIOverride.cfg

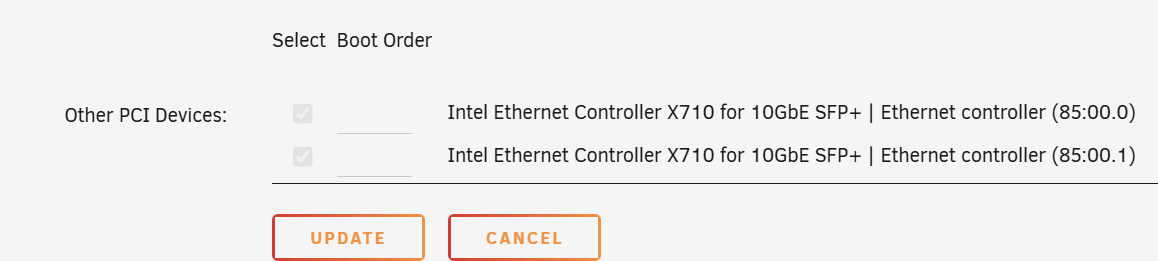

July 28, 20241 yr I am having this same issue with an Intel QAT card on UNRAID 6.12.10. Im trying to pass it though to my pFsense VM. I tried adding the "boolBlacklist=false" for this device as shown in the first page of the thread, but it didnt work for me. This is considered a system device as it is a 0b40. If I try and manually ad it to the VMs XML file, it says that the device is currently in use. I have also tried to remove the whole of the "0b" class from the blacklist and saved the libvirt_helpers.php file, and I still did not see it as an available options for my VM to select. Being how the system grabs this at boot, I figured it need to be configured to not grab it during the boot process. Trying to release it, or modify the config once the system is running didnt make sense to me. I saw that the libvirt_helpser.php changes are lost on reboot, and I did verify that is the case. What else could I try to get this device to pass though?
July 28, 20241 yr Community Expert 45 minutes ago, spotopolis said: I am having this same issue with an Intel QAT card on UNRAID 6.12.10. Im trying to pass it though to my pFsense VM. I tried adding the "boolBlacklist=false" for this device as shown in the first page of the thread, but it didnt work for me. This is considered a system device as it is a 0b40. If I try and manually ad it to the VMs XML file, it says that the device is currently in use. I have also tried to remove the whole of the "0b" class from the blacklist and saved the libvirt_helpers.php file, and I still did not see it as an available options for my VM to select. Being how the system grabs this at boot, I figured it need to be configured to not grab it during the boot process. Trying to release it, or modify the config once the system is running didnt make sense to me. I saw that the libvirt_helpser.php changes are lost on reboot, and I did verify that is the case. What else could I try to get this device to pass though? nano /boot/config/VMPCIOverride.cfg and add 8086:0435 then save. Should show in VM Manager if bound to vfio now. Looks like already bound to VFIO, have you rebooted? also check to see if bound to a driver other than vfio. Example root@computenode:/mnt/user/VMbackup# lspci -s 0000:09:00.0 -k 09:00.0 VGA compatible controller: NVIDIA Corporation TU117GLM [Quadro T400 Mobile] (rev a1) Subsystem: NVIDIA Corporation Device 1489 Kernel driver in use: nvidia Kernel modules: nvidia_drm, nvidia run lspci -s 0000:83:00.0 -k

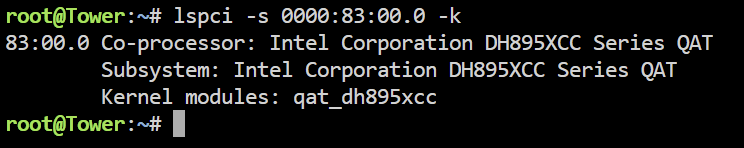

July 28, 20241 yr 32 minutes ago, SimonF said: nano /boot/config/VMPCIOverride.cfg and add 8086:0435 then save. Should show in VM Manager if bound to vfio now. Looks like already bound to VFIO, have you rebooted? also check to see if bound to a driver other than vfio. Example root@computenode:/mnt/user/VMbackup# lspci -s 0000:09:00.0 -k 09:00.0 VGA compatible controller: NVIDIA Corporation TU117GLM [Quadro T400 Mobile] (rev a1) Subsystem: NVIDIA Corporation Device 1489 Kernel driver in use: nvidia Kernel modules: nvidia_drm, nvidia run lspci -s 0000:83:00.0 -k Yes I have rebooted already. Do I need to add "BIND=" before the line because that file does not exist in my "/boot/config" folder so I would need to create it. Im assuming so, cause after adding just "8086:0435" fix common problems said "Your flash drive has possible corruption on /boot/config/VMPCIOverride.cfg." This is the output of running lspci -m -nn EDIT: I modified /boot/config/VMPCIOverride.cfg to read as below: no more errors in fix common problems, however this device is still not listed as a device to select in the VM Edited July 28, 20241 yr by spotopolis

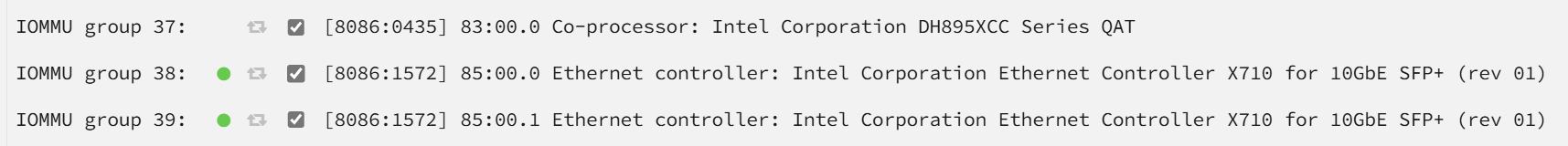

July 28, 20241 yr Community Expert 18 minutes ago, spotopolis said: Yes I have rebooted already. Do I need to add "BIND=" before the line because that file does not exist in my "/boot/config" folder so I would need to create it. Im assuming so, cause after adding just "8086:0435" fix common problems said "Your flash drive has possible corruption on /boot/config/VMPCIOverride.cfg." This is the output of running lspci -m -nn EDIT: I modified /boot/config/VMPCIOverride.cfg to read as below: no more errors in fix common problems, however this device is still not listed as a device to select in the VM No does not need bind=
July 28, 20241 yr 3 minutes ago, SimonF said: No does not need bind= So the Fix common problems error is safe to ignore in this case? Should this need a reboot to apply as well?

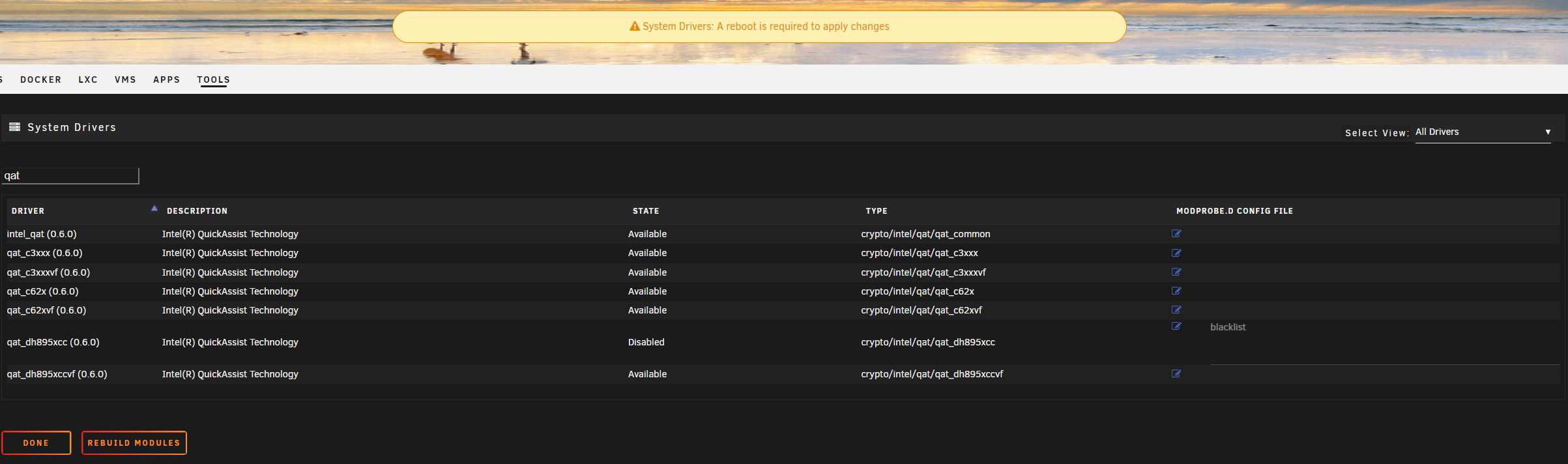

July 28, 20241 yr Community Expert 7 minutes ago, spotopolis said: So the Fix common problems error is safe to ignore in this case? Should this need a reboot to apply as well? Yes it is fine it is just an override file for vmmanager. No reboot. But you will need to blacklist the kernel driver as it is bound to the device. Will only show in vm manager if bound to vfio and the override file is set. Tools->System Drivers and add blacklist to modprobe.d entry. Will need a reboot.
July 28, 20241 yr 13 minutes ago, SimonF said: Yes it is fine it is just an override file for vmmanager. No reboot. But you will need to blacklist the kernel driver as it is bound to the device. Will only show in vm manager if bound to vfio and the override file is set. Is the correct way to do this still to do this in modprobe.d ? /boot/config/modprobe.d/qat_dh895xcc.conf EDIT: Got it. Did it though the GUI. In process of rebooting now. Ill report back once I can determine if that has resolved the issue. Edited July 28, 20241 yr by spotopolis
July 28, 20241 yr Community Expert 8 minutes ago, spotopolis said: Is the correct way to do this still to do this in modprobe.d ? /boot/config/modprobe.d/qat_dh895xcc.conf YES but system drivers wil! create the file.
