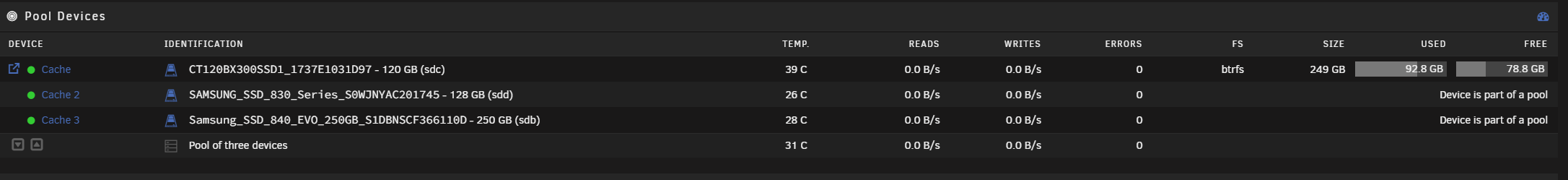

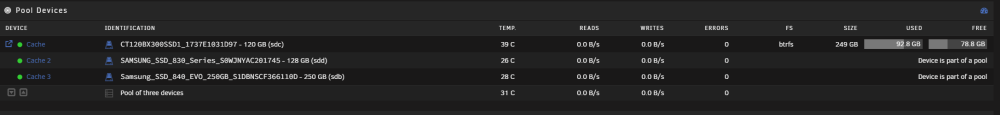

s1l3nce Posted February 21 Share Posted February 21 (edited) My current cache pool looks like this: I would like to convert that pool into a single drive and simply use the 250 GB Samsung SSD. Which steps do I need to follow? PS: It is mostly for the sake of learning; I know that having a redundant cache is ideal. My current Unraid setup is just a testing/learning environment. I want to familiarise myself with everything that I need to know before I move all my data to Unraid. The plan will be to use 2 NVME drives mirrored. Edited February 21 by s1l3nce Quote Link to comment
itimpi Posted February 21 Share Posted February 21 You need to make sure that the pool is completely balanced to RAID1 initially. You can then remove 1 drive and then you need to rebalance it to RAID1 gain with just 2 drives present. You can then remove the second drive. You now want to change it to use the Single profile. 1 Quote Link to comment

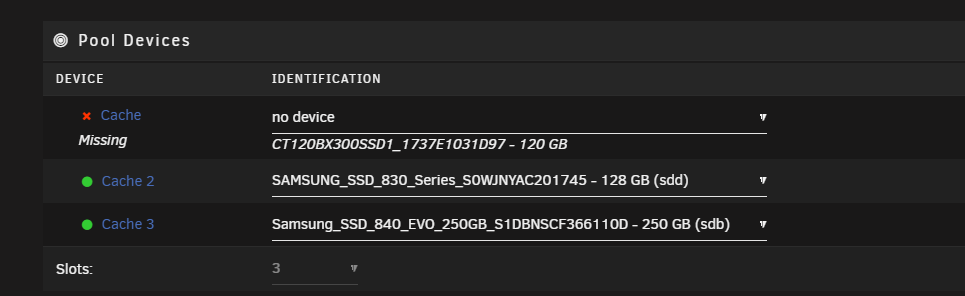

s1l3nce Posted February 21 Author Share Posted February 21 27 minutes ago, itimpi said: You need to make sure that the pool is completely balanced to RAID1 initially Done. 27 minutes ago, itimpi said: You can then remove 1 drive You mean stop the array and remove it from the pool? Like this? Quote Link to comment
JorgeB Posted February 21 Share Posted February 21 Yes, if the array does not start post the diags, pool may still be reporting single profile. Quote Link to comment

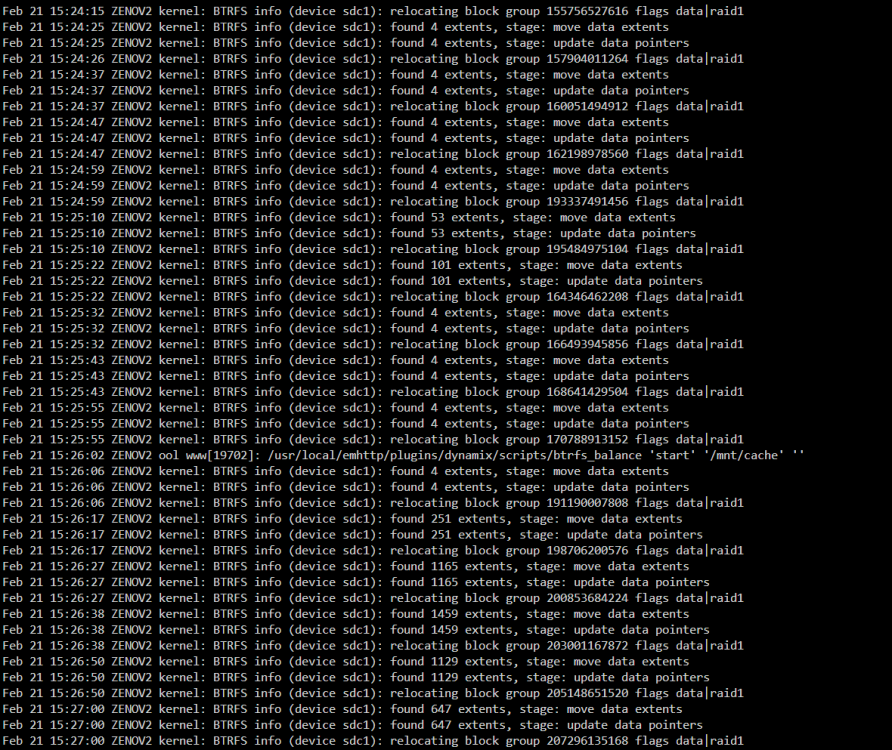

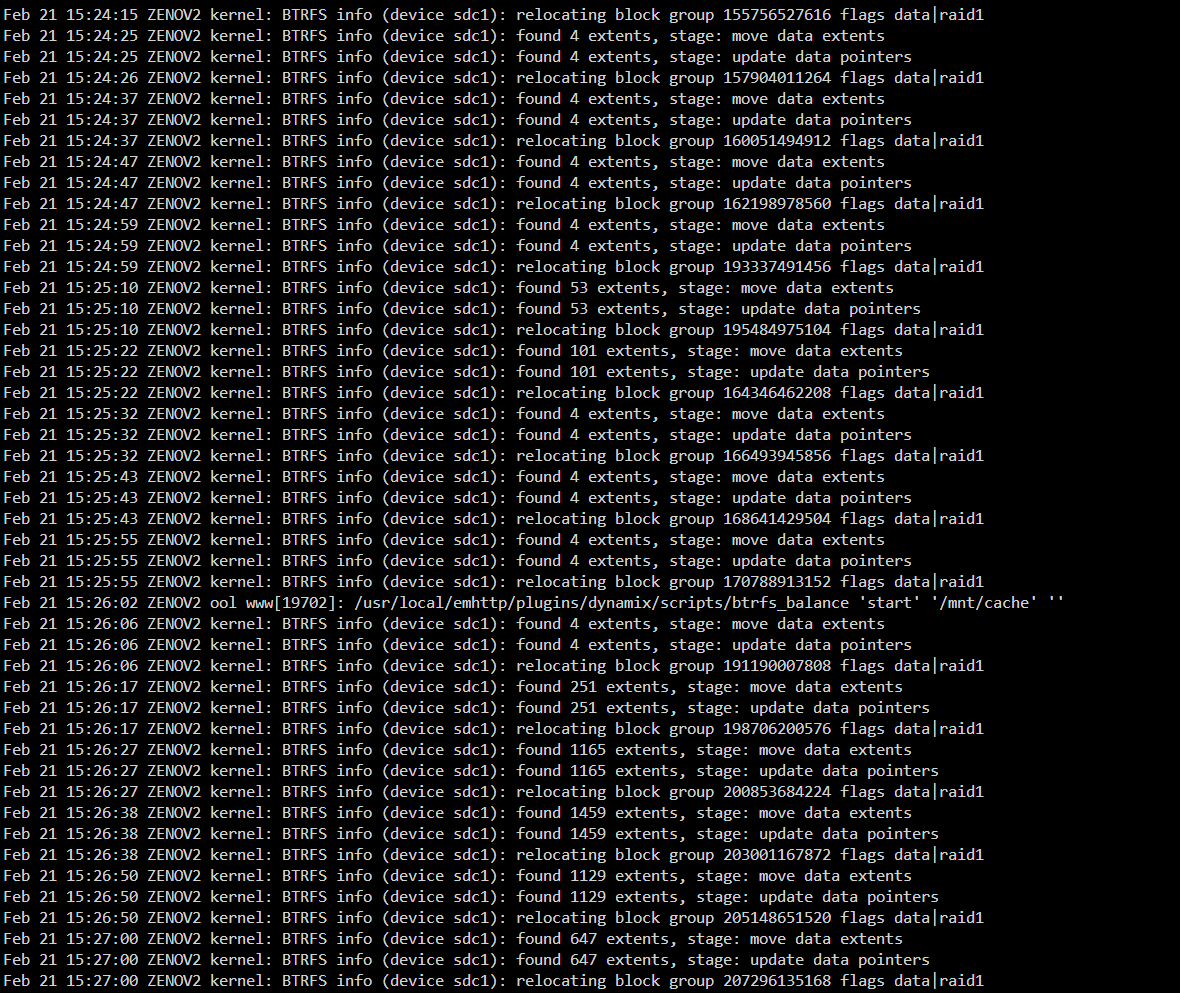

s1l3nce Posted February 21 Author Share Posted February 21 (edited) The array started but the cache drives are showing activity and the console is showing this Edited February 21 by s1l3nce Quote Link to comment

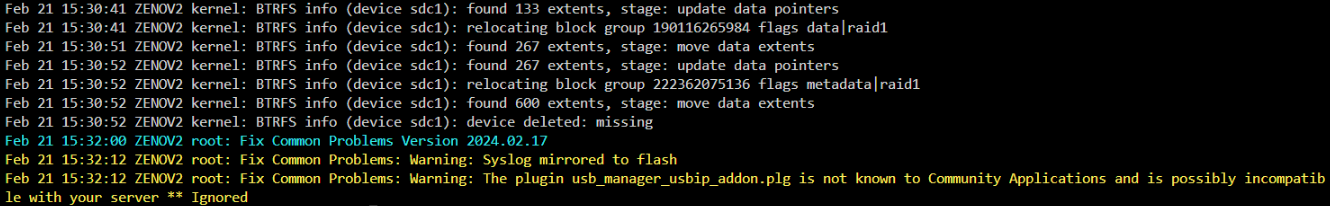

s1l3nce Posted February 21 Author Share Posted February 21 (edited) And I just got this message on the console Should I proceed with the next disk? Btw, on the first disk removal, I clicked here where it says "balanced" and a percentage showed up. But once the first disk was removed, when I clicked on it again, it did not show any activity, although there was activity between the drives, like I showed in the console. Edited February 21 by s1l3nce Quote Link to comment
JorgeB Posted February 21 Share Posted February 21 That's all normal, it's balancing, you can remove the other one now. 1 Quote Link to comment

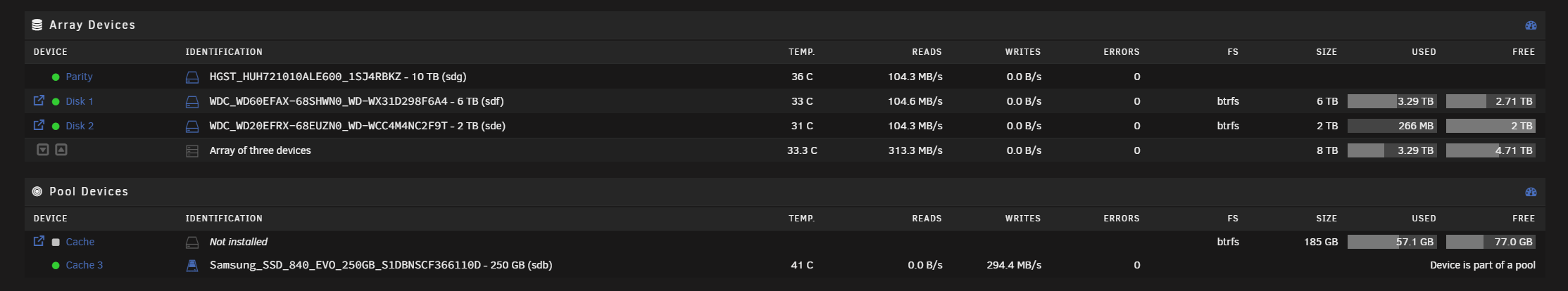

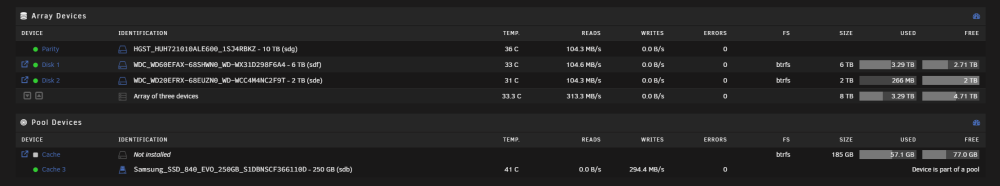

s1l3nce Posted February 21 Author Share Posted February 21 (edited) Hum... this looks weird. I removed the last disk, started the array and then this happened: A parity check started and it says that there is a missing (not installed) disk on the first slot. Edited February 21 by s1l3nce Quote Link to comment

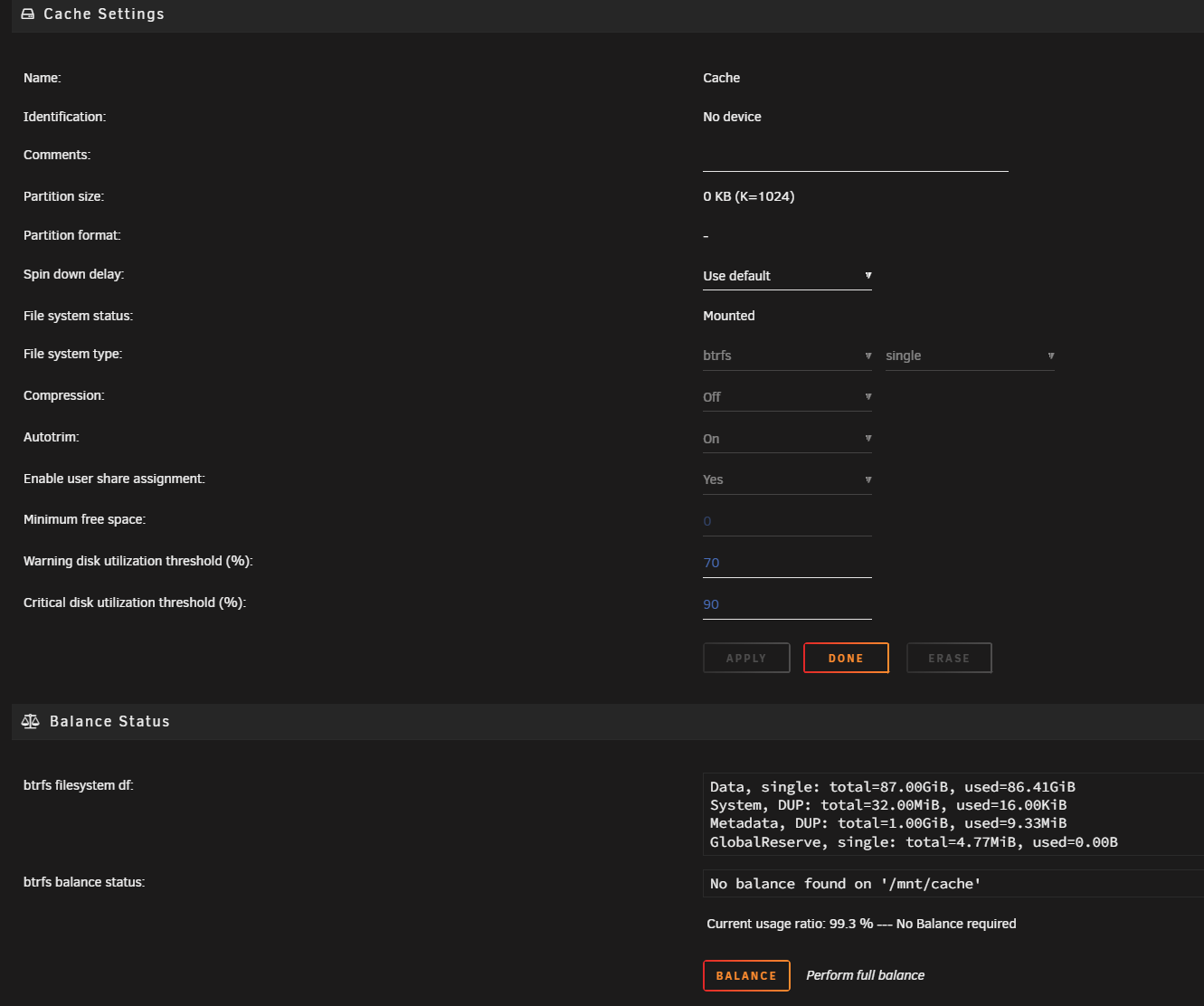

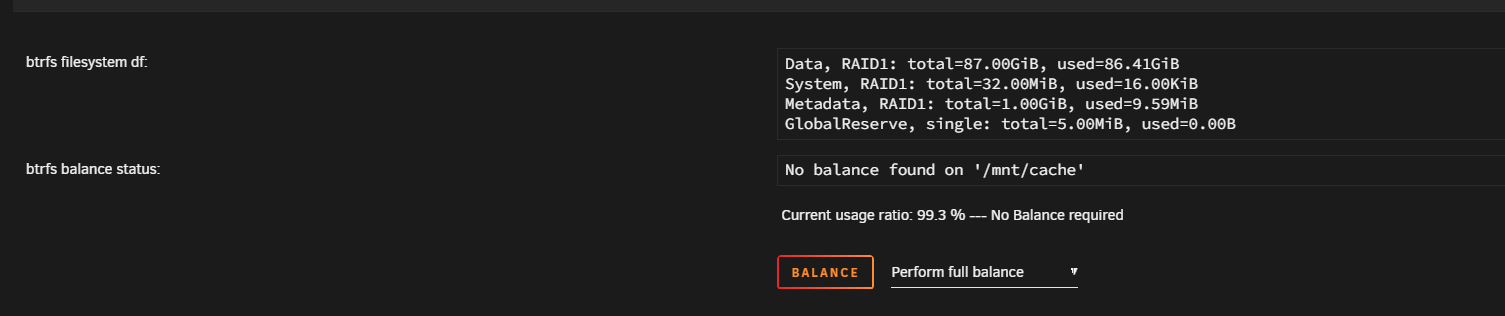

s1l3nce Posted February 21 Author Share Posted February 21 This is what I see on the slot of the last SSD I removed (that now shows as Not Installed) 2 hours ago, itimpi said: You now want to change it to use the Single profile. It does not seem to be possible to activate single profile from this menu now. Quote Link to comment
Solution JorgeB Posted February 21 Solution Share Posted February 21 Parity check would be unrelated, maybe an unclean shutdown, for the pool you can reimport with the device in the top slot, stop array, unassign the pool device, start array, stop array, re-assign the pool device, start array. 1 Quote Link to comment
s1l3nce Posted February 21 Author Share Posted February 21 4 hours ago, JorgeB said: Parity check would be unrelated, maybe an unclean shutdown. It's weird because I stopped it every time during this process. It happened after starting the array with only one SSD. Will try your suggestion and report back. Quote Link to comment
s1l3nce Posted February 21 Author Share Posted February 21 4 hours ago, JorgeB said: for the pool you can reimport with the device in the top slot, stop array, unassign the pool device, start array, stop array, re-assign the pool device, start array. It worked, brother. And, curiously enough, the parity check corrected itself after that without having to do a full parity check. Thanks a lot for all the help 🙏 Quote Link to comment

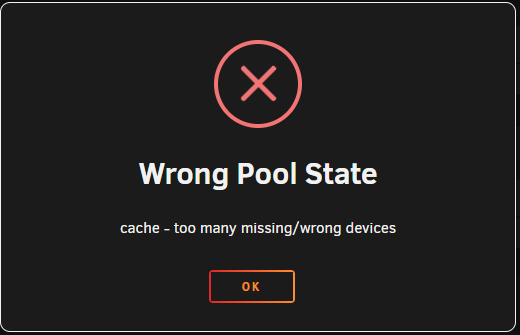

s1l3nce Posted February 21 Author Share Posted February 21 I just had a problem. I rebooted the system and when Unraid loaded back, my array was stopped. I tried to manually restart it and it gave me this error: I've just followed this advise to resolve the issue: Quote Link to comment
