Smart test of disk 2 - 2 TB finished without error, see attachment

Smart test disk 7 - 6tb still running

Im going to try to repair disk 2 via command?

After smart test disk 7 i will post new diagunraid-smart-20260110-1720.zip

Heres smart report of disk 7, again extended smart results without error.

I could run a repair on disk 7, it said the corrupted filesystem has been repaired.

Its still unassigned though...

Disk 2 is repairing now too..

Now what are the next steps?

I have 2x10 tb spare but and my parity is 8tb

Should i assign disk 7 and then switch parity ,and then switch disk 7 with the last 10 tb?

unraid-smart-20260111-0317.zip

Post current dags to see the status, as the server is, leave disk7 unassigned but mounted with the UD plugin, and the array started.

i was fixing disk 2 when i was away.

I came home and i was about to post the diagn. but now the webui isnt available anymore.

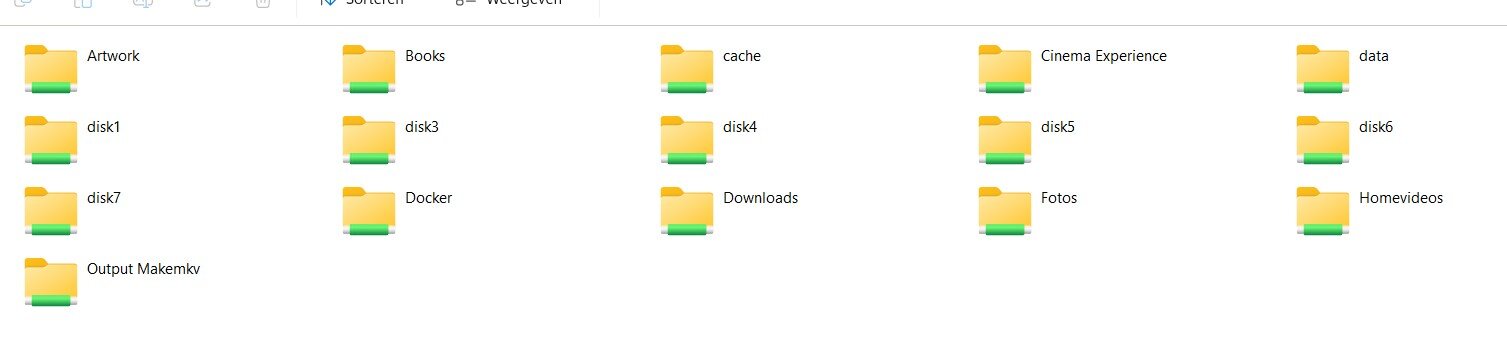

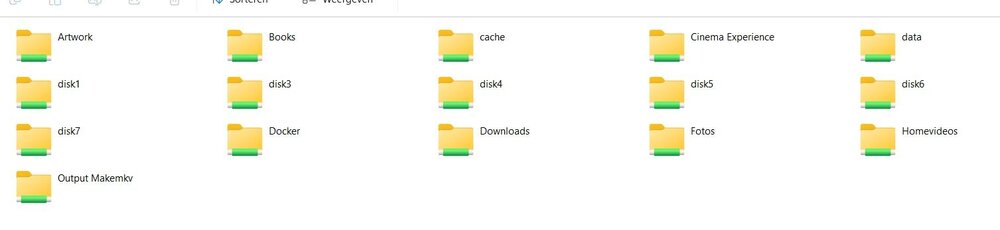

I can browse using explorer to all the disks...

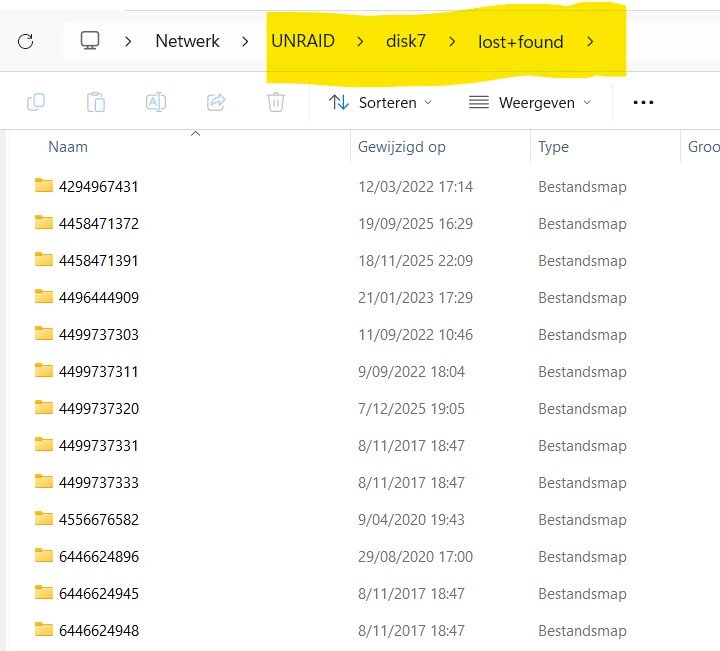

Except still disk 2, disk 7 i can browse the lost and found items.

But why my webui isnt available anymore i dont know?

14 minutes ago, skank said:

webui isnt available anymore

Do you have an attached keyboard and monitor?

1 minute ago, trurl said:

Do you have an attached keyboard and monitor?

No but i ssh'ed into it

See if you can get diagnostics from the command line

Ah i'm back in !

Ok heres the diagnostiscs.

Ok tell me what to do now pls.

2008 diagnostics -> forgot to mount disk 7

So i tried to mount it ,but got error , see syslog

Now added syslog and new diagnostics 2012

unraid-diagnostics-20260111-2008.zip syslog-192.168.1.117.log unraid-diagnostics-20260111-2012.zip

Its been a whole weekend now, hate that i cant do anything.

i still got 2 spare drives of 10TB + 1 disk of 2TB which im not sure if it still works

I dont want to lose data on disk 7 (its available now).

no problem to lose data on disk 2

Should i get another 6tb drive to help me?

What do i do know?

Edited January 11Jan 11 by skank

Emulated disk7 is mounted and it says it has 1.5T of data on it. But I'm not seeing that disk in any user shares, not even lost+found

1 hour ago, skank said:

disk 7 i can browse the lost and found items.

How are you doing that?

Don't see SMART for the Unassigned (original disk7?). Looks like a connection problem.

9 minutes ago, trurl said:

Emulated disk7 is mounted and it says it has 1.5T of data on it. But I'm not seeing that disk in any user shares, not even lost+found

How are you doing that?

Don't see SMART for the Unassigned (original disk7?). Looks like a connection problem.

1.5T data on disk 7 cant be. Its a 6 tb disk and almost completely full

I just use "explorer to see data

You dont see smart for the unassigned (original disk 7) but how can see yhe disk 7 then with 1.5T data on it?

Edited January 11Jan 11 by skank

1 hour ago, skank said:

Its been a whole weekend now, hate that i cant do anything.

i still got 2 spare drives of 10TB + 1 disk of 2TB which im not sure if it still works

I dont want to lose data on disk 7 (its available now).

no problem to lose data on disk 2

Should i get another 6tb drive to help me?

What do i do know?

Try swapping disk 2 with the other 2TB disk?

or

Buy 6 TB, add it as disk 7 ? copy data over from unmountable disk 7 to new disk 7 which is 6 tb?

or both?

or something else?

49 minutes ago, skank said:

You dont see smart for the unassigned (original disk 7) but how can see yhe disk 7 then with 1.5T data on it?

1 hour ago, trurl said:

Emulated disk7 is mounted and it says it has 1.5T of data on it.

The emulated disk is not the physical (unassigned) disk. That unassigned disk is not disk7 as far as Unraid is concerned. The emulated disk is the contents of the disk that was in that slot, as provided from the parity calculation by reading all other disks. This is how it is able to rebuild a disk, even if the disk has been destroyed. The emulated contents are exactly what will be written by rebuilding.

And your screenshots are also showing emulated disk7. Don't know why the emulated disk has less data than you think disk7 should have. And don't understand why emulated disk7 isn't showing up in user shares.

If we could get the unassigned disk mounted we could check its contents.

1 hour ago, trurl said:

Don't see SMART for the Unassigned (original disk7?). Looks like a connection problem.

Check connections and post new diagnostics.

The connections are good.

I can keep posting diagnostics but i'm not getting further... . I know ur trying to help me which i appreciate !

However its been a whole weekend, and the longer i wait, i get the idea the more problems are rising.

So what i see is the emulated disk 7 = not the same as the unassigned one.

If i try to mount the unassigned one it doesnt work

again here diagnostics.

What should i do now?

Should i get an extra disk of 6 tb to copy all over.

and to change parity to 10tb

What about disk 2.. can i swap it alread by that other 2 tb disk i have?

unraid-diagnostics-20260112-1221.zip syslog-192.168.1.117.log

Edited January 12Jan 12 by skank

You are still having what looks like power/connection issues, or a controller problem, since the Marvel controller you are using, possibly a Supermicro SASLP, has not been recommended for many years now:

Jan 12 13:13:45 Unraid kernel: ata7: hard resetting link

Jan 12 13:13:45 Unraid kernel: ata7.00: failed to IDENTIFY (INIT_DEV_PARAMS failed, err_mask=0x80)

Jan 12 13:13:45 Unraid kernel: ata7.00: revalidation failed (errno=-5)

Jan 12 13:13:45 Unraid kernel: ata7.00: disable device

Disk7 dropped offline when you tried to mount it using UD; that's why it failed to mount.

You need to try and resolve these issues first, or they can make things worse. Check/replace all cables, make sure no power splitters are being used (it could also be worth using a different PSU if you have a spare), and ideally replace that Marvell controller with a recomended one https://forums.unraid.net/topic/102010-recommended-controllers-for-unraid/

5 hours ago, JorgeB said:

You are still having what looks like power/connection issues, or a controller problem, since the Marvel controller you are using, possibly a Supermicro SASLP, has not been recommended for many years now:

Jan 12 13:13:45 Unraid kernel: ata7: hard resetting link

Jan 12 13:13:45 Unraid kernel: ata7.00: failed to IDENTIFY (INIT_DEV_PARAMS failed, err_mask=0x80)

Jan 12 13:13:45 Unraid kernel: ata7.00: revalidation failed (errno=-5)

Jan 12 13:13:45 Unraid kernel: ata7.00: disable device

Disk7 dropped offline when you tried to mount it using UD; that's why it failed to mount.

You need to try and resolve these issues first, or they can make things worse. Check/replace all cables, make sure no power splitters are being used (it could also be worth using a different PSU if you have a spare), and ideally replace that Marvell controller with a recomended one https://forums.unraid.net/topic/102010-recommended-controllers-for-unraid/

i connected disk 7 to other sata and power cables and it was still the same thing remember..

Then i tried to swap with disk 2, and still the same thing

Disk 2 is not connected to the marvel controller.

Whats your best shot?

Should i go for another controller? (the marvel one has issues with sleep anyway).

But i'm not sure that will fix it, since it was the same thing if i swapped it with disk 2

I would still recommend replacing the controller, but it could also be a power/connection issue, especially if there are power splitters in use, or just a bad PSU

42 minutes ago, JorgeB said:

I would still recommend replacing the controller, but it could also be a power/connection issue, especially if there are power splitters in use, or just a bad PSU

My sas expansion card has 2 SFF 8087 connectors. The first one has sas cables to 4 drives, including disk 7

I just replaced all those cables.. AND the power cable of disk 7

Yes i use a splitter for those hot swappable cages normally, but for test i use a power cable straigth from the psu, so i'm 100% sure the problem is not the sata cables nor the power cable.

Tried mounting again, still no luck. So its definately no power or sata cable issue!

Should i try the second SFF 8087 connector? Can i do that without turning off?

The psu is use is: corsair cx430

What expansion card you think i should buy? i only need 6 extra sata connections able to fit on my mobo: Gigabyte Technology Co., Ltd. H370 HD3-CF

Changed port on expansion card, still the same, cant mount.

Can i exclude the card somehow?

I have 6 sata connections on motherboard, but they are taken for disk 1-5 + parity , i cant swap those or i will have problems i assume, just to exclude problem with sata expansion card

11 hours ago, skank said:

Changed port on expansion card, still the same, cant mount.

Post new diags to see if it's still the same issue.

52 minutes ago, JorgeB said:

Post new diags to see if it's still the same issue.

unraid-diagnostics-20260113-0945.zip

Jan 13 10:37:18 Unraid kernel: ata7.00: disable device

It was. My suggestion would be to connect disk7 to a different controller to confirm if it's really the controller causing the issue.

9 minutes ago, JorgeB said:

Jan 13 10:37:18 Unraid kernel: ata7.00: disable device

It was. My suggestion would be to connect disk7 to a different controller to confirm if it's really the controller causing the issue.

Yeah thats what i asked

I have 6 sata connections on motherboard, but they are taken for disk 1-5 + parity , i cant swap those or i will have problems i assume, just to exclude problem with sata expansion card

You can just connect disk7 there, unplug one of the other ones temporarily, and then see if disk7 mounts with UD.

ok i will report back tonight.
