January 17, 201412 yr With the new PSU and after a preclear if the SMART reports no longer say FAILING_NOW anywhere then the drives should be ok.
January 23, 201412 yr Author New PSU is in and the first drive is getting pre-cleared. Does it matter if the drives are assigned or not? In the Main GUI of the UnRaid it has Parity - No Device Disk 1 - No Device Disk 2 - Unassigned If I click on the drop down menu, it does see all drives.
January 25, 201412 yr Author All three isks all got precleared. I brought the server online and formatted drives. Disk 1 seems OK with no errors but disk 2 had 30,552 errors. If one of the cables were bad, wouldn't the preclear have failed? Attached is the sys log and also the reports from all three drives. Someone please help. Thanks, Dave logs.zip
January 25, 201412 yr Author Now I just stopped the array and the Parity drive and Disk 2 went to no device. Clicking on the drop down menu shows no drives. Shutting down the server and powering back on. Finds all drives again. but then fails when the parity tries to sync.
January 25, 201412 yr Two of the reports have the words "FAILING NOW" in them. Those drives should be RMA'd.
January 25, 201412 yr Author Thoses are both new 3TB NAS Seagate's. Should i get a refund and switch brands? I already rma'd one of them. So three drives new ones and all three are bad. So with the preclear working on all drives, is it safe to say the motherboard is working correctly?
January 27, 201412 yr Thoses are both new 3TB NAS Seagate's. Should i get a refund and switch brands? I already rma'd one of them. So three drives new ones and all three are bad. So with the preclear working on all drives, is it safe to say the motherboard is working correctly? That could be a shipper problem. Assume you got the drives at the same time from same shipment? I had 3 out of 5 drives I ordered from newegg come out bad. Got newegg to send me replacements and 1 of the 3 replacements is bad so am RMA'ing that this week. All due to the lousy packaging they have been doing lately. The black friday rush didn't help my 5 drive shipment any.
January 27, 201412 yr Author Well i have two more drives coming. Hopefully this is the last and final time for these drives. Thanks again for all the help.
February 28, 201412 yr Author Long story short, I have a new 3TB drive. The other is on its way. I added the new drive and tried a preclear. LEft it go over night and saw an error in the morning before heading off to work. I didn't screen capture the error and cant remember exactly what it was. Some format error I believe. When I came home later today, the preclear restarted. and the error was not in the putty screen anymore. I added the new 3TB as the Parity drive. I get errors like before and get the red ball. Attached is the sys log and smart report from the 3TB drive. I am really getting frustrated with this. Can anyone please shed some light. Thanks Dave smart.txt syslog-2-28-14.txt
February 28, 201412 yr Check the cable connections to the drive. The SMART report indicates that the drive is bad. Note the words "FAILING NOW". I would not use any drive that has that message anywhere in its SMART report. The alternative possibility is that the system is causing the problems. Does it always happen to drives in the same physical position? Switch the position with a known good drive. Does the good drive go bad after the swap? Does the bad drive now pass a pre-clear after the swap? I've never seen a drive recover after FAILING NOW is indicated and don't know if it's possible.

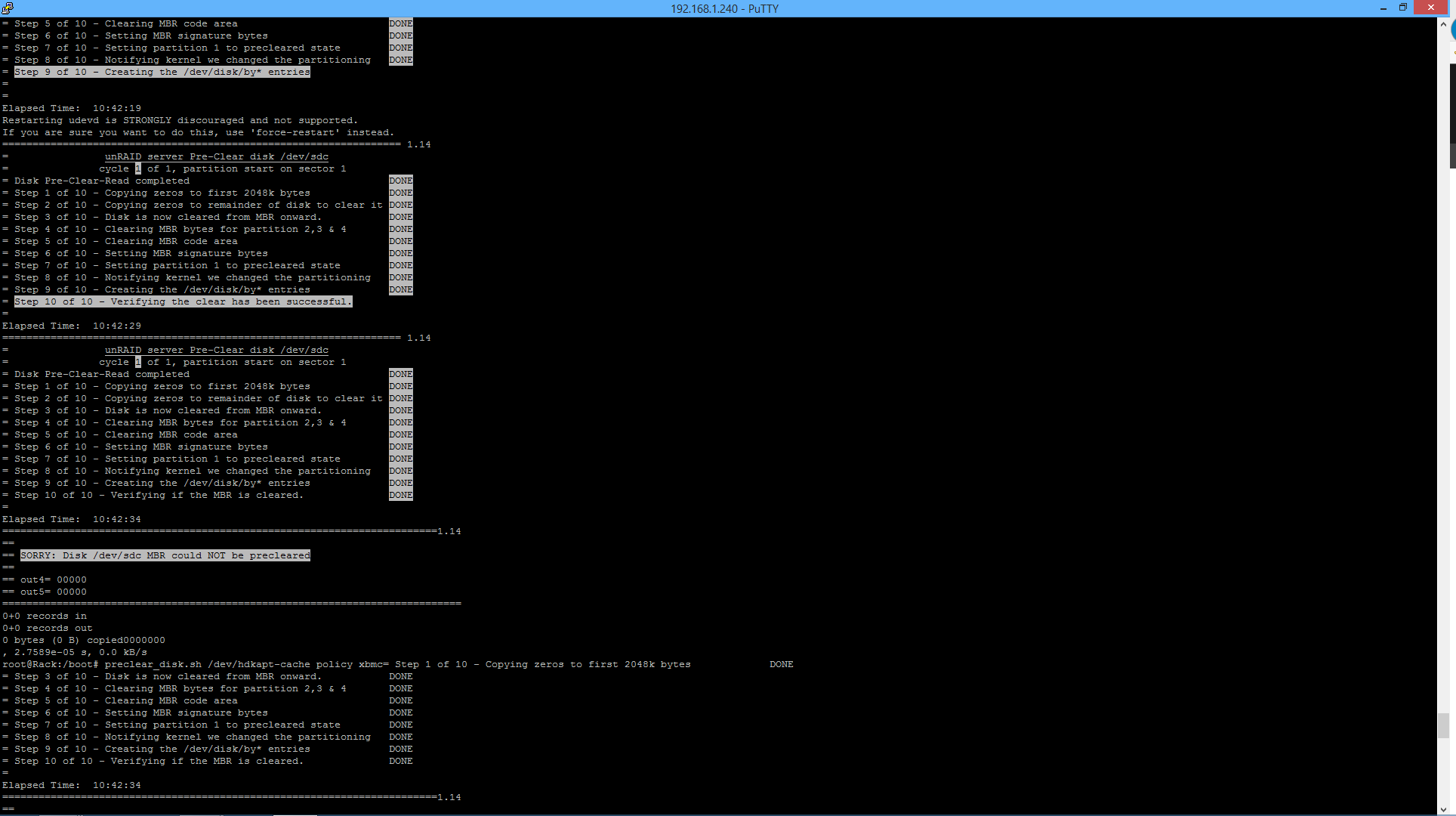

March 3, 201412 yr Author Moved to cables from the working 2TB to the questionable 3TB and tried a preclear again. Failed at the end. Attached is the screen shot of Putty. Also the Smart report was not generated other than this message... Device Identity failed: Input/output error A mandatory SMART command failed: exiting. To continue, add one or more '-T permissive' options.
March 5, 201412 yr Author Switches the wires like I said and precleared the 2TB drive. Results look good so the cable is good. So it seems the 3TB is bad again...
March 8, 201412 yr Author The other new 3TB driuve showed up. I removed the questionable 3TB drive and installed the new one. Tried to run a preclear and get an error... BLKRRPART: Input/output error Sorry: Device /dev/sdb is not responding to an fdisk -1 /dev/sdb command. You might try power-cycling it to see if it will start responding. I powered down and swapped cables with the working 2TB and it gave me same error. Also in the unraid main page, in the disk drop down menu it is not showing the correct number of bytes. its showing 4044975. If I try and run a smart report, I get a error... Read SMART Data failed: scsi error aborted command
March 8, 201412 yr My two cents - with that many drive failures, I'd start to suspect the mobo. I'm not sure what advice to give you to test that theory out, but it does seem highly unlikely that you'd be the recipient of every one of that suppliers stock of bad drives. Then again, maybe you are and the rest of us should be thanking you...
March 8, 201412 yr Author LOL Its funny but its not. It just seems strange to me that the 2TB drive works fine. Maybe my mobo has issues with the 3TB drives?
March 8, 201412 yr You have a point there, HiTech - have you checked specs/forums on your board to see if there are any known issues with >2TB drives?
March 10, 201412 yr Author After some digging I found this. http://lime-technology.com/forum/index.php?topic=12036.0 A quote from Prostuff1 "DO NOT use this motherboard. IT has the Atheros Chipset for the onboard NIC which does not play well with unRAID." Looks like I will need to get another Mobo and I guesses a new processor. Was hoping to do this UnRaid cheaper than its turning out to be but you have to pay to play sometimes. Any suggestions guys on something decent that will not to to expensive?
March 10, 201412 yr Author Another question.... Can I install these 3TB drives into my Windows machine to test them out? Will that cause any issues when I later move them to the server?
March 10, 201412 yr Author http://www.newegg.com/Product/ComboBundleDetails.aspx?ItemList=Combo.1460261 Would this be OK for a budget build?
March 11, 201412 yr After some digging I found this. http://lime-technology.com/forum/index.php?topic=12036.0 A quote from Prostuff1 "DO NOT use this motherboard. IT has the Atheros Chipset for the onboard NIC which does not play well with unRAID." Looks like I will need to get another Mobo and I guesses a new processor. Was hoping to do this UnRaid cheaper than its turning out to be but you have to pay to play sometimes. Any suggestions guys on something decent that will not to to expensive? The Atheros chipset is not a problem as of version 5.
March 11, 201412 yr Author Well that's good news. I will dig some more to see if I can find if larger than 2TB is an issue with that board. Oh yah. I did do an update on the bios. It was a few versions old.
March 11, 201412 yr Well that's good news. I will dig some more to see if I can find if larger than 2TB is an issue with that board. Oh yah. I did do an update on the bios. It was a few versions old. The board doesn't need to correctly identify the larger drives. As long as the OS, unRAID, identifies the drives correctly in the GUI then they will work. The board may not be able to boot from a large volume but that is not a problem with unRAID.
