November 29, 20169 yr Hey Gridrunner, thanks. Here is my XML from the VM. <domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'> <name>OSX-El-Capitan-10.11-VNC</name> <uuid>0ba39646-7ba1-4d41-9602-e2968b2fe36d</uuid> <metadata/> <memory unit='KiB'>4194304</memory> <currentMemory unit='KiB'>4194304</currentMemory> <vcpu placement='static'>2</vcpu> <cputune> <vcpupin vcpu='0' cpuset='1'/> <vcpupin vcpu='1' cpuset='2'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-2.3'>hvm</type> <kernel>/mnt/user/isos/enoch_rev2795_boot</kernel> <boot dev='hd'/> <bootmenu enable='yes'/> </os> <features> <acpi/> </features> <cpu mode='custom' match='exact'> <model fallback='allow'>core2duo</model> </cpu> <clock offset='utc'/> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>destroy</on_crash> <devices> <emulator>/usr/bin/qemu-system-x86_64</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw'/> <source file='/mnt/user/domains/ElCap/ElCapitan.img'/> <target dev='hda' bus='sata'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <controller type='usb' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> <model name='i82801b11-bridge'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </controller> <controller type='pci' index='2' model='pci-bridge'> <model name='pci-bridge'/> <target chassisNr='2'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/> </controller> <interface type='bridge'> <mac address='00:00:00:00:00:00'/> <source bridge='br0'/> <model type='e1000-82545em'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/> </interface> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='vmvga' vram='16384' heads='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/> </video> <memballoon model='none'/> </devices> <seclabel type='none' model='none'/> <qemu:commandline> <qemu:arg value='-device'/> <qemu:arg value='usb-kbd'/> <qemu:arg value='-device'/> <qemu:arg value='usb-mouse'/> <qemu:arg value='-device'/> <qemu:arg value='isa-applesmc,osk=XXXX'/> <qemu:arg value='-smbios'/> <qemu:arg value='type=2'/> <qemu:arg value='-device'/> <qemu:arg value='ide-drive,bus=ide.1,drive=MacDVD'/> <qemu:arg value='-drive'/> <qemu:arg value='id=MacDVD,if=none,snapshot=on,file=/mnt/user/isos/Install_OS_X_10.11.6_El_Capitan.iso'/> </qemu:commandline> </domain>
November 29, 20169 yr Hey Gridrunner, thanks. Here is my XML from the VM. <domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'> <name>OSX-El-Capitan-10.11-VNC</name> <uuid>0ba39646-7ba1-4d41-9602-e2968b2fe36d</uuid> <metadata/> <memory unit='KiB'>4194304</memory> <currentMemory unit='KiB'>4194304</currentMemory> <vcpu placement='static'>2</vcpu> <cputune> <vcpupin vcpu='0' cpuset='1'/> <vcpupin vcpu='1' cpuset='2'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-2.3'>hvm</type> <kernel>/mnt/user/isos/enoch_rev2795_boot</kernel> <boot dev='hd'/> <bootmenu enable='yes'/> </os> <features> <acpi/> </features> <cpu mode='custom' match='exact'> <model fallback='allow'>core2duo</model> </cpu> <clock offset='utc'/> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>destroy</on_crash> <devices> <emulator>/usr/bin/qemu-system-x86_64</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw'/> <source file='/mnt/user/domains/ElCap/ElCapitan.img'/> <target dev='hda' bus='sata'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <controller type='usb' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> <model name='i82801b11-bridge'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </controller> <controller type='pci' index='2' model='pci-bridge'> <model name='pci-bridge'/> <target chassisNr='2'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/> </controller> <interface type='bridge'> <mac address='00:00:00:00:00:00'/> <source bridge='br0'/> <model type='e1000-82545em'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/> </interface> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='vmvga' vram='16384' heads='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/> </video> <memballoon model='none'/> </devices> <seclabel type='none' model='none'/> <qemu:commandline> <qemu:arg value='-device'/> <qemu:arg value='usb-kbd'/> <qemu:arg value='-device'/> <qemu:arg value='usb-mouse'/> <qemu:arg value='-device'/> <qemu:arg value='isa-applesmc,osk=XXXX'/> <qemu:arg value='-smbios'/> <qemu:arg value='type=2'/> <qemu:arg value='-device'/> <qemu:arg value='ide-drive,bus=ide.1,drive=MacDVD'/> <qemu:arg value='-drive'/> <qemu:arg value='id=MacDVD,if=none,snapshot=on,file=/mnt/user/isos/Install_OS_X_10.11.6_El_Capitan.iso'/> </qemu:commandline> </domain> I am guessing you are using unRAID 6.2 or above. If so please change this line here <type arch='x86_64' machine='pc-q35-2.3'>hvm</type> to <type arch='x86_64' machine='pc-q35-2.5'>hvm</type>
November 29, 20169 yr Hey Gridrunner, thanks. Here is my XML from the VM. <domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'> <name>OSX-El-Capitan-10.11-VNC</name> <uuid>0ba39646-7ba1-4d41-9602-e2968b2fe36d</uuid> <metadata/> <memory unit='KiB'>4194304</memory> <currentMemory unit='KiB'>4194304</currentMemory> <vcpu placement='static'>2</vcpu> <cputune> <vcpupin vcpu='0' cpuset='1'/> <vcpupin vcpu='1' cpuset='2'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-2.3'>hvm</type> <kernel>/mnt/user/isos/enoch_rev2795_boot</kernel> <boot dev='hd'/> <bootmenu enable='yes'/> </os> <features> <acpi/> </features> <cpu mode='custom' match='exact'> <model fallback='allow'>core2duo</model> </cpu> <clock offset='utc'/> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>destroy</on_crash> <devices> <emulator>/usr/bin/qemu-system-x86_64</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw'/> <source file='/mnt/user/domains/ElCap/ElCapitan.img'/> <target dev='hda' bus='sata'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <controller type='usb' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> <model name='i82801b11-bridge'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </controller> <controller type='pci' index='2' model='pci-bridge'> <model name='pci-bridge'/> <target chassisNr='2'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/> </controller> <interface type='bridge'> <mac address='00:00:00:00:00:00'/> <source bridge='br0'/> <model type='e1000-82545em'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/> </interface> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='vmvga' vram='16384' heads='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/> </video> <memballoon model='none'/> </devices> <seclabel type='none' model='none'/> <qemu:commandline> <qemu:arg value='-device'/> <qemu:arg value='usb-kbd'/> <qemu:arg value='-device'/> <qemu:arg value='usb-mouse'/> <qemu:arg value='-device'/> <qemu:arg value='isa-applesmc,osk=XXXX'/> <qemu:arg value='-smbios'/> <qemu:arg value='type=2'/> <qemu:arg value='-device'/> <qemu:arg value='ide-drive,bus=ide.1,drive=MacDVD'/> <qemu:arg value='-drive'/> <qemu:arg value='id=MacDVD,if=none,snapshot=on,file=/mnt/user/isos/Install_OS_X_10.11.6_El_Capitan.iso'/> </qemu:commandline> </domain> I am guessing you are using unRAID 6.2 or above. If so please change this line here <type arch='x86_64' machine='pc-q35-2.3'>hvm</type> to <type arch='x86_64' machine='pc-q35-2.5'>hvm</type> Yes 6.2.4. And I had it at 2.5.. Ill change it back and try it again...aaaaaaaaaaaaaaand it worked. That is completely bizarre as I know I tried it both ways.... Man I must be overly tired. Thanks Gridrunner!! Super excited to get this going.. Now to get the GPU and USB going.
November 29, 20169 yr We NEED a good tutorial how to get the OSK key. It took me a few hours to find out how to get it since all the tutorials don't work, Pro Tip: Google "apple osk key" and look in the related searches, it should be the 7th result (it is just a small joke/copyright message by apple, not an actual key).
November 29, 20169 yr We NEED a good tutorial how to get the OSK key. It took me a few hours to find out how to get it since all the tutorials don't work, Pro Tip: Google "apple osk key" and look in the related searches, it should be the 7th result (it is just a small joke/copyright message by apple, not an actual key). I made a video a few months ago when I made the osx vm tutorials but i didn't link it in the forums
November 29, 20169 yr Hey Gridrunner, thanks. Here is my XML from the VM. <domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'> <name>OSX-El-Capitan-10.11-VNC</name> <uuid>0ba39646-7ba1-4d41-9602-e2968b2fe36d</uuid> <metadata/> <memory unit='KiB'>4194304</memory> <currentMemory unit='KiB'>4194304</currentMemory> <vcpu placement='static'>2</vcpu> <cputune> <vcpupin vcpu='0' cpuset='1'/> <vcpupin vcpu='1' cpuset='2'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-2.3'>hvm</type> <kernel>/mnt/user/isos/enoch_rev2795_boot</kernel> <boot dev='hd'/> <bootmenu enable='yes'/> </os> <features> <acpi/> </features> <cpu mode='custom' match='exact'> <model fallback='allow'>core2duo</model> </cpu> <clock offset='utc'/> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>destroy</on_crash> <devices> <emulator>/usr/bin/qemu-system-x86_64</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw'/> <source file='/mnt/user/domains/ElCap/ElCapitan.img'/> <target dev='hda' bus='sata'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <controller type='usb' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> <model name='i82801b11-bridge'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </controller> <controller type='pci' index='2' model='pci-bridge'> <model name='pci-bridge'/> <target chassisNr='2'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/> </controller> <interface type='bridge'> <mac address='00:00:00:00:00:00'/> <source bridge='br0'/> <model type='e1000-82545em'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/> </interface> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='vmvga' vram='16384' heads='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/> </video> <memballoon model='none'/> </devices> <seclabel type='none' model='none'/> <qemu:commandline> <qemu:arg value='-device'/> <qemu:arg value='usb-kbd'/> <qemu:arg value='-device'/> <qemu:arg value='usb-mouse'/> <qemu:arg value='-device'/> <qemu:arg value='isa-applesmc,osk=XXXX'/> <qemu:arg value='-smbios'/> <qemu:arg value='type=2'/> <qemu:arg value='-device'/> <qemu:arg value='ide-drive,bus=ide.1,drive=MacDVD'/> <qemu:arg value='-drive'/> <qemu:arg value='id=MacDVD,if=none,snapshot=on,file=/mnt/user/isos/Install_OS_X_10.11.6_El_Capitan.iso'/> </qemu:commandline> </domain> I am guessing you are using unRAID 6.2 or above. If so please change this line here <type arch='x86_64' machine='pc-q35-2.3'>hvm</type> to <type arch='x86_64' machine='pc-q35-2.5'>hvm</type> Yes 6.2.4. And I had it at 2.5.. Ill change it back and try it again...aaaaaaaaaaaaaaand it worked. That is completely bizarre as I know I tried it both ways.... Man I must be overly tired. Thanks Gridrunner!! Super excited to get this going.. Now to get the GPU and USB going. unfortunately the gtx 10 series are not yet supported in OS X
November 29, 20169 yr Hey Gridrunner, thanks. Here is my XML from the VM. <domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'> <name>OSX-El-Capitan-10.11-VNC</name> <uuid>0ba39646-7ba1-4d41-9602-e2968b2fe36d</uuid> <metadata/> <memory unit='KiB'>4194304</memory> <currentMemory unit='KiB'>4194304</currentMemory> <vcpu placement='static'>2</vcpu> <cputune> <vcpupin vcpu='0' cpuset='1'/> <vcpupin vcpu='1' cpuset='2'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-2.3'>hvm</type> <kernel>/mnt/user/isos/enoch_rev2795_boot</kernel> <boot dev='hd'/> <bootmenu enable='yes'/> </os> <features> <acpi/> </features> <cpu mode='custom' match='exact'> <model fallback='allow'>core2duo</model> </cpu> <clock offset='utc'/> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>destroy</on_crash> <devices> <emulator>/usr/bin/qemu-system-x86_64</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw'/> <source file='/mnt/user/domains/ElCap/ElCapitan.img'/> <target dev='hda' bus='sata'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <controller type='usb' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> <model name='i82801b11-bridge'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </controller> <controller type='pci' index='2' model='pci-bridge'> <model name='pci-bridge'/> <target chassisNr='2'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/> </controller> <interface type='bridge'> <mac address='00:00:00:00:00:00'/> <source bridge='br0'/> <model type='e1000-82545em'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/> </interface> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='vmvga' vram='16384' heads='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/> </video> <memballoon model='none'/> </devices> <seclabel type='none' model='none'/> <qemu:commandline> <qemu:arg value='-device'/> <qemu:arg value='usb-kbd'/> <qemu:arg value='-device'/> <qemu:arg value='usb-mouse'/> <qemu:arg value='-device'/> <qemu:arg value='isa-applesmc,osk=XXXX'/> <qemu:arg value='-smbios'/> <qemu:arg value='type=2'/> <qemu:arg value='-device'/> <qemu:arg value='ide-drive,bus=ide.1,drive=MacDVD'/> <qemu:arg value='-drive'/> <qemu:arg value='id=MacDVD,if=none,snapshot=on,file=/mnt/user/isos/Install_OS_X_10.11.6_El_Capitan.iso'/> </qemu:commandline> </domain> I am guessing you are using unRAID 6.2 or above. If so please change this line here <type arch='x86_64' machine='pc-q35-2.3'>hvm</type> to <type arch='x86_64' machine='pc-q35-2.5'>hvm</type> Yes 6.2.4. And I had it at 2.5.. Ill change it back and try it again...aaaaaaaaaaaaaaand it worked. That is completely bizarre as I know I tried it both ways.... Man I must be overly tired. Thanks Gridrunner!! Super excited to get this going.. Now to get the GPU and USB going. unfortunately the gtx 10 series are not yet supported in OS X I have a 980 as well. :-)
November 29, 20169 yr We NEED a good tutorial how to get the OSK key. It took me a few hours to find out how to get it since all the tutorials don't work, Pro Tip: Google "apple osk key" and look in the related searches, it should be the 7th result (it is just a small joke/copyright message by apple, not an actual key). I made a video a few months ago when I made the osx vm tutorials but i didn't link it in the forums Very useful tutorial if you want to break less laws but please include an sha1 checksum so we can check if the script file has been manipulated or corrupted (mega got bought by some chinese company). IMO it is a lot easier to just use use the related search result. At the end of the day apple most likely doesn't care where you got the key.
November 29, 20169 yr We NEED a good tutorial how to get the OSK key. It took me a few hours to find out how to get it since all the tutorials don't work, Pro Tip: Google "apple osk key" and look in the related searches, it should be the 7th result (it is just a small joke/copyright message by apple, not an actual key). I made a video a few months ago when I made the osx vm tutorials but i didn't link it in the forums Very useful tutorial if you want to break less laws but please include an sha1 checksum so we can check if the script file has been manipulated or corrupted (mega got bought by some chinese company). IMO it is a lot easier to just use use the related search result. At the end of the day apple most likely doesn't care where you got the key. good point! checksum now added
November 30, 20169 yr Hey Gridrunner, thanks. Here is my XML from the VM. <domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'> <name>OSX-El-Capitan-10.11-VNC</name> <uuid>0ba39646-7ba1-4d41-9602-e2968b2fe36d</uuid> <metadata/> <memory unit='KiB'>4194304</memory> <currentMemory unit='KiB'>4194304</currentMemory> <vcpu placement='static'>2</vcpu> <cputune> <vcpupin vcpu='0' cpuset='1'/> <vcpupin vcpu='1' cpuset='2'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-2.3'>hvm</type> <kernel>/mnt/user/isos/enoch_rev2795_boot</kernel> <boot dev='hd'/> <bootmenu enable='yes'/> </os> <features> <acpi/> </features> <cpu mode='custom' match='exact'> <model fallback='allow'>core2duo</model> </cpu> <clock offset='utc'/> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>destroy</on_crash> <devices> <emulator>/usr/bin/qemu-system-x86_64</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw'/> <source file='/mnt/user/domains/ElCap/ElCapitan.img'/> <target dev='hda' bus='sata'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <controller type='usb' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> <model name='i82801b11-bridge'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </controller> <controller type='pci' index='2' model='pci-bridge'> <model name='pci-bridge'/> <target chassisNr='2'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/> </controller> <interface type='bridge'> <mac address='00:00:00:00:00:00'/> <source bridge='br0'/> <model type='e1000-82545em'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/> </interface> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='vmvga' vram='16384' heads='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/> </video> <memballoon model='none'/> </devices> <seclabel type='none' model='none'/> <qemu:commandline> <qemu:arg value='-device'/> <qemu:arg value='usb-kbd'/> <qemu:arg value='-device'/> <qemu:arg value='usb-mouse'/> <qemu:arg value='-device'/> <qemu:arg value='isa-applesmc,osk=XXXX'/> <qemu:arg value='-smbios'/> <qemu:arg value='type=2'/> <qemu:arg value='-device'/> <qemu:arg value='ide-drive,bus=ide.1,drive=MacDVD'/> <qemu:arg value='-drive'/> <qemu:arg value='id=MacDVD,if=none,snapshot=on,file=/mnt/user/isos/Install_OS_X_10.11.6_El_Capitan.iso'/> </qemu:commandline> </domain> I am guessing you are using unRAID 6.2 or above. If so please change this line here <type arch='x86_64' machine='pc-q35-2.3'>hvm</type> to <type arch='x86_64' machine='pc-q35-2.5'>hvm</type> Yes 6.2.4. And I had it at 2.5.. Ill change it back and try it again...aaaaaaaaaaaaaaand it worked. That is completely bizarre as I know I tried it both ways.... Man I must be overly tired. Thanks Gridrunner!! Super excited to get this going.. Now to get the GPU and USB going. unfortunately the gtx 10 series are not yet supported in OS X I saw a bunch of posts back that someone here has GPU passthrough working with a 1070 card. What do I need to do to at least try getting it to fire? I did get the nVidia webdrivers to install in the VM. Here is my PCI list:
November 30, 20169 yr Hey Gridrunner, thanks. Here is my XML from the VM. <domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'> <name>OSX-El-Capitan-10.11-VNC</name> <uuid>0ba39646-7ba1-4d41-9602-e2968b2fe36d</uuid> <metadata/> <memory unit='KiB'>4194304</memory> <currentMemory unit='KiB'>4194304</currentMemory> <vcpu placement='static'>2</vcpu> <cputune> <vcpupin vcpu='0' cpuset='1'/> <vcpupin vcpu='1' cpuset='2'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-2.3'>hvm</type> <kernel>/mnt/user/isos/enoch_rev2795_boot</kernel> <boot dev='hd'/> <bootmenu enable='yes'/> </os> <features> <acpi/> </features> <cpu mode='custom' match='exact'> <model fallback='allow'>core2duo</model> </cpu> <clock offset='utc'/> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>destroy</on_crash> <devices> <emulator>/usr/bin/qemu-system-x86_64</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw'/> <source file='/mnt/user/domains/ElCap/ElCapitan.img'/> <target dev='hda' bus='sata'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <controller type='usb' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> <model name='i82801b11-bridge'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </controller> <controller type='pci' index='2' model='pci-bridge'> <model name='pci-bridge'/> <target chassisNr='2'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/> </controller> <interface type='bridge'> <mac address='00:00:00:00:00:00'/> <source bridge='br0'/> <model type='e1000-82545em'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/> </interface> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='vmvga' vram='16384' heads='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/> </video> <memballoon model='none'/> </devices> <seclabel type='none' model='none'/> <qemu:commandline> <qemu:arg value='-device'/> <qemu:arg value='usb-kbd'/> <qemu:arg value='-device'/> <qemu:arg value='usb-mouse'/> <qemu:arg value='-device'/> <qemu:arg value='isa-applesmc,osk=XXXX'/> <qemu:arg value='-smbios'/> <qemu:arg value='type=2'/> <qemu:arg value='-device'/> <qemu:arg value='ide-drive,bus=ide.1,drive=MacDVD'/> <qemu:arg value='-drive'/> <qemu:arg value='id=MacDVD,if=none,snapshot=on,file=/mnt/user/isos/Install_OS_X_10.11.6_El_Capitan.iso'/> </qemu:commandline> </domain> I am guessing you are using unRAID 6.2 or above. If so please change this line here <type arch='x86_64' machine='pc-q35-2.3'>hvm</type> to <type arch='x86_64' machine='pc-q35-2.5'>hvm</type> Yes 6.2.4. And I had it at 2.5.. Ill change it back and try it again...aaaaaaaaaaaaaaand it worked. That is completely bizarre as I know I tried it both ways.... Man I must be overly tired. Thanks Gridrunner!! Super excited to get this going.. Now to get the GPU and USB going. unfortunately the gtx 10 series are not yet supported in OS X I saw a bunch of posts back that someone here has GPU passthrough working with a 1070 card. What do I need to do to at least try getting it to fire? I did get the nVidia webdrivers to install in the VM. Here is my PCI list: yes it will passthrough but you will be stuck without drivers. nvidia havent released drivers for it yet (hopefully they will soon) Your 1060 is 01:00.00 and 01:00.01 so you would nned to add it by hostdev like this <hostdev mode='subsystem' type='pci' managed='yes'> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </source> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x1'/> </source> </hostdev> you would also need to add a keyboard like this <hostdev mode='subsystem' type='usb' managed='yes'> <source> <vendor id='0x046d'/> (your vendor id) <product id='0xc52b'/> (your product id) </source> </hostdev> You would need to delete the vnc part below <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/> </video>
November 30, 20169 yr Hey Gridrunner, thanks. Here is my XML from the VM. <domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'> <name>OSX-El-Capitan-10.11-VNC</name> <uuid>0ba39646-7ba1-4d41-9602-e2968b2fe36d</uuid> <metadata/> <memory unit='KiB'>4194304</memory> <currentMemory unit='KiB'>4194304</currentMemory> <vcpu placement='static'>2</vcpu> <cputune> <vcpupin vcpu='0' cpuset='1'/> <vcpupin vcpu='1' cpuset='2'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-2.3'>hvm</type> <kernel>/mnt/user/isos/enoch_rev2795_boot</kernel> <boot dev='hd'/> <bootmenu enable='yes'/> </os> <features> <acpi/> </features> <cpu mode='custom' match='exact'> <model fallback='allow'>core2duo</model> </cpu> <clock offset='utc'/> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>destroy</on_crash> <devices> <emulator>/usr/bin/qemu-system-x86_64</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw'/> <source file='/mnt/user/domains/ElCap/ElCapitan.img'/> <target dev='hda' bus='sata'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <controller type='usb' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> <model name='i82801b11-bridge'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </controller> <controller type='pci' index='2' model='pci-bridge'> <model name='pci-bridge'/> <target chassisNr='2'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/> </controller> <interface type='bridge'> <mac address='00:00:00:00:00:00'/> <source bridge='br0'/> <model type='e1000-82545em'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/> </interface> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='vmvga' vram='16384' heads='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/> </video> <memballoon model='none'/> </devices> <seclabel type='none' model='none'/> <qemu:commandline> <qemu:arg value='-device'/> <qemu:arg value='usb-kbd'/> <qemu:arg value='-device'/> <qemu:arg value='usb-mouse'/> <qemu:arg value='-device'/> <qemu:arg value='isa-applesmc,osk=XXXX'/> <qemu:arg value='-smbios'/> <qemu:arg value='type=2'/> <qemu:arg value='-device'/> <qemu:arg value='ide-drive,bus=ide.1,drive=MacDVD'/> <qemu:arg value='-drive'/> <qemu:arg value='id=MacDVD,if=none,snapshot=on,file=/mnt/user/isos/Install_OS_X_10.11.6_El_Capitan.iso'/> </qemu:commandline> </domain> I am guessing you are using unRAID 6.2 or above. If so please change this line here <type arch='x86_64' machine='pc-q35-2.3'>hvm</type> to <type arch='x86_64' machine='pc-q35-2.5'>hvm</type> Yes 6.2.4. And I had it at 2.5.. Ill change it back and try it again...aaaaaaaaaaaaaaand it worked. That is completely bizarre as I know I tried it both ways.... Man I must be overly tired. Thanks Gridrunner!! Super excited to get this going.. Now to get the GPU and USB going. unfortunately the gtx 10 series are not yet supported in OS X I saw a bunch of posts back that someone here has GPU passthrough working with a 1070 card. What do I need to do to at least try getting it to fire? I did get the nVidia webdrivers to install in the VM. Here is my PCI list: yes it will passthrough but you will be stuck without drivers. nvidia havent released drivers for it yet (hopefully they will soon) Your 1060 is 01:00.00 and 01:00.01 so you would nned to add it by hostdev like this <hostdev mode='subsystem' type='pci' managed='yes'> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </source> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x1'/> </source> </hostdev> you would also need to add a keyboard like this <hostdev mode='subsystem' type='usb' managed='yes'> <source> <vendor id='0x046d'/> (your vendor id) <product id='0xc52b'/> (your product id) </source> </hostdev> You would need to delete the vnc part below <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/> </video> AhHA! Okay my friend, with much head to desk bashing...I got the VM to fire...Thank you again for all you do!! I subbed to your YouTube btw!! Great channel and I suggest everyone here do the same! I am new to UNraid as of 2 months ago, and haven't dabbled in Linux in forever, so please forgive. I do have two YouTube Channels if you want to sub and swap any ideas, collab, need resources, I am all about it! Photography & other tutorials/visuals: https://www.youtube.com/user/ADWheelerPhoto2012 Ultrawide HD Gaming Channel: http://219Gaming.com
November 30, 20169 yr Also, I am running the Seabios Cham version through splashtop and can only seem to get 800x600 res no matter what I put in the plist file...is this a Splashtop limitation?
December 1, 20169 yr Also, I am running the Seabios Cham version through splashtop and can only seem to get 800x600 res no matter what I put in the plist file...is this a Splashtop limitation? So you have edited the plist in the extras folder yes so looks a bit like this <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>Timeout</key> <string>5</string> <key>EthernetBuiltIn</key> <string>Yes</string> <key>PCIRootUID</key> <string>1</string> <key>KernelBooter_kexts</key> <string>Yes</string> <key>Graphics Mode</key> <string>1920x1080x32</string> </dict> this bit being resolution <key>Graphics Mode</key> <string>1920x1080x32</string> Also what vnc driver type are you using try changing to qxl <video> <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/> </video> I looked at your channel and also subbed. You have great talent wow. I loved the "The Fall of Old Saint Nick" the editing and music is awesome
December 2, 20169 yr Also, I am running the Seabios Cham version through splashtop and can only seem to get 800x600 res no matter what I put in the plist file...is this a Splashtop limitation? So you have edited the plist in the extras folder yes so looks a bit like this <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>Timeout</key> <string>5</string> <key>EthernetBuiltIn</key> <string>Yes</string> <key>PCIRootUID</key> <string>1</string> <key>KernelBooter_kexts</key> <string>Yes</string> <key>Graphics Mode</key> <string>1920x1080x32</string> </dict> this bit being resolution <key>Graphics Mode</key> <string>1920x1080x32</string> Also what vnc driver type are you using try changing to qxl <video> <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/> </video> I looked at your channel and also subbed. You have great talent wow. I loved the "The Fall of Old Saint Nick" the editing and music is awesome So yeah, I am now using the video card. Is that my issue? Seems the res is stuck no matter what I try. :-/ I actually gave up on it as I was so obsessed with getting it working I wasn't getting any of my other work done. lolz. This is my plist as it stands: <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>Timeout</key> <string>5</string> <key>EthernetBuiltIn</key> <string>Yes</string> <key>PCIRootUID</key> <string>0</string> <key>KernelBooter_kexts</key> <string>Yes</string> <key>Kernel Flags</key> <key>CsrActiveConfig</key> <string>103</string> <key>ScreenResolution</key> <string>3440x1440</string> <key>USBBusFix</key> <string>Yes</string> <key>EHCIacquire</key> <string>Yes</string> <key>UHCIreset</key> <string>Yes</string> <key>EHCIhard</key> <string>Yes</string> <key>EnableHDMIAudio</key> <string>Yes</string> </dict> I have tried Graphics Mode and ScreenResolution both with no change. I had the nvda_drv=1 in there as well. I also have the org.chameleon.boot.plist file in both my Computer/Mac HD/Extra folder and my Computer/Mac HD/Users/AD/Extra folder as I read somewhere to put it in there. The latter I believe does nothing. I understand that the file passes commands to the bootloader and how that works. Just not sure why it's not functioning. Or my brain isn't functioning which is more likely the case! Hey, thanks for the sub and the views, greatly appreciated. I make a lot of 3D video animations for peoples channels..if you would like something done, let me know..it's the least I can do. Thanks again for everything! Cheers. Oh, and I am using TextWrangler for all edits. :-)
December 2, 20169 yr Ha! Removed the code: <key>CsrActiveConfig</key> <string>103</string> And at least I have 1920x1080!
December 4, 20169 yr Hello! I'm having some trouble with my Sierra VM and I was wondering if anyone could give me some help. I am passing through a Palit GTX 760 and while the VM worked fine yesterday this morning when clicking start the entire unRAID system crashed. On my motherboard the CATT_ERR led lit up next to the CPU. After rebooting and clicking start again Clover appeared on the display as it should. It began to boot but just before the login screen the VM became paused and I found these errors in the log. 2016-12-04T08:53:17.103806Z qemu-system-x86_64: vfio_err_notifier_handler(0000:01:00.1) Unrecoverable error detected. Please collect any data possible and then kill the guest 2016-12-04T08:53:17.179254Z qemu-system-x86_64: vfio_err_notifier_handler(0000:01:00.0) Unrecoverable error detected. Please collect any data possible and then kill the guest 2016-12-04T08:53:17.182217Z qemu-system-x86_64: vfio_err_notifier_handler(0000:01:00.1) Unrecoverable error detected. Please collect any data possible and then kill the guest 01:00.0 is my GPU and 01:00.1 is the audio from the card. This is a repeatable error when rebooting the VM. Any advice or help would be greatly appreciated. Thanks!
December 4, 20169 yr So I have had a working OSX Sierra VM thanks to gridrunner's videos but I am keen to get it working with GPU passthrough. I tried copying the <hostdev> entries from my fully working Win10 GPU passthrough VM but that doesn't seem to work. I mean it will boot into OSX but the screen is massively corrupted. I see 4 small stretched versions of the screen on the monitor. I can log into Splashtop fine. I am not sure if I need to also change something in Clover config somewhere? VM XML:- <domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'> <name>macOS Sierra with GPU</name> <uuid>f2ebef5b-1639-a5fe-8b1f-929e4028b9b3</uuid> <metadata> <vmtemplate xmlns="unraid" name="Ubuntu" icon="OSX-10.12.png" os="ubuntu"/> </metadata> <memory unit='KiB'>4194304</memory> <currentMemory unit='KiB'>4194304</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>4</vcpu> <cputune> <vcpupin vcpu='0' cpuset='0'/> <vcpupin vcpu='1' cpuset='1'/> <vcpupin vcpu='2' cpuset='2'/> <vcpupin vcpu='3' cpuset='3'/> </cputune> <os> <type arch='x86_64' machine='pc-q35-2.5'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/f2ebef5b-1639-a5fe-8b1f-929e4028b9b3_VARS-pure-efi.fd</nvram> <boot dev='hd'/> </os> <features> <acpi/> </features> <cpu mode='custom' match='exact'> <model fallback='allow'>Penryn</model> </cpu> <clock offset='utc'/> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>destroy</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='qcow2' cache='writeback'/> <source file='/mnt/user/VM/macOS Sierra/vdisk1.img'/> <target dev='hda' bus='sata'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <controller type='usb' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x02' function='0x0'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> <model name='i82801b11-bridge'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </controller> <controller type='pci' index='2' model='pci-bridge'> <model name='pci-bridge'/> <target chassisNr='2'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:51:66:48'/> <source bridge='br0'/> <model type='e1000-82545em'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/> </interface> <memballoon model='none'/> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </source> <rom file='/mnt/user/VM/vbiosbound.rom'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x04' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x02' slot='0x05' function='0x0'/> </hostdev> </devices> <seclabel type='none' model='none'/> <qemu:commandline> <qemu:arg value='-device'/> <qemu:arg value='ioh3420,bus=pcie.0,addr=1c.0,multifunction=on,port=2,chassis=1,id=root.1'/> <qemu:arg value='-device'/> <qemu:arg value='usb-kbd'/> <qemu:arg value='-device'/> <qemu:arg value='usb-mouse'/> <qemu:arg value='-device'/> <qemu:arg value='isa-applesmc,osk=blahblahblah'/> <qemu:arg value='-smbios'/> <qemu:arg value='type=2'/> <qemu:arg value='-cpu'/> <qemu:arg value='Penryn,vendor=GenuineIntel'/> </qemu:commandline> </domain>
December 4, 20169 yr Yes as you have the gtx 950 you will need to install the Nvidia web drivers for osx. Also, you will need to nvda_drv=1 in clover boot options also, change this part of your XML so it includes xvga='yes' <hostdev mode='subsystem' type='pci' managed='yes' xvga='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </source> <rom file='/mnt/user/VM/vbiosbound.rom'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x04' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x02' slot='0x05' function='0x0'/> </hostdev> Check back and let me know how you get on
December 5, 20169 yr Installing the drivers did it! many thanks, not sure I managed to miss that. I'll also make the xvga change too.
January 2, 20179 yr The Sierra guide should be updated to note the GUI doesn't work for step 5. I had to CLI "diskutil eraseDisk JHFS+ Untitled disk1" to get it to work.
January 11, 20179 yr Didn't see this mentioned in any of the prior posts so I figured I would post this http://philjordan.eu/osx-virt/ has an absolute pointing device that is working. Just need to make the appropriate xml edits so you are using usb-tablet instead of usb-mouse. Granted this is after you have the system installed but it makes it easier when just doing things from unraids native vnc.

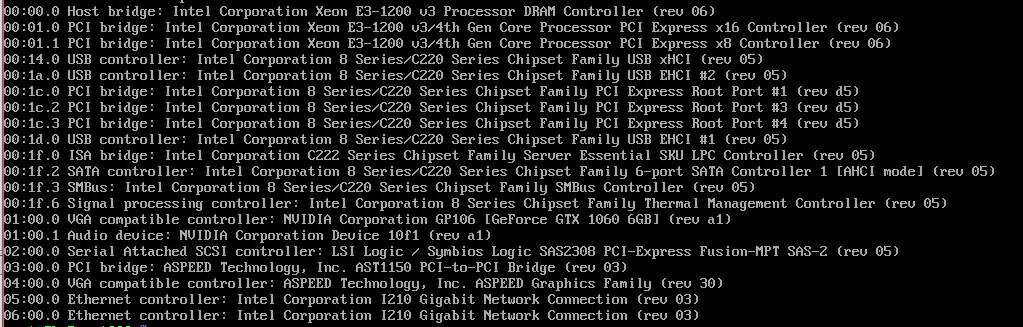

March 8, 20179 yr Hello everybody. Today I successfully installed OSX with the help of this thread. Gerat work! But it seems I'm having trouble to passthough anything. My XML looks as follows: <domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'> <name>OSX El Capitan (10.11)</name> <uuid>0ba39646-7ba1-4d41-9602-e2968b2fe36d</uuid> <metadata/> <memory unit='KiB'>8388608</memory> <currentMemory unit='KiB'>8388608</currentMemory> <vcpu placement='static'>4</vcpu> <cputune> <vcpupin vcpu='0' cpuset='0'/> <vcpupin vcpu='1' cpuset='1'/> <vcpupin vcpu='2' cpuset='5'/> <vcpupin vcpu='3' cpuset='6'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-2.7'>hvm</type> <kernel>/mnt/user/VM_VDisks/OSX/Extra/enoch_rev2795_boot</kernel> <boot dev='hd'/> <bootmenu enable='yes'/> </os> <features> <acpi/> </features> <cpu mode='custom' match='exact'> <model fallback='allow'>core2duo</model> </cpu> <clock offset='utc'/> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>destroy</on_crash> <devices> <emulator>/usr/bin/qemu-system-x86_64</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw'/> <source file='/mnt/user/VM_VDisks/OSX/ElCapitan.img'/> <target dev='hda' bus='sata'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <controller type='usb' index='0' model='piix3-uhci'> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> <model name='i82801b11-bridge'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </controller> <controller type='pci' index='2' model='pci-bridge'> <model name='pci-bridge'/> <target chassisNr='2'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:00:20:30'/> <source bridge='br0'/> <model type='e1000-82545em'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/> </interface> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <memballoon model='none'/> </devices> <seclabel type='none' model='none'/> <qemu:commandline> <qemu:arg value='-device'/> <qemu:arg value='ioh3420,bus=pcie.0,addr=1c.0,multifunction=on,port=1,chassis=1,id=root.1'/> <qemu:arg value='-device'/> <qemu:arg value='vfio-pci,host=03:00.0,bus=root.1,addr=00.0,multifunction=on,x-vga=on'/> <qemu:arg value='-device'/> <qemu:arg value='vfio-pci,host=03:00.1,bus=root.1,addr=00.1'/> <qemu:arg value='-device'/> <qemu:arg value='vfio-pci,host=00:1d.0,bus=root.1,addr=00.2'/> <qemu:arg value='-device'/> <qemu:arg value='vfio-pci,host=06:00.0,bus=root.1,addr=00.3'/> <qemu:arg value='-device'/> <qemu:arg value='vfio-pci,host=08:00.0,bus=root.1,addr=00.4'/> <qemu:arg value='-device'/> <qemu:arg value='usb-kbd'/> <qemu:arg value='-device'/> <qemu:arg value='usb-mouse'/> <qemu:arg value='-device'/> <qemu:arg value='isa-applesmc,osk=--REMOVED FOR OBVIOUS REASONS--'/> <qemu:arg value='-smbios'/> <qemu:arg value='type=2'/> </qemu:commandline> </domain> When I then try to start the VM the following error appears: internal error: process exited while connecting to monitor: 2017-03-08T10:01:39.349446Z qemu-system-x86_64: -device vfio-pci,host=03:00.0,bus=root.1,addr=00.0,multifunction=on,x-vga=on: vfio: error opening /dev/vfio/21: Operation not permitted 2017-03-08T10:01:39.349474Z qemu-system-x86_64: -device vfio-pci,host=03:00.0,bus=root.1,addr=00.0,multifunction=on,x-vga=on: vfio: failed to get group 21 2017-03-08T10:01:39.349483Z qemu-system-x86_64: -device vfio-pci,host=03:00.0,bus=root.1,addr=00.0,multifunction=on,x-vga=on: Device initialization failed It says the same when I try to only pass through one device. Has anyone an Idea whats going on with this? Help would be appreciated. --Ex0
