November 1, 20169 yr Does this work for the embedded Intel version of OpenPHT? https://github.com/RasPlex/OpenPHT/releases
November 2, 20169 yr Does this work for the embedded Intel version of OpenPHT? https://github.com/RasPlex/OpenPHT/releases Yes. I have both LibreElec and Rasplex setup.
November 4, 20169 yr Author Which embedded do you use? Intel or Generic? TIA. I'm playing with OpenPHT right now. I used the Generic image but had to play with my settings a bit to get it to boot past the OVMF boot menu (I think I landed on machine type 440fx and disk type SATA). Virtio drivers seem to be there as my NIC is working with that driver. So far I am liking this! I may consider moving away from OE/LE to this as I uses the Plex DB natively (finally ditch SQL and not have to rely on a third party plugin to connect to Plex). I also love the fact that it support Aeon Nox out of the box. John
November 4, 20169 yr Which embedded do you use? Intel or Generic? TIA. I'm playing with OpenPHT right now. I used the Generic image but had to play with my settings a bit to get it to boot past the OVMF boot menu (I think I landed on machine type 440fx and disk type SATA). Virtio drivers seem to be there as my NIC is working with that driver. So far I am liking this! I may consider moving away from OE/LE to this as I uses the Plex DB natively (finally ditch SQL and not have to rely on a third party plugin to connect to Plex). I also love the fact that it support Aeon Nox out of the box. John Exactly! The Aeon Nox theme + OpenPHT are amazing. I'm about to install my first VM, and trying with OpenPHT. Do I just use the LibreELEC template, upload the generic OpenPHT image, then settings with 440fx, and SATA, then good to go? Sorry for the step-by-step request.. Hopefully with 6.3 they get the iGPU working so I can leave OpenPHT running indefinitely. Thanks
November 4, 20169 yr Which embedded do you use? Intel or Generic? TIA. I'm playing with OpenPHT right now. I used the Generic image but had to play with my settings a bit to get it to boot past the OVMF boot menu (I think I landed on machine type 440fx and disk type SATA). Virtio drivers seem to be there as my NIC is working with that driver. So far I am liking this! I may consider moving away from OE/LE to this as I uses the Plex DB natively (finally ditch SQL and not have to rely on a third party plugin to connect to Plex). I also love the fact that it support Aeon Nox out of the box. John Exactly! The Aeon Nox theme + OpenPHT are amazing. I'm about to install my first VM, and trying with OpenPHT. Do I just use the LibreELEC template, upload the generic OpenPHT image, then settings with 440fx, and SATA, then good to go? Sorry for the step-by-step request.. Hopefully with 6.3 they get the iGPU working so I can leave OpenPHT running indefinitely. Thanks I tried the iGPU w/ Plex Media Player Embedded and it wasn't pretty (screen flickering, soft reset issues)... its very buggy still, IMO.
November 4, 20169 yr *Hopefully* the bugs are ironed out with 6.3 official release...or a new version of QEMU.
November 5, 20169 yr *Hopefully* the bugs are ironed out with 6.3 official release...or a new version of QEMU. Indeed, I'd much prefer to save my one and only PCIe slot for an HBA or a video card with some actual muscle.
November 5, 20169 yr Author Do I just use the LibreELEC template, upload the generic OpenPHT image, then settings with 440fx, and SATA, then good to go? Sorry for the step-by-step request. Just use the Linux one. You don't want to use the OE or LE template...that will force a download and configuration of LT's own versions of OE/LE. Point vdisk1 to the OPHT img file. Create a 2nd vdisk (raw). This is where OPHT will install. John
November 5, 20169 yr Author Still really impressed! Now I just need to see if I can get Retroarch installed so my wife can keep her games. From what I have read this is probably not possible so I may look at a Linux+OPHT+Retroarch solution (rather than OPHT embedded). John
November 6, 20169 yr I hope RetroArch's possible as a VM. Have you seen OpenEMU? It's a macOS app only...Or Dolphin (Wii emulator) would be pretty awesome too.

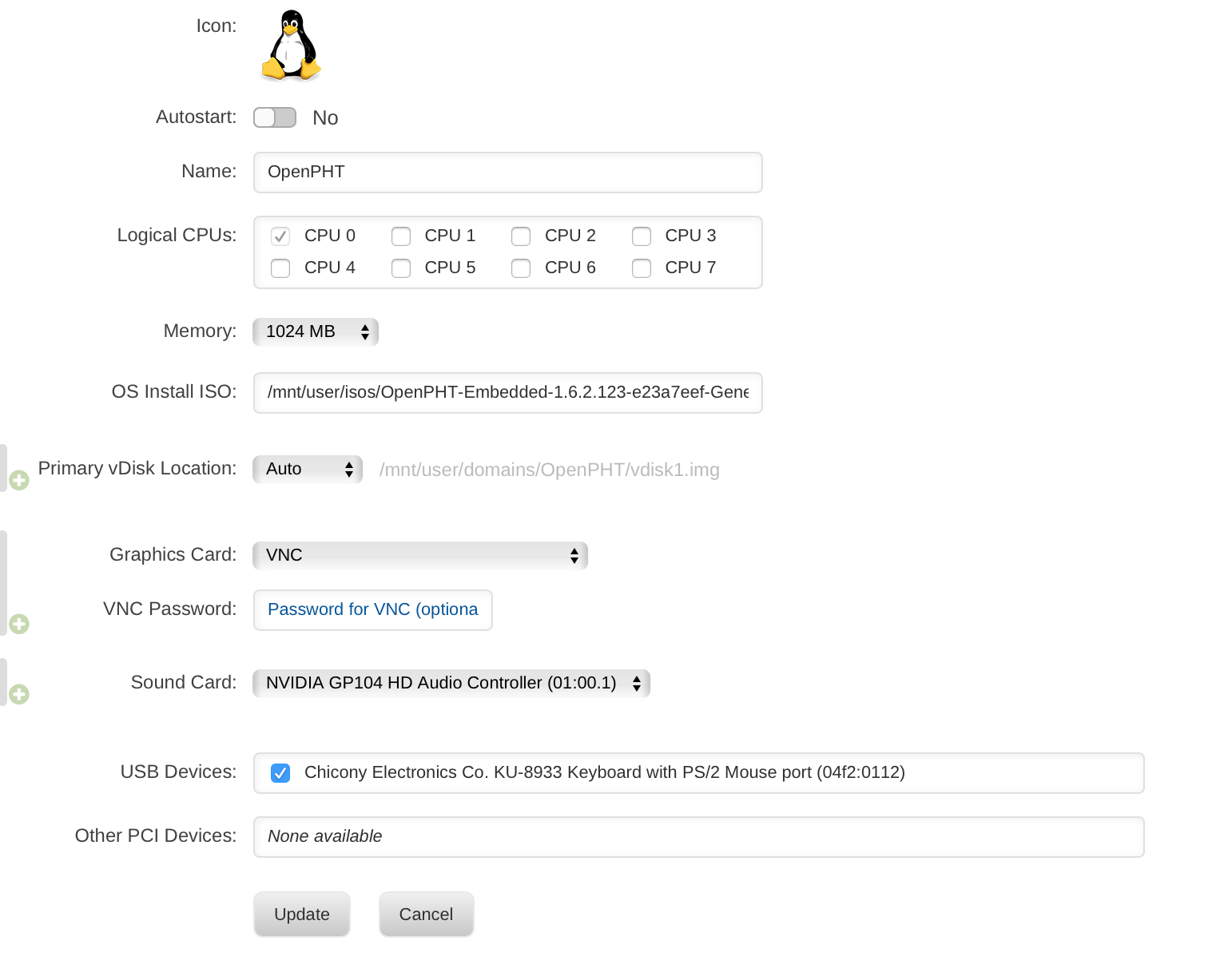

November 6, 20169 yr Still really impressed! Now I just need to see if I can get Retroarch installed so my wife can keep her games. From what I have read this is probably not possible so I may look at a Linux+OPHT+Retroarch solution (rather than OPHT embedded). John Hi John, I'm lost with the OpenPHT install. Here's my setup screen shot. Any pointers? Thanks in advance. And here's my XML <domain type='kvm'> <name>OpenPHT</name> <uuid>cc620b0c-2e4b-3964-f200-c35ecc13cdc7</uuid> <metadata> <vmtemplate xmlns="unraid" name="Linux" icon="linux.png" os="linux"/> </metadata> <memory unit='KiB'>1048576</memory> <currentMemory unit='KiB'>1048576</currentMemory> <memoryBacking> <nosharepages/> <locked/> </memoryBacking> <vcpu placement='static'>1</vcpu> <cputune> <vcpupin vcpu='0' cpuset='0'/> </cputune> <os> <type arch='x86_64' machine='pc-q35-2.5'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/cc620b0c-2e4b-3964-f200-c35ecc13cdc7_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough'> <topology sockets='1' cores='1' threads='1'/> </cpu> <clock offset='utc'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/OpenPHT-Embedded-1.6.2.123-e23a7eef-Generic.x86_64.img'/> <target dev='hda' bus='sata'/> <readonly/> <boot order='2'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/OpenPHT/vdisk1.img'/> <target dev='hdc' bus='sata'/> <boot order='1'/> <address type='drive' controller='0' bus='0' target='0' unit='2'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> <model name='i82801b11-bridge'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </controller> <controller type='pci' index='2' model='pci-bridge'> <model name='pci-bridge'/> <target chassisNr='2'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x02' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:6a:69:ce'/> <source bridge='br0'/> <model type='virtio'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </interface> <serial type='pty'> <target port='0'/> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <source mode='connect'/> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'/> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/> </video> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x04f2'/> <product id='0x0112'/> </source> </hostdev> <memballoon model='virtio'> <address type='pci' domain='0x0000' bus='0x02' slot='0x04' function='0x0'/> </memballoon> </devices> </domain>
November 6, 20169 yr Still really impressed! Now I just need to see if I can get Retroarch installed so my wife can keep her games. From what I have read this is probably not possible so I may look at a Linux+OPHT+Retroarch solution (rather than OPHT embedded). John Hi John, I'm lost with the OpenPHT install. Here's my setup screen shot. Any pointers? Thanks in advance. And here's my XML <domain type='kvm'> <name>OpenPHT</name> <uuid>cc620b0c-2e4b-3964-f200-c35ecc13cdc7</uuid> <metadata> <vmtemplate xmlns="unraid" name="Linux" icon="linux.png" os="linux"/> </metadata> <memory unit='KiB'>1048576</memory> <currentMemory unit='KiB'>1048576</currentMemory> <memoryBacking> <nosharepages/> <locked/> </memoryBacking> <vcpu placement='static'>1</vcpu> <cputune> <vcpupin vcpu='0' cpuset='0'/> </cputune> <os> <type arch='x86_64' machine='pc-q35-2.5'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/cc620b0c-2e4b-3964-f200-c35ecc13cdc7_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough'> <topology sockets='1' cores='1' threads='1'/> </cpu> <clock offset='utc'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/OpenPHT-Embedded-1.6.2.123-e23a7eef-Generic.x86_64.img'/> <target dev='hda' bus='sata'/> <readonly/> <boot order='2'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/OpenPHT/vdisk1.img'/> <target dev='hdc' bus='sata'/> <boot order='1'/> <address type='drive' controller='0' bus='0' target='0' unit='2'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> <model name='i82801b11-bridge'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </controller> <controller type='pci' index='2' model='pci-bridge'> <model name='pci-bridge'/> <target chassisNr='2'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x02' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:6a:69:ce'/> <source bridge='br0'/> <model type='virtio'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </interface> <serial type='pty'> <target port='0'/> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <source mode='connect'/> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'/> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/> </video> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x04f2'/> <product id='0x0112'/> </source> </hostdev> <memballoon model='virtio'> <address type='pci' domain='0x0000' bus='0x02' slot='0x04' function='0x0'/> </memballoon> </devices> </domain> I think you need to use your nvidia card in stead of vnc to get it working.
November 6, 20169 yr No dice. I've got the graphics card chosen, but nothing shows up on the monitor. I noticed I have a few mentions to "virtio" in the XML and you had said you used SATA. Anything I need to change in the VM's BIOS?
November 7, 20169 yr No dice. I've got the graphics card chosen, but nothing shows up on the monitor. I noticed I have a few mentions to "virtio" in the XML and you had said you used SATA. Anything I need to change in the VM's BIOS? This is a GPU pass through issue. Have you passed through the GPU to any other VM's so you know it works?
November 7, 20169 yr No dice. I've got the graphics card chosen, but nothing shows up on the monitor. I noticed I have a few mentions to "virtio" in the XML and you had said you used SATA. Anything I need to change in the VM's BIOS? Have you tried the other ports on the gpu?
November 7, 20169 yr At first the GPUnwasnt passing through since UNRAID had it as primary. Changed the BIOS and now I was able to make a Windows 10 VM with the GPU card no problem. So I tried again with the Linux template using OpenPHT generic embedded image and now I get the shell error screen to pass though to the GPU/monitor. Right output. Wrong outcome.
November 10, 20169 yr Still can't get the OpenPHT/Linux VM template to boot up. I've successfully used the GPU before in a Windows 10 VM, no problem. Here's the log: LC_ALL=C PATH=/bin:/sbin:/usr/bin:/usr/sbin HOME=/ QEMU_AUDIO_DRV=none /usr/local/sbin/qemu -name OpenPHT -S -machine pc-q35-2.5,accel=kvm,usb=off,mem-merge=off -cpu host -drive file=/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd,if=pflash,format=raw,unit=0,readonly=on -drive file=/etc/libvirt/qemu/nvram/cc620b0c-2e4b-3964-f200-c35ecc13cdc7_VARS-pure-efi.fd,if=pflash,format=raw,unit=1 -m 2048 -realtime mlock=on -smp 2,sockets=1,cores=1,threads=2 -uuid cc620b0c-2e4b-3964-f200-c35ecc13cdc7 -nographic -no-user-config -nodefaults -chardev socket,id=charmonitor,path=/var/lib/libvirt/qemu/domain-OpenPHT/monitor.sock,server,nowait -mon chardev=charmonitor,id=monitor,mode=control -rtc base=utc,driftfix=slew -global kvm-pit.lost_tick_policy=discard -no-hpet -no-shutdown -boot strict=on -device i82801b11-bridge,id=pci.1,bus=pcie.0,addr=0x1e -device pci-bridge,chassis_nr=2,id=pci.2,bus=pci.1,addr=0x1 -device ich9-usb-ehci1,id=usb,bus=pcie.0,addr=0x7.0x7 -device ich9-usb-uhci1,masterbus0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 -device vfio-pci,host=01:00.0,id=hostdev0,bus=pci.2,addr=0x3 -device vfio-pci,host=01:00.1,id=hostdev1,bus=pci.2,addr=0x4 -device usb-host,hostbus=1,hostaddr=14,id=hostdev2 -device usb-host,hostbus=1,hostaddr=11,id=hostdev3 -device virtio-balloon-pci,id=balloon0,bus=pci.2,addr=0x5 -msg timestamp=on Domain id=3 is tainted: high-privileges Domain id=3 is tainted: host-cpu char device redirected to /dev/pts/0 (label charserial0) And the XML <domain type='kvm' id='3'> <name>OpenPHT</name> <uuid>cc620b0c-2e4b-3964-f200-c35ecc13cdc7</uuid> <metadata> <vmtemplate xmlns="unraid" name="Linux" icon="linux.png" os="linux"/> </metadata> <memory unit='KiB'>2097152</memory> <currentMemory unit='KiB'>2097152</currentMemory> <memoryBacking> <nosharepages/> <locked/> </memoryBacking> <vcpu placement='static'>2</vcpu> <cputune> <vcpupin vcpu='0' cpuset='0'/> <vcpupin vcpu='1' cpuset='1'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-2.5'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/cc620b0c-2e4b-3964-f200-c35ecc13cdc7_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough'> <topology sockets='1' cores='1' threads='2'/> </cpu> <clock offset='utc'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/OpenPHT-Embedded-1.6.2.123-e23a7eef-Generic.x86_64.img'/> <backingStore/> <target dev='hda' bus='sata'/> <readonly/> <boot order='2'/> <alias name='sata0-0-0'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/OpenPHT/vdisk1.img'/> <backingStore/> <target dev='hdc' bus='sata'/> <boot order='1'/> <alias name='sata0-0-2'/> <address type='drive' controller='0' bus='0' target='0' unit='2'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <alias name='usb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <alias name='usb'/> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <alias name='usb'/> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <alias name='usb'/> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='sata' index='0'> <alias name='ide'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'> <alias name='pcie.0'/> </controller> <controller type='pci' index='1' model='dmi-to-pci-bridge'> <model name='i82801b11-bridge'/> <alias name='pci.1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </controller> <controller type='pci' index='2' model='pci-bridge'> <model name='pci-bridge'/> <target chassisNr='2'/> <alias name='pci.2'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <alias name='virtio-serial0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x02' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:6a:69:ce'/> <source bridge='br0'/> <target dev='vnet0'/> <model type='virtio'/> <alias name='net0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </interface> <serial type='pty'> <source path='/dev/pts/0'/> <target port='0'/> <alias name='serial0'/> </serial> <console type='pty' tty='/dev/pts/0'> <source path='/dev/pts/0'/> <target type='serial' port='0'/> <alias name='serial0'/> </console> <channel type='unix'> <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-OpenPHT/org.qemu.guest_agent.0'/> <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/> <alias name='channel0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </source> <alias name='hostdev0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x1'/> </source> <alias name='hostdev1'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x04' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x04f2'/> <product id='0x0112'/> <address bus='1' device='14'/> </source> <alias name='hostdev2'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x20a0'/> <product id='0x0001'/> <address bus='1' device='11'/> </source> <alias name='hostdev3'/> </hostdev> <memballoon model='virtio'> <alias name='balloon0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x05' function='0x0'/> </memballoon> </devices> </domain> When it does boot up UEFI Interactive Shell appears with "Mapping Table" errors, BLK1 and BLK 0 messages for alias of PciRoot. Any ideas?
November 10, 20169 yr Author Still can't get the OpenPHT/Linux VM template to boot up. I've successfully used the GPU before in a Windows 10 VM, no problem. When it does boot up UEFI Interactive Shell appears with "Mapping Table" errors, BLK1 and BLK 0 messages for alias of PciRoot. Any ideas? And you changed the disk type to SATA or IDE? If you are seeing only BLK1 and BLK0, that means that UEFI is unable to load the IMG file. John
November 10, 20169 yr I believe I'm on SATA. That's according to the XML showing: <target dev='hdc' bus='sata'/> I don't why the image won't load. It's in the ISO's folder. The path's correct. And I'm using "OpenPHT-Embedded-1.6.2.123-e23a7eef-Generic.x86_64.img.gz"
November 10, 20169 yr I believe I'm on SATA. That's according to the XML showing: <target dev='hdc' bus='sata'/> I don't why the image won't load. It's in the ISO's folder. The path's correct. And I'm using "OpenPHT-Embedded-1.6.2.123-e23a7eef-Generic.x86_64.img.gz" Did you extract the image out of the .gz file
November 10, 20169 yr Author I quickly created another VM to test and was able to boot directly to the OPHT Installer menu on the first shot. Here is my XML... <domain type='kvm'> <name>TESTOPHT</name> <uuid>543b2a79-5749-c34a-5199-49aa777df01c</uuid> <metadata> <vmtemplate xmlns="unraid" name="Linux" icon="linux.png" os="linux"/> </metadata> <memory unit='KiB'>2097152</memory> <currentMemory unit='KiB'>2097152</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>2</vcpu> <cputune> <vcpupin vcpu='0' cpuset='9'/> <vcpupin vcpu='1' cpuset='10'/> </cputune> <os> <type arch='x86_64' machine='pc-q35-2.5'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/543b2a79-5749-c34a-5199-49aa777df01c_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough'> <topology sockets='1' cores='1' threads='2'/> </cpu> <clock offset='utc'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/isos/OpenPHT-Embedded-1.6.2.123-e23a7eef-Generic.x86_64.img'/> <target dev='hdc' bus='sata'/> <boot order='1'/> <address type='drive' controller='0' bus='0' target='0' unit='2'/> </disk> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/TESTOPHT/vdisk2.img'/> <target dev='hdd' bus='sata'/> <address type='drive' controller='0' bus='0' target='0' unit='3'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> <model name='i82801b11-bridge'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </controller> <controller type='pci' index='2' model='pci-bridge'> <model name='pci-bridge'/> <target chassisNr='2'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x02' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:98:87:df'/> <source bridge='br0'/> <model type='e1000'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </interface> <serial type='pty'> <target port='0'/> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <source mode='connect'/> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'/> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/> </video> <memballoon model='virtio'> <address type='pci' domain='0x0000' bus='0x02' slot='0x05' function='0x0'/> </memballoon> </devices> </domain>
November 10, 20169 yr Got it! OpenPHT booted! I think it was the manual setting for vdisk1 and vdisk2. I was using the built-in unRAID option to choose OS. Thank you so much.
