September 6, 20169 yr I'm not going to get into whether it's a better solution than the headless docker, but just to let you know, I had it set up without a gpu through vnc. Only when I was testing and installing it, though. I then put in a gpu and have been using it that way how did you get it to boot??
September 6, 20169 yr Author I'm not going to get into whether it's a better solution than the headless docker, but just to let you know, I had it set up without a gpu through vnc. Only when I was testing and installing it, though. I then put in a gpu and have been using it that way how did you get it to boot?? OE requires a GPU that supports HW acceleration. If you want to get something like this to work, you may need to install Kodi in a Windows or Linux VM. I know for a fact that Windows will work but never tried a Linux one. John
September 6, 20169 yr I'm not going to get into whether it's a better solution than the headless docker, but just to let you know, I had it set up without a gpu through vnc. Only when I was testing and installing it, though. I then put in a gpu and have been using it that way how did you get it to boot?? OE requires a GPU that supports HW acceleration. If you want to get something like this to work, you may need to install Kodi in a Windows or Linux VM. I know for a fact that Windows will work but never tried a Linux one. John IIRC both OE & LE (at least installing via LT's templates) work fine without a GPU passthrough. Not good enough to watch a movie but they work
September 6, 20169 yr OE requires a GPU that supports HW acceleration. If you want to get something like this to work, you may need to install Kodi in a Windows or Linux VM. I know for a fact that Windows will work but never tried a Linux one. John im not going to use the vm for viewing or anything i have a few addons that update/scan/clean folders just to have my library up to date and stuff ill point apps to the vm as well for scraping
September 6, 20169 yr I have a few quick questions: 1. How are you connecting remote controls (and which ones) to screens not in the same room as the PC? 2. Are you guys just using long HDMI cables to connect to TVs in other rooms? Thanks!
September 6, 20169 yr I'm not going to get into whether it's a better solution than the headless docker, but just to let you know, I had it set up without a gpu through vnc. Only when I was testing and installing it, though. I then put in a gpu and have been using it that way how did you get it to boot?? It was months ago, I honestly don't remember, but it wasn't really a challenge, it worked with the basic settings. I think I used seabios Did you try the built in oe/le that you can build easily with vnc
September 6, 20169 yr I have a few quick questions: 1. How are you connecting remote controls (and which ones) to screens not in the same room as the PC? 2. Are you guys just using long HDMI cables to connect to TVs in other rooms? Thanks! 1. I use the harmony hub and the ir receiver and the server are in the same room as the hub 2. Long hdmi cable through the wall My server and other equipment are in the next room over so I use a 25ft hdmi cable but I also tried a 50ft at first and it worked just fine
September 6, 20169 yr I have a few quick questions: 1. How are you connecting remote controls (and which ones) to screens not in the same room as the PC? 2. Are you guys just using long HDMI cables to connect to TVs in other rooms? Thanks! 1. I use the harmony hub and the ir receiver and the server are in the same room as the hub 2. Long hdmi cable through the wall My server and other equipment are in the next room over so I use a 25ft hdmi cable but I also tried a 50ft at first and it worked just fine Thanks. I need to give this some thought - I'm wondering if it might be easier to get a Shield TV for 4k Plex, Android TV and some gaming for the kids.
September 6, 20169 yr Author I have a few quick questions: 1. How are you connecting remote controls (and which ones) to screens not in the same room as the PC? 2. Are you guys just using long HDMI cables to connect to TVs in other rooms? Thanks! I'm using Flircs via long USB runs. I'm using long HDMI runs (50ft) without issue. John
September 19, 20169 yr Hrm, so I upgraded from 6.19 to 6.2 and found my old VM for openelec not working as expected anymore... so I went through the same steps to "recreate" the VM and now getting that dreaded click click click noise when using HDMI passthrough... argh... Tried using libreelec as well, and even the built in one.. all doing the same thing. Edit... so I put into play something I haven't had to use for a while... create file in config folder of libreelec /storage/.config/modprobe.d/sound.conf and put line options snd-hda-intel enable_msi=1 Which fixed it (it seems) I will play a couple movies to verify of course..
October 19, 20169 yr Hi, I'd like to run OpenElec or LibreElec as a VM in Unraid 6.2.1. I managed to get a Win10 install running after following the helpful YouTube video by Jon Panozzo and thought this would be fairly simple too. I must be as dumb as a rock but this guide doesn't seem too resemble what I am seeing in the VM tab. Do I use one of the templates and if not how do I create a custom VM for this? Sorry to be a PITA, I guess the guide assumes a modicum of intelligence. Thanks. Adam
October 19, 20169 yr The guide was written up when the VM Manager App had a different "custom" page for creating VM's. I'd suggest trying starting with the Linux template.

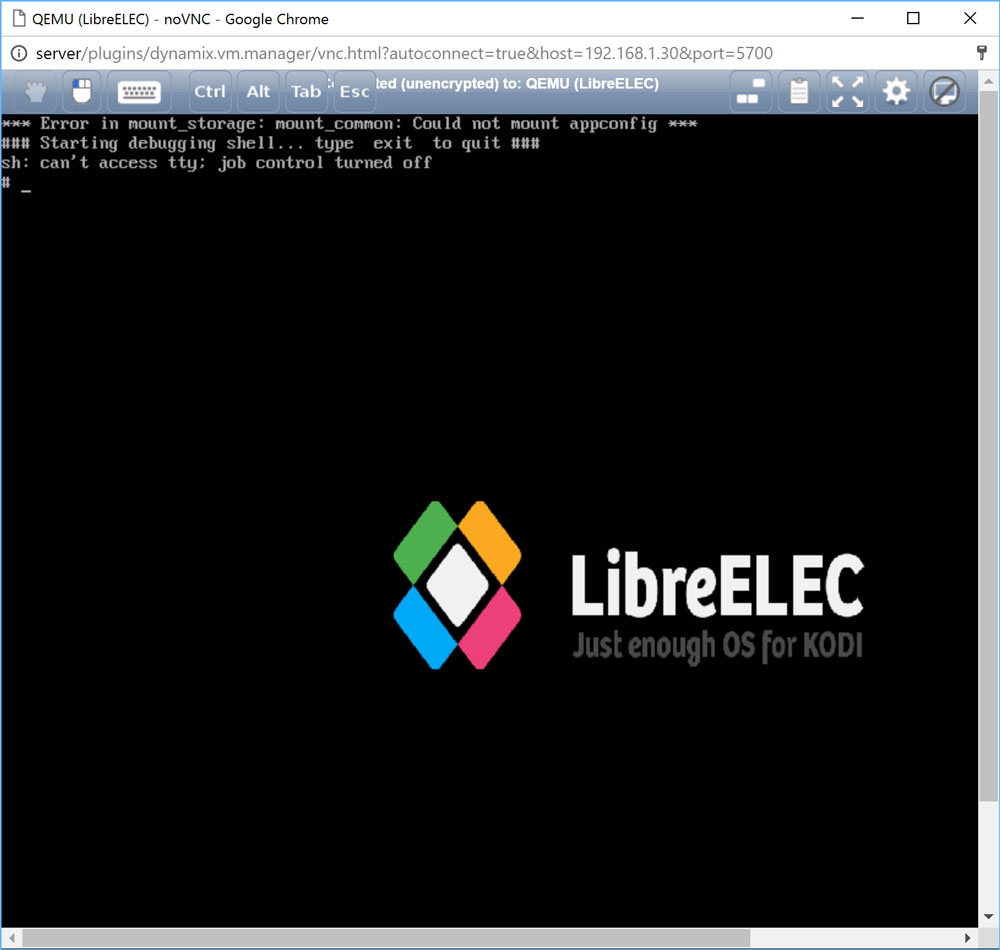

October 19, 20169 yr The guide was written up when the VM Manager App had a different "custom" page for creating VM's. I'd suggest trying starting with the Linux template. Thank you that helps. I get the feeling I am closer now. My XML looks a lot more like that in the OP. However when I run the VM I get the image load up and then some error messages appear at the top of the screen. Some of it is cut off but the rest reads: Error in mount_storage: mount_common: could not mount appconfig Starting debugging shell... type exit to quit can't access tty: job control turned off Any advice would be very welcome Thanks, Adam server-diagnostics-20161019-2150.zip

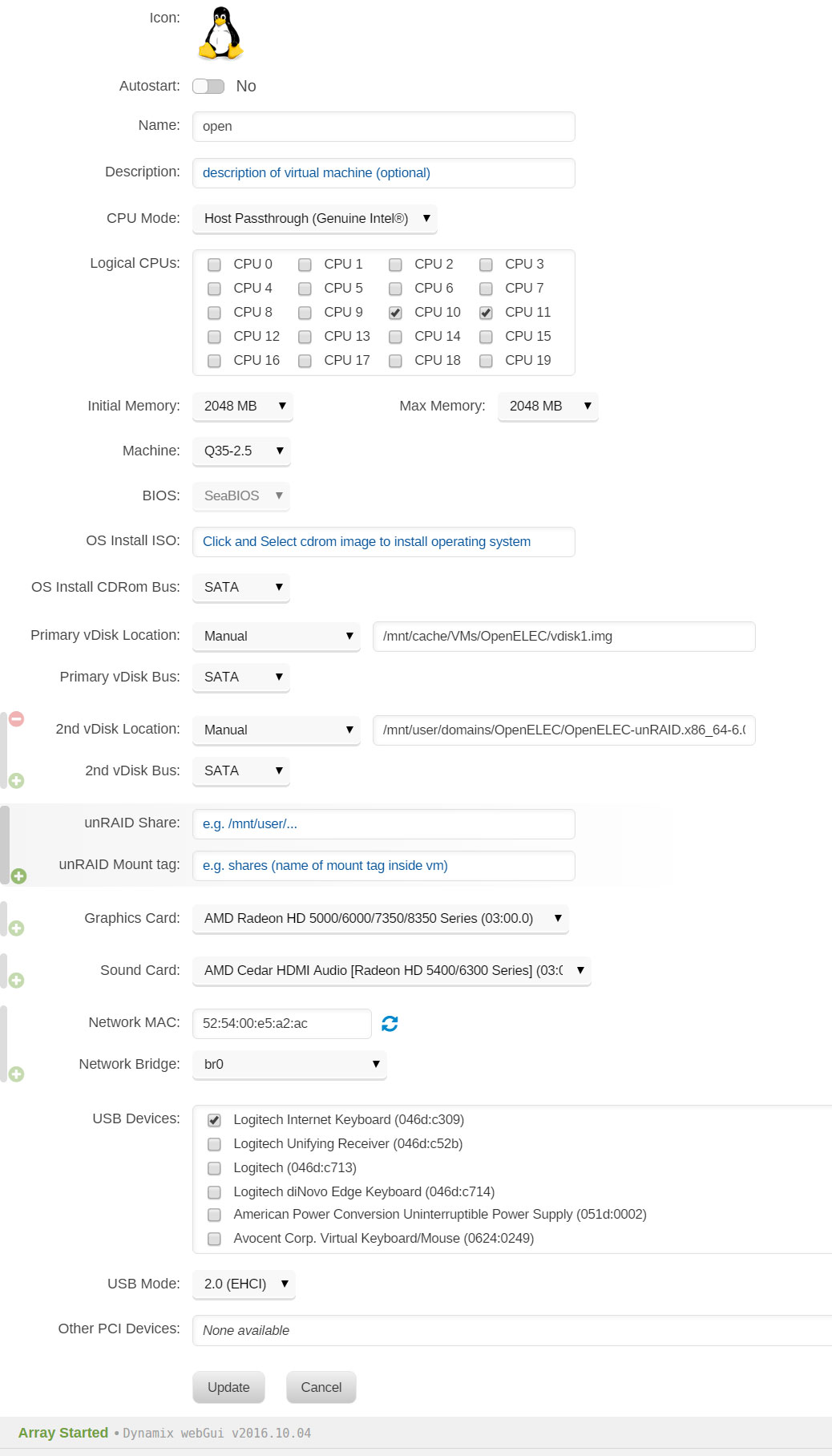

October 20, 20169 yr Ok. I get the feeling I am maybe missing a step, like creating an image or a share or something? <domain type='kvm'> <name>open</name> <uuid>6247232f-b4d1-7dc1-890e-44389061f6c6</uuid> <metadata> <vmtemplate xmlns="unraid" name="Linux" icon="linux.png" os="linux"/> </metadata> <memory unit='KiB'>2097152</memory> <currentMemory unit='KiB'>2097152</currentMemory> <memoryBacking> <nosharepages/> <locked/> </memoryBacking> <vcpu placement='static'>2</vcpu> <cputune> <vcpupin vcpu='0' cpuset='10'/> <vcpupin vcpu='1' cpuset='11'/> </cputune> <os> <type arch='x86_64' machine='pc-q35-2.5'>hvm</type> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough'> <topology sockets='1' cores='1' threads='2'/> </cpu> <clock offset='utc'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/cache/VMs/OpenELEC/vdisk1.img'/> <target dev='hdc' bus='sata'/> <boot order='2'/> </disk> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/OpenELEC/OpenELEC-unRAID.x86_64-6.0.3_1.img'/> <target dev='hdd' bus='sata'/> <boot order='1'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> <model name='i82801b11-bridge'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </controller> <controller type='pci' index='2' model='pci-bridge'> <model name='pci-bridge'/> <target chassisNr='2'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x02' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:e5:a2:ac'/> <source bridge='br0'/> <model type='e1000'/> </interface> <serial type='pty'> <target port='0'/> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <source mode='connect'/> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <hostdev mode='subsystem' type='pci' managed='yes' xvga='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x02' slot='0x04' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x046d'/> <product id='0xc309'/> </source> </hostdev> <memballoon model='virtio'> <address type='pci' domain='0x0000' bus='0x02' slot='0x05' function='0x0'/> </memballoon> </devices> </domain> Let me know if you need any other info. Thanks! Adam
October 20, 20169 yr Your 2nd vdisk should be the os install disc Ok, can you spell that out to me in baby steps please? Obviously I am not sure what I am doing. Thanks.
October 20, 20169 yr Is this what you mean? Still same problem? After it errors on the loading screen, I force quite and go to edit the XML and it shows the <address lines back in again even though I deleted them and updated prior to running the VM. Not sure if this is just happening because if fails or it isn't saving the update... Anyway the error is: Error in mount_storage: mount_common: could not mount appconfig Starting debugging shell... type exit to quit Can't access tty: job control turned off Thanks. <domain type='kvm'> <name>Linux</name> <uuid>4b1f0d50-da3f-35c5-ddd0-95d8cd35e81f</uuid> <metadata> <vmtemplate xmlns="unraid" name="Linux" icon="linux.png" os="linux"/> </metadata> <memory unit='KiB'>2097152</memory> <currentMemory unit='KiB'>2097152</currentMemory> <memoryBacking> <nosharepages/> <locked/> </memoryBacking> <vcpu placement='static'>2</vcpu> <cputune> <vcpupin vcpu='0' cpuset='10'/> <vcpupin vcpu='1' cpuset='11'/> </cputune> <os> <type arch='x86_64' machine='pc-q35-2.5'>hvm</type> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough'> <topology sockets='1' cores='1' threads='2'/> </cpu> <clock offset='utc'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/Linux/vdisk1.img'/> <target dev='hdc' bus='sata'/> <boot order='2'/> </disk> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/OpenELEC/OpenELEC-unRAID.x86_64-6.0.3_1.img'/> <target dev='hdd' bus='sata'/> <boot order='1'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> <model name='i82801b11-bridge'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </controller> <controller type='pci' index='2' model='pci-bridge'> <model name='pci-bridge'/> <target chassisNr='2'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x02' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:3d:dc:94'/> <source bridge='br0'/> <model type='e1000'/> </interface> <serial type='pty'> <target port='0'/> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <source mode='connect'/> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <hostdev mode='subsystem' type='pci' managed='yes' xvga='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x02' slot='0x04' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x046d'/> <product id='0xc309'/> </source> </hostdev> <memballoon model='virtio'> <address type='pci' domain='0x0000' bus='0x02' slot='0x05' function='0x0'/> </memballoon> </devices> </domain>
October 21, 20169 yr Did you follow the instructions here: https://lime-technology.com/forum/index.php?topic=44683.0
October 21, 20169 yr Did you follow the instructions here: https://lime-technology.com/forum/index.php?topic=44683.0 Yes. I even tried the pre-packaged versions and get the exact same error. Thanks.
October 21, 20169 yr OK, this is all new to me since I haven't installed an OpenELEC / Libre VM in 6.2+ yet. Have you tried the built in template for OE?
October 21, 20169 yr Yes I tried that an LibreELEC as well. Both give me that error. I keep wondering if I have something more fundamental wrong, although the Win10 VM works a treat.
