majorspawn Posted February 20, 2016 Share Posted February 20, 2016 Hi Guys, Is Skylake fully compatible with the latest unraid? looking at a new hardware build using: 1. Lian-Li PC-Q25B 2. AsRock B150M-ITX/D3 http://www.skycomp.com.au/asrock-b150m-itx-d3-mb-socket-1151-b150-2x-ddr3-ddr3l-dimm-slots-1x-pcie-3-0-x16-slot-5x-sata.html 3. Intel BX80662I36100 Core i3-6100 3.70GHZ LGA1151 CPU http://www.skycomp.com.au/intel-bx80662i36100-core-i3-6100-3-70ghz-socket-1151-3mb-cache-dual-core-41w.html 4. Silverstone St65f 650W http://www.skycomp.com.au/650w-strider-gold-cable-management-psu-80-plus-gold-342581.html question: 1. with the Q25B case apparently they take a full ATX power supply without atx extender? and not only SSF (430w sesonics people use on forum) 2. does anyone know of an equivalent motherboard that has more than 5 sata 3 ports that takes a i3-6100 3. the mb spec says that its compatible with "Supports ECC UDIMM memory modules (operate in non-ECC mode)" / Supports DDR3/DDR3L 1866(OC)/1600/1333/1066 non-ECC, un-buffered memory. I am currently using KVR1333D3E9SK2/ ECC UDIMs in my n54l microserver, would this ram be okay with the MB? 4. if not to the ecc ram can i get a recommendation on a good affordable brand / model for 16gb? thanks in advance Link to comment
tdallen Posted February 20, 2016 Share Posted February 20, 2016 An SFF power supply is definitely recommended for the PC-Q25b. Also, 650 watts is overkill for most builds in that case. Link to comment
garycase Posted February 20, 2016 Share Posted February 20, 2016 Skylake works fine. You CAN use SOME ATX power supplies in the Q25B, but it's far better to either use an SFX unit (best choice) or to add the Lian-Li extender so part of the PSU extends behind the case [ http://www.coolerguys.com/llpe01.html ]. If you use an ATX unit without the extender, not all units will fit ... check the Lian-Li specs for the max length (I don't recall exactly what it is). This server-class motherboard has 8 SATA ports and supports ECC memory, so your ECC modules and ECC-capable i3 will provide the support they're designed for. http://www.newegg.com/Product/Product.aspx?Item=N82E16813599009 Your memory will work fine in the motherboard you listed -- but as I just noted, I'd go with a motherboard with a server class chipset so you actually get the ECC benefits. Your supplier doesn't list the motherboard I suggested ... hopefully they can either get it or you can find another source that has it. Link to comment
garycase Posted February 20, 2016 Share Posted February 20, 2016 Agree that tdallen => 650w is far more than you need. I'd probably use this: http://www.skycomp.com.au/450wsfxpsu-80plusbronze.html Link to comment
majorspawn Posted February 20, 2016 Author Share Posted February 20, 2016 Skylake works fine. You CAN use SOME ATX power supplies in the Q25B, but it's far better to either use an SFX unit (best choice) or to add the Lian-Li extender so part of the PSU extends behind the case [ http://www.coolerguys.com/llpe01.html ]. If you use an ATX unit without the extender, not all units will fit ... check the Lian-Li specs for the max length (I don't recall exactly what it is). This server-class motherboard has 8 SATA ports and supports ECC memory, so your ECC modules and ECC-capable i3 will provide the support they're designed for. http://www.newegg.com/Product/Product.aspx?Item=N82E16813599009 Your memory will work fine in the motherboard you listed -- but as I just noted, I'd go with a motherboard with a server class chipset so you actually get the ECC benefits. Your supplier doesn't list the motherboard I suggested ... hopefully they can either get it or you can find another source that has it. thanks for that, seems i cant get that server based mb other than newegg and Australia doesn't stock it. bummer. What about the pcie ports and Q25B, i also have a sas 9240-8l that i can use for additional sata. I know the q25b has 2 pci spacers at the back plate, would this card restrict access to a 3.5" drive directly under the Mb? i wanted to have this configuration potentially with the card inserted, it this possible? http://i.imgur.com/Wc5TtRN.jpg (3x3.5" + 1x2.5") underneath + 5 x 3.5" in bay) Link to comment
garycase Posted February 20, 2016 Share Posted February 20, 2016 Unfortunate none of your suppliers have that board available -- I suspect they will in time, but no telling how long that might be. The good news is the board you're looking at is only $130 ... and will work fine except for the lack of ECC support and limited SATA ports. You could just build with it for now, and when you need more ports at some point check to see if the server board is available before adding a SATA card -- and, if so, just upgrade the motherboard and sell the old one instead of buying the additional card. Link to comment

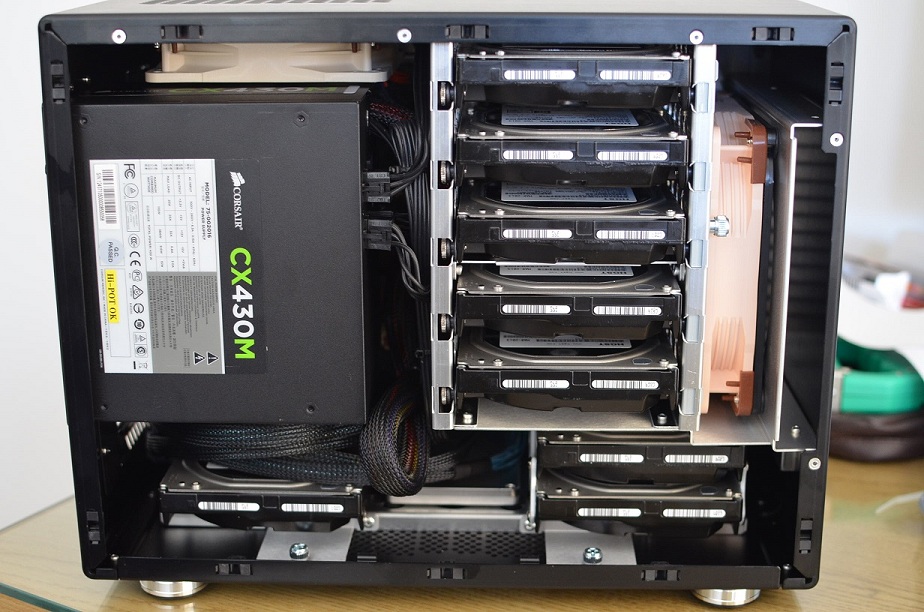

majorspawn Posted February 21, 2016 Author Share Posted February 21, 2016 Hi Gary, I already have the LSI card and wanted to know if it would interfere with the 3.5" disk placed underneath as pictured above. Link to comment
garycase Posted February 21, 2016 Share Posted February 21, 2016 ... one other option might be to build a Haswell-based system. There are several nice mini-ITX server-class boards for Haswell. Not sure if those are available in Australia or not. This extended ITX board with 14 SATA ports fits in a Q25B as long as you're using an SFX power supply: http://www.newegg.com/Product/Product.aspx?Item=N82E16813157486 Link to comment
garycase Posted February 21, 2016 Share Posted February 21, 2016 Hi Gary, I already have the LSI card and wanted to know if it would interfere with the 3.5" disk placed underneath as pictured above. I assume it would work okay, but don't know for sure. I can definitely tell you it would be MUCH easier if you use an SFX power supply -- you can see in that picture how crowded the case is with an ATX power supply [Note how it blocks a good bit of the airflow for the top fan]. Link to comment
majorspawn Posted February 21, 2016 Author Share Posted February 21, 2016 ... one other option might be to build a Haswell-based system. There are several nice mini-ITX server-class boards for Haswell. Not sure if those are available in Australia or not. This extended ITX board with 14 SATA ports fits in a Q25B as long as you're using an SFX power supply: http://www.newegg.com/Product/Product.aspx?Item=N82E16813157486 Looks great!,looks like its EOL in Australia not sourcable Link to comment
garycase Posted February 21, 2016 Share Posted February 21, 2016 Are there any mini-ITX Cxxx chipset Socket 1150 boards available through your supplier? I'm surprised that if a socket 1150 board is considered EOL they don't have any of the new Socket 1151 boards. Link to comment
majorspawn Posted February 21, 2016 Author Share Posted February 21, 2016 yes i can from these guys, here are some candidates for your spec Gary http://www.umart.com.au/umart1/pro/Products_list.phtml?bid=2&id=10&id2=117 any suggestions on these? Link to comment
danioj Posted February 21, 2016 Share Posted February 21, 2016 Skylake works fine. You CAN use SOME ATX power supplies in the Q25B, but it's far better to either use an SFX unit (best choice) or to add the Lian-Li extender so part of the PSU extends behind the case [ http://www.coolerguys.com/llpe01.html ]. If you use an ATX unit without the extender, not all units will fit ... check the Lian-Li specs for the max length (I don't recall exactly what it is). This server-class motherboard has 8 SATA ports and supports ECC memory, so your ECC modules and ECC-capable i3 will provide the support they're designed for. http://www.newegg.com/Product/Product.aspx?Item=N82E16813599009 Your memory will work fine in the motherboard you listed -- but as I just noted, I'd go with a motherboard with a server class chipset so you actually get the ECC benefits. Your supplier doesn't list the motherboard I suggested ... hopefully they can either get it or you can find another source that has it. thanks for that, seems i cant get that server based mb other than newegg and Australia doesn't stock it. bummer. What about the pcie ports and Q25B, i also have a sas 9240-8l that i can use for additional sata. I know the q25b has 2 pci spacers at the back plate, would this card restrict access to a 3.5" drive directly under the Mb? i wanted to have this configuration potentially with the card inserted, it this possible? http://i.imgur.com/Wc5TtRN.jpg (3x3.5" + 1x2.5") underneath + 5 x 3.5" in bay) Woah - that is a snug snug .... snug snug snug .... fit! Link to comment
garycase Posted February 21, 2016 Share Posted February 21, 2016 yes i can from these guys, here are some candidates for your spec Gary http://www.umart.com.au/umart1/pro/Products_list.phtml?bid=2&id=10&id2=117 any suggestions on these? The only mini-ITX form factor board in the list at that link is the first one ... and while it's a nice board, it only has 4 SATA ports -- so you'd definitely need to plug in an additional controller. Link to comment
majorspawn Posted February 23, 2016 Author Share Posted February 23, 2016 Hi Guys, thought on power supplies and quality Silverstone ST45SF-G vs corsair CS450M. A few users use the corsair over the Silverstone ST45SF 450w also modular vs non modular? apparently non modular have a higher heat rating and thus a better quality components inside? Link to comment
garycase Posted February 23, 2016 Share Posted February 23, 2016 The Silverstone is a FAR better choice for the Q25B Link to comment
mr-hexen Posted February 23, 2016 Share Posted February 23, 2016 So anyone notice the double stacked 3.5" drives in that picture on the bottom tray? Any idea how they mounted that??? Link to comment
majorspawn Posted February 24, 2016 Author Share Posted February 24, 2016 So anyone notice the double stacked 3.5" drives in that picture on the bottom tray? Any idea how they mounted that??? not sure the source is here http://forums.overclockers.com.au/showthread.php?t=825913&page=82 post #1226 Link to comment
spencers Posted February 24, 2016 Share Posted February 24, 2016 I have run the Corsair CX430 in my Q25B since I built it a couple years ago. Works great and super cheap. Link to comment
