karateo Posted December 7, 2016 Share Posted December 7, 2016 Hi again! It's the 3rd time the last six months that I get read errors with one specific disk. I always run scrub and SMART long test which both finish without errors! I am not sure if it's the disk or the cables with the problem. I have attached the smart report below. If you need anything else please let me know. One thing I have learned, is that I will not buy again green drives! It's the second, out of two green drives I own, with problems. smartctl 6.5 2016-05-07 r4318 [x86_64-linux-4.4.30-unRAID] (local build) Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Western Digital Caviar Green Device Model: WDC WD10EADS-00M2B0 Serial Number: WD-WCAV5P380885 LU WWN Device Id: 5 0014ee 25ae6ad3c Firmware Version: 01.00A01 User Capacity: 1,000,204,886,016 bytes [1.00 TB] Sector Size: 512 bytes logical/physical Device is: In smartctl database [for details use: -P show] ATA Version is: ATA8-ACS (minor revision not indicated) SATA Version is: SATA 2.6, 3.0 Gb/s Local Time is: Wed Dec 7 16:51:00 2016 +03 SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x02) Offline data collection activity was completed without error. Auto Offline Data Collection: Disabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: (21300) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: ( 245) minutes. Conveyance self-test routine recommended polling time: ( 5) minutes. SCT capabilities: (0x3037) SCT Status supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x002f 200 200 051 Pre-fail Always - 1701 3 Spin_Up_Time 0x0027 186 183 021 Pre-fail Always - 6683 4 Start_Stop_Count 0x0032 099 099 000 Old_age Always - 1726 5 Reallocated_Sector_Ct 0x0033 200 200 140 Pre-fail Always - 0 7 Seek_Error_Rate 0x002e 100 253 000 Old_age Always - 0 9 Power_On_Hours 0x0032 081 081 000 Old_age Always - 14505 10 Spin_Retry_Count 0x0032 100 100 000 Old_age Always - 0 11 Calibration_Retry_Count 0x0032 100 100 000 Old_age Always - 0 12 Power_Cycle_Count 0x0032 099 099 000 Old_age Always - 1351 192 Power-Off_Retract_Count 0x0032 200 200 000 Old_age Always - 167 193 Load_Cycle_Count 0x0032 147 147 000 Old_age Always - 161822 194 Temperature_Celsius 0x0022 116 100 000 Old_age Always - 31 196 Reallocated_Event_Count 0x0032 200 200 000 Old_age Always - 0 197 Current_Pending_Sector 0x0032 200 200 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0030 200 200 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x0032 200 200 000 Old_age Always - 0 200 Multi_Zone_Error_Rate 0x0008 200 200 000 Old_age Offline - 38 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Extended offline Completed without error 00% 14005 - # 2 Extended offline Completed without error 00% 11165 - # 3 Extended offline Completed without error 00% 9348 - # 4 Extended offline Completed without error 00% 9320 - # 5 Short offline Completed without error 00% 9316 - # 6 Extended offline Completed without error 00% 7471 - # 7 Extended offline Completed without error 00% 7237 - # 8 Short offline Completed without error 00% 6575 - # 9 Short offline Aborted by host 90% 6575 - #10 Short offline Completed without error 00% 1666 - #11 Short offline Completed: read failure 90% 1621 1953315312 #12 Short offline Completed: read failure 90% 1621 1953315312 #13 Short offline Completed without error 00% 418 - #14 Short offline Completed without error 00% 0 - 2 of 2 failed self-tests are outdated by newer successful extended offline self-test # 1 SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay. Link to comment
JorgeB Posted December 7, 2016 Share Posted December 7, 2016 Syslog from when the errors happened could give a better idea. Link to comment
karateo Posted December 7, 2016 Author Share Posted December 7, 2016 Attached portion of syslog cause it's almost full of Dec 7 16:55:05 TOWER shfs/user: err: shfs_mkdir: assign_disk:xxxxxxxxxxxxxxxxxxxxxxxxxxxxx (28) No space left on device and I don't want to share my folder names! I hope it's enough. Dec 2 13:49:42 TOWER kernel: Linux version 4.4.30-unRAID (root@develop64) (gcc version 5.3.0 (GCC) ) #2 SMP PREEMPT Sat Nov 5 12:09:05 PDT 2016 Dec 2 13:49:42 TOWER kernel: ACPI: Early table checksum verification disabled Dec 2 13:49:42 TOWER kernel: IOAPIC[0]: apic_id 2, version 32, address 0xfec00000, GSI 0-23 Dec 2 13:49:42 TOWER kernel: Kernel command line: BOOT_IMAGE=/bzimage intel_pstate=disable initrd=/bzroot Dec 2 13:49:42 TOWER kernel: Memory: 11984176K/12329764K available (6321K kernel code, 678K rwdata, 2112K rodata, 924K init, 604K bss, 345588K reserved, 0K cma-reserved) Dec 2 13:49:42 TOWER kernel: Console: colour VGA+ 80x25 Dec 2 13:49:42 TOWER kernel: tsc: Detected 3292.687 MHz processor Dec 2 13:49:42 TOWER kernel: Calibrating delay loop (skipped), value calculated using timer frequency.. 6585.37 BogoMIPS (lpj=3292687) Dec 2 13:49:42 TOWER kernel: smpboot: CPU0: Intel(R) Xeon(R) CPU E3-1230 v3 @ 3.30GHz (family: 0x6, model: 0x3c, stepping: 0x3) Dec 2 13:49:42 TOWER kernel: Performance Events: PEBS fmt2+, 16-deep LBR, Haswell events, full-width counters, Intel PMU driver. Dec 2 13:49:42 TOWER kernel: smpboot: Total of 8 processors activated (52682.99 BogoMIPS) Dec 2 13:49:42 TOWER kernel: xor: automatically using best checksumming function: Dec 2 13:49:42 TOWER kernel: libata version 3.00 loaded. Dec 2 13:49:42 TOWER kernel: usbcore: registered new interface driver usbfs Dec 2 13:49:42 TOWER kernel: usbcore: registered new interface driver hub Dec 2 13:49:42 TOWER kernel: usbcore: registered new device driver usb Dec 2 13:49:42 TOWER kernel: fuse init (API version 7.23) Dec 2 13:49:42 TOWER kernel: Block layer SCSI generic (bsg) driver version 0.4 loaded (major 253) Dec 2 13:49:42 TOWER kernel: ipmi message handler version 39.2 Dec 2 13:49:42 TOWER kernel: ACPI: Thermal Zone [TZ00] (28 C) Dec 2 13:49:42 TOWER kernel: ACPI: Thermal Zone [TZ01] (30 C) Dec 2 13:49:42 TOWER kernel: Serial: 8250/16550 driver, 1 ports, IRQ sharing disabled Dec 2 13:49:42 TOWER kernel: serial 0000:00:16.3: Couldn't register serial port f0a0, irq 19, type 0, error -28 Dec 2 13:49:42 TOWER kernel: lp: driver loaded but no devices found Dec 2 13:49:42 TOWER kernel: AMD IOMMUv2 driver by Joerg Roedel <[email protected]> Dec 2 13:49:42 TOWER kernel: VMware vmxnet3 virtual NIC driver - version 1.4.5.0-k-NAPI Dec 2 13:49:42 TOWER kernel: VFIO - User Level meta-driver version: 0.3 Dec 2 13:49:42 TOWER kernel: ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver Dec 2 13:49:42 TOWER kernel: ehci-pci: EHCI PCI platform driver Dec 2 13:49:42 TOWER kernel: ehci-pci 0000:00:1a.0: EHCI Host Controller Dec 2 13:49:42 TOWER kernel: ehci-pci 0000:00:1d.0: EHCI Host Controller Dec 2 13:49:42 TOWER kernel: ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver Dec 2 13:49:42 TOWER kernel: ohci-pci: OHCI PCI platform driver Dec 2 13:49:42 TOWER kernel: uhci_hcd: USB Universal Host Controller Interface driver Dec 2 13:49:42 TOWER kernel: xhci_hcd 0000:00:14.0: xHCI Host Controller Dec 2 13:49:42 TOWER kernel: xhci_hcd 0000:00:14.0: hcc params 0x200077c1 hci version 0x100 quirks 0x00009810 Dec 2 13:49:42 TOWER kernel: xhci_hcd 0000:00:14.0: xHCI Host Controller Dec 2 13:49:42 TOWER kernel: usbcore: registered new interface driver usb-storage Dec 2 13:49:42 TOWER kernel: i8042: PNP: PS/2 Controller [PNP0303:PS2K,PNP0f03:PS2M] at 0x60,0x64 irq 1,12 Dec 2 13:49:42 TOWER kernel: serio: i8042 KBD port at 0x60,0x64 irq 1 Dec 2 13:49:42 TOWER kernel: serio: i8042 AUX port at 0x60,0x64 irq 12 Dec 2 13:49:42 TOWER kernel: mousedev: PS/2 mouse device common for all mice Dec 2 13:49:42 TOWER kernel: usbcore: registered new interface driver synaptics_usb Dec 2 13:49:42 TOWER kernel: input: PC Speaker as /devices/platform/pcspkr/input/input3 Dec 2 13:49:42 TOWER kernel: hidraw: raw HID events driver (C) Jiri Kosina Dec 2 13:49:42 TOWER kernel: usbcore: registered new interface driver usbhid Dec 2 13:49:42 TOWER kernel: usbhid: USB HID core driver Dec 2 13:49:42 TOWER kernel: nf_conntrack version 0.5.0 (65536 buckets, 262144 max) Dec 2 13:49:42 TOWER kernel: ipip: IPv4 over IPv4 tunneling driver Dec 2 13:49:42 TOWER kernel: gre: GRE over IPv4 demultiplexor driver Dec 2 13:49:42 TOWER kernel: ip_gre: GRE over IPv4 tunneling driver Dec 2 13:49:42 TOWER kernel: IPv4 over IPsec tunneling driver Dec 2 13:49:42 TOWER kernel: registered taskstats version 1 Dec 2 13:49:42 TOWER kernel: floppy0: no floppy controllers found Dec 2 13:49:42 TOWER kernel: ahci 0000:00:1f.2: version 3.0 Dec 2 13:49:42 TOWER kernel: e1000e: Intel(R) PRO/1000 Network Driver - 3.2.6-k Dec 2 13:49:42 TOWER kernel: e1000e 0000:00:19.0: Interrupt Throttling Rate (ints/sec) set to dynamic conservative mode Dec 2 13:49:43 TOWER rpc.statd[1541]: Version 1.3.3 starting Dec 2 13:49:43 TOWER sm-notify[1542]: Version 1.3.3 starting Dec 2 13:49:43 TOWER rpc.statd[1541]: Failed to read /var/lib/nfs/state: Success Dec 2 13:49:43 TOWER root: Control file: Found correct version Dec 2 13:49:47 TOWER root: Version: 2016.11.27 Dec 2 13:49:48 TOWER root: Version: 2016.11.11 Dec 2 13:49:48 TOWER root: Version: 2016.11.30 Dec 2 13:49:48 TOWER root: Version: 2016.11.13 Dec 2 13:49:48 TOWER root: Version: 2016.09.20 Dec 2 13:49:48 TOWER root: plugin: not installing older version Dec 2 13:49:48 TOWER root: Version: 2016.11.03 Dec 2 13:49:51 TOWER root: Version: 2016.08.26 Dec 2 13:49:51 TOWER root: Version: 2016.10.27 Dec 2 13:49:52 TOWER root: Version: 2016.11.27b Dec 2 13:49:52 TOWER root: Version: 2016.10.22 Dec 2 13:49:55 TOWER root: Version: 2016.09.26b Dec 2 13:49:56 TOWER root: Version: 2016.10.22b Dec 2 13:49:56 TOWER root: Version: 1.8.4 Dec 2 13:49:56 TOWER root: # of data including linked data in a cell. This forked version adds Dec 2 13:49:57 TOWER root: # what operating system (and OS version) they are running, what type of Dec 2 13:49:58 TOWER root: plugin: skipping: nmap-6.40-x86_64-1.txz - unRAID version too high, requires at most version 6.1.99 Dec 2 13:49:58 TOWER root: Version: 2016.10.24 Dec 2 13:49:58 TOWER emhttp: unRAID System Management Utility version 6.2.4 Dec 2 13:49:58 TOWER rsyncd[8653]: rsyncd version 3.1.2 starting, listening on port 873 Dec 2 13:49:58 TOWER kernel: md: unRAID driver 2.6.8 installed Dec 2 13:49:58 TOWER kernel: mdcmd (1): import 0 sdf 2930266532 0 WDC_WD30EFRX-68EUZN0_WD-WCC4N0PD894N Dec 2 13:49:58 TOWER kernel: md: import disk0: (sdf) WDC_WD30EFRX-68EUZN0_WD-WCC4N0PD894N size: 2930266532 Dec 2 13:49:58 TOWER kernel: mdcmd (2): import 1 sdc 976762552 0 WDC_WD10EADS-00M2B0_WD-WCAV5P380885 Dec 2 13:49:58 TOWER kernel: md: import disk1: (sdc) WDC_WD10EADS-00M2B0_WD-WCAV5P380885 size: 976762552 Dec 2 13:49:58 TOWER kernel: mdcmd (3): import 2 sdd 1953514552 0 WDC_WD20EZRZ-00Z5HB0_WD-WCC4M6ZN00ZJ Dec 2 13:49:58 TOWER kernel: md: import disk2: (sdd) WDC_WD20EZRZ-00Z5HB0_WD-WCC4M6ZN00ZJ size: 1953514552 Dec 2 13:49:58 TOWER kernel: mdcmd (4): import 3 Dec 2 13:49:58 TOWER kernel: mdcmd (5): import 4 Dec 2 13:49:58 TOWER kernel: mdcmd (6): import 5 Dec 2 13:49:58 TOWER kernel: mdcmd (7): import 6 Dec 2 13:49:58 TOWER kernel: mdcmd (: import 7 Dec 2 13:49:58 TOWER kernel: mdcmd (9): import 8 Dec 2 13:49:58 TOWER kernel: mdcmd (10): import 9 Dec 2 13:49:58 TOWER kernel: mdcmd (11): import 10 Dec 2 13:49:58 TOWER kernel: mdcmd (12): import 11 Dec 2 13:49:58 TOWER kernel: mdcmd (13): import 12 Dec 2 13:49:58 TOWER kernel: mdcmd (14): import 13 Dec 2 13:49:58 TOWER kernel: mdcmd (15): import 14 Dec 2 13:49:58 TOWER kernel: mdcmd (16): import 15 Dec 2 13:49:58 TOWER kernel: mdcmd (17): import 16 Dec 2 13:49:58 TOWER kernel: mdcmd (18): import 17 Dec 2 13:49:58 TOWER kernel: mdcmd (19): import 18 Dec 2 13:49:58 TOWER kernel: mdcmd (20): import 19 Dec 2 13:49:58 TOWER kernel: mdcmd (21): import 20 Dec 2 13:49:58 TOWER kernel: mdcmd (22): import 21 Dec 2 13:49:58 TOWER kernel: mdcmd (23): import 22 Dec 2 13:49:58 TOWER kernel: mdcmd (24): import 23 Dec 2 13:49:58 TOWER kernel: mdcmd (25): import 24 Dec 2 13:49:58 TOWER kernel: mdcmd (26): import 25 Dec 2 13:49:58 TOWER kernel: mdcmd (27): import 26 Dec 2 13:49:58 TOWER kernel: mdcmd (28): import 27 Dec 2 13:49:58 TOWER kernel: mdcmd (29): import 28 Dec 2 13:49:58 TOWER kernel: mdcmd (30): import 29 Dec 2 13:49:58 TOWER kernel: md: import_slot: 29 empty Dec 2 13:49:59 TOWER avahi-daemon[8735]: WARNING: No NSS support for mDNS detected, consider installing nss-mdns! Dec 2 13:49:59 TOWER kernel: mdcmd (31): set md_num_stripes 1280 Dec 2 13:49:59 TOWER kernel: mdcmd (32): set md_sync_window 384 Dec 2 13:49:59 TOWER kernel: mdcmd (33): set md_sync_thresh 192 Dec 2 13:49:59 TOWER kernel: mdcmd (34): set md_write_method Dec 2 13:49:59 TOWER kernel: mdcmd (35): set spinup_group 0 0 Dec 2 13:49:59 TOWER kernel: mdcmd (36): set spinup_group 1 0 Dec 2 13:49:59 TOWER kernel: mdcmd (37): set spinup_group 2 0 Dec 2 13:49:59 TOWER kernel: mdcmd (38): start STOPPED Dec 2 13:49:59 TOWER kernel: md1: running, size: 976762552 blocks Dec 2 13:49:59 TOWER kernel: md2: running, size: 1953514552 blocks Dec 2 13:50:10 TOWER root: Fix Common Problems Version 2016.10.27 Dec 2 13:50:11 TOWER root: Fix Common Problems: Warning: Share TV Series set to not use the cache, but files / folders exist on the cache drive Dec 2 13:51:02 TOWER kernel: tun: Universal TUN/TAP device driver, 1.6 Dec 2 13:51:02 TOWER dnsmasq[10586]: started, version 2.76 cachesize 150 Dec 2 18:51:49 TOWER kernel: mdcmd (39): spindown 2 Dec 2 18:51:51 TOWER kernel: mdcmd (40): spindown 0 Dec 2 18:51:51 TOWER kernel: mdcmd (41): spindown 1 Dec 3 02:42:06 TOWER kernel: mdcmd (42): spindown 0 Dec 3 03:17:39 TOWER kernel: mdcmd (43): spindown 1 Dec 3 04:00:08 TOWER kernel: mdcmd (44): spindown 2 Dec 3 09:40:15 TOWER kernel: mdcmd (45): spindown 1 Dec 3 09:40:26 TOWER kernel: mdcmd (46): spindown 2 Dec 4 02:05:10 TOWER kernel: mdcmd (47): spindown 1 Dec 4 02:13:11 TOWER kernel: mdcmd (48): spindown 0 Dec 4 07:03:49 TOWER kernel: mdcmd (49): spindown 2 Dec 4 14:05:07 TOWER kernel: mdcmd (50): spindown 1 Dec 5 02:05:33 TOWER kernel: mdcmd (51): spindown 1 Dec 5 02:06:31 TOWER kernel: mdcmd (52): spindown 0 Dec 5 03:20:37 TOWER apcupsd[31431]: Power failure. Dec 5 03:20:39 TOWER apcupsd[31431]: Power is back. UPS running on mains. Dec 5 09:40:30 TOWER kernel: mdcmd (53): spindown 1 Dec 5 14:05:53 TOWER kernel: mdcmd (54): spindown 0 Dec 5 14:05:54 TOWER kernel: mdcmd (55): spindown 2 Dec 6 14:21:35 TOWER kernel: mdcmd (56): spindown 0 Dec 7 03:01:49 TOWER kernel: mdcmd (57): spindown 0 Dec 7 14:07:24 TOWER kernel: mdcmd (58): spindown 0 Dec 7 16:49:16 TOWER kernel: ata2.00: exception Emask 0x0 SAct 0x0 SErr 0x0 action 0x0 Dec 7 16:49:16 TOWER kernel: ata2.00: failed command: READ DMA EXT Dec 7 16:49:16 TOWER kernel: ata2.00: error: { UNC } Dec 7 16:49:16 TOWER kernel: blk_update_request: I/O error, dev sdc, sector 648048320 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048256 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048264 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048272 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048280 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048288 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048296 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048304 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048312 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048320 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048328 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048336 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048344 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048352 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048360 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048368 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048376 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048384 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048392 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048400 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048408 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048416 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048424 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048432 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048440 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048448 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048456 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048464 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048472 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048480 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048488 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048496 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048504 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048512 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048520 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048528 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048536 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048544 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048552 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048560 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048568 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048576 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048584 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048592 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048600 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048608 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048616 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048624 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048632 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048640 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048648 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048656 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048664 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048672 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048680 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048688 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048696 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048704 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048712 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048720 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048728 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048736 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048744 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048752 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048760 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048768 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048776 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048784 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048792 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048800 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048808 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048816 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048824 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048832 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048840 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048848 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048856 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048864 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048872 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048880 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048888 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048896 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048904 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048912 Dec 7 16:49:16 TOWER kernel: md: disk1 read error, sector=648048920 Link to comment
RobJ Posted December 7, 2016 Share Posted December 7, 2016 Grab your diagnostics and look inside. You'll see there are no readable folders, files, share names, or email addresses, they've been 'cleaned'. Anyway that's a true read error, probably a bad sector or sectors. It's rather surprising that the SMART report did not mention it. That is a weirdly chopped syslog piece! Link to comment
karateo Posted December 7, 2016 Author Share Posted December 7, 2016 Grab your diagnostics and look inside. You'll see there are no readable folders, files, share names, or email addresses, they've been 'cleaned'. the syslog is the problem, because of my full cache drive and dropbox docker trying to do stuff for example the line below. I have changed the CAPS only. Dec 7 16:55:07 TOWER shfs/user: err: shfs_rmdir: rmdir: /mnt/cache/DropboxWIFE/MYNAME/KIDS/1510 (39) Directory not empty I will buy a new wd red and get rid of this drive asap. Thanks for confirming that it's the disk with the problem. Link to comment
garycase Posted December 7, 2016 Share Posted December 7, 2016 ... I will buy a new wd red and get rid of this drive asap. Good idea Clearly when you're getting recurring errors on the same disk, it's a good plan to relegate that disk to other duties -- perhaps as an offline backup. Link to comment

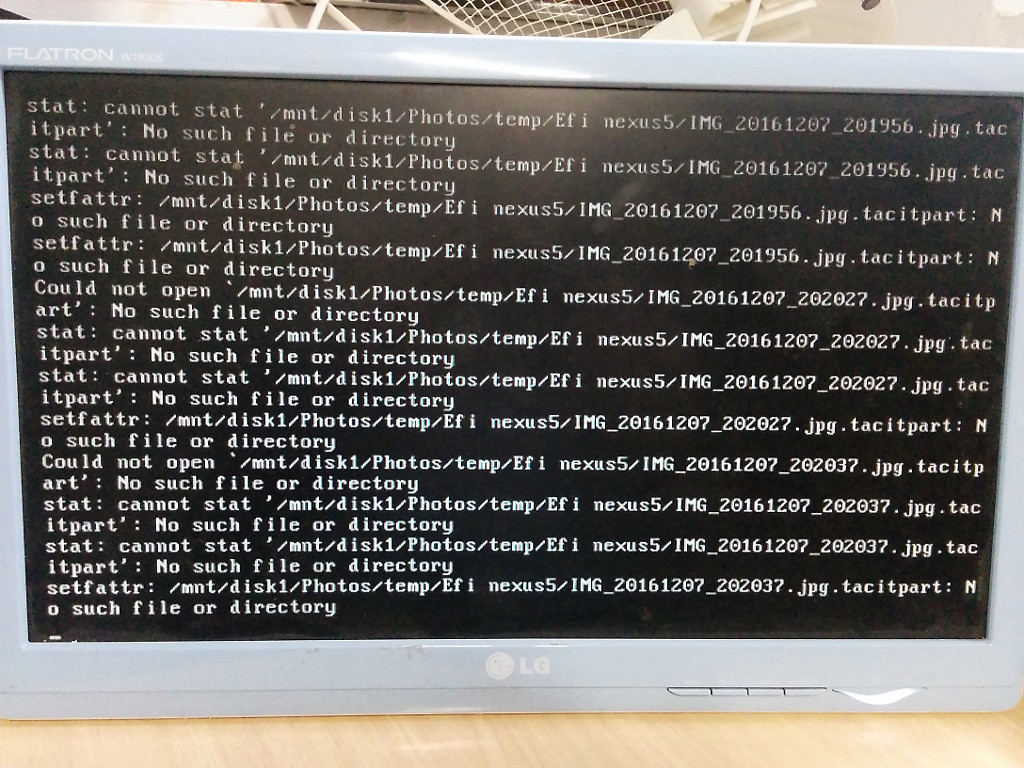

karateo Posted December 9, 2016 Author Share Posted December 9, 2016 I plugged a monitor today and saw this screen before hitting enter to prompt login input Is it related to my read errors or some other problem? Link to comment
joedotmac Posted December 9, 2016 Share Posted December 9, 2016 It would appear so as the actual files (inodes) are not linked or accessible to the filename. This is indicative of drive issues, or corruption caused by drive issues. I'm living this dream right now myself. Oh the joy. Link to comment
karateo Posted December 9, 2016 Author Share Posted December 9, 2016 I use an android app called FolderSync to sync my pictures taken from mobile devices every day to a temp folder (as you can see) in order to prevent photos loss if a mobile device is stolen/broken etc. I am not sure if it sends part files and after a checksum check at the end of the file transfer it changes the filenames. I just googled and confirmed the above https://groups.google.com/forum/#!msg/tacitdynamics/aoxsUG8L_sY/YODkmFz2BjwJ The tacitpart files are because temp-file scheme is used - then first the files is uploaded with that extension, when that then has been validated it gets renamed to its proper name. However I don't know what causes this kind of errors. Could it be dynamic file integrity trying to create checksums? Link to comment
RobJ Posted December 9, 2016 Share Posted December 9, 2016 I plugged a monitor today and saw this screen before hitting enter to prompt login input Is it related to my read errors or some other problem? No, those are all just software issues, 'file not found' errors, nothing at all to do with the hardware or file system. It appears you have an operation running on the files at the same time as something is writing new files, and it is doing so by creating intermediate files then deleting them once done. The error is from the first process not finding the intermediate files any more. Identify the second process by whatever creates files with a 'tacitpart' extension. Link to comment
JimDijkstra86NL Posted March 28, 2017 Share Posted March 28, 2017 Can't advice you on which one atm but if you're going with WD red...Keep in mind that they are fast bút build and designed for RAID and differ from Black drives which are performance based but little less of a good fit in Raid.((( I would run a reliable revision Black series as raid due to not having them turned on 24/7 (in) system, tho not in storage server or system turned on 24/7...unless they have spin down option and no more then 18 - 20 out of 24h activity on average)))(Just lookup on the difference and it's potential effects on Raid drives running as normal ones and Non-Raid drives in Raid, most of it has to do with communication between interfaces and controllers on MB's)Sent from my GT-I9505 using Tapatalk Link to comment
JimDijkstra86NL Posted March 29, 2017 Share Posted March 29, 2017 Remembered something more...Read errrors are also a lot more likely when you got drives in Raid that are not designed for it.More on this I mostly learned from "Hardware.info NL version, I also use this to forward translated pages to other languages to people...with translation browser tool it can be a nice website for info and research drawn mostly out of there (in-dept) reviews.Sent from my GT-I9505 using Tapatalk Link to comment
