Once again stupid IRQ 16 issue thought i got it guess not can some one please tell me whats going on?



Running UnRaid 6.3.5 with

HP Elite 8300

16 gig ram

3 WD 3 tb red's

Samsung Evo 960 NVME  250 gb

APC back up pro 1500



tower-syslog-20171205-2010.zip

tower-diagnostics-20171205-2010.zip

IRQ16 was disabled, but It looks like it wasn't being used by anything critical, if you don't notice any issues ignore it, though a bios update might prevent them it from happening.

I have updated the bios and still this issue shows up randomly. I have noticed this issue comes and go's every time i disconnect the VGA cable??? I think this maybe a grounding issue caused by the UPS?? I have got a USB isolator for the ups USB cable. and added a 2nd grounding cable. see if this fixes the issue.





Cant wait for unraid 6.4

Edited December 23, 20178 yr by Gary489

5-6 years (unRAID 5 RC)  ago I had the IRQ16 disabled: nobody cared issue.  I tracked it down to switching video inputs on my monitor which was shared by unRAID and my desktop.  Unfortunately, with my MB and BIOS, IRQ 16 was shared with the PCIe card hosting some of the array hard drives.  I could not get this IRQ assignment to change.  BIOS updates, swapping motherboards, etc. did not resolve the issue.  When IRQ 16 was disabled, performance on the PCIe-attached hard drives went in the tank.  It took a reboot to fix it.  My only solution was to attach a dedicated monitor the unRAID server to avoid the input-switching trigger that disabled IRQ 16



Many times, these messages don't mean there is a problem, although they are disconcerting and annoying.  If you have not noticed any performance or functionality issues when the IRQ is disabled, you can likely ignore it.



I'll admit, I am a bit OCD on issues like this and I hate not knowing why it is happening and how to "fix" it, so, it's hard to ignore sometimes.

on a fresh install I also have, randomly, this message in my logs.



after a quick investigation, and at least for me; it seams to be related to my SMBUS

Quote

cat /proc/interrupts

...

16:     100000          0          0          0  IR-IO-APIC   16-fasteoi   i801_smbus

...



which means is probably related to advance CPU C-States



on my next reboot I'll try to only keep C0 and C1 and keep you in touch

ref: http://www.hardwaresecrets.com/everything-you-need-to-know-about-the-cpu-c-states-power-saving-modes/

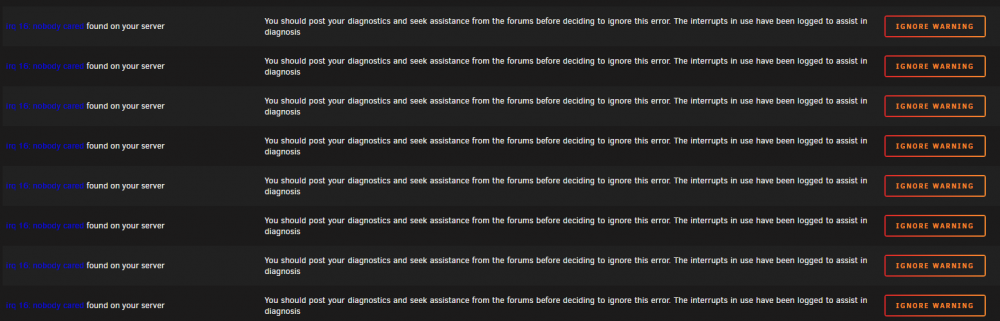

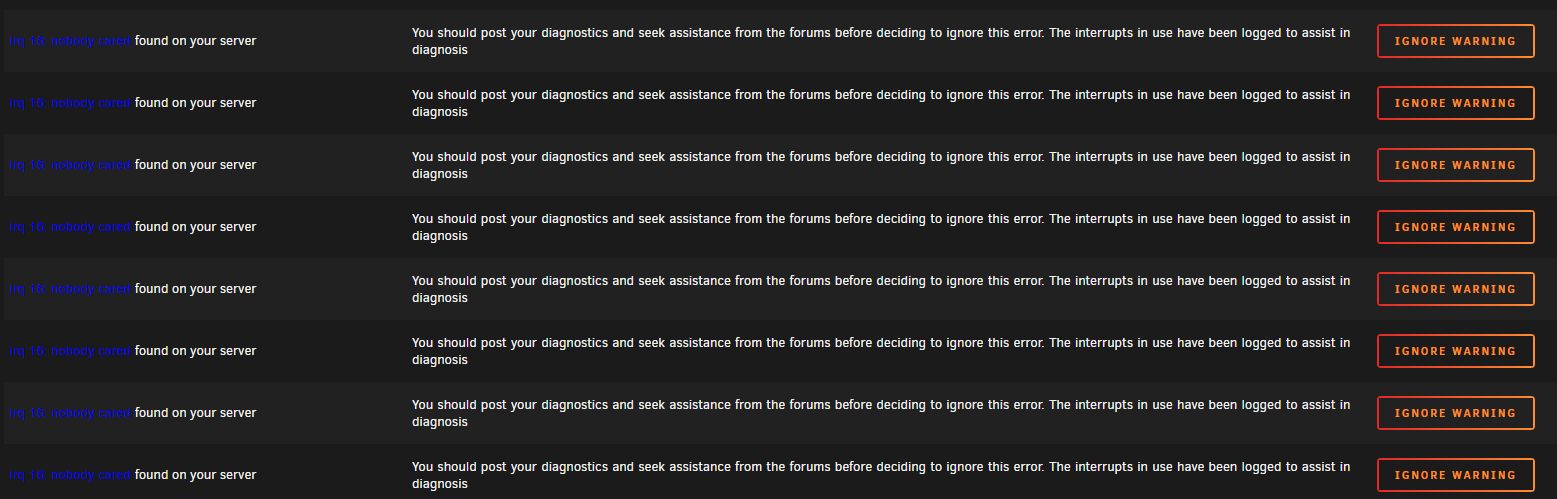

So I also have this popping up recently.  I started to ignore it all, but then Fix Common Problems decided to show 8 in a row. I don't have any BIOS updates available and there have been a number of other issues lately that have all generally been ironed out.



Should I be worried?

manky-dreadful-diagnostics-20181203-1057.zip

2 hours ago, noja said:

Should I be worried?

Can't open your diags.



56 minutes ago, johnnie.black said:

Can't open your diags.

Weird, not sure what happened there - I couldn't open it either.  This one appears to be working - thanks again for looking!

manky-dreadful-diagnostics-20181203-1420.zip

3 minutes ago, noja said:

This one appears to be working

Yes, those work.



There's an USB 3 controller using that IRQ, nothing else of importance, so if everything is working fine you can ignore for now, if you have issues with any device using an USB 3.0 port change it to another controller/HUB

Is it possible for someone to look at my logs/diagnostics?



Thanks in advance!

Edited March 6, 20197 yr by Krobbinsit

1 minute ago, Krobbinsit said:

Is it possible for someone to look at my logs/diagnostics?

IRQ16 ss being used by eth2, is that NIC in use? If not ignore.

Sorry, haven't looked at your diagnostics as I don't really know what I'm looking for.  After @johnnie.black noted that the issue for me was related a USB3 port, I ended up doing maintenance on bad sata cables and I think I switched the connected keyboard & mouse to different usb ports.  Since then, I haven't seen the same notification.

Johnie.black that was quick!



It isn't in use and I actually was thinking about removing the extra network card. Thanks again!

Is there any harm leaving my log/diagnostic files here? or should I delete?

If you checked the "anonymize statistics" box during diagnostics creation there should be no personally identifiable information in the diagnostics so it can be left if you want.

Edited March 6, 20197 yr by weirdcrap

Hi guys,



I have irq 16: nobody cared found on your server. Is it possible for someone to look at my logs/diagnostics? My motherboard is MSI Z97 Gaming 7 (MS7916) and processor i7-4790K without external graphic. I couldn't run UEFI virtualization with GTX1070. I will deal with it as follows.



Thank you so much!

pc-nas-diagnostics-20190611-2006.zip

Edited June 11, 20197 yr by Pappy

IRQ16 is being used by a USB controller, as long as you're not having USB issues after it stops working you can ignore it, though a bios update might help.
