IOMMU: Disabled in unRAID on Gen8 Microserver but VT-d enabled in BIOS

Recommended Posts

Hi All,


I have been following Spaceinvader's guide to installing pfSense and have run into a brick wall.


unRAID is reporting that IOMMU is disabled in the UI, so I cannot pass my dedicated 4 port NIC through to the pfSense VM


I have been going through forums all day now and although there is a lot of talk about the Gen8 and Hardware pass through, nothing talks about IOMMU being disabled.

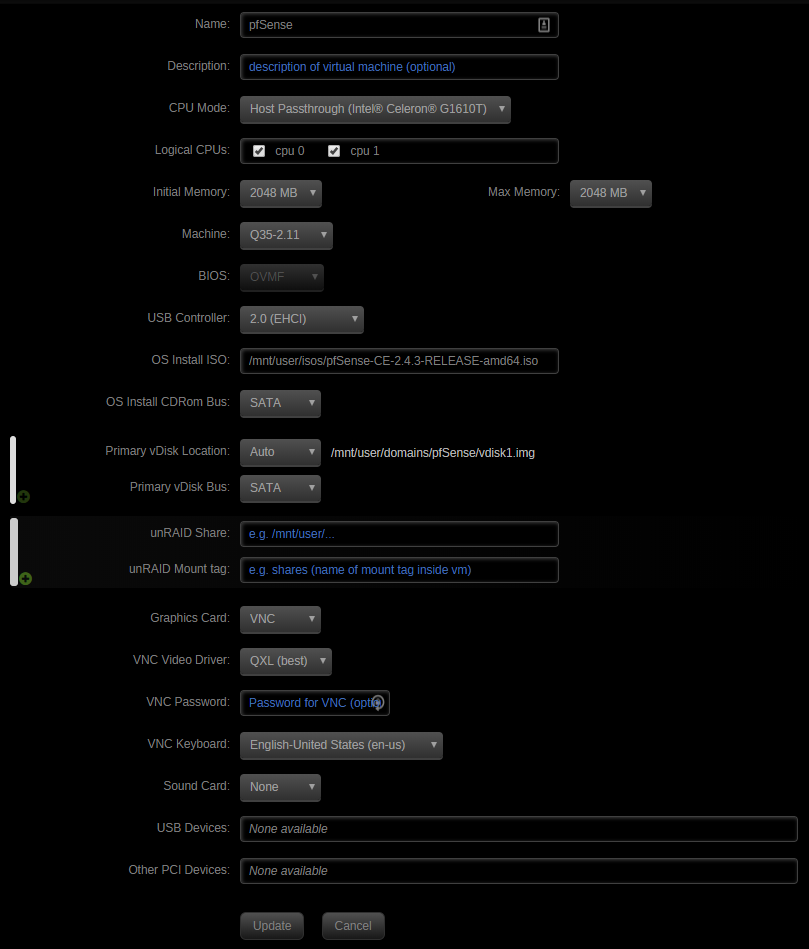

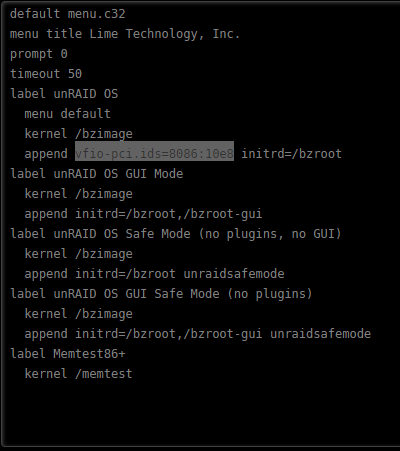

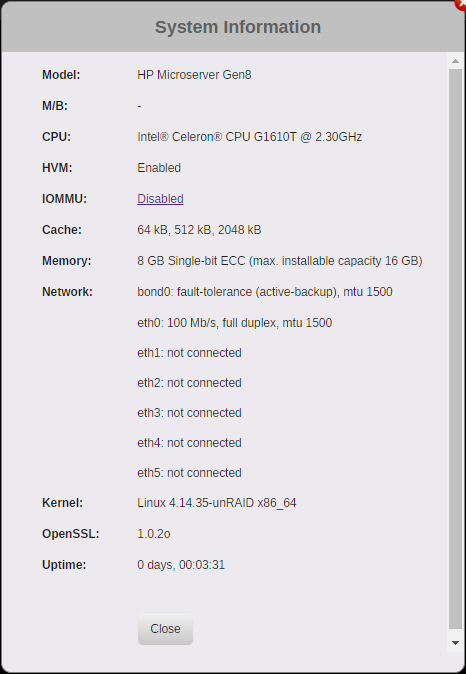

I've attached a picture of my BIOS Information, VT-d Enabled, No Other PCI Devices being available to pfSense, System Information and the IOMMU info I added to my syslinux.cfg to stop unRAID from using the quad NIC.


I am running the latest version of unRAID, Gen8 BIOS and iLO4 and the quad NIC card was pulled from a working device.

Can anyone help me? Have I missed something obvious?




2018-08-05 19_27_05-Window.png

2018-08-05 19_29_37-Window.png

2018-08-05 19_33_36-Window.png

2018-08-05 19_33_57-Window.png

2018-08-05 19_34_23-Window.png

Link to comment
5 hours ago, wipwar said:

Thanks for that! Game over then. :(


You could upgrade your processor. There are a handful of Xeon options that you could use. I put a Sandy Bridge E3-1260L in one of my Gen8s. They're discontinued but available used on eBay. It has a higher TDP (45 W) than the Celeron (35 W) but in practice there are no real issues - the fan may run faster. If you want to play safe the E3-1220L has an even lower TDP (20 W) than the Celeron but it's performance is consequently quite feeble. Another option is the slightly newer Ivy Bridge E3-1265L v2, which allows slightly faster RAM (1600 MHz vs 1333 MHz) and has slightly better performance than the 1260L. It has the same 45 W TDP but costs somewhat more. Any of these would allow you to use IOMMU and all support ECC RAM. There are a number of guides on the Internet.

Link to comment
11 hours ago, John_M said:

If you want to play safe the E3-1220L has an even lower TDP (20 W) than the Celeron but it's performance is consequently quite feeble.

Thanks for the info!

I'm going to buy an E3-1220L V2 for $115 AUD. Passmark on my current CPU vs the 1220L is 2304 to 4419. So nearly double the performance.

I am not noticing any CPU problems at the moment running a few dockers and a Win2016 server so I think the 1220L will be more than enough.

Do you think adding a pfSense VM to the mix will push the 1220L to the limit? I have about 15 devices on the LAN, no VPN, 50Mb connection. pfSense would be DHCP, DNS, standard network services.

Link to comment

The one I know for certain that works is the original Sandy Bridge E3-1220L, not the Ivy Bridge E3-1220L v2 that you mention, though I can see no reason why it would not work. It's just that the version 1 was sold as an option by HP. The v2 has an even lower TDP (17 W). To me these 2-core/4-thread Xeons didn't offer value for money as upgrades but if you're otherwise happy with your existing Celeron (it is surprisingly capable!) then you'll be fine with the 1220L. I don't use pfSense but I wouldn't expect it to be a heavy CPU user. You'll probably be fine. Good luck. There's a maintenance manual available online that shows an exploded view of the Microserver. It's useful to know what needs to be disconnected from the motherboard before the tray can slide out.

Link to comment
  • 1 year later...

i have the seme problem

Model: HP ProLiant G6 SE326M1

M/B: Version - s/n:

BIOS: HP Version R02. Dated: 07/02/2013

CPU: Intel® Xeon® CPU E5645 @ 2.40GHz

HVM: Enabled

IOMMU: Disabled

Cache: 192 KiB, 192 KiB, 1536 KiB, 1536 KiB, 12288 KiB, 12288 KiB

Memory: 32 GiB DDR3 Single-bit ECC (max. installable capacity 384 GiB)

Network: bond0: IEEE 802.3ad Dynamic link aggregation, mtu 1500
 eth0: 1000 Mbps, full duplex, mtu 1500
 eth1: 1000 Mbps, full duplex, mtu 1500

Kernel: Linux 4.19.94-Unraid x86_64

OpenSSL: 1.1.1d
