September 23, 20187 yr Author 2 hours ago, Maticks said: I ran into the same issues on 6.6.0. And it started complaining about open files and watcher inotify issues. even ran into some weirfd BTRFS issues which was my cache drive of all things. LSI Controller and onboard motherboard controller. 4 Hours on 6.5.3 very stable again... i think ill give 6.6.0 a miss till the bugs are ironed out. Sorry to hear that but glad you are stable again. I'm really hoping that it is just the HBA card. New one comes Tuesday and I was still running into issues rolling back to 6.5.3.
September 25, 20187 yr Author @johnnie.black got the new HBA card in and it is rebuilding. I did change the PCIe Mode to Auto instead of Gen2 (options are Auto, Gen1, Gen2) in mobo BIOS since this card is PCIe 3.0. Rebuilding at 2.9 - 41MB/sec though.... (avg about 30MB/sec)
September 25, 20187 yr Community Expert That's on the slow side, but first you need to worry about fixing the problem, then you can worry about speed.
September 26, 20187 yr Author 4 hours ago, johnnie.black said: That's on the slow side, but first you need to worry about fixing the problem, then you can worry about speed. Happy to report 7.5 hours later that it completed with zero errors! Disk4 is fully operational and its the old 3TB disk. The speed picked up a bit and went over 100MB/s but averaged around 80 - 85MB/s. Not sure why History shows over 280MB/s... (I think that would have finished in 3 hours).
September 26, 20187 yr Community Expert 3 hours ago, blurb2m said: Not sure why History shows over 280MB/s... (I think that would have finished in 3 hours). It's an old bug, when the rebuilt disk is smaller than parity stats are wrongly calculated.

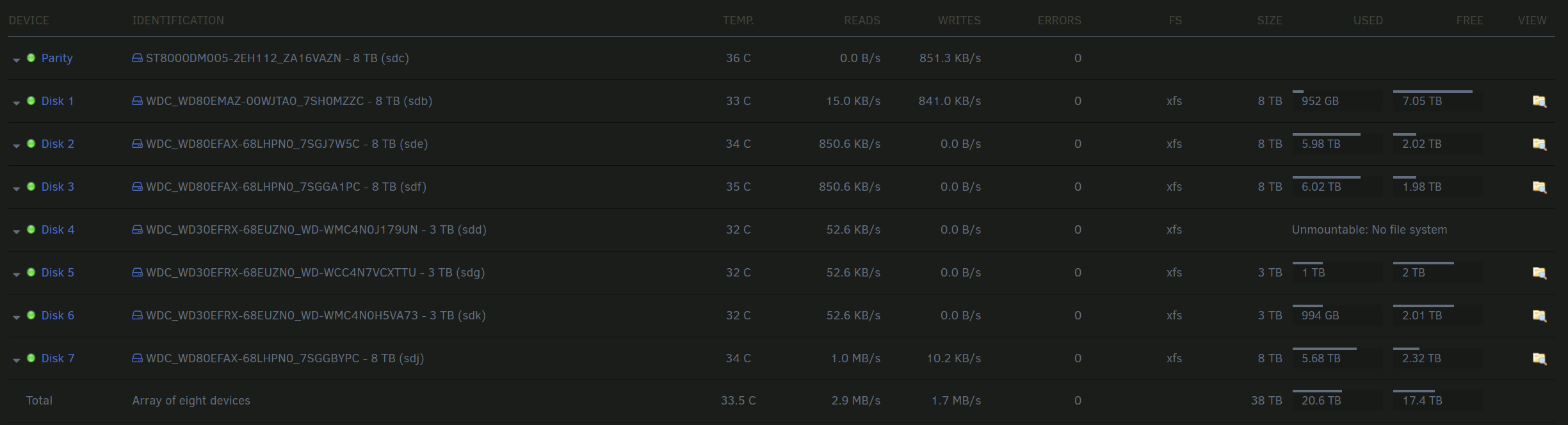

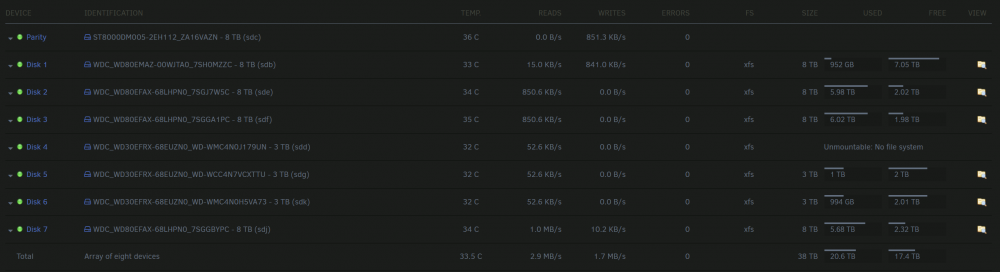

September 26, 20187 yr Author @johnnie.black So, system has been stable. Just updated again to 6.6.0 and everything seems ok except for Disk4 status on "Main" shows 'Unmountable: No file system'. This is after the successful rebuild. Thoughts?
September 26, 20187 yr Community Expert 25 minutes ago, blurb2m said: Thoughts? Check filesystem: https://wiki.unraid.net/Check_Disk_Filesystems#Checking_and_fixing_drives_in_the_webGui
September 26, 20187 yr Author 15 minutes ago, johnnie.black said: Check filesystem: https://wiki.unraid.net/Check_Disk_Filesystems#Checking_and_fixing_drives_in_the_webGui Phase 1 - find and verify superblock... - block cache size set to 1512192 entries Phase 2 - using internal log - zero log... zero_log: head block 2356505 tail block 2356499 ALERT: The filesystem has valuable metadata changes in a log which is being destroyed because the -L option was used. - scan filesystem freespace and inode maps... sb_fdblocks 489295541, counted 490033385 - found root inode chunk Phase 3 - for each AG... - scan and clear agi unlinked lists... - process known inodes and perform inode discovery... - agno = 0 - agno = 1 - agno = 2 - agno = 3 - process newly discovered inodes... Phase 4 - check for duplicate blocks... - setting up duplicate extent list... - check for inodes claiming duplicate blocks... - agno = 0 - agno = 2 - agno = 1 - agno = 3 Phase 5 - rebuild AG headers and trees... - agno = 0 - agno = 1 - agno = 2 - agno = 3 - reset superblock... Phase 6 - check inode connectivity... - resetting contents of realtime bitmap and summary inodes - traversing filesystem ... - agno = 0 - agno = 1 - agno = 2 - agno = 3 - traversal finished ... - moving disconnected inodes to lost+found ... Phase 7 - verify and correct link counts... Maximum metadata LSN (2:2356527) is ahead of log (1:2). Format log to cycle 5. XFS_REPAIR Summary Wed Sep 26 11:52:28 2018 Phase Start End Duration Phase 1: 09/26 11:48:25 09/26 11:48:25 Phase 2: 09/26 11:48:25 09/26 11:49:42 1 minute, 17 seconds Phase 3: 09/26 11:49:42 09/26 11:49:46 4 seconds Phase 4: 09/26 11:49:46 09/26 11:49:46 Phase 5: 09/26 11:49:46 09/26 11:49:46 Phase 6: 09/26 11:49:46 09/26 11:49:50 4 seconds Phase 7: 09/26 11:49:50 09/26 11:49:50 Total run time: 1 minute, 25 seconds done
September 26, 20187 yr Author I knowwww I should start a new thread... but @johnnie.black Thoughts on Fix Common Problems suggestion of: You have a Ryzen CPU, but Zenstates not installed
September 27, 20187 yr Just out of curiosity, but what version firmware were you on your 9211-8i? I have 2 of them on P20 (20.00.04.00). Also, how long until you started seeing these errors?
September 27, 20187 yr Author 3 hours ago, br0kenraid said: Just out of curiosity, but what version firmware were you on your 9211-8i? I have 2 of them on P20 (20.00.04.00). Also, how long until you started seeing these errors? I think I was on P20 20.00.07(?) It was 0.5 - 2.9% into a disk rebuild that it would kill the disk and disable it. Couple hours later the other 3 disks on that SAS port would get bazillions of read/write errors. They just stopped communicating through the card. Since moving to the 9207-8i, it has been flawless. Wroks out of the box with no flashing and uses PCIe 3.0 instead of 2.0 (not that it matters bandwidth-wise but seems more compatible with my x399 Taichi.
September 27, 20187 yr Community Expert You should upgrade to P20.00.07, 20.00.00 is worse but there are still problems with 20.00.04 Just out of curiosity, but what version firmware were you on your 9211-8i? I have 2 of them on P20 (20.00.04.00). Also, how long until you started seeing these errors?
September 27, 20187 yr 11 hours ago, johnnie.black said: You should upgrade to P20.00.07, 20.00.00 is worse but there are still problems with 20.00.04 I would love to; but it seems that Broadcom has removed the downloads from their site? Edit: Nevermind; i found it https://docs.broadcom.com/docs/12350530 Edited September 27, 20187 yr by br0kenraid
September 27, 20187 yr I also had similar errors when upgrading to the latest unraid release. One of my parity drives started stalling so I ran a preclear on the drive on a separate machine and it produced pending sector errors. I replaced the drive only to have large CRC errors on multiple drives. After many hours of hair pulling, I figured it out! My LSI 9211-8i had the dreaded P20.00.00 firmware and for some reason, the latest unraid build didn't get along. Upgrading to P20.00.07 fixed everything. No more CRC errors & faster speed in general.
October 1, 20187 yr interesting... i think i am running P20.00.00 as well. certainly ran into the same issue. so 00.07 is a lot better ?
October 24, 20187 yr @johnnie.black so an update for everyone. I turned out to be the BIOS on the HBA causing some kind of weird conflict, i erased it from the HBA and the problem went away. You only need the BIOS on the HBA if you're using this as a boot drive which since unraid uses a USB that is never going to happen. Running 6.6.3 without any issues. I ended up doing my upgrades anyway.
