Bytales Posted September 25, 2018 Share Posted September 25, 2018 (edited) This is something nobody explained anywhere, as it seems it is taken for granted. But ive reached the point where i need to load in the VM the ISO from the ISOs share, however the ISOs share is empty, no ISOs there. Can anyone please explain to me how do i acces my share from a windows PC ? Ive seen people map drives to the share location, but for me it doesnt work. The Network ip of the tower is 192.168.2.110 When trying to map network drive to ip it doesnt work \\192.168.2.110\ISOs doesnt work \\tower\ISOs asks me for username and password, but entering root and the correct password, doesnt work either. What the hell am i doing wrong, this is is getting ridiculous ! Nobody ever thought to make a simple tutorial how to be able to acces the damn share from another computer on the network ? Edited September 25, 2018 by Bytales Quote Link to comment
JorgeB Posted September 25, 2018 Share Posted September 25, 2018 Got to that share'a SMB security settings and check that "Export" is set to "yes" Quote Link to comment

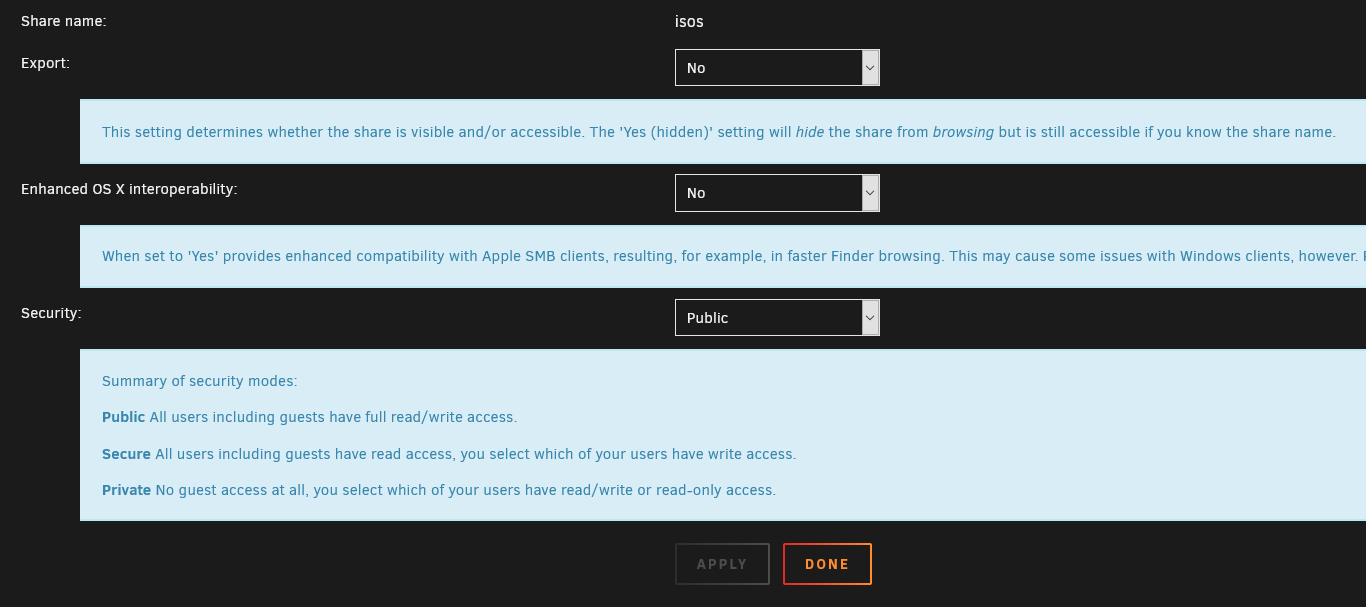

Hoopster Posted September 26, 2018 Share Posted September 26, 2018 4 hours ago, Bytales said: What the hell am i doing wrong, Enabling Help on the ISO share's config page tells you what is going on. By default, the ISO share's SMB Export setting is set to No. This means that even if you know the share name, you cannot map it (this is what is happening in your case). If you set it to Yes (hidden), it will not show up automatically when you browse to the server in the Windows Network, but, you can map it since you know the share name. If you set it to Yes, the ISO share will show up automatically when you browse to the server As johnnie.black said, you need to set it to one of the "yes" options. Quote Link to comment

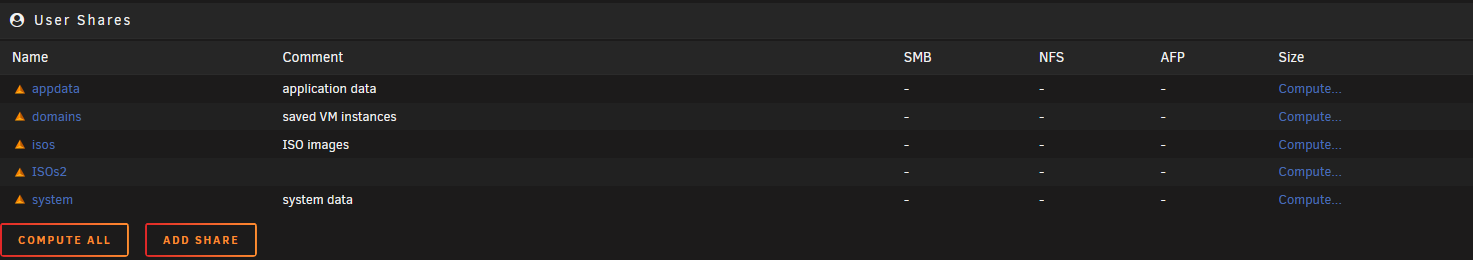

QAZT Posted July 8, 2019 Share Posted July 8, 2019 On 9/25/2018 at 9:10 PM, Hoopster said: Enabling Help on the ISO share's config page tells you what is going on. By default, the ISO share's SMB Export setting is set to No. This means that even if you know the share name, you cannot map it (this is what is happening in your case). If you set it to Yes (hidden), it will not show up automatically when you browse to the server in the Windows Network, but, you can map it since you know the share name. If you set it to Yes, the ISO share will show up automatically when you browse to the server As johnnie.black said, you need to set it to one of the "yes" options. I have followed these instructions and I still am having issues connecting to the share via Network explorer in win 10. Iv previously been able to connect to SMB shares on a FREENAS 11.2 server. Any ideas? I also noticed in the shares section under the SMB column there is simply a dash "-". Refer to image. Quote Link to comment

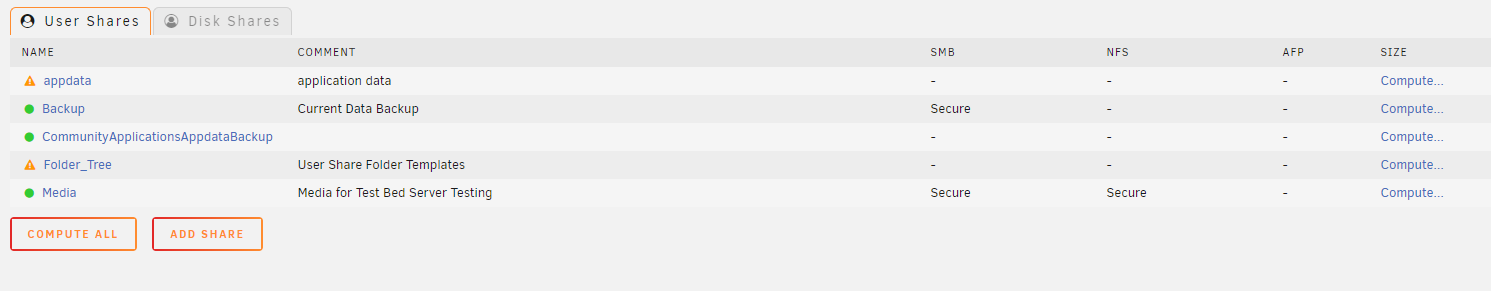

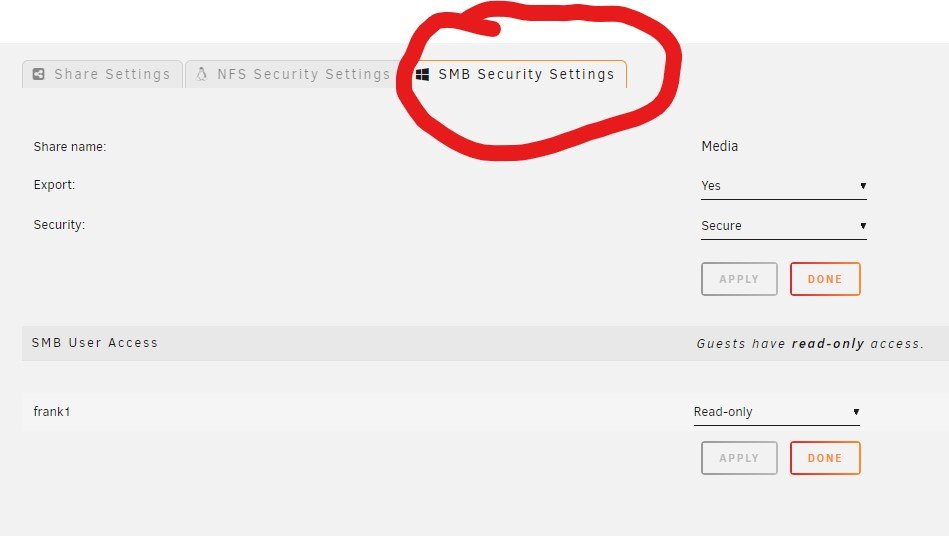

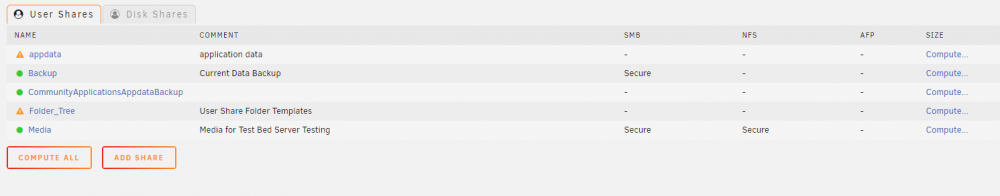

Frank1940 Posted July 8, 2019 Share Posted July 8, 2019 It will look something like this when you have things correctly set up: In this case, I am exporting two shares (Backup and Media) via SMB and both of the shares have the security set to Secure (which means anyone can read but only specific users have write privileges). One of these shares (Media) is also being exported using NFS. This is the setup screen for the SMB share of the Media share: (I have all of my shares setup so that Ransomware can't not have read/write access to the share!!!) Quote Link to comment

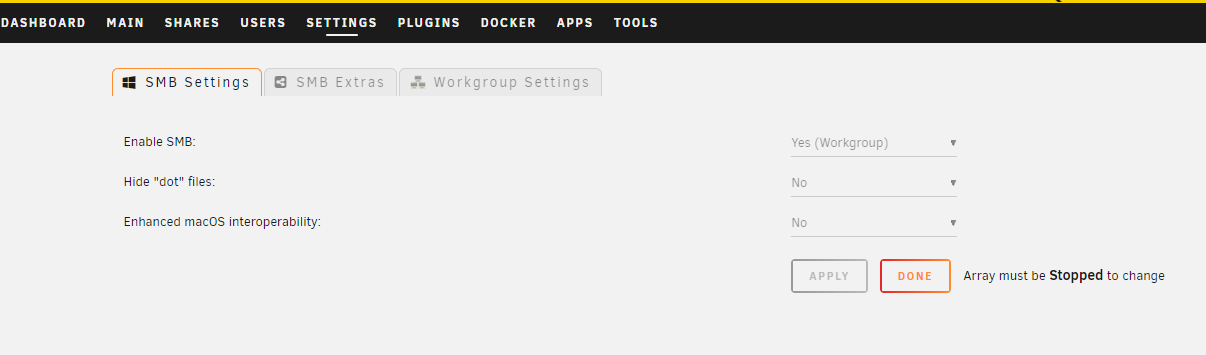

Frank1940 Posted July 8, 2019 Share Posted July 8, 2019 You also have to turn on SMB--- Settings >>> SMB >>> SMB Settings Quote Link to comment
Fiservedpi Posted July 9, 2019 Share Posted July 9, 2019 have you made the iso share view able within the vm on mine i have a shared documents folder that syncs between the vm and shares Quote Link to comment

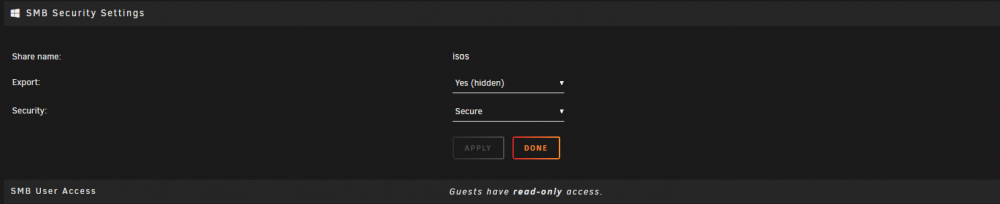

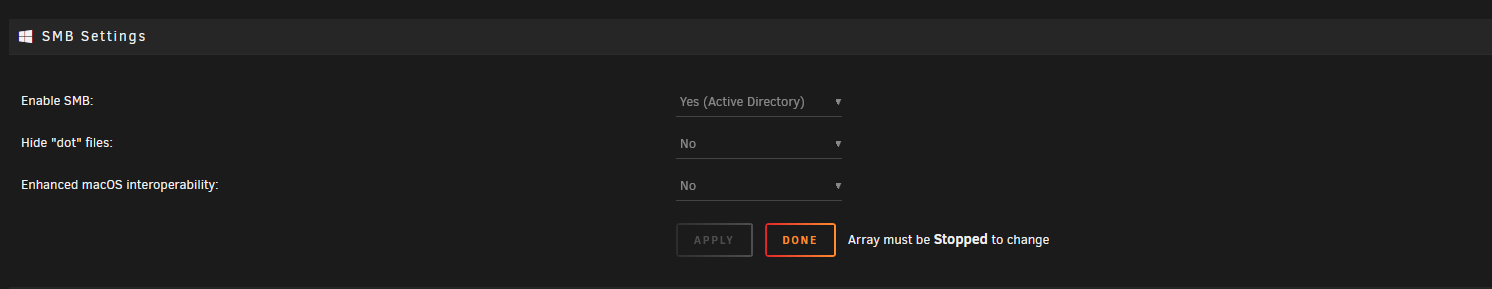

QAZT Posted July 10, 2019 Share Posted July 10, 2019 (edited) On 7/8/2019 at 12:39 PM, Frank1940 said: It will look something like this when you have things correctly set up: In this case, I am exporting two shares (Backup and Media) via SMB and both of the shares have the security set to Secure (which means anyone can read but only specific users have write privileges). One of these shares (Media) is also being exported using NFS. This is the setup screen for the SMB share of the Media share: (I have all of my shares setup so that Ransomware can't not have read/write access to the share!!!) On 7/8/2019 at 12:43 PM, Frank1940 said: You also have to turn on SMB--- Settings >>> SMB >>> SMB Settings I have already completed both of these tasks before asking for assistance. this is the reason why i am stuck. Screen cap to show the settings Edited July 10, 2019 by QAZT Im a dummy Quote Link to comment

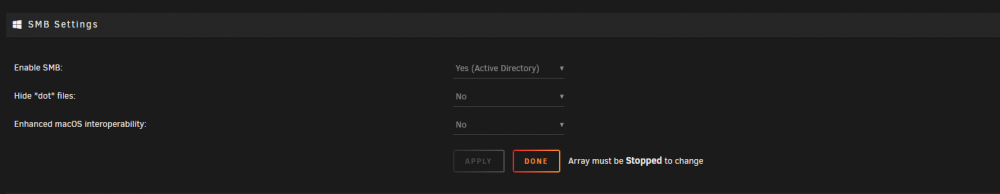

QAZT Posted July 10, 2019 Share Posted July 10, 2019 Sooo.... Reason it didnt work. I had not changed SMB SETTING "Yes" to workgroup. I had it set as an active directory and that wouldnt work... Quote Link to comment
Frank1940 Posted July 10, 2019 Share Posted July 10, 2019 (edited) 7 hours ago, QAZT said: Sooo.... Reason it didnt work. I had not changed SMB SETTING "Yes" to workgroup. I had it set as an active directory and that wouldnt work... As I understand it, Unraid has some Active Directory functionality built into it but it can not serve as a Domain Server. You have to have a server that is running one of MS Windows Server Operating Systems set up to serve as the Domain Server. Then you can have your Unraid server join to it. See here for some more information on this: https://en.wikipedia.org/wiki/Active_Directory and https://forums.unraid.net/topic/12236-help-joining-active-directory/ Edited July 10, 2019 by Frank1940 Quote Link to comment
kiss4luna Posted May 13, 2020 Share Posted May 13, 2020 I'm trying to build a remote gaming server using unraid based on this thread: https://forums.serverbuilds.net/t/guide-remote-gaming-on-unraid/4248/8 And I'm stuck too trying to transfer ISOs to unraid in order to install windows on VM. 7. Configure and Install the VM 1. Download and transfer the software to the Unraid server. (click me) 1. Download a Windows 10 ISO 18 from the official Microsoft Windows 10 Media Creation Tool. 2. Transfer the Windows 10 ISO to your isos share on Unraid. I stuck here for days and can't find anywhere a explain how to trasnfer ISO to iso share on unraid. And before this step there is another step in which I need to transfer a GPU bios to unraid which I can't do it neither. Quote Link to comment
trurl Posted May 13, 2020 Share Posted May 13, 2020 18 minutes ago, kiss4luna said: how to trasnfer ISO to iso share Unclear what you don't understand. Unraid is a NAS (Network Attached Storage) that can host VMs. As a NAS, you can access it from other computers on your network and transfer files to it. There is a share (a folder available on the network) on Unraid named 'isos' and you copy the ISO to that folder in the way you usually copy files over the network. All I have said may seem obvious to you, it certainly seems obvious to me. If you already know all that and it doesn't help, see if you can take it from there and explain exactly what part of that you are having problems with and what exactly the problem is. Quote Link to comment
kiss4luna Posted May 13, 2020 Share Posted May 13, 2020 13 hours ago, trurl said: Unclear what you don't understand. Unraid is a NAS (Network Attached Storage) that can host VMs. As a NAS, you can access it from other computers on your network and transfer files to it. There is a share (a folder available on the network) on Unraid named 'isos' and you copy the ISO to that folder in the way you usually copy files over the network. All I have said may seem obvious to you, it certainly seems obvious to me. If you already know all that and it doesn't help, see if you can take it from there and explain exactly what part of that you are having problems with and what exactly the problem is. Hi trurl! Thanks for reply. I can't access the unraid shared folders or disks or anything. I don't know why. I can access another shared folders on my other pc and the unraid setup page. I don't know what happened or if there is anything I may have done wrong. Quote Link to comment
trurl Posted May 13, 2020 Share Posted May 13, 2020 From your PC, access the Unraid webUI then go to Tools - Diagnostics and attach the complete Diagnostics ZIP file to your NEXT post. Quote Link to comment
kiss4luna Posted May 14, 2020 Share Posted May 14, 2020 12 hours ago, trurl said: From your PC, access the Unraid webUI then go to Tools - Diagnostics and attach the complete Diagnostics ZIP file to your NEXT post. Thanks trurl! Here is the diagnostics file. tower-diagnostics-20200514-1228.zip Quote Link to comment
trurl Posted May 14, 2020 Share Posted May 14, 2020 Have you tried using your server IP instead of its name to access its shares over the network? Quote Link to comment
akfonz Posted January 19, 2022 Share Posted January 19, 2022 Not sure if it still maters but I was having the same issue. My issue I was entering the credentials of the tower as opposed to my windows credentials. Quote Link to comment
Lance Bennett Posted July 3, 2022 Share Posted July 3, 2022 Any word on this I'm having issue to Quote Link to comment
trurl Posted July 3, 2022 Share Posted July 3, 2022 1 minute ago, Lance Bennett said: Any word on this I'm having issue to Exactly what issue are you having? This is an old thread and several things have been discussed in it, but it isn't very long. Have you read it? Quote Link to comment
Lance Bennett Posted July 6, 2022 Share Posted July 6, 2022 (edited) Yes i found the problem it was a overlook. It was under hidden files. (Newbe mistake) Edited July 6, 2022 by Lance Bennett Spelling Quote Link to comment
