FoxxMD Posted April 1, 2019 Share Posted April 1, 2019 I have 32GB (4x8GB) of UDIMM ECC DDR3 memory installed on my server. On my dashboard under Memory Size it reports total usable as 24.068 GB I have read other threads on this forum about people with the same issue but usually the issue is a bad stick. Here is what I've determined so far (trying to rule out other threads) I can see every stick within unraid (on System Profiler in Memory Devices) Memory Summary shows a Maximum Capacity of 32 GB My motherboard supports 32GB memory I haven't found anything saying my cpu, an FX-8350, can't support 32GB memory All memory is accessible from BIOS All memory is accessible and passes all tests with memtest All sticks are the same brand/model, shouldn't be an issue with pairing for dual-channel mode I have used other sticks (not part of this 4x8GB kit) in the past with unraid, up to 20GB with random pairings, and never had an issue Removing any stick puts my total usable and installed at ~24GB It's not being consumed for video memory because I have a dedicated GeForce 210 installed I have attached a diagnostics zip file for your convenience. Does anyone have any idea why I can't use all my memory? Thanks foxxnas-diagnostics-20190401-1417.zip Quote Link to comment
Vr2Io Posted April 1, 2019 Share Posted April 1, 2019 (edited) Pls type “dmidecode -t 17” in console and post the result. Edited April 1, 2019 by Benson Quote Link to comment
FoxxMD Posted April 1, 2019 Author Share Posted April 1, 2019 ~# dmidecode -t 17 # dmidecode 3.1 Getting SMBIOS data from sysfs. SMBIOS 2.7 present. Handle 0x002E, DMI type 17, 34 bytes Memory Device Array Handle: 0x002C Error Information Handle: Not Provided Total Width: 72 bits Data Width: 64 bits Size: 8192 MB Form Factor: DIMM Set: None Locator: Node0_Dimm0 Bank Locator: Node0_Bank0 Type: DDR3 Type Detail: Synchronous Unbuffered (Unregistered) Speed: 800 MT/s Manufacturer: Micron Serial Number: 0E93CBB4 Asset Tag: Dimm0_AssetTag Part Number: 18KSF1G72AZ-1 Rank: 2 Configured Clock Speed: 800 MT/s Handle 0x0030, DMI type 17, 34 bytes Memory Device Array Handle: 0x002C Error Information Handle: Not Provided Total Width: 72 bits Data Width: 64 bits Size: 8192 MB Form Factor: DIMM Set: None Locator: Node0_Dimm1 Bank Locator: Node0_Bank0 Type: DDR3 Type Detail: Synchronous Unbuffered (Unregistered) Speed: 800 MT/s Manufacturer: Micron Serial Number: 0E93CBB3 Asset Tag: Dimm1_AssetTag Part Number: 18KSF1G72AZ-1 Rank: 2 Configured Clock Speed: 800 MT/s Handle 0x0032, DMI type 17, 34 bytes Memory Device Array Handle: 0x002C Error Information Handle: Not Provided Total Width: 72 bits Data Width: 64 bits Size: 8192 MB Form Factor: DIMM Set: None Locator: Node0_Dimm2 Bank Locator: Node0_Bank0 Type: DDR3 Type Detail: Synchronous Unbuffered (Unregistered) Speed: 800 MT/s Manufacturer: Micron Serial Number: 0E93CBB6 Asset Tag: Dimm2_AssetTag Part Number: 18KSF1G72AZ-1 Rank: 2 Configured Clock Speed: 800 MT/s Handle 0x0034, DMI type 17, 34 bytes Memory Device Array Handle: 0x002C Error Information Handle: Not Provided Total Width: 72 bits Data Width: 64 bits Size: 8192 MB Form Factor: DIMM Set: None Locator: Node0_Dimm3 Bank Locator: Node0_Bank0 Type: DDR3 Type Detail: Synchronous Unbuffered (Unregistered) Speed: 800 MT/s Manufacturer: Micron Serial Number: 0E93CD82 Asset Tag: Dimm3_AssetTag Part Number: 18KSF1G72AZ-1 Rank: 2 Configured Clock Speed: 800 MT/s Quote Link to comment
Vr2Io Posted April 1, 2019 Share Posted April 1, 2019 Seems normal. Would you try to found any option in BIOS about memory remapping and enable it. Quote Link to comment

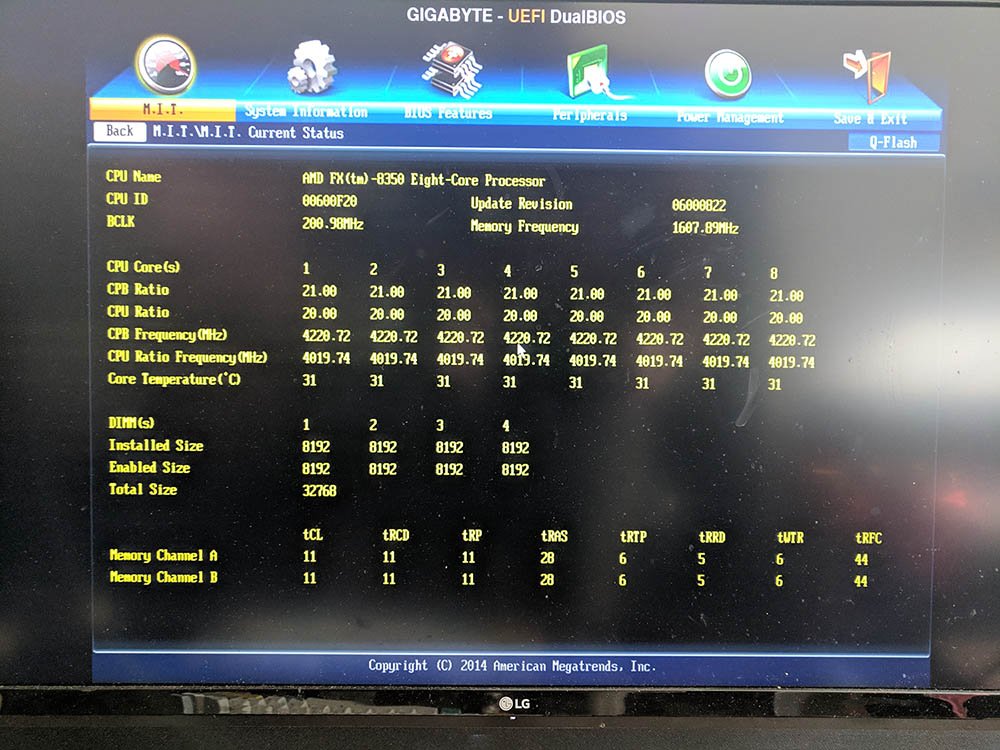

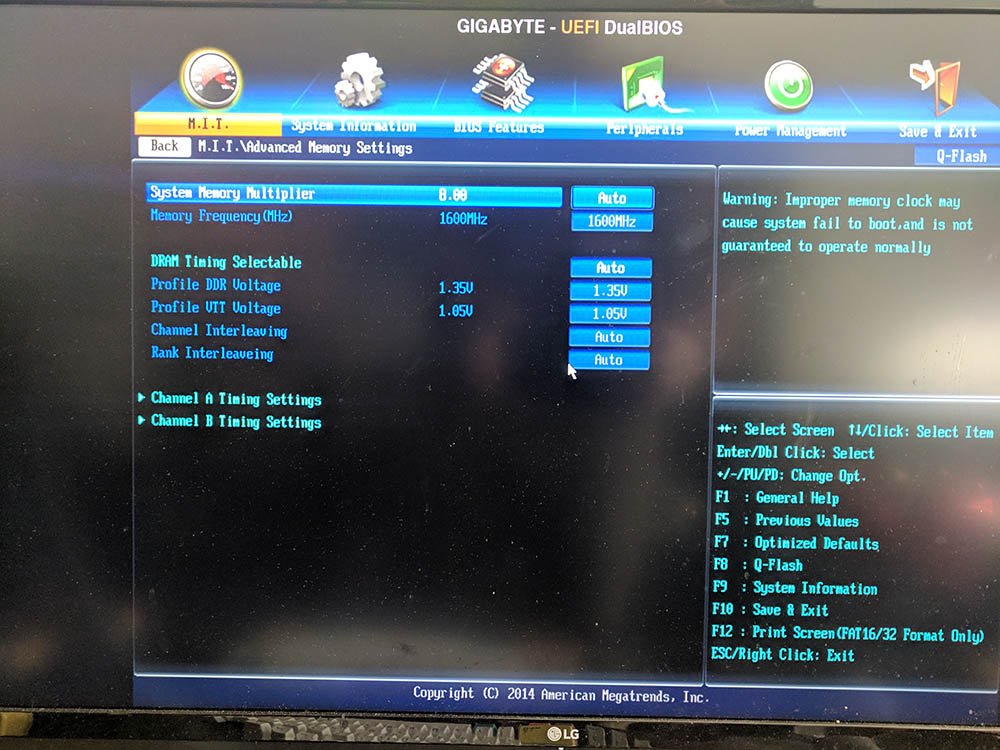

FoxxMD Posted April 3, 2019 Author Share Posted April 3, 2019 (edited) @Benson I have no such options in BIOS. I have attached pics of the memory-related features in my BIOS. Everything is set on auto or factory default. All memory is recognized. The only other piece of information I can think of is that my motherboard is a consumer board (GA-990FXA-UD3) and not advertised to work with ECC memory. However it's been confirmed by multiple forums posts I've found (and my own experience) that ECC does indeed work with it -- due to the board and cpu having a workstation heritages IE they were workstation base products that were "downgraded" to be consumer products. But I don't see how this would have any effect on my current issue since everything reports normally on BIOS and in unraid *except* that unraid won't use all 4 sticks for some reason... Edited April 3, 2019 by FoxxMD Quote Link to comment
Vr2Io Posted April 3, 2019 Share Posted April 3, 2019 If you can't found those setting in BIOS, pls forget it. If goggling you will got similar problem much and no matter old / new system, there also many different answer / solution. https://www.overclock.net/forum/24676509-post4.html DRAM Training (A stress test that occurs during POST that disables certain RAM channels if that channel is detected to be problematic) will cause less memory to be 'detected' (the RAM sticks will still show in utilities like cpu-z) The cause of the channels being problematic could be bad RAM settings or bad RAM itself. My MSI X99A XPOWER AC motherboard was very keen on disabling RAM channels, depending on the RAM settings (too aggressive overclock/timings) or memory controller (VCCSA or system agent). It's possible my RAMPAGE V was more lax in disabling RAM channels, but I could get it to happen still by being too aggressive. Try disabling your overclock, disabling XMP, using standard speeds, and see if the RAM comes back. Increase VCCSA if you deem necessary too. I don't know what CPU you have, but haswell-E system agent defaults to 0.85v, and the default 0.85v is enough for me to run 3000MHz DDR4 quad channel. So, if you confirm all stick and RAM slot work, then I would suggest you try underclock the memory from 1600Mhz to 1333Mhz and try. 1 Quote Link to comment
FoxxMD Posted April 3, 2019 Author Share Posted April 3, 2019 Tried underclocking but it didn't make a difference...oh well. I will try some different stick configurations again next time I can get some server downtime in to re-verify everything. Thanks for trying @Benson 1 Quote Link to comment
FoxxMD Posted April 11, 2019 Author Share Posted April 11, 2019 (edited) Quick update... I powered down the machine, removed one stick, and powered it on, checking BIOS each time and observing usable memory in unraid after restart. Rinse and repeat for each slot... Usable would drop to 16GB until I got to slot 4 at which point usable was reporting 24GB (so sticks in slots 1-3). I put a spare stick in slot 4 and got the same result so I thought it was bad slot (even though BIOS still reports fine and preliminary memtest showed no issues)... At this point I had given up so I put all sticks back in the machine, but sticks from slots 3 and 4 swapped -- fully expecting to see 24GB after boot but just going to keep all sticks in the machine so I don't misplace the last stick -- and unraid reported 32GB usable 🤪 Soooo, I have no idea what fixed it. Maybe the slot 4 stick just needed to be reseated? Or maybe the slot truly is going bad and it happened to work on this boot. I haven't restarted since then so I'm not getting my hopes this will stay fixed. But ive got full memory...for now. Edited April 11, 2019 by FoxxMD Quote Link to comment
Vr2Io Posted April 11, 2019 Share Posted April 11, 2019 2 hours ago, FoxxMD said: fully expecting to see 24GB after boot but just going to keep all sticks in the machine so I don't misplace the last stick -- and unraid reported 32GB usable 🤪 BIOS detect 24G but Unarid show 32G 😵 2 hours ago, FoxxMD said: Soooo, I have no idea what fixed it. Maybe the slot 4 stick just needed to be reseated? Or maybe the slot truly is going bad and it happened to work on this boot. I haven't restarted since then so I'm not getting my hopes this will stay fixed. But ive got full memory...for now. Stable importance then how many memory useable, I would forget slot 4 if it cause problem. Quote Link to comment
FoxxMD Posted April 11, 2019 Author Share Posted April 11, 2019 22 minutes ago, Benson said: BIOS detect 24G but Unarid show 32G 😵 Ah sorry I described that incorrectly -- BIOS did see 32G on the last attempt but I was expecting unraid to still show 24G, but it showed 32G! Quote Link to comment
doesntremindm3 Posted January 15, 2023 Share Posted January 15, 2023 Thank you for posting your solution! This just worked for me. Went from arranging the sticks 8/16/8/16 to 8/16/16/8. Although I may have forced myself into single channel mode, unfortunately. Quote Link to comment
