So I moved the key back to the top of the booting order, and low and behold after booting unraid has seen one of the other keys, and used that as flash. I went through the email process to renew the key, got an email but the key did not update, got an error.
Removed the old key, and it's still not booting from the new key.



Server is now unusable



Sent from my SM-A520F using Tapatalk


Edited December 11, 20196 yr by gnollo

Put the old key back at the top of the boot list, left the new key in as well, server started, and I updated the key licence for the new key. Server is now up and running, with two keys in. It's a hack, but I got my server back up and running.

12 minutes ago, gnollo said:

Put the old key back at the top of the boot list, left the new key in as well, server started, and I updated the key licence for the new key. Server is now up and running, with two keys in. It's a hack, but I got my server back up and running.

This sounds like a disaster waiting to happen. Is there still a filesystem on the original that Unraid might mount?

This sounds like a disaster waiting to happen. Is there still a filesystem on the original that Unraid might mount?

I have not changed the old key after backing it up and creating the new key by restoring the backup files

Sent from my SM-A520F using Tapatalk

Also, parity check is now under way,, but it shows to have detected the 4 GB key





Motherboard Information

Manufacturer: Gigabyte Technology Co., Ltd.

Product Name: G33-DS3R

BIOS Information

Vendor: Award Software International, Inc.

Version: F7L

Release Date: 07/31/2009

Address: 0xE0000

Runtime Size: 128 kB

ROM Size: 1024 kB

Characteristics:

PCI is supported

PNP is supported

APM is supported

BIOS is upgradeable

BIOS shadowing is allowed

Boot from CD is supported

Selectable boot is supported

EDD is supported

ACPI is supported

USB legacy is supported

LS-120 boot is supported

ATAPI Zip drive boot is supported

BIOS boot specification is supported

Targeted content distribution is supported

https://www.gigabyte.com/Motherboard/GA-G33-DS3R-rev-1x/support#support-dl-bios

F7L is the latest bios

Once parity check is complete, I will check my settings against these

https://www.blackmoreops.com/2013/12/28/enable-usb-boot-in-gigabyte-motherboard/



18 hours ago, gnollo said:

Once parity check is complete, I will check my settings against these

https://www.blackmoreops.com/2013/12/28/enable-usb-boot-in-gigabyte-motherboard/



Nothing new there. My settings were in line. Only key visible in the hard disk selection remains the old USB key

Upgraded the OS to the new version. Bad idea. Now the server won't start. I am guessing that the fact that the boot process happens on the old version of the key means this is not an option.

20 hours ago, gnollo said:

Also, parity check is now under way

Did you initiate this parity check, or was it unexpected? If unexpected, possibly another artifact of trying to use both flash drives, since Unraid records whether or not you shut down cleanly on flash. If it can't record it properly, or read it properly, you get an unclean shutdown parity check.

Diagnostics, or at least syslog from booting, might give a better idea of what is happening.

received an email warning

error: stat of /var/log/nginx/*.log failed: No such file or directory

Restoring the key backup on the new key, and booting again. Copied the key contents over to another PC so if there is anything I should grab from there, I can do that.

Copied the pro key across, that worked, after restarting the server with CTRL ALT DEL a parity check started (I stopped it). I didnt initialise the check last time either, but I am guessing that it has to do with an unclean shutdown.

Diagnostics attached.

tower-diagnostics-20191213-0652.zip

6 hours ago, gnollo said:

I didnt initialise the check last time either, but I am guessing that it has to do with an unclean shutdown.

But was it an actual unclean shutdown, or did it just think so because of this?

10 hours ago, trurl said:

Unraid records whether or not you shut down cleanly on flash. If it can't record it properly, or read it properly, you get an unclean shutdown parity check.

Did you in fact power off or reboot manually instead of doing it through the webUI?

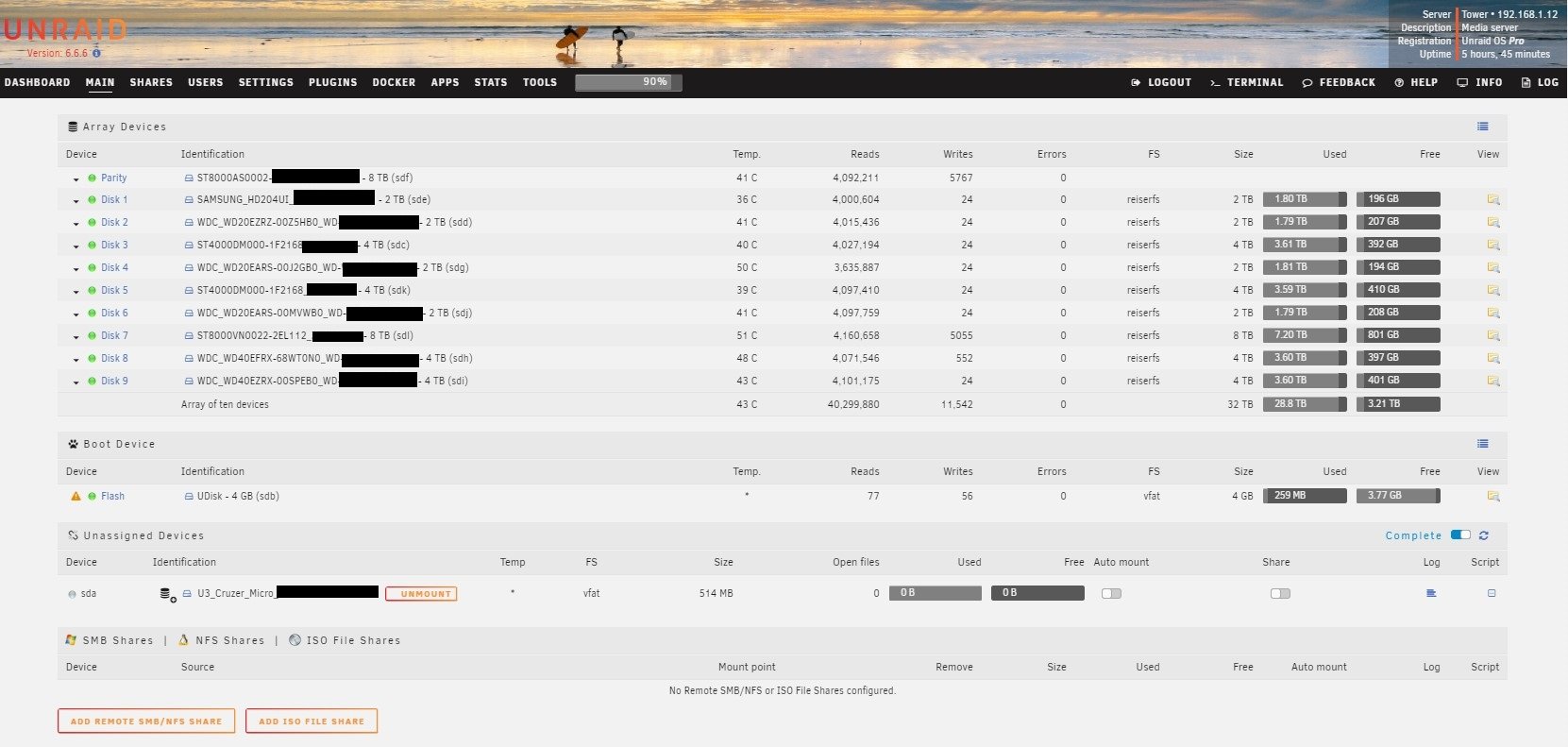

Those diagnostics and your screenshot seem to indicate it is mounting the correct flash partition /sdb1 at /boot, and that is where it is getting the license key. But it is still unclear (to me at least) which flash it is actually booting from. I assume it is booting from the old flash. Those diagnostics don't show /sda1 mounted unlike your screenshot. Presumably you mounted it manually in UD earlier.



1 hour ago, trurl said:

But was it an actual unclean shutdown, or did it just think so because of this?

Did you in fact power off or reboot manually instead of doing it through the webUI?

Reboot it manually, as it started extracting bizroot and I wanted to swap the keys.

21 minutes ago, trurl said:

Those diagnostics and your screenshot seem to indicate it is mounting the correct flash partition /sdb1 at /boot, and that is where it is getting the license key. But it is still unclear (to me at least) which flash it is actually booting from. I assume it is booting from the old flash. Those diagnostics don't show /sda1 mounted unlike your screenshot. Presumably you mounted it manually in UD earlier.



I would agree with you that is booting with the old flash. When I upgraded the new key, it stopped booting half way with a number of error messages. I really want to fix this setup so I only have a key, or I would even be happy with booting from one of the disks?
I am having some weird issues with the bios as well, when I change anything and save the bios, it restarts but I don't get so see the bootup screen, stays blank for ages. The only way to get to the bootup screen is to turn off at the mains, then choose last succesful boot (F12) and it then it boots succesfully

Alternatively, does anyone have any ideas on how I get to fit the new version of unraid on my old 514 MB key? I tried copying the files across but it says I don't have enough space. The other problem I have is that I moved my subscription from the old key to the new one. Which doesn't boot.



Edited December 13, 20196 yr by gnollo

3 minutes ago, gnollo said:

Alternatively, does anyone have any ideas on how I get to fit the new version of unraid on my old 514 MB key? I tried copying the files across but it says I don't have enough space.

Do you have a 'previous' folder in the flash?   If so deleting that will probably give you enough room.   A 'logs' folder can also be deleted.



40 minutes ago, gnollo said:

The other problem I have is that I moved my subscription from the old key to the new one.

If you transferred your license then the old flash would be blacklisted. Might not show up that way immediately but a future update would likely notice.

33 minutes ago, trurl said:

If you transferred your license then the old flash would be blacklisted. Might not show up that way immediately but a future update would likely notice.

I just emailed support to see if I can have it un-blacklisted.

39 minutes ago, gnollo said:

I just emailed support to see if I can have it un-blacklisted.

We cannot unblacklist keys.

1 minute ago, limetech said:

We cannot unblacklist keys.

😱 What do you suggest I do next?

Can you recommend any USB key that I can use with this motherboard?

I will test that it can boot on its own this time, before I try to switch the permissioning.
I could also try to update the OS on both keys, and see if they boot in unison, like they are doing on 6.6.6

Are you sure you prepared the new flash correctly? It seems to mount as /boot OK after bootup but something isn't working to boot it. And it seems very strange that only a specific flash drive that you already have can be configured in the BIOS to be the boot device, but another one can't.



Are you sure the new flash only has a single partition?



Try this advanced manual creation:



https://forums.unraid.net/topic/86066-boot-fails-post-68-upgrade-wkernel-panic-new-usb-stick-not-booting/?do=findComment&comment=797764
