Disk 4 unmountable error - reiserfs

[Kujo]

I replaced the parity drive with a new 4TB drive as well as disk 1 with a new 4 TB drive as the original disk 1 was having smart disk failures.  I followed the steps on the Wiki to replace the parity drive, this completed in about 12.5 errors.  I then replaced the disk 1 with the other new 4TB drive.   This took just over 10 hours.



When I attempted to bring the array back up, disk 4 is now unmountable.  This was a surprise as there was never an issue with this disk.  I put the array in maintenance mode, and ran a disk check in the gui for disk 4.   There were errors and it recommended to run reiserfsck rebuild tree.  I did but no change.  Not sure how to get of this mess.

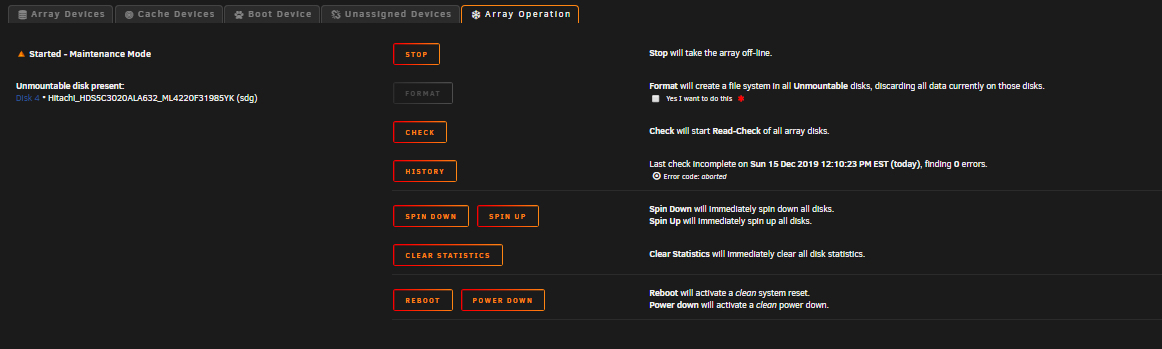

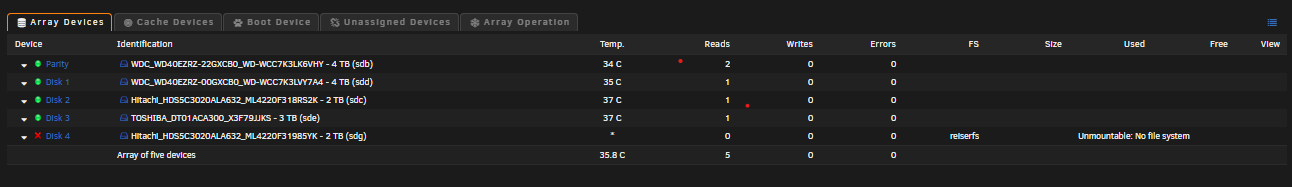

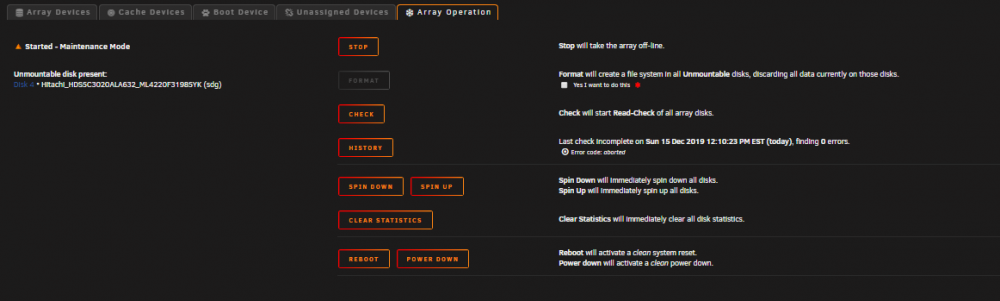

I've attached the logs and screen shots.  Running  Unraid 6.6.7.  Any help would be appreciated.



mymediasvr-diagnostics-20191215-1633.zip

[Squid]

Looks like you need to run the file system check on both disk 1 & 4

[Squid]

7 minutes ago, Kujo said:

There were errors and it recommended to run reiserfsck rebuild tree.  I did but no change.

Missed that you tried that.  What was the output?

[Kujo]

i didn't file system check on disk 1.  I'm doing that now.  I'll report back.  I'll do the same for disk 4 again.

Edited December 15, 2019 by Kujo

[Kujo]

Quote

disk 1 output

------------------------

reiserfsck 3.6.27

Will read-only check consistency of the filesystem on /dev/md1
Will put log info to 'stdout'
###########
reiserfsck --check started at Sun Dec 15 17:06:47 2019
###########
Replaying journal: Trans replayed: mountid 188, transid 405216, desc 7519, len 1, commit 7521, next trans offset 7504

Replaying journal: |                                        |  0.3%  1 trans
Trans replayed: mountid 188, transid 405217, desc 7522, len 1, commit 7524, next trans offset 7507
Trans replayed: mountid 188, transid 405218, desc 7525, len 1, commit 7527, next trans offset 7510
Trans replayed: mountid 188, transid 405219, desc 7528, len 1, commit 7530, next trans offset 7513
Trans replayed: mountid 188, transid 405220, desc 7531, len 1, commit 7533, next trans offset 7516

Replaying journal: |=                                       /  1.6%  5 trans
Trans replayed: mountid 188, transid 405221, desc 7534, len 1, commit 7536, next trans offset 7519
Trans replayed: mountid 188, transid 405222, desc 7537, len 1, commit 7539, next trans offset 7522
Trans replayed: mountid 188, transid 405223, desc 7540, len 1, commit 7542, next trans offset 7525



Replaying journal: Done.
Reiserfs journal '/dev/md1' in blocks [18..8211]: 8 transactions replayed
Checking internal tree..  finished
Comparing bitmaps..Bad nodes were found, Semantic pass skipped
3 found corruptions can be fixed only when running with --rebuild-tree
###########
reiserfsck finished at Sun Dec 15 17:10:38 2019
###########
block 164600672: The level of the node (0) is not correct, (1) expected
 the problem in the internal node occured (164600672), whole subtree is skipped
block 191561884: The level of the node (0) is not correct, (2) expected
 the problem in the internal node occured (191561884), whole subtree is skipped
block 77158294: The level of the node (0) is not correct, (3) expected
 the problem in the internal node occured (77158294), whole subtree is skipped
vpf-10640: The on-disk and the correct bitmaps differs.



[Kujo]

Quote

disk 4 output

----------------------------------------------------------------

reiserfsck 3.6.27

Will read-only check consistency of the filesystem on /dev/md4
Will put log info to 'stdout'
###########
reiserfsck --check started at Sun Dec 15 17:12:55 2019
###########
Replaying journal:
Replaying journal: Done.
Reiserfs journal '/dev/md4' in blocks [18..8211]: 0 transactions replayed
Checking internal tree..

Bad root block 0. (--rebuild-tree did not complete)



[JorgeB]

You need to use --rebuild-tree on both.

[Kujo]

Quote

reiserfsck 3.6.27 Will read-only check consistency of the filesystem on /dev/md4 Will put log info to 'stdout' ########### reiserfsck --check started at Mon Dec 16 18:03:21 2019 ########### Replaying journal: Replaying journal: Done. Reiserfs journal '/dev/md4' in blocks [18..8211]: 0 transactions replayed Checking internal tree.. Bad root block 0. (--rebuild-tree did not complete)

--rebuild-tree on disk 1 was successful, but disk 4 is not so much.  2 attempts now.  Worth running again?  Any other options?  If I was to replace the drive, could I rebuild via parity and not loose anything?

mymediasvr-diagnostics-20191216-1817.zip

[Kujo]

I guess another worst case scenario option would be to try to use a linux data recovery app to try to pull data off the drive?







Edited December 17, 2019 by Kujo

[Kujo]

Update:  Good news, third time running rebuild tree was the charm.  Drive is back up.  Disk check showing no errors now. Next step is to sort through the lost+found folder.

[JorgeB]

Recommended converting away from reiserfs, it's not recommended for years now for various reasons.

[Kujo]

10 hours ago, johnnie.black said:

Recommended converting away from reiserfs, it's not recommended for years now for various reasons.

I'll look into this in the new year once I get my shares cleaned up.  Been using Unraid for 8 years, never had any issues before.  I didn't realize XFS was recommended.
