LeGreatMaxiking Posted January 31, 2020 Share Posted January 31, 2020 Hey guys, I´m stuck... I want to passthrough my 1660 Super to the VM or Docker, both didn´t work. When I´m Passthrough the GPU to VM the VM Tab & VM Settings Tab stays blank and I have no more access to the VM site. I have to delete the libvirt file and reboot to fix that problem. When I´m trying to Passthrough to Docker with this tutorial: My Whole Web GUI crashes (SMB is working fine). Attached the diagnostics. - I´m setting up a Windows on a USB Boot Drive and export the GPU Bios. I´m also updating the mainboard bios now. One more Questions: I created the Windows 10 VM with Seabios - is that right? Best regards & thanks in advance Max maxisnas-diagnostics-20200131-1842.zip Quote Link to comment
jpowell8672 Posted January 31, 2020 Share Posted January 31, 2020 1 hour ago, LeGreatMaxiking said: Hey guys, I´m stuck... I want to passthrough my 1660 Super to the VM or Docker, both didn´t work. When I´m Passthrough the GPU to VM the VM Tab & VM Settings Tab stays blank and I have no more access to the VM site. I have to delete the libvirt file and reboot to fix that problem. When I´m trying to Passthrough to Docker with this tutorial: My Whole Web GUI crashes (SMB is working fine). Attached the diagnostics. - I´m setting up a Windows on a USB Boot Drive and export the GPU Bios. I´m also updating the mainboard bios now. One more Questions: I created the Windows 10 VM with Seabios - is that right? Best regards & thanks in advance Max maxisnas-diagnostics-20200131-1842.zip 123.88 kB · 0 downloads Are you trying to use gpu for transcoding in a docker like plex or just use the gpu in a VM? If it is your only video card then you will need the video cards rom bios added in the settings. For Windows 10 you should use OVMF instead of Seabios. Check the Unraid info at top right of screen make sure HVM & IOMMU are Enabled. Quote Link to comment
testdasi Posted January 31, 2020 Share Posted January 31, 2020 1 hour ago, LeGreatMaxiking said: Hey guys, I´m stuck... I want to passthrough my 1660 Super to the VM or Docker, both didn´t work. When I´m Passthrough the GPU to VM the VM Tab & VM Settings Tab stays blank and I have no more access to the VM site. I have to delete the libvirt file and reboot to fix that problem. My Whole Web GUI crashes (SMB is working fine). Attached the diagnostics. - I´m setting up a Windows on a USB Boot Drive and export the GPU Bios. I´m also updating the mainboard bios now. One more Questions: I created the Windows 10 VM with Seabios - is that right? Best regards & thanks in advance Max The 1660 has 4 devices that all need to be passed through together for it to work. Your xml only has 2 of the 4. You need to vfio-ids stub the other 2 (or preferably all 4) - check devices 05:00.0 - 3 Also make sure you don't have any adblocker on the browser when doing Unraid settings. And do a disk check of your USB stick. SeaBIOS is fine but OVMF (i.e. UEFI boot) is better. It allows you to switch to Q35 machine type in the future should you desire (Q35 needs OVMF). Quote Link to comment

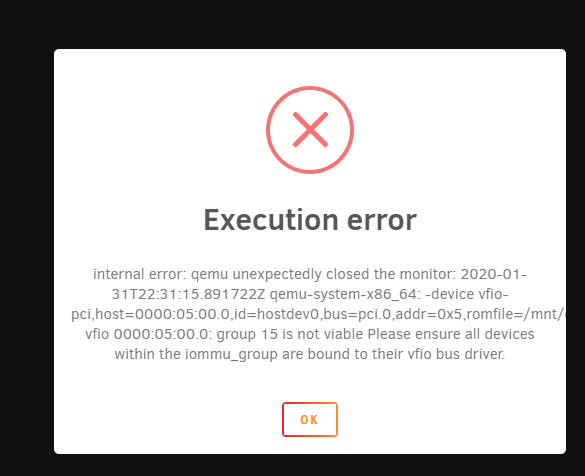

LeGreatMaxiking Posted January 31, 2020 Author Share Posted January 31, 2020 Hey its still not working... I get this error message now Thats my VM XML ( <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm'> <name>Windows 10</name> <uuid>704964f9-f931-42f5-0823-59322724fc60</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>33554432</memory> <currentMemory unit='KiB'>2097152</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>32</vcpu> <cputune> <vcpupin vcpu='0' cpuset='0'/> <vcpupin vcpu='1' cpuset='16'/> <vcpupin vcpu='2' cpuset='1'/> <vcpupin vcpu='3' cpuset='17'/> <vcpupin vcpu='4' cpuset='2'/> <vcpupin vcpu='5' cpuset='18'/> <vcpupin vcpu='6' cpuset='3'/> <vcpupin vcpu='7' cpuset='19'/> <vcpupin vcpu='8' cpuset='4'/> <vcpupin vcpu='9' cpuset='20'/> <vcpupin vcpu='10' cpuset='5'/> <vcpupin vcpu='11' cpuset='21'/> <vcpupin vcpu='12' cpuset='6'/> <vcpupin vcpu='13' cpuset='22'/> <vcpupin vcpu='14' cpuset='7'/> <vcpupin vcpu='15' cpuset='23'/> <vcpupin vcpu='16' cpuset='8'/> <vcpupin vcpu='17' cpuset='24'/> <vcpupin vcpu='18' cpuset='9'/> <vcpupin vcpu='19' cpuset='25'/> <vcpupin vcpu='20' cpuset='10'/> <vcpupin vcpu='21' cpuset='26'/> <vcpupin vcpu='22' cpuset='11'/> <vcpupin vcpu='23' cpuset='27'/> <vcpupin vcpu='24' cpuset='12'/> <vcpupin vcpu='25' cpuset='28'/> <vcpupin vcpu='26' cpuset='13'/> <vcpupin vcpu='27' cpuset='29'/> <vcpupin vcpu='28' cpuset='14'/> <vcpupin vcpu='29' cpuset='30'/> <vcpupin vcpu='30' cpuset='15'/> <vcpupin vcpu='31' cpuset='31'/> </cputune> <os> <type arch='x86_64' machine='pc-i440fx-4.2'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/704964f9-f931-42f5-0823-59322724fc60_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> <hyperv> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vendor_id state='on' value='none'/> </hyperv> </features> <cpu mode='host-passthrough' check='none'> <topology sockets='1' cores='32' threads='1'/> </cpu> <clock offset='localtime'> <timer name='hypervclock' present='yes'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/Windows 10/vdisk1.img'/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/Windows_10_All-in-One_1909_18363.592_x64_DE_ESD.iso'/> <target dev='hda' bus='ide'/> <readonly/> <boot order='2'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/virtio-win-0.1.160-1.iso'/> <target dev='hdb' bus='ide'/> <readonly/> <address type='drive' controller='0' bus='0' target='0' unit='1'/> </disk> <controller type='usb' index='0' model='qemu-xhci' ports='15'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/> </controller> <controller type='ide' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </controller> <controller type='pci' index='0' model='pci-root'/> <interface type='bridge'> <mac address='52:54:00:7f:e1:ba'/> <source bridge='br0'/> <model type='virtio'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </interface> <serial type='pty'> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x0'/> </source> <rom file='/mnt/user/domains/KFA21660super.rom'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x2'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x3'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x09' function='0x0'/> </hostdev> <memballoon model='none'/> </devices> </domain> And the Syslinux: default menu.c32 menu title Lime Technology, Inc. prompt 0 timeout 50 label unRAID OS menu default kernel /bzimage append initrd=/bzroot vfio-pci.ids=10de:21c4,10de:1aeb,10de:1aec,10de:1aed label unRAID OS GUI Mode kernel /bzimage append initrd=/bzroot,/bzroot-gui label unRAID OS Safe Mode (no plugins, no GUI) kernel /bzimage append initrd=/bzroot unraidsafemode label unRAID OS GUI Safe Mode (no plugins) kernel /bzimage append initrd=/bzroot,/bzroot-gui unraidsafemode label Memtest86+ kernel /memtest Cant boot the VM with this Config... Thanks for the help! Quote Link to comment
