Ive recently upgraded my server with a few NVME drives, one of which replaced a VHD for a VM. I have been passing whole disks through to VMs for quite some time like this: <disk type='block' device='disk'> <driver name='qemu' type='raw' cache='none' discard='unmap'/> <source dev='/dev/disk/by-id/nvme-Samsung_SSD_970_EVO_Plus_1TB_XXXXXXXXXX'/> <target dev='hdf' bus='scsi'/> <boot order='2'/> <alias name='scsi0-0-0-3'/> <address type='drive' controller='0' bus='0' target='0' unit='3'/> </disk> After doing some reading I learned that NVME drives can be passed through directly to show as an actual NVME drive (as opposed to thin provisioned) <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x41' slot='0x00' function='0x0'/> </source> <alias name='hostdev2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </hostdev> Is there any actual functional difference in passing devices one or the other way? Any performance benefit? ALSO I learned that VHDs can be passed through as NVME devices <qemu:commandline> <qemu:arg value='-drive'/> <qemu:arg value='file=/mnt/cnvme/VMS/VHD_BULK/GEIST/GEIST_Z.img,format=raw,if=none,id=NVME1'/> <qemu:arg value='-device'/> <qemu:arg value='nvme,drive=NVME1,serial=nvme-1'/> </qemu:commandline>

all was back to normalcy until 2022.02.24 operations all working, but getting a lot of php errors in log:

Having an issue with the latest few releases where my device activity is not showing on any of the "passed through" devices. Only the mountpoint disk for my raid 10 array is showing activity but there are definitely reads and writes being registered just not disk speed

PM'd

Devices are all now in UD but first device is blank When changing name it reverts to blank

the name field is blank, yes there arent any duplicate entries -- the drives still in historical include 3/6 drives in a RAID10 array and a passed-thru VM boot disk. all settings have name field blank

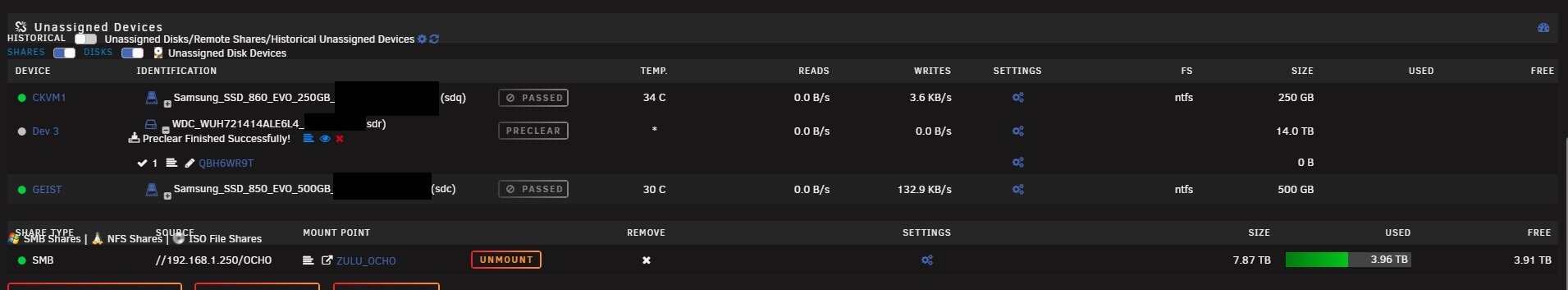

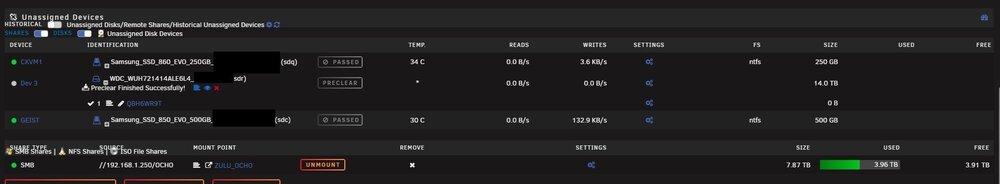

Having an issue this morning w/ version 2022.01.19a on unRAID 6.9.1 Upon upgrade ALL of my unassigned devices went into the Historical Devices section w/ pool/drive function seemingly unaffected. I stopped array as per previous recommendation -- items remained historical. I rebooted server (which greatly pained me after several months of uptime) and ONE device came back to UD w/ no device tag. I went into the settings for each drive and clicked done and some of the drives have returned to UD. See screenshot: That is currently where I stand -- I tried changing the device ID for one of the returned drives and it always reverts to dev (dev9) and there is still a device that has blank ID. Other drives are physically still in system and are functioning (EVO_850_1 is a VM boot disk and I am typing this message through that machine). Please advise

its not just you the easiest solution is to install a "custom" kernel with updated drivers -- super easy

can the stable ver 6.8.3 get the latest nvidia drivers? PLEX betas (and likely next stable) now require 450.66 or later drivers to keep nvenc operational -- hw transcoding is broken on latest versions because of this. i prefer to not run betas, so essentially i am stuck on a previous working plex version (1.20.1.3252-1-01) https://www.reddit.com/r/PleX/comments/j0bzu1/it_was_working_before_but_now_im_having_issues/ https://forums.plex.tv/t/help-fixing-my-broken-nvidia-nvenc-driver-config-ubuntu-20-04/637854 https://forums.plex.tv/t/nvenc-hardware-encoding-broken-on-1-20-2-3370/637925

@b3rs3rk I took the plunge & upgraded to 6.8.3 -- all is well Thanks

2020/03/08 10:13:45 [error] 17316#17316: *5876683 FastCGI sent in stderr: "Primary script unknown" while reading response header from upstream, client: 192.168.1.4, server: , request: "GET /usr/local/emhttp/plugins/gpustat/gpustatus.php HTTP/2.0", upstream: "fastcgi://unix:/var/run/php5-fpm.sock:", host: "8357a7086dfbe113cb69d62fbf03b2cb7f5d8e39.unraid.net", referrer: "https://8357a7086dfbe113cb69d62fbf03b2cb7f5d8e39.unraid.net/Dashboard" 2020/03/08 10:14:58 [error] 17316#17316: *5876683 FastCGI sent in stderr: "Primary script unknown" while reading response header from upstream, client: 192.168.1.4, server: , request: "GET /usr/local/emhttp/plugins/gpustat/gpustatus.php HTTP/2.0", upstream: "fastcgi://unix:/var/run/php5-fpm.sock:", host: "8357a7086dfbe113cb69d62fbf03b2cb7f5d8e39.unraid.net", referrer: "https://8357a7086dfbe113cb69d62fbf03b2cb7f5d8e39.unraid.net/gpustatus" page source.txt

My NUT & IPMI summary dash show up, but no GPU Immediately under those are the default widgets

that the funny thing --- it doesnt show up on my dash its in the page map, but when i click there its literally a blank page

root@OCHO:~# nvidia-smi -q -x <?xml version="1.0" ?> <!DOCTYPE nvidia_smi_log SYSTEM "nvsmi_device_v10.dtd"> <nvidia_smi_log> <timestamp>Sun Mar 8 10:00:09 2020</timestamp> <driver_version>418.56</driver_version> <cuda_version>10.1</cuda_version> <attached_gpus>1</attached_gpus> <gpu id="00000000:03:00.0"> <product_name>GeForce GTX 1050 Ti</product_name> <product_brand>GeForce</product_brand> <display_mode>Disabled</display_mode> <display_active>Disabled</display_active> <persistence_mode>Disabled</persistence_mode> <accounting_mode>Disabled</accounting_mode> <accounting_mode_buffer_size>4000</accounting_mode_buffer_size> <driver_model> <current_dm>N/A</current_dm> <pending_dm>N/A</pending_dm> </driver_model> <serial>N/A</serial> <uuid>GPU-44ed723b-7f9c-07da-236b-347ab81deddf</uuid> <minor_number>0</minor_number> <vbios_version>86.07.39.00.30</vbios_version> <multigpu_board>No</multigpu_board> <board_id>0x300</board_id> <gpu_part_number>N/A</gpu_part_number> <inforom_version> <img_version>G001.0000.01.04</img_version> <oem_object>1.1</oem_object> <ecc_object>N/A</ecc_object> <pwr_object>N/A</pwr_object> </inforom_version> <gpu_operation_mode> <current_gom>N/A</current_gom> <pending_gom>N/A</pending_gom> </gpu_operation_mode> <gpu_virtualization_mode> <virtualization_mode>None</virtualization_mode> </gpu_virtualization_mode> <ibmnpu> <relaxed_ordering_mode>N/A</relaxed_ordering_mode> </ibmnpu> <pci> <pci_bus>03</pci_bus> <pci_device>00</pci_device> <pci_domain>0000</pci_domain> <pci_device_id>1C8210DE</pci_device_id> <pci_bus_id>00000000:03:00.0</pci_bus_id> <pci_sub_system_id>A45419DA</pci_sub_system_id> <pci_gpu_link_info> <pcie_gen> <max_link_gen>3</max_link_gen> <current_link_gen>3</current_link_gen> </pcie_gen> <link_widths> <max_link_width>16x</max_link_width> <current_link_width>16x</current_link_width> </link_widths> </pci_gpu_link_info> <pci_bridge_chip> <bridge_chip_type>N/A</bridge_chip_type> <bridge_chip_fw>N/A</bridge_chip_fw> </pci_bridge_chip> <replay_counter>0</replay_counter> <replay_rollover_counter>0</replay_rollover_counter> <tx_util>0 KB/s</tx_util> <rx_util>12000 KB/s</rx_util> </pci> <fan_speed>51 %</fan_speed> <performance_state>P0</performance_state> <clocks_throttle_reasons> <clocks_throttle_reason_gpu_idle>Not Active</clocks_throttle_reason_gpu_idle> <clocks_throttle_reason_applications_clocks_setting>Not Active</clocks_throttle_reason_applications_clocks_setting> <clocks_throttle_reason_sw_power_cap>Not Active</clocks_throttle_reason_sw_power_cap> <clocks_throttle_reason_hw_slowdown>Not Active</clocks_throttle_reason_hw_slowdown> <clocks_throttle_reason_hw_thermal_slowdown>Not Active</clocks_throttle_reason_hw_thermal_slowdown> <clocks_throttle_reason_hw_power_brake_slowdown>Not Active</clocks_throttle_reason_hw_power_brake_slowdown> <clocks_throttle_reason_sync_boost>Not Active</clocks_throttle_reason_sync_boost> <clocks_throttle_reason_sw_thermal_slowdown>Not Active</clocks_throttle_reason_sw_thermal_slowdown> <clocks_throttle_reason_display_clocks_setting>Not Active</clocks_throttle_reason_display_clocks_setting> </clocks_throttle_reasons> <fb_memory_usage> <total>4040 MiB</total> <used>286 MiB</used> <free>3754 MiB</free> </fb_memory_usage> <bar1_memory_usage> <total>256 MiB</total> <used>2 MiB</used> <free>254 MiB</free> </bar1_memory_usage> <compute_mode>Default</compute_mode> <utilization> <gpu_util>0 %</gpu_util> <memory_util>0 %</memory_util> <encoder_util>0 %</encoder_util> <decoder_util>2 %</decoder_util> </utilization> <encoder_stats> <session_count>0</session_count> <average_fps>0</average_fps> <average_latency>0</average_latency> </encoder_stats> <fbc_stats> <session_count>0</session_count> <average_fps>0</average_fps> <average_latency>0</average_latency> </fbc_stats> <ecc_mode> <current_ecc>N/A</current_ecc> <pending_ecc>N/A</pending_ecc> </ecc_mode> <ecc_errors> <volatile> <single_bit> <device_memory>N/A</device_memory> <register_file>N/A</register_file> <l1_cache>N/A</l1_cache> <l2_cache>N/A</l2_cache> <texture_memory>N/A</texture_memory> <texture_shm>N/A</texture_shm> <cbu>N/A</cbu> <total>N/A</total> </single_bit> <double_bit> <device_memory>N/A</device_memory> <register_file>N/A</register_file> <l1_cache>N/A</l1_cache> <l2_cache>N/A</l2_cache> <texture_memory>N/A</texture_memory> <texture_shm>N/A</texture_shm> <cbu>N/A</cbu> <total>N/A</total> </double_bit> </volatile> <aggregate> <single_bit> <device_memory>N/A</device_memory> <register_file>N/A</register_file> <l1_cache>N/A</l1_cache> <l2_cache>N/A</l2_cache> <texture_memory>N/A</texture_memory> <texture_shm>N/A</texture_shm> <cbu>N/A</cbu> <total>N/A</total> </single_bit> <double_bit> <device_memory>N/A</device_memory> <register_file>N/A</register_file> <l1_cache>N/A</l1_cache> <l2_cache>N/A</l2_cache> <texture_memory>N/A</texture_memory> <texture_shm>N/A</texture_shm> <cbu>N/A</cbu> <total>N/A</total> </double_bit> </aggregate> </ecc_errors> <retired_pages> <multiple_single_bit_retirement> <retired_count>N/A</retired_count> <retired_pagelist>N/A</retired_pagelist> </multiple_single_bit_retirement> <double_bit_retirement> <retired_count>N/A</retired_count> <retired_pagelist>N/A</retired_pagelist> </double_bit_retirement> <pending_retirement>N/A</pending_retirement> </retired_pages> <temperature> <gpu_temp>45 C</gpu_temp> <gpu_temp_max_threshold>102 C</gpu_temp_max_threshold> <gpu_temp_slow_threshold>99 C</gpu_temp_slow_threshold> <gpu_temp_max_gpu_threshold>N/A</gpu_temp_max_gpu_threshold> <memory_temp>N/A</memory_temp> <gpu_temp_max_mem_threshold>N/A</gpu_temp_max_mem_threshold> </temperature> <power_readings> <power_state>P0</power_state> <power_management>Supported</power_management> <power_draw>N/A</power_draw> <power_limit>75.00 W</power_limit> <default_power_limit>75.00 W</default_power_limit> <enforced_power_limit>75.00 W</enforced_power_limit> <min_power_limit>52.50 W</min_power_limit> <max_power_limit>75.00 W</max_power_limit> </power_readings> <clocks> <graphics_clock>1746 MHz</graphics_clock> <sm_clock>1746 MHz</sm_clock> <mem_clock>3504 MHz</mem_clock> <video_clock>1569 MHz</video_clock> </clocks> <applications_clocks> <graphics_clock>N/A</graphics_clock> <mem_clock>N/A</mem_clock> </applications_clocks> <default_applications_clocks> <graphics_clock>N/A</graphics_clock> <mem_clock>N/A</mem_clock> </default_applications_clocks> <max_clocks> <graphics_clock>1923 MHz</graphics_clock> <sm_clock>1923 MHz</sm_clock> <mem_clock>3504 MHz</mem_clock> <video_clock>1708 MHz</video_clock> </max_clocks> <max_customer_boost_clocks> <graphics_clock>N/A</graphics_clock> </max_customer_boost_clocks> <clock_policy> <auto_boost>N/A</auto_boost> <auto_boost_default>N/A</auto_boost_default> </clock_policy> <supported_clocks>N/A</supported_clocks> <processes> <process_info> <pid>10067</pid> <type>C</type> <process_name>/usr/lib/plexmediaserver/Plex Transcoder</process_name> <used_memory>276 MiB</used_memory> </process_info> </processes> <accounted_processes> </accounted_processes> </gpu> </nvidia_smi_log> root@OCHO:~# root@OCHO:~# cd /usr/local/emhttp/plugins/gpustat root@OCHO:/usr/local/emhttp/plugins/gpustat# php ./gpustat.php Could not open input file: ./gpustat.php root@OCHO:/usr/local/emhttp/plugins/gpustat# ls GPUStatSettings.page gpustatus.page icons/ license/ README.md gpustatus.php images/ root@OCHO:/usr/local/emhttp/plugins/gpustat# php ./gpustatus.php {"name":"GeForce GTX 1050 Ti","util":"0%","memutil":"0%","temp":"43C","fan":"51%","power":"N\/A","encoders":1,"vendor":"nVidia"}root@OCHO:/usr/local/emhttp/plugins/gpustat# I think you may have a typo somewhere which is causing my issue?

is there a minimum driver or unraid version for this plugin? i am on 6.7.0 and have been using a 1050 to hw transcode for quite some time -- but after installing this plugin it doesnt seem to do anything, nothing appears on the dashboard? ps i can confirm that my 1050 reports N/A / 75w i think the lower end cards dont report power usage as my VM utilized 1070 reports fine
