Perry Posted October 13, 2021 Share Posted October 13, 2021 My NAS server is extremely slow at writing data... slower than it should be. We're currently writing data to it at about .05-4MB/s. Here's the sitch: - We've got the Storinator 45 drives - Everything is looking "healthy" on the unraid interface - I don't have turbowrite set up, but even without this feature, the NAS is being way too slow - I'm not using the cache pool either, but again this write speed is abnormal - Using third party apps to write to the NAS (chronosync and carbon copy cloner - both up to date) - Slow on all computers connected to the NAS - Have checked the connections to the Network and have ruled this out as an issue - I have 4x 16TB EXOS drives from Seagate used for storage + 2x 16TB EXOS drives used as parity drives Quote Link to comment
JonathanM Posted October 13, 2021 Share Posted October 13, 2021 Tools, diagnostics, download the zip file and attach it to your next post in this thread. Quote Link to comment

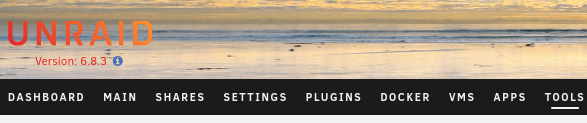

JonathanM Posted October 13, 2021 Share Posted October 13, 2021 In the Unraid GUI interface, click on the word "Tools" in the list of items across the top. Then click on the icon that says "Diagnostics" Near the bottom of that page there is a button for download. Quote Link to comment
Perry Posted October 13, 2021 Author Share Posted October 13, 2021 Update: As a test I tried moving some data directly into the cache pool (not using a third party backup software), which was super quick (≈70MB/s), but then as mover settings kicked in the CPU went mad, kept jumping from 5% to 100%... Quote Link to comment
Perry Posted October 13, 2021 Author Share Posted October 13, 2021 tower-diagnostics-20211013-1313.zip Quote Link to comment
trurl Posted October 13, 2021 Share Posted October 13, 2021 1 hour ago, Perry said: mover settings kicked in What are those settings? It is impossible to move from cache to slower array as fast as you can write to cache, and trying to move while still writing will just cause competition for those resources. Mover is intended for idle time. Quote Link to comment
Perry Posted October 13, 2021 Author Share Posted October 13, 2021 Sorry what I meant is: 1. I copied 250gb to the cache pool. This wrote at 70MB/s 2. Once this was done I used the 'Mover' to move the data from the cache pool to the array. 3. As this was moving, the CPU spiked from 5% to 100% 4. The NAS was not being used in any other way at this time Quote Link to comment
Frank1940 Posted October 14, 2021 Share Posted October 14, 2021 (edited) On 10/13/2021 at 10:28 AM, Perry said: 1. I copied 250gb to the cache pool. This wrote at 70MB/s What did the 250GB (I assume you mean GB--gigabytes-- and not Gb--gigabits) of data consist of? Was it 250GB of 1KB files or a few 25GB BluRay .ISO file? Unraid's file over head on HD's will be a major performance hit for large numbers of small files. (I have a very cheap SSD cache drive and I see see write speeds of 90MB/s for Bluray ISO's directly to the cache.) Edited October 14, 2021 by Frank1940 Quote Link to comment
Perry Posted October 15, 2021 Author Share Posted October 15, 2021 Yes I meant 250 gigbytes The data consisted of protools sessions Quote Link to comment
