BTRFS error on NVME Cache drive

[Shu]

Hi Everyone, I woke up this morning to these errors on my nvme cache drive (my cache pool is two drives, one m.2 nvme and the other a sata ssd):



Aug 31 03:51:39 520unraid kernel: BTRFS critical (device nvme0n1p1): corrupt leaf: root=10 block=820606861312 slot=118, unexpected item end, have 3543154555 expect 16251
Aug 31 03:51:39 520unraid kernel: BTRFS info (device nvme0n1p1): leaf 820606861312 gen 46836 total ptrs 258 free space 9769 owner 10
Aug 31 03:51:39 520unraid kernel: BTRFS error (device nvme0n1p1): block=820606861312 write time tree block corruption detected
Aug 31 03:51:39 520unraid kernel: BTRFS: error (device nvme0n1p1) in btrfs_commit_transaction:2438: errno=-5 IO failure (Error while writing out transaction)
Aug 31 03:51:39 520unraid kernel: BTRFS info (device nvme0n1p1): forced readonly
Aug 31 03:51:39 520unraid kernel: BTRFS warning (device nvme0n1p1): Skipping commit of aborted transaction.
Aug 31 03:51:39 520unraid kernel: BTRFS: error (device nvme0n1p1) in cleanup_transaction:2011: errno=-5 IO failure

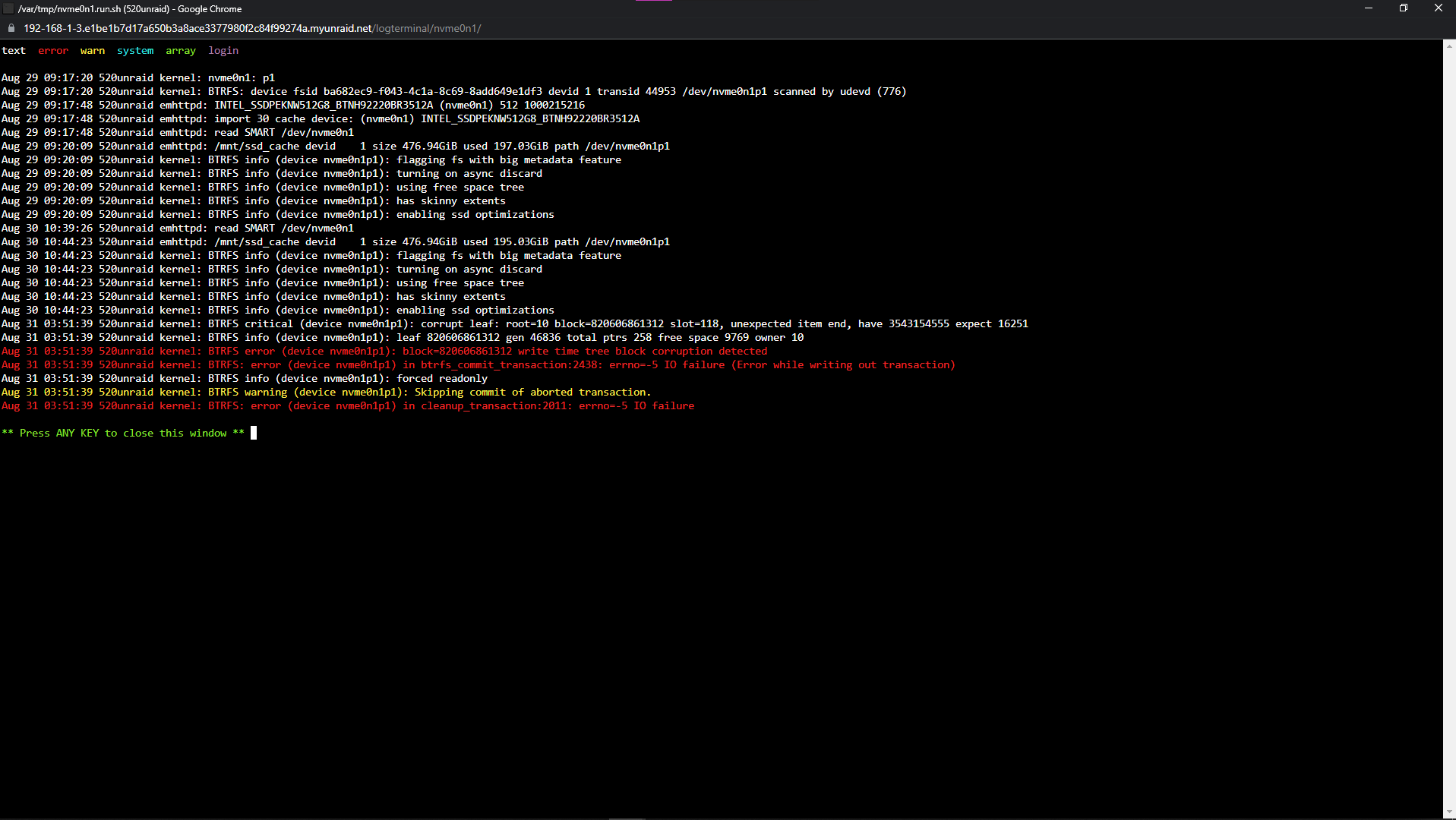

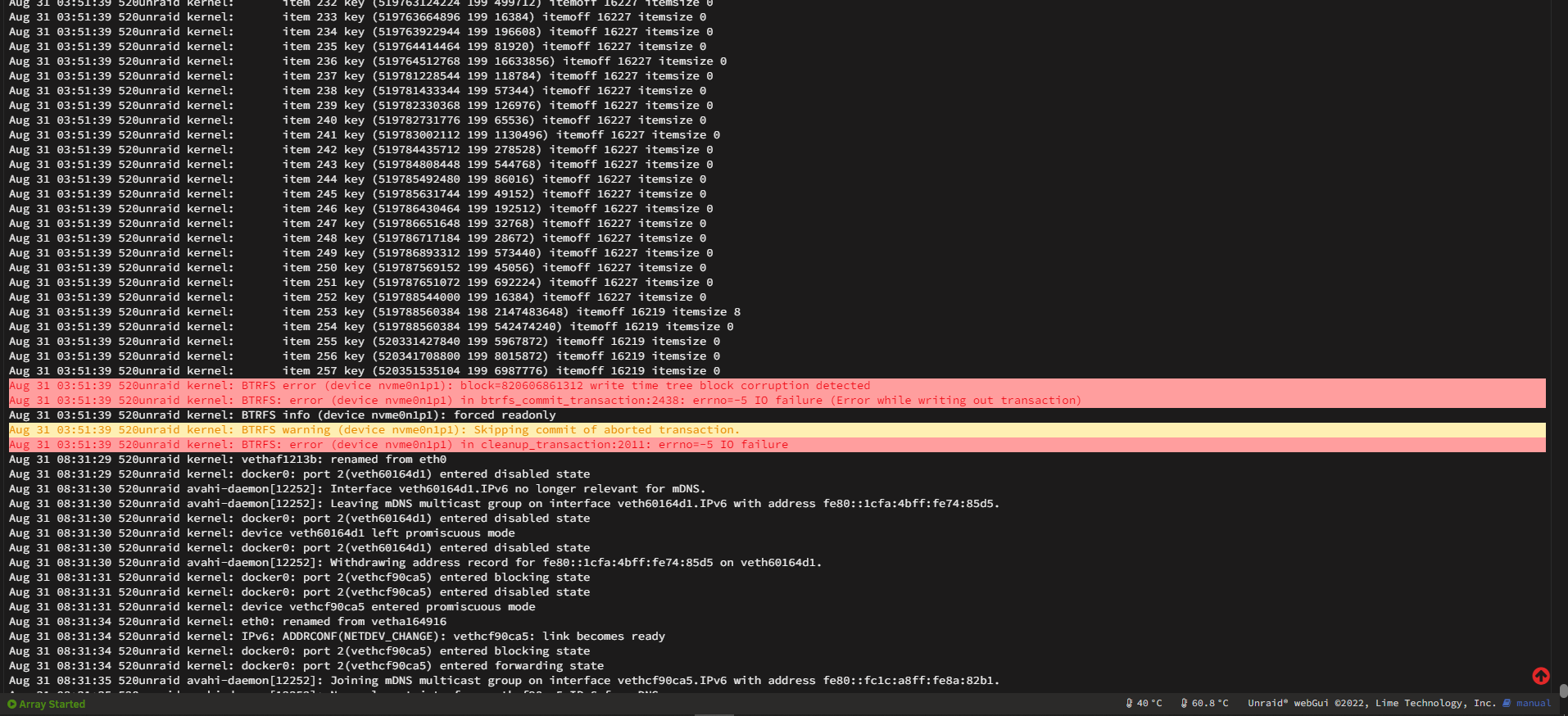

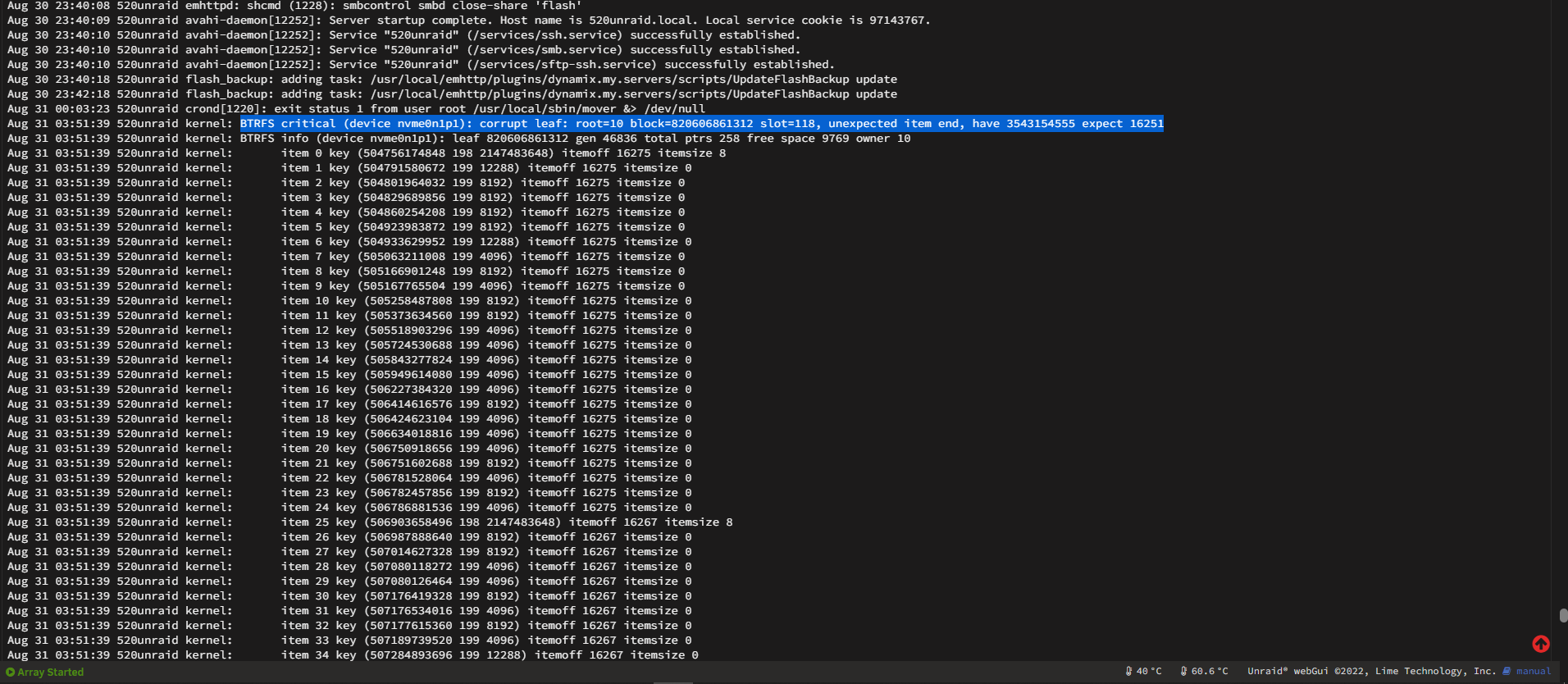

I also attached 3 screenshots (0 being the disk info, 1 & 2 being syslog relevant to this issue (a lot of item xxx key ... itemoff... errors)).

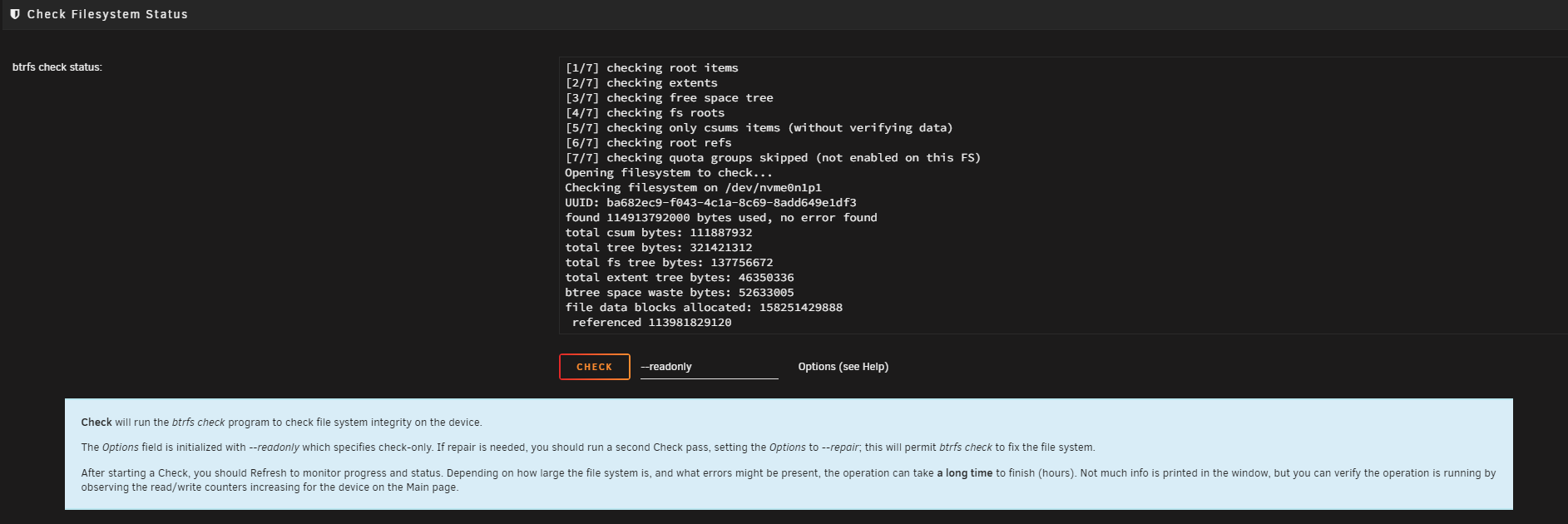

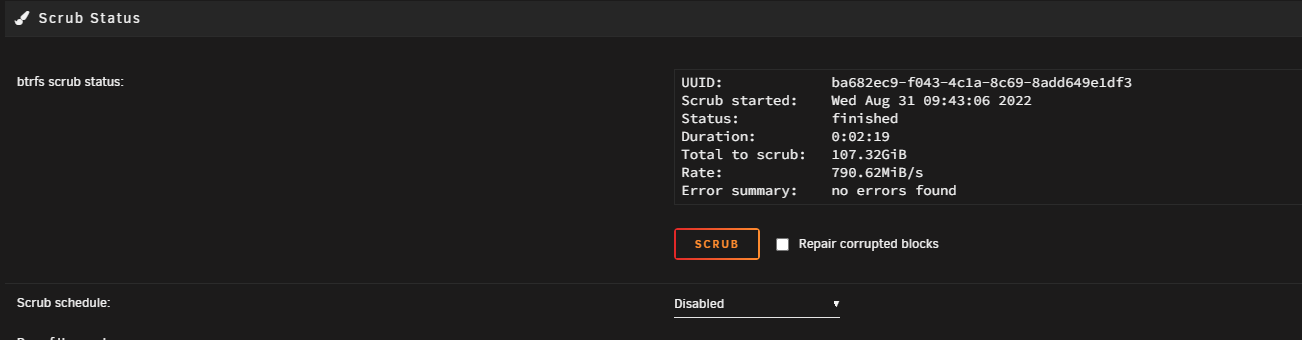

While researching this issue, I ran a Check-File System for this drive but it came back clean (picture 3) and a Scrub check which also came back clean (picture 4).



I do believe something is wrong however, because I when I ran the mover, it came back with a Read-Only filesystem error on all files (they're mostly media files from qBit from last night so not much unrecoverable, I believe - though, I haven't checked for files that are kept on the cache pool...which are probably more vital...)



What is the proper guidance here? (Or which guide/thread should I try next?)



Edit 9:56am local: I re-ran the mover and it does appear to be moving files albeit at a slow pace (~25mb/s per drive, so ~50mb/s for the pool). I would expect much faster reads for these fast drives (they are writing to a 4tb wd blue which is less than half full, I'd expect at least a starting speed around 120mb/s)

Edited August 31, 2022 by Shu
Additional information

[JorgeB]

6 minutes ago, Shu said:

write time tree block corruption detected

This usually means bad RAM or other kernel corruption, start by running memtest.

[Shu]

9 minutes ago, JorgeB said:

This usually means bad RAM or other kernel corruption, start by running memtest.

Will run a test. Will update when it finishes

[Shu]

2 hours ago, JorgeB said:

This usually means bad RAM or other kernel corruption, start by running memtest.

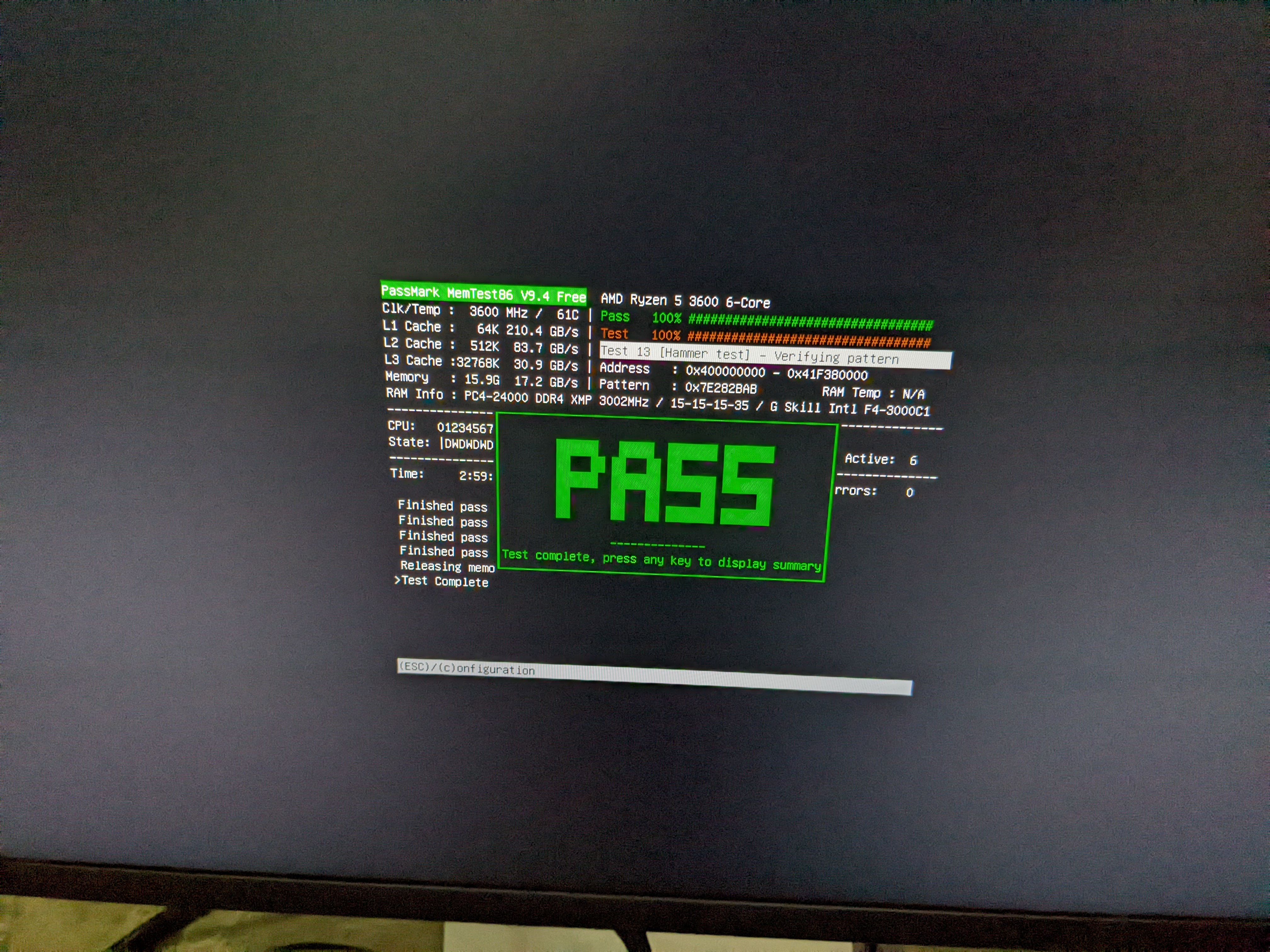

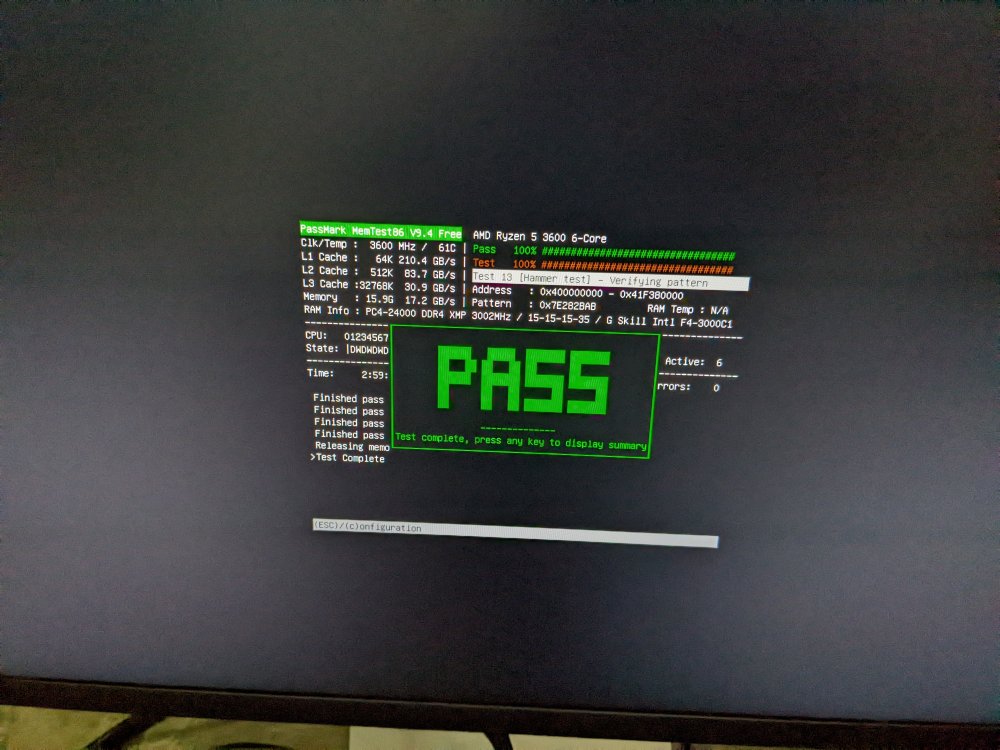

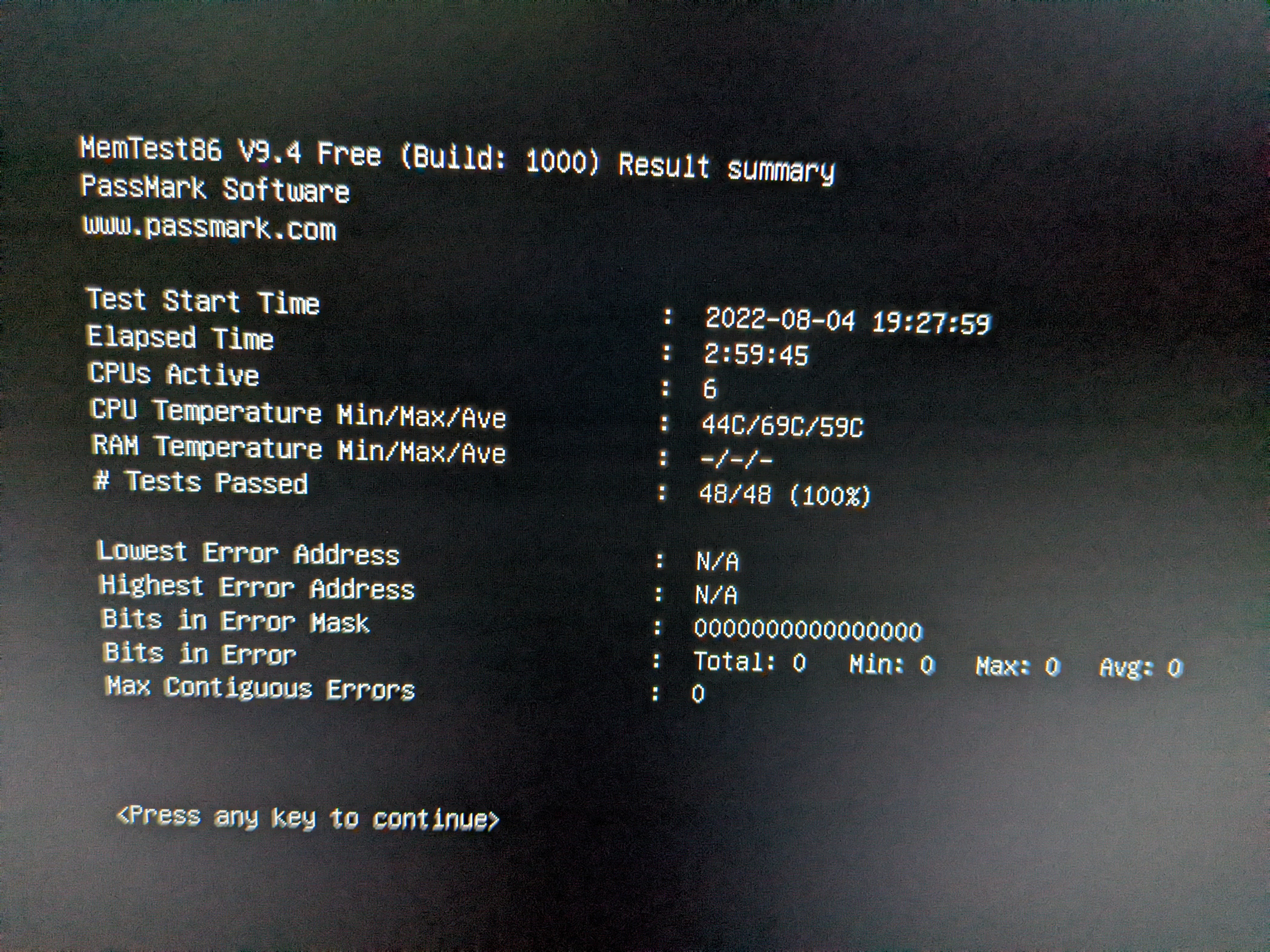

I haven't had a chance to run a test yet, unfortunately. But I did run a memtest on August 4th of this month and it passed (not 100% confident I ran the right test, though). I attached a photo of those tests.

Edited August 31, 2022 by Shu

[JorgeB]

You should run another one, also a good idea to post the full diags to see if there are known hardware issues.

[Shu]

1 hour ago, JorgeB said:

You should run another one, also a good idea to post the full diags to see if there are known hardware issues.

It's running right now. I expect it to take about 3 more hours (Pass 1 is done with no errors at just short of an hour, on Pass 2 of 4 now). Since I had already shutdown my server, will I be able to recover the diagnoses file on reboot? Or were they cleared....? sorry about that

[trurl]

Diagnostics after reboot won't tell us anything about what happened in the past since syslog resets, but it will tell us how things are now including your hardware.

[Shu]

23 minutes ago, trurl said:

Diagnostics after reboot won't tell us anything about what happened in the past since syslog resets, but it will tell us how things are now including your hardware.

I will post my diagnostics once the test is done and I boot back into unraid. On pass 3 of 4 now (going faster than I expected initially)

Edited August 31, 2022 by Shu

[Shu]

3 hours ago, JorgeB said:

You should run another one, also a good idea to post the full diags to see if there are known hardware issues.



Okay, 3 hours in and it just finished - all passed & no errors. I also booted into unraid and downloaded the diags. Attached here.





520unraid-diagnostics-20220831-1647.zip

[JorgeB]

Still pretty convinced that was from a hardware issue, but keep sing the server normally and see if there are more issues.

[Shu]

I'll revive the thread with a reply if it comes up again. I did notice my plex docker isn't showing the webui anymore - could a coincidence or related to app data being on cache drives (I'm going to change my cache pool to a raid 1 with two nvme's once it comes in tomorrow - for more redundancy)

[JorgeB]

23 minutes ago, Shu said:

(I'm going to change my cache pool to a raid 1 with two nvme's once it comes in tomorrow - for more redundancy)

That's fine in case a device fails/drops but raid1 won't help with this type of issue.
