mplogas Posted February 18, 2023 Posted February 18, 2023 As part of the process to get my container(s) approved, I am asked to provide a support thread. I'm always happy to help, but I'm asking you to consider posting issues regarding LaaC on GitHub first. I'm an engineer, so I'm on GitHub all day and I can get back to your issues/questions/feature requests much quicker. For Unraid / container related questions, feel free to post here. 1 Quote
mjorud Posted February 22, 2023 Posted February 22, 2023 I have been looking for a liquidctl Docker that supports Corsair Commander Pro. The LaaC-folder created under \appdata is created by root:root instead of nobody:users. This makes it hard to create config.yaml using the share. Adding PUID 99 and PGID 100 helped. I can't wrap my head around the yaml-file. All I want is to run liquidctl set sync speed 100 to make all six fans run at maximum. The server is located in the outhouse so noise is of no consern. Thank you for the Docker. Quote
mplogas Posted February 22, 2023 Author Posted February 22, 2023 (edited) > The LaaC-folder created under \appdata is created by root:root instead of nobody:users. This makes it hard to create config.yaml using the share. Adding PUID 99 and PGID 100 helped. Good catch, I'll look into that. I have my container configs on a different pool, so I didn't catch that. > I can't wrap my head around the yaml-file. All I want is to run I see, so instead of configuring each fan individually, you are looking for a "one size fits all"-setting? I think I can add that real quick. Give me a few minutes! // edit: GitHub is updated, container image is uploading to Docker Hub. Give it a spin and let me know if it works for you. I still need to dig into the permissions issue and will update this post accordingly. Edited February 22, 2023 by mplogas Quote
mjorud Posted February 22, 2023 Posted February 22, 2023 That was quick. This is my config.yaml controller: type: 'commander' fan_speed: '100' And this is what the log file shows: WARNING: some attributes cannot be read from corsair-cpro kernel driver Usage: liquidctl [options] list liquidctl [options] initialize [all] liquidctl [options] status liquidctl [options] set <channel> speed (<temperature> <percentage>) ... liquidctl [options] set <channel> speed <percentage> liquidctl [options] set <channel> color <mode> [<color>] ... liquidctl [options] set <channel> screen <mode> [<value>] liquidctl --help liquidctl --version Usage: liquidctl [options] list liquidctl [options] initialize [all] liquidctl [options] status liquidctl [options] set <channel> speed (<temperature> <percentage>) ... liquidctl [options] set <channel> speed <percentage> liquidctl [options] set <channel> color <mode> [<color>] ... liquidctl [options] set <channel> screen <mode> [<value>] liquidctl --help liquidctl --version Corsair Commander Pro ├── Temperature probe 1 No ├── Temperature probe 2 No ├── Temperature probe 3 No ├── Temperature probe 4 No ├── Fan 1 control mode PWM ├── Fan 2 control mode PWM ├── Fan 3 control mode DC ├── Fan 4 control mode PWM ├── Fan 5 control mode DC └── Fan 6 control mode DC I would assume the log should show something like this: Corsair Commander Pro ├── Fan 1 speed 1357 rpm ├── Fan 2 speed 1372 rpm ├── Fan 3 speed 1193 rpm ├── Fan 4 speed 1325 rpm ├── Fan 5 speed 1227 rpm ├── Fan 6 speed 1210 rpm ├── +12V rail 12.01 V ├── +5V rail 4.97 V └── +3.3V rail 3.36 V Best regards Quote
mplogas Posted February 22, 2023 Author Posted February 22, 2023 Alright, the option is now called "fan_sync_speed". Please try again, I had to fix a bug I introduced with the option. Quote
mjorud Posted February 23, 2023 Posted February 23, 2023 This is the config.yaml controller: type: 'commander' fan_sync_speed: '100' And after the latest update this is what the log says WARNING: some attributes cannot be read from corsair-cpro kernel driver Usage: liquidctl [options] list liquidctl [options] initialize [all] liquidctl [options] status liquidctl [options] set <channel> speed (<temperature> <percentage>) ... liquidctl [options] set <channel> speed <percentage> liquidctl [options] set <channel> color <mode> [<color>] ... liquidctl [options] set <channel> screen <mode> [<value>] liquidctl --help liquidctl --version Usage: liquidctl [options] list liquidctl [options] initialize [all] liquidctl [options] status liquidctl [options] set <channel> speed (<temperature> <percentage>) ... liquidctl [options] set <channel> speed <percentage> liquidctl [options] set <channel> color <mode> [<color>] ... liquidctl [options] set <channel> screen <mode> [<value>] liquidctl --help liquidctl --version Corsair Commander Pro ├── Temperature probe 1 No ├── Temperature probe 2 No ├── Temperature probe 3 No ├── Temperature probe 4 No ├── Fan 1 control mode PWM ├── Fan 2 control mode PWM ├── Fan 3 control mode DC ├── Fan 4 control mode PWM ├── Fan 5 control mode DC └── Fan 6 control mode DC If I open console and write liquidctl status # liquidctl status Corsair Commander Pro ├── Fan 1 speed 1369 rpm ├── Fan 2 speed 1380 rpm ├── Fan 3 speed 1197 rpm ├── Fan 4 speed 1351 rpm ├── Fan 5 speed 1224 rpm ├── Fan 6 speed 1211 rpm ├── +12V rail 12.01 V ├── +5V rail 4.97 V └── +3.3V rail 3.36 V # it seems to work just fine though. Quote
mplogas Posted February 23, 2023 Author Posted February 23, 2023 (edited) Okay, let's get to the bottom of this 1. Make sure your container is up-to date. Should be, but couldn't hurt to double-check 2. Could you post you entire config.yaml and your setup (e.g. KRaken X53 and Commander Pro)? In the meantime I'm looking into ways to get my dev/test container environment "ready for public". I have the feeling this could be useful long-term. edit: my output looked a little bit different, hence my questions: NZXT Kraken X (X53, X63 or X73) ├── Firmware version 2.1.0 ├── Pump Logo LEDs detected └── Pump Ring LEDs detected Result #0: NZXT Kraken X (X53, X63 or X73) cooling color: set sync color off Result #0: Corsair Commander Pro controller fan1: 20 0 30 400 35 900 40 1200 45 1500 --temperature-sensor 2 controller fan2: 20 0 30 400 35 900 40 1200 45 1500 --temperature-sensor 2 controller fan3: 25 0 30 500 35 800 40 1000 45 1500 --temperature-sensor 1 controller fan4: 25 0 30 500 35 1000 40 1500 --temperature-sensor 4 controller fan5: 25 0 30 500 35 1000 40 1500 --temperature-sensor 4 controller fan6: 25 0 30 500 35 1000 40 1500 --temperature-sensor 3 edit2: Debug container is up. Add a new container from Unraid using the LaaC template but use this image instead: mplogas/laac:debug. Then turn off your stable container to avoid conflicts. Edited February 23, 2023 by mplogas Quote
mjorud Posted February 24, 2023 Posted February 24, 2023 The Docker is up to date, and my config.yaml only contains controller: type: 'commander' fan_sync_speed: '100' I do not have the Kraken. Quote
mplogas Posted February 24, 2023 Author Posted February 24, 2023 (edited) Ah, that makes sense. I already made the liquid cooling optional yesterday evening, but it's still in the dev branch (https://github.com/mplogas/laac/tree/dev). I'll update the container later today and update this post accordingly. This will remove the "usage: [...]" output in your log files. edit: container has been updated. cooling is optional now. Edited February 24, 2023 by mplogas Quote
mjorud Posted February 26, 2023 Posted February 26, 2023 WARNING: some attributes cannot be read from corsair-cpro kernel driver WARNING: some attributes cannot be read from corsair-cpro kernel driver Corsair Commander Pro ├── Temperature probe 1 No ├── Temperature probe 2 No ├── Temperature probe 3 No ├── Temperature probe 4 No ├── Fan 1 control mode PWM ├── Fan 2 control mode PWM ├── Fan 3 control mode DC ├── Fan 4 control mode PWM ├── Fan 5 control mode DC └── Fan 6 control mode DC ASUS Aura LED Controller (experimental) └── Firmware version AULA3-AR32-0207 Corsair Commander Pro ├── Temperature probe 1 No ├── Temperature probe 2 No ├── Temperature probe 3 No ├── Temperature probe 4 No ├── Fan 1 control mode PWM ├── Fan 2 control mode PWM ├── Fan 3 control mode DC ├── Fan 4 control mode PWM ├── Fan 5 control mode DC └── Fan 6 control mode DC ASUS Aura LED Controller (experimental) └── Firmware version AULA3-AR32-0207 This is what the log file outputs now. Please note that the ASUS Aura LED Controller is popping up because I have just upgraded the motherboard. I just found out (and I have been using Unraid for 10 years or so) that Unraid has native support for the Corsair Commander Pro. Atleast all fans are visible in the Dashboard. Quote
mplogas Posted March 3, 2023 Author Posted March 3, 2023 Hey @mjorud, sorry fror the late reply. The output looks good so far. > WARNING: some attributes cannot be read from corsair-cpro kernel driver This is nothing to worry about, it'S coming from liquidctl / the commander pro kernel module. > I just found out (and I have been using Unraid for 10 years or so) that Unraid has native support for the Corsair Commander Pro That has been added in the last 6 months, but you can't control the fans based on temperature sensors. If you just want to monitor your fan speed, you don't need the container. Quote
AKC Server Posted April 27, 2023 Posted April 27, 2023 Thanks @mplogas for creating this container. I wonder, is there a way to script this to get temperatures from the hard drives themselves from unraid? I have the Commander XT which I've found out is not native to unraid (vs the pro) and can't be controlled by dynamix fan auto control. Therefore your plugin has been a great workaround, but the temperature sensors aren't the most accurate to how hot the actual drives are getting. Thoughts? Quote

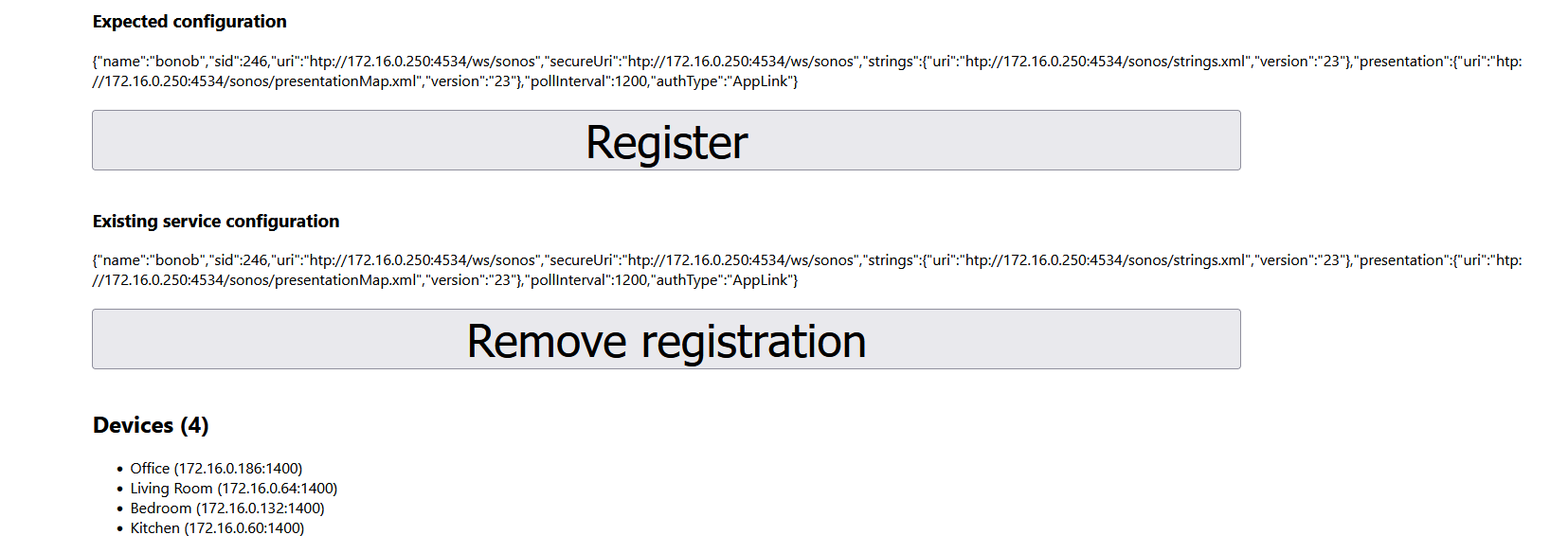

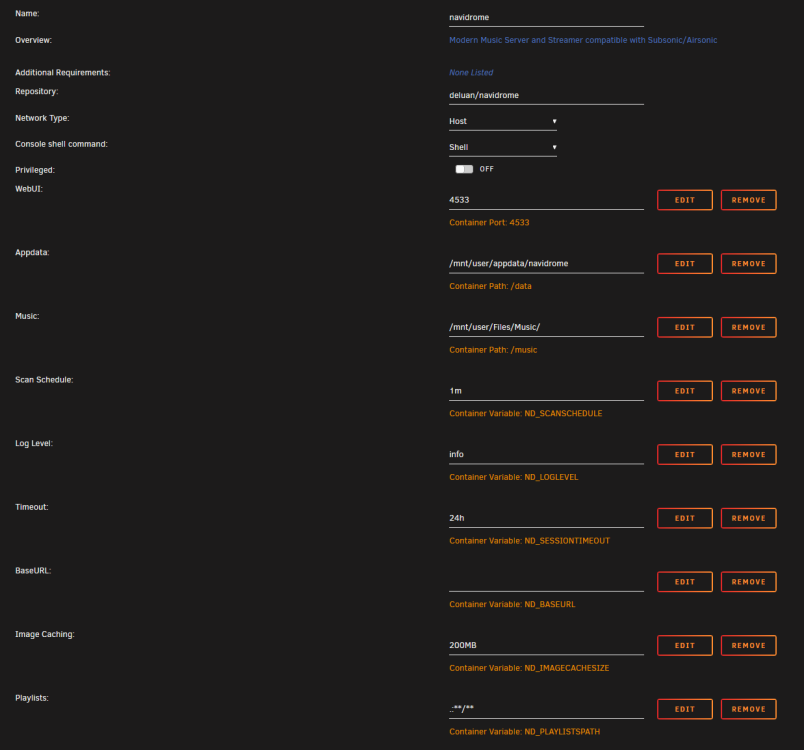

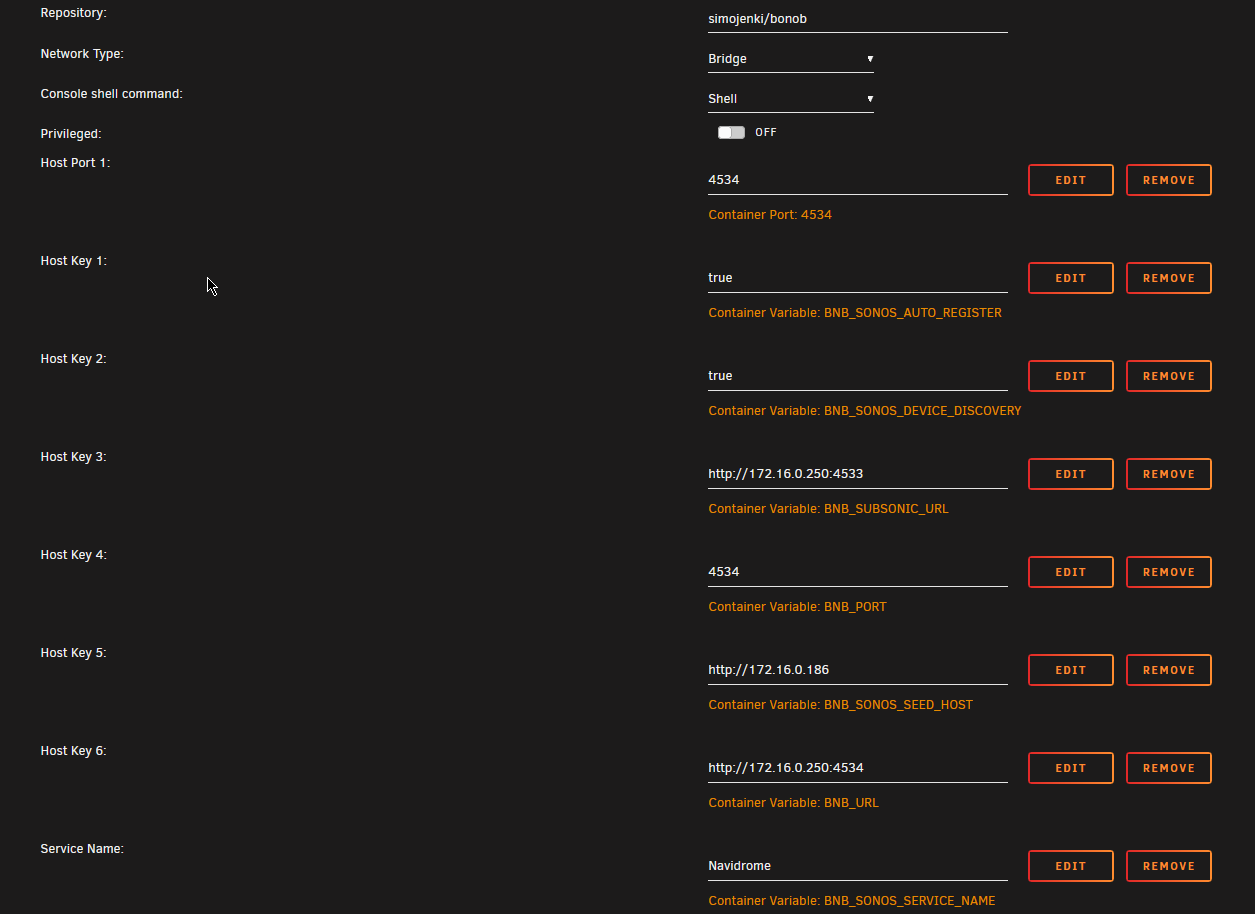

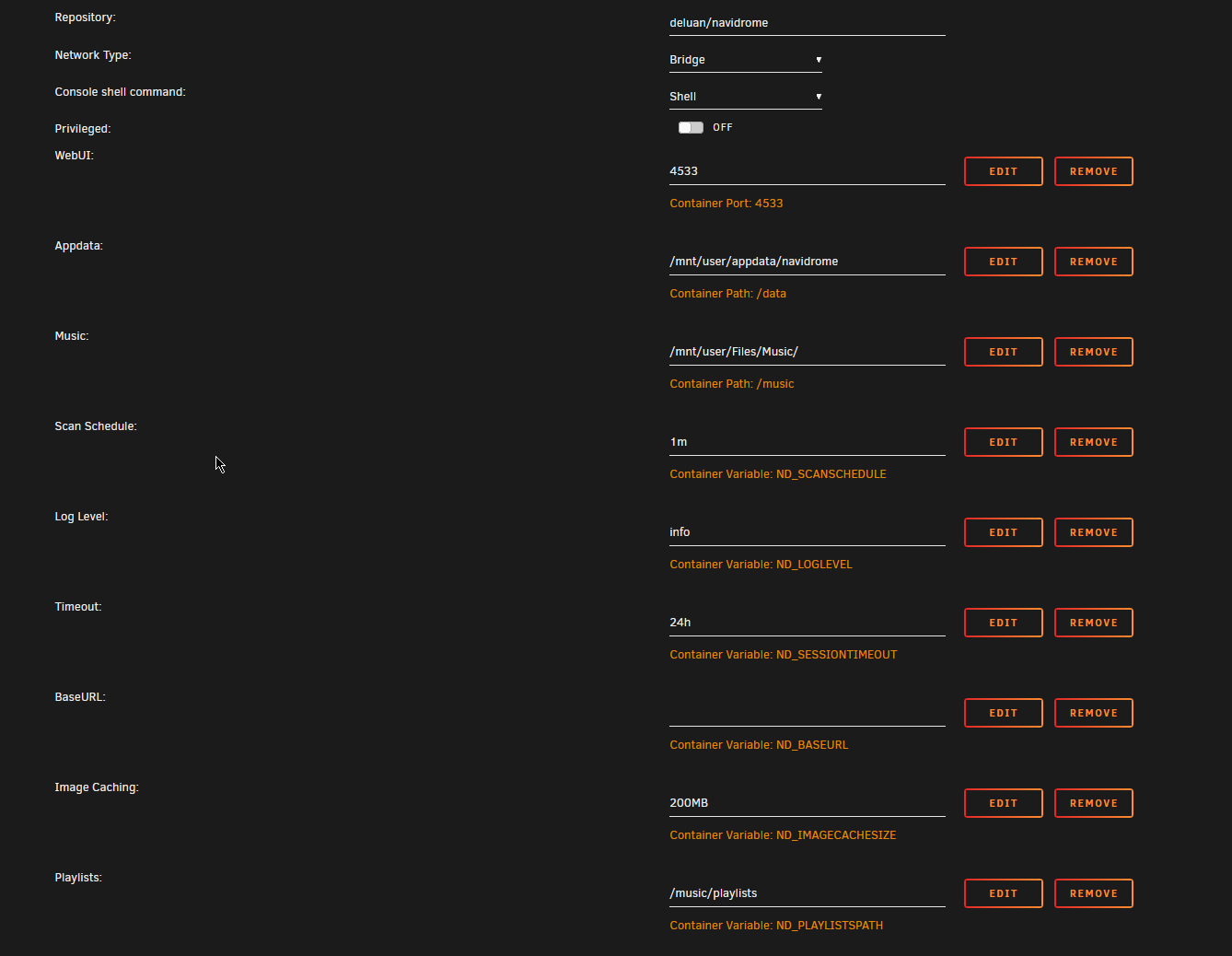

Keek Uras Posted April 29, 2023 Posted April 29, 2023 Hello! I'm trying to configure bobob to work with Navidrome and I'm not sure what the program is expecting. Here is the error when I pull up the web page: My bobob config: My Navidrome config: Thanks! Quote
mplogas Posted April 30, 2023 Author Posted April 30, 2023 On 4/27/2023 at 6:04 AM, AKC Server said: Thanks @mplogas for creating this container. I wonder, is there a way to script this to get temperatures from the hard drives themselves from unraid? I have the Commander XT which I've found out is not native to unraid (vs the pro) and can't be controlled by dynamix fan auto control. Therefore your plugin has been a great workaround, but the temperature sensors aren't the most accurate to how hot the actual drives are getting. Thoughts? LiquidCTL can read the sensors attached to the control unit, but it seems it's not possible to read other sensors (e.g. cpu, mainboard or hdds). Is your Commander XT actually a Core XT? This unit allows up to two temp sensors, you could place them very close to your HDDs. It's what I did with my Commander Pro and it works quite reliable. Quote
mplogas Posted April 30, 2023 Author Posted April 30, 2023 20 hours ago, Keek Uras said: Hello! I'm trying to configure bobob to work with Navidrome and I'm not sure what the program is expecting. Here is the error when I pull up the web page: My bobob config: My Navidrome config: Thanks! It seems you are using your Docker network (class b - 172.16.x.x) in your config. Instead, use the IP of your Unraid instance / Navidrome instance (likely class c - 192.168.x.x) as BNB_SUBSONIC_URL (Key 3) and the IP of one of your Sonos speakers as SEED_HOST (Key 5). Your BNB_URL (Key 6) should be your Unraid IP. Quote
Keek Uras Posted April 30, 2023 Posted April 30, 2023 (edited) 1 hour ago, mplogas said: It seems you are using your Docker network (class b - 172.16.x.x) in your config. Instead, use the IP of your Unraid instance / Navidrome instance (likely class c - 192.168.x.x) as BNB_SUBSONIC_URL (Key 3) and the IP of one of your Sonos speakers as SEED_HOST (Key 5). Your BNB_URL (Key 6) should be your Unraid IP. Thanks for the reply. The 172.16.x.x is class B but private and also the subnet for my LAN. Those are already set to my instance of unRAID. Also, no need to ever block out private IPs as they are not publicly routable. Removing the http:// from the BNB_SONOS_SEED_HOST seems to have resolved it. Edited April 30, 2023 by Keek Uras Quote

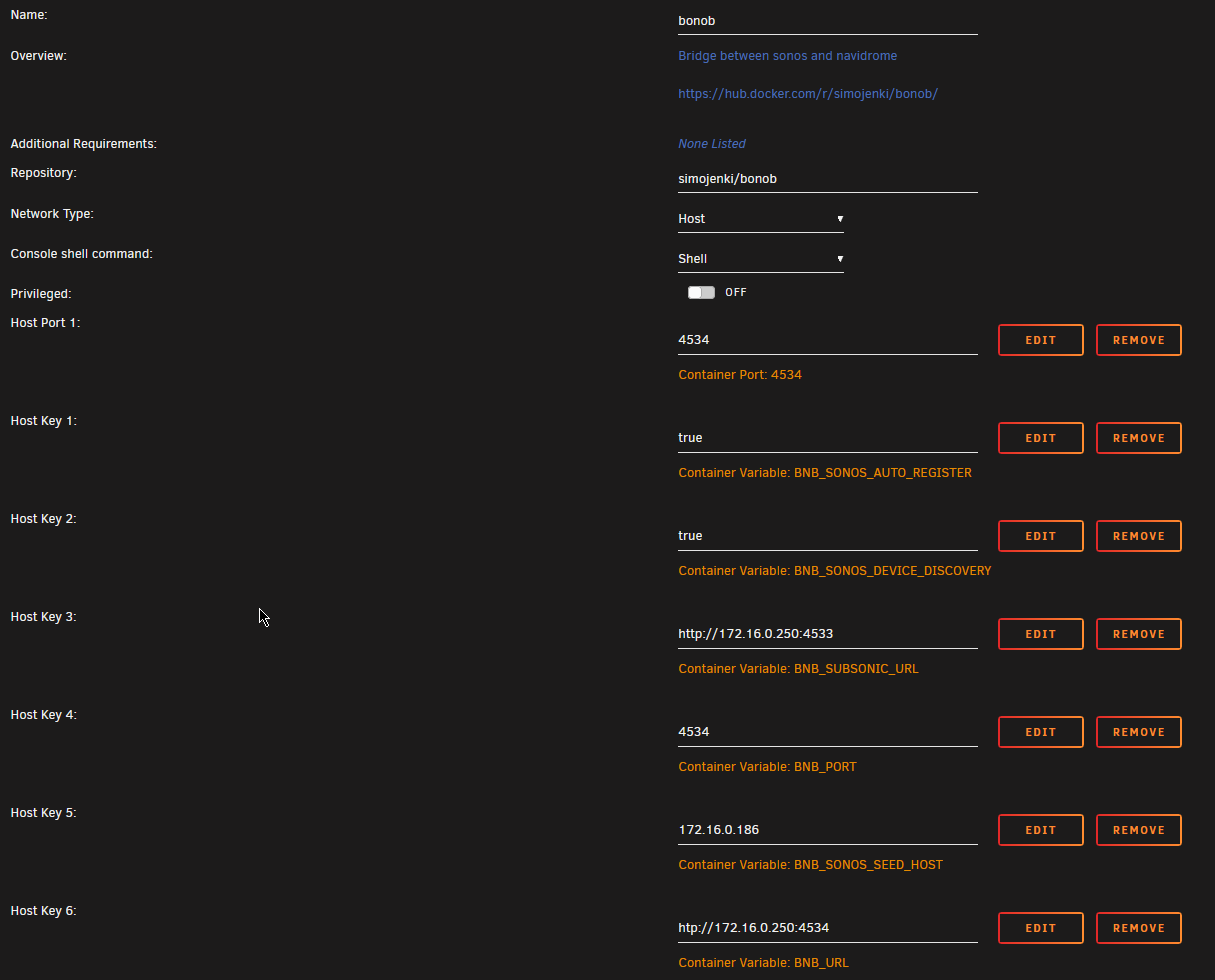

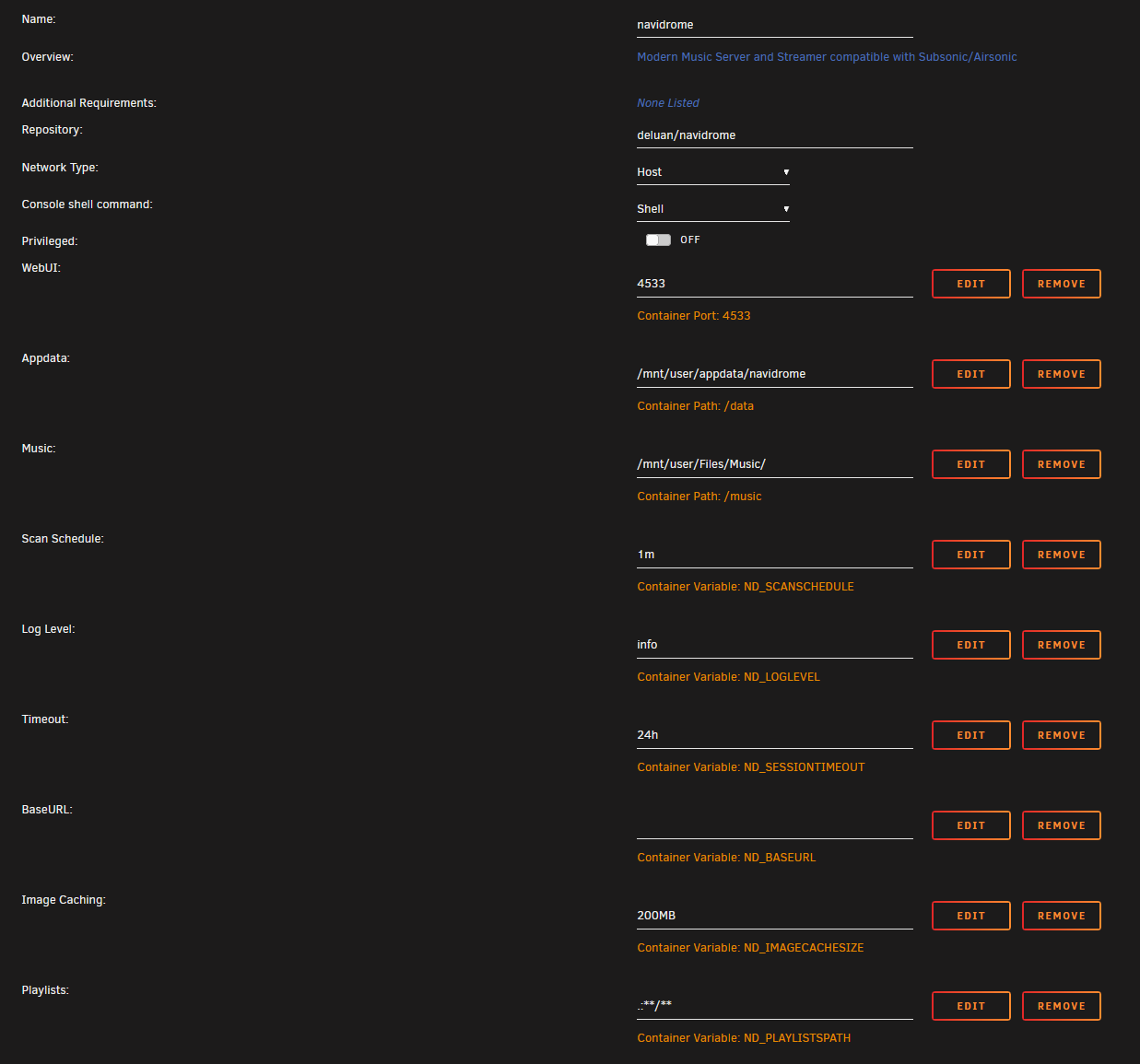

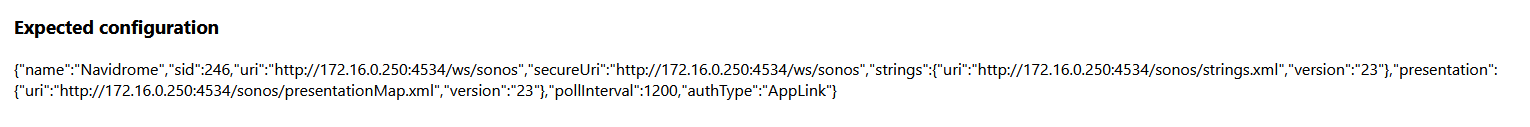

Keek Uras Posted May 4, 2023 Posted May 4, 2023 I believe I have bonob set up correctly but I cannot connect to the service in Sonos. It tells me to "Check your network connection." Both the Sonos devices and unRAID are on the same LAN and the bonob service registered successfully. Both Navidrome & bobob are using host networking. I've tried bridge as well. Settings: Any thoughts on what it might be? Quote
LSL1337 Posted May 4, 2023 Posted May 4, 2023 hello, how do I figure out, which USB device is my nzxt fan controller? Hotplug USB plugin doesn't show anything in unraid. I'd like to use them to control 3 fans, but based on HDD temp alone. Is that doable, or cpu temp is the only one, which can be read by the device? Thanks! Quote
SimonF Posted May 4, 2023 Posted May 4, 2023 13 minutes ago, LSL1337 said: hello, how do I figure out, which USB device is my nzxt fan controller? Hotplug USB plugin doesn't show anything in unraid. I'd like to use them to control 3 fans, but based on HDD temp alone. Is that doable, or cpu temp is the only one, which can be read by the device? Thanks! what does lsusb show Quote
LSL1337 Posted May 4, 2023 Posted May 4, 2023 (edited) 14 minutes ago, SimonF said: what does lsusb show root@LSL-NAS:~# lsusb Bus 002 Device 002: ID 0781:5583 SanDisk Corp. Ultra Fit Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 001 Device 003: ID 2040:0265 Hauppauge dualHD Bus 001 Device 002: ID 0764:0501 Cyber Power System, Inc. CP1500 AVR UPS Bus 001 Device 006: ID 1e71:200f NZXT NZXT USB Device Bus 001 Device 005: ID 1462:7d20 Micro Star International MYSTIC LIGHT Bus 001 Device 004: ID 05e3:0608 Genesys Logic, Inc. Hub Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub root@LSL-NAS:~# lsusb -t /: Bus 02.Port 1: Dev 1, Class=root_hub, Driver=xhci_hcd/6p, 10000M |__ Port 1: Dev 2, If 0, Class=Mass Storage, Driver=usb-storage, 5000M /: Bus 01.Port 1: Dev 1, Class=root_hub, Driver=xhci_hcd/16p, 480M |__ Port 2: Dev 2, If 0, Class=Human Interface Device, Driver=usbhid, 1.5M |__ Port 3: Dev 3, If 0, Class=Vendor Specific Class, Driver=em28xx, 480M |__ Port 11: Dev 4, If 0, Class=Hub, Driver=hub/4p, 480M |__ Port 4: Dev 6, If 0, Class=Human Interface Device, Driver=usbhid, 12M |__ Port 2: Dev 5, If 0, Class=Human Interface Device, Driver=usbhid, 12M Edited May 4, 2023 by LSL1337 Quote
SimonF Posted May 5, 2023 Posted May 5, 2023 8 hours ago, LSL1337 said: root@LSL-NAS:~# lsusb Bus 002 Device 002: ID 0781:5583 SanDisk Corp. Ultra Fit Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 001 Device 003: ID 2040:0265 Hauppauge dualHD Bus 001 Device 002: ID 0764:0501 Cyber Power System, Inc. CP1500 AVR UPS Bus 001 Device 006: ID 1e71:200f NZXT NZXT USB Device Bus 001 Device 005: ID 1462:7d20 Micro Star International MYSTIC LIGHT Bus 001 Device 004: ID 05e3:0608 Genesys Logic, Inc. Hub Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub root@LSL-NAS:~# lsusb -t /: Bus 02.Port 1: Dev 1, Class=root_hub, Driver=xhci_hcd/6p, 10000M |__ Port 1: Dev 2, If 0, Class=Mass Storage, Driver=usb-storage, 5000M /: Bus 01.Port 1: Dev 1, Class=root_hub, Driver=xhci_hcd/16p, 480M |__ Port 2: Dev 2, If 0, Class=Human Interface Device, Driver=usbhid, 1.5M |__ Port 3: Dev 3, If 0, Class=Vendor Specific Class, Driver=em28xx, 480M |__ Port 11: Dev 4, If 0, Class=Hub, Driver=hub/4p, 480M |__ Port 4: Dev 6, If 0, Class=Human Interface Device, Driver=usbhid, 12M |__ Port 2: Dev 5, If 0, Class=Human Interface Device, Driver=usbhid, 12M So are you trying to map to a docker? Quote
LSL1337 Posted May 5, 2023 Posted May 5, 2023 (edited) 4 minutes ago, SimonF said: So are you trying to map to a docker? yes, I'm trying to install the docker (avpnusr/liquidctl-docker) from CA, which needs "/sys/bus/usb/devices/xxx" i guess. is there any other way I can control my nzxt smart v2 under unraid? on the liquidctl github, there is a small note, that: "Smart Device V2 controllers are supported by the mainline Linux kernel with its nzxt-smart2 driver" but i had no luck with that either. i'm on the latest unraid build Edited May 5, 2023 by LSL1337 Quote
SimonF Posted May 5, 2023 Posted May 5, 2023 1 minute ago, LSL1337 said: yes, I'm trying to install the docker (avpnusr/liquidctl-docker) from CA, which needs "/sys/bus/usb/devices/xxx" i guess. usb device will be /dev/bus/usb/001/006 but if for some reason the device resets it will change the 2nd number. 1 Quote
LSL1337 Posted May 5, 2023 Posted May 5, 2023 7 minutes ago, SimonF said: usb device will be /dev/bus/usb/001/006 but if for some reason the device resets it will change the 2nd number. wow, it's working great now, thanks! what can I do to control the fans through unraid/hwmon? with 'nzxt-smart2' drivers? In that way, the old scripts could control it based on hdd temp maybe. Quote
AKC Server Posted May 7, 2023 Posted May 7, 2023 On 4/30/2023 at 3:14 PM, mplogas said: LiquidCTL can read the sensors attached to the control unit, but it seems it's not possible to read other sensors (e.g. cpu, mainboard or hdds). Is your Commander XT actually a Core XT? This unit allows up to two temp sensors, you could place them very close to your HDDs. It's what I did with my Commander Pro and it works quite reliable. Yes. Commander Core XT is the official name. I just shortened as XT was the key differentiator... No I get it. I have the 2 temp probes setup but the accuracy is not as finite as I'd like. For example the probe near/touching my HDDs shelf reads 29c white the other near the back of the case reads 26c while SMART reads 35c on the drives itself. This is why I was curious if you've come up with a way to use userscripts to send script chnages to the docker config file based on Unraid system parameters. Seems might not be possible at the moment I guess Quote
