Digital Shamans Posted May 20, 2023 Share Posted May 20, 2023 Hi there, I have moved my server and a workstation pc from an office to home. Now I wish to reconnect to it., I have forgotten a lot from its setup by now. Could someone point me out at steps I should take to connect into my Unraid from the PC and access its NAS? Btw, At home I have connected both machines simply with an ethernet cable (like it used to be in the office before adding switch and router), however I have no access to LAN from IPS. I have wifi. Many thanks, DS Quote Link to comment

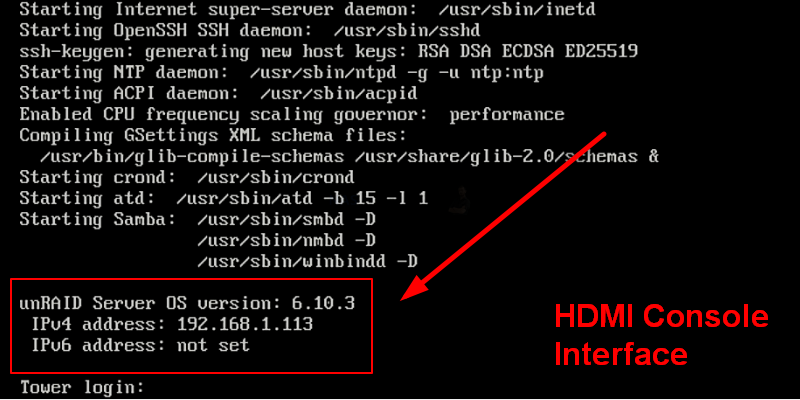

JorgeB Posted May 21, 2023 Share Posted May 21, 2023 If you were using DHCP just see the server name/IP on the CLI after boot and use either, server name is below the IP. Quote Link to comment
Digital Shamans Posted May 21, 2023 Author Share Posted May 21, 2023 (edited) Thanks for the reply Jorge! I'm trying establish connection from desktop pc via browser by putting "Local access URLs", the same which is shown during Unraid boot. However, what I get is "This site can't be reached." The server is not connected to the internet. Workstation PC is, via wifi. Both machines are connected with each other with an ethernet cable. On boot, Unraid shows the same IP as it was in the previous location. I can manoeuvre Unraid settings via webUI. Edited May 21, 2023 by Digital Shamans Quote Link to comment
itimpi Posted May 21, 2023 Share Posted May 21, 2023 Do you know what subnet the new location is using? If it is different to the old location then you might want to delete (or rename) the config/network.cfg file on the flash drive and rebooting which will then use DHCP. Quote Link to comment
JonathanM Posted May 21, 2023 Share Posted May 21, 2023 8 hours ago, Digital Shamans said: Workstation PC is, via wifi. Both machines are connected with each other with an ethernet cable. Are you sharing or bridging the wifi with the ethernet on the workstation? Does the workstation ethernet have a fixed IP? What is it? What IP is Unraid showing? Quote Link to comment
Digital Shamans Posted May 22, 2023 Author Share Posted May 22, 2023 (edited) The server shows 192.168.100.10. This is the new IP we have setup while creating a small subnet with extra switch and router. That subnet was still in WIP as never got connected to IPS directly to have fixed IP. Basically its just PC connected to a server which works as NAS. Before upgrade by adding extra switch and router, it was just pc and server machine connected together and to the dynamic wan. Now difference is that there is no wan ethernet cable here. I have wifi only. Also this time I skipped connecting switch and router since all but one ethernet cables are useless now, no? Functionally the switch and router with pfSense didn't contribute anything practical as the setup was still wip, as no fixed IP was acquired. How to be sure the IP is fixed? Another thing is, that I will be relocating to that previous location soon, so ideally any changed would like to be revertible quickly. I have concerns about deleting config/network.cfg manually form the flashdrive. Edited May 22, 2023 by Digital Shamans Quote Link to comment
JonathanM Posted May 22, 2023 Share Posted May 22, 2023 Temporarily set a fixed IP on the workstation ethernet connection you are using to connect to Unraid. 192.168.100.11 should work. Quote Link to comment
Digital Shamans Posted June 22, 2023 Author Share Posted June 22, 2023 (edited) I changed the config file name and booted OS back again. It got a new IP address 169.254.18...displayed when booting Unraid. This is not the IP I have on the workstation. Not even close. Nevertheless I used it to successfully connect from the workstation. Many thanks! Edited June 25, 2023 by Digital Shamans Quote Link to comment
