I use one GB port for Unraid and the other for ESXi, like in the link I posted earlier.

Ah ok that makes sense. I could contact serverdirect.eu for advice on this. I was planning on using virtualisation in the near future myself, in that case the extra port comes in handy indeed...

Ah ok that makes sense. I could contact serverdirect.eu for advice on this. I was planning on using virtualisation in the near future myself, in that case the extra port comes in handy indeed...



You can contact Supermicro in Holland too

Do you know your bios version and ipmi firmware version? Maybe theres some difference there?

Currently I have 2 motherboards at home. Both have IPMI fw 1.27. BIOSes are 1.03c and 1.11a.

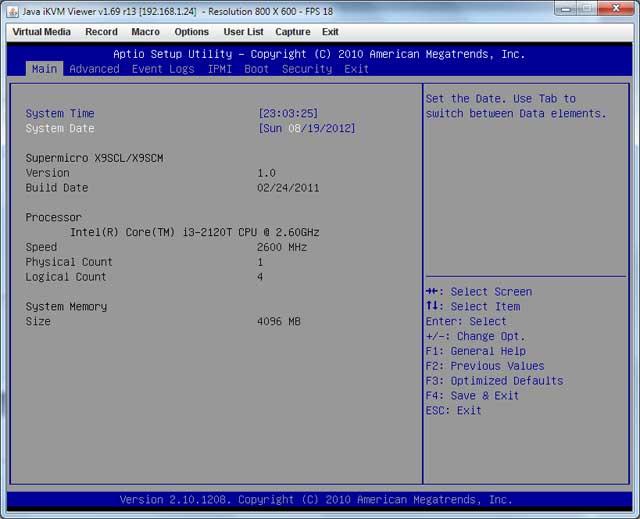

Were do you find the IPMI version? My BIOS looks to be 1.0.

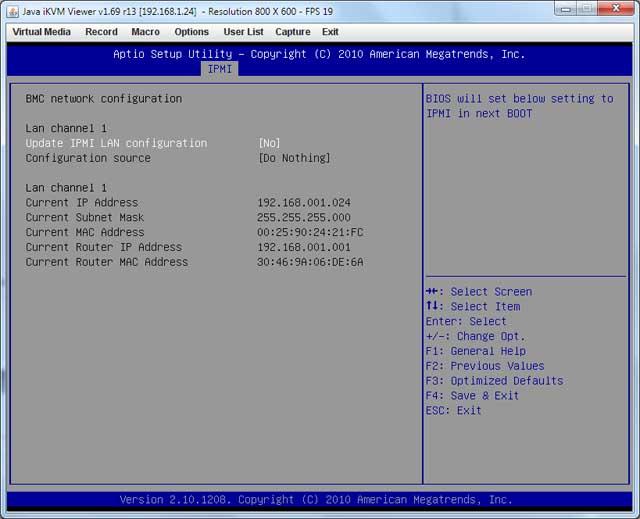

Also, if i look at the IPMI tab, it looks like its configured for lan1.

And there is no option to change that.



*edit* found IPMI version in the web interface's upgrade process was 01.01, now upgrading to 01.64...

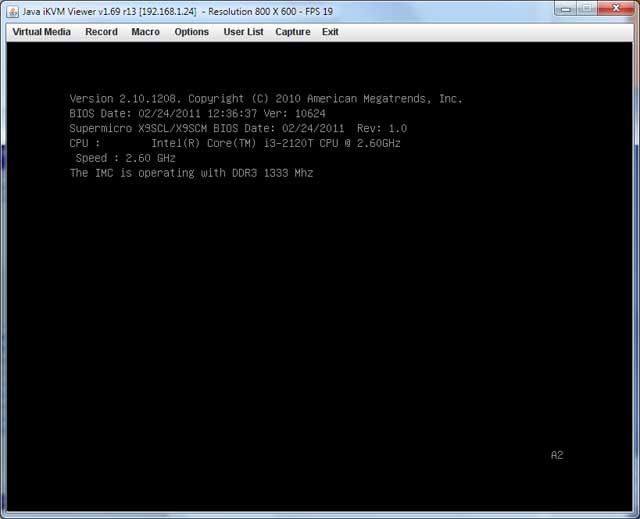

Another bios screen

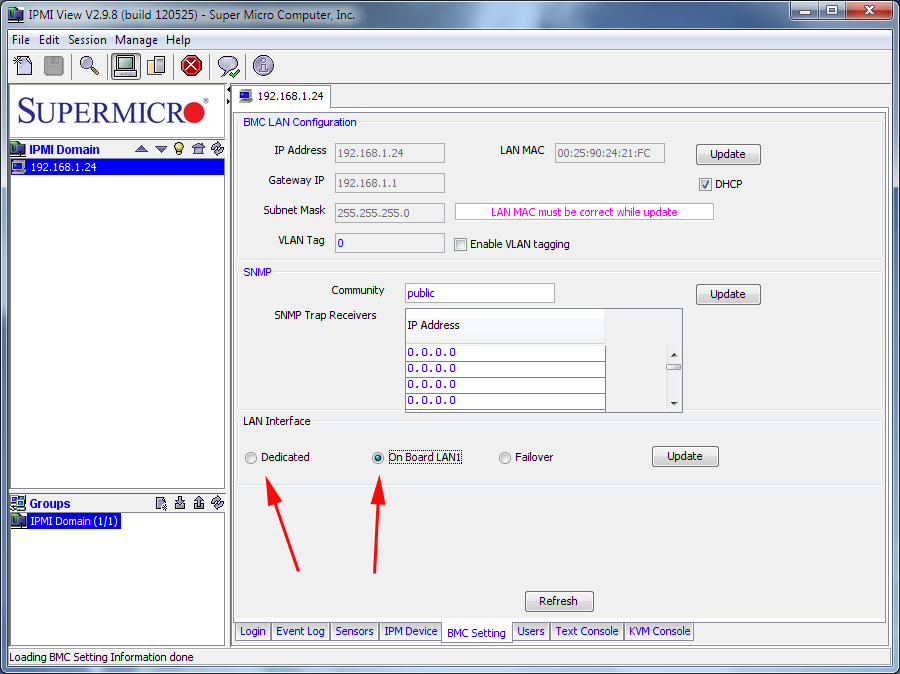

Ok, enough with the screenshots i think i found it. You can change the IPMI port using the IPMIView software:

You were ahead of me, just wanted to point you to the BMC LAN settings in IPMIview.



You had a rather old IPMI firmware, maybe that was the problem. Well now you know where you can change it.

I've changed the IPMI from lan1 to 'dedicated' and it works Also, i've updated the BIOS from 1.0 to 2.0a, and updated the IPMI firmware from 01.01 to 01.63. Everything looks ok (so nothing has actually changed)

I have never had an issue using the dedicated ipmi port.



One of my boards is even a beta board with the beta firmware still never a single issue. /shrug



Be careful updating to a 2.x firmware if you don't need to for chip support. the 2.0 and 2.0a firmware have issues with esxi if you plan to go that route. I know you guys are not, but others reading this thread might be considering that route.

I've changed the IPMI from lan1 to 'dedicated' and it works Also, i've updated the BIOS from 1.0 to 2.0a, and updated the IPMI firmware from 01.01 to 01.63. Everything looks ok (so nothing has actually changed)



Strange you got such an old board, or at least with such old firmware. Might have been old stock or a refurbished board. I got "my" boards in april and may this year and both had BIOS 1.11a and IPMI firmware 1.27.

I have never had an issue using the dedicated ipmi port.



One of my boards is even a beta board with the beta firmware still never a single issue. /shrug



Be careful updating to a 2.x firmware if you don't need to for chip support. the 2.0 and 2.0a firmware have issues with esxi if you plan to go that route. I know you guys are not, but others reading this thread might be considering that route.



What kind of issues do you mean?

I've read the opposite; for good support of modern cpu's that can fully utilize esxi, you should have 2.0...

The 2.0a bios does not recognize AVer Media Duet TV tuner cards at all in ESXi 5.0.  They do not show up for passthrough.  When I had 1.0 bios it showed up and worked well in passthrough to a Windows VM.  Hauppauge HVR-2250 TV tuners still work like before.  I would never have upgraded mine but I was having some problems with my unRAID VM that I thought would be cured by an upgraded bios.  So far that is true but at the expense of dropping the AVer Media Duet tuner card.  I like the AVer Media Duet card because it works better with multi path ATSC signals (which I have in spades) than the HVR-2250 does.





PS.  Never had a problem with my dedicated IPMI port either.

I've read the opposite; for good support of modern cpu's that can fully utilize esxi, you should have 2.0...

That is with the ivy bridge chips. Those require 2.x. For a sandy bridge chip. I would avoid  the upgrade.



There are a few reported oddities with vt-d reported. Supermicro has a long history of not having the best bios firmware updates.





Sent from my iPhone using Tapatalk

Just turned off the cpu fan, figures made me think that would work, appears to .. Temp is stable.
