wedge22 Posted January 31, 2016 Share Posted January 31, 2016 I have built my new unRAID machine with a Gigabyte X99-SLI motherboard which has an onboard audio chip that I would like to use for audio in this VM, when I check in unRAID it only seems to detect the HD audio with the optical output and my GTX 970 via HDMI. I do not have HDMI on my monitor and my speakers do not have optical input. Is there anyway to output motherboard audio without using the HD optical connection or the HDMI option? XML info. <domain type='kvm' id='2' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'> <name>Windows 10</name> <uuid>6c7b96a5-cbd8-050a-e8ad-9d5f43aa0248</uuid> <description>gaming and stuff</description> <metadata> <vmtemplate name="Custom" icon="windows.png" os="windows"/> </metadata> <memory unit='KiB'>8388608</memory> <currentMemory unit='KiB'>8388608</currentMemory> <memoryBacking> <nosharepages/> <locked/> </memoryBacking> <vcpu placement='static'>6</vcpu> <cputune> <vcpupin vcpu='0' cpuset='0'/> <vcpupin vcpu='1' cpuset='1'/> <vcpupin vcpu='2' cpuset='2'/> <vcpupin vcpu='3' cpuset='3'/> <vcpupin vcpu='4' cpuset='4'/> <vcpupin vcpu='5' cpuset='5'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-i440fx-2.3'>hvm</type> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough'> <topology sockets='1' cores='6' threads='1'/> </cpu> <clock offset='localtime'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/bin/qemu-system-x86_64</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/vDisks/Windows 10/vdisk1.img'/> <backingStore/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <alias name='virtio-disk2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </disk> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/ArrayVdisks/Windows 10/vdisk2.img'/> <backingStore/> <target dev='hdd' bus='virtio'/> <alias name='virtio-disk3'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/ISOs/Windows.iso'/> <backingStore/> <target dev='hda' bus='ide'/> <readonly/> <boot order='2'/> <alias name='ide0-0-0'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/ISOs/virtio-win-0.1.102.iso'/> <backingStore/> <target dev='hdb' bus='ide'/> <readonly/> <alias name='ide0-0-1'/> <address type='drive' controller='0' bus='0' target='0' unit='1'/> </disk> <controller type='usb' index='0'> <alias name='usb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/> </controller> <controller type='pci' index='0' model='pci-root'> <alias name='pci.0'/> </controller> <controller type='ide' index='0'> <alias name='ide'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='virtio-serial' index='0'> <alias name='virtio-serial0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:5b:40:3f'/> <source bridge='br0'/> <target dev='vnet0'/> <model type='virtio'/> <alias name='net0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </interface> <serial type='pty'> <source path='/dev/pts/0'/> <target port='0'/> <alias name='serial0'/> </serial> <console type='pty' tty='/dev/pts/0'> <source path='/dev/pts/0'/> <target type='serial' port='0'/> <alias name='serial0'/> </console> <channel type='unix'> <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/Windows 10.org.qemu.guest_agent.0'/> <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/> <alias name='channel0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <hostdev mode='subsystem' type='usb' managed='yes'> <source> <vendor id='0x046d'/> <product id='0xc517'/> <address bus='1' device='3'/> </source> <alias name='hostdev0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='yes'> <source> <vendor id='0x04b4'/> <product id='0x121f'/> <address bus='1' device='2'/> </source> <alias name='hostdev1'/> </hostdev> <memballoon model='virtio'> <alias name='balloon0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </memballoon> </devices> <qemu:commandline> <qemu:arg value='-device'/> <qemu:arg value='ioh3420,bus=pci.0,addr=1c.0,multifunction=on,port=2,chassis=1,id=root.1'/> <qemu:arg value='-device'/> <qemu:arg value='vfio-pci,host=03:00.0,bus=root.1,addr=00.0,multifunction=on,x-vga=on'/> <qemu:arg value='-device'/> <qemu:arg value='vfio-pci,host=00:1b.0,bus=root.1,addr=01.0'/> </qemu:commandline> </domain> Link to comment
jonp Posted January 31, 2016 Share Posted January 31, 2016 Can you copy and paste the PCI devices section from the Tools > System Devices page? Link to comment
wedge22 Posted January 31, 2016 Author Share Posted January 31, 2016 00:00.0 Host bridge: Intel Corporation Xeon E5 v3/Core i7 DMI2 (rev 02) 00:01.0 PCI bridge: Intel Corporation Xeon E5 v3/Core i7 PCI Express Root Port 1 (rev 02) 00:02.0 PCI bridge: Intel Corporation Xeon E5 v3/Core i7 PCI Express Root Port 2 (rev 02) 00:03.0 PCI bridge: Intel Corporation Xeon E5 v3/Core i7 PCI Express Root Port 3 (rev 02) 00:03.2 PCI bridge: Intel Corporation Xeon E5 v3/Core i7 PCI Express Root Port 3 (rev 02) 00:05.0 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Address Map, VTd_Misc, System Management (rev 02) 00:05.1 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Hot Plug (rev 02) 00:05.2 System peripheral: Intel Corporation Xeon E5 v3/Core i7 RAS, Control Status and Global Errors (rev 02) 00:11.0 Unassigned class [ff00]: Intel Corporation C610/X99 series chipset SPSR (rev 05) 00:11.4 SATA controller: Intel Corporation C610/X99 series chipset sSATA Controller [AHCI mode] (rev 05) 00:14.0 USB controller: Intel Corporation C610/X99 series chipset USB xHCI Host Controller (rev 05) 00:16.0 Communication controller: Intel Corporation C610/X99 series chipset MEI Controller #1 (rev 05) 00:19.0 Ethernet controller: Intel Corporation Ethernet Connection (2) I218-V (rev 05) 00:1a.0 USB controller: Intel Corporation C610/X99 series chipset USB Enhanced Host Controller #2 (rev 05) 00:1b.0 Audio device: Intel Corporation C610/X99 series chipset HD Audio Controller (rev 05) 00:1d.0 USB controller: Intel Corporation C610/X99 series chipset USB Enhanced Host Controller #1 (rev 05) 00:1f.0 ISA bridge: Intel Corporation C610/X99 series chipset LPC Controller (rev 05) 00:1f.2 SATA controller: Intel Corporation C610/X99 series chipset 6-Port SATA Controller [AHCI mode] (rev 05) 00:1f.3 SMBus: Intel Corporation C610/X99 series chipset SMBus Controller (rev 05) 00:1f.6 Signal processing controller: Intel Corporation C610/X99 series chipset Thermal Subsystem (rev 05) 03:00.0 VGA compatible controller: NVIDIA Corporation GM204 [GeForce GTX 970] (rev a1) 03:00.1 Audio device: NVIDIA Corporation GM204 High Definition Audio Controller (rev a1) 04:00.0 VGA compatible controller: NVIDIA Corporation G96 [GeForce 9500 GT] (rev a1) ff:0b.0 System peripheral: Intel Corporation Xeon E5 v3/Core i7 R3 QPI Link 0 & 1 Monitoring (rev 02) ff:0b.1 Performance counters: Intel Corporation Xeon E5 v3/Core i7 R3 QPI Link 0 & 1 Monitoring (rev 02) ff:0b.2 Performance counters: Intel Corporation Xeon E5 v3/Core i7 R3 QPI Link 0 & 1 Monitoring (rev 02) ff:0c.0 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Unicast Registers (rev 02) ff:0c.1 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Unicast Registers (rev 02) ff:0c.2 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Unicast Registers (rev 02) ff:0c.3 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Unicast Registers (rev 02) ff:0c.4 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Unicast Registers (rev 02) ff:0c.5 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Unicast Registers (rev 02) ff:0f.0 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Buffered Ring Agent (rev 02) ff:0f.1 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Buffered Ring Agent (rev 02) ff:0f.4 System peripheral: Intel Corporation Xeon E5 v3/Core i7 System Address Decoder & Broadcast Registers (rev 02) ff:0f.5 System peripheral: Intel Corporation Xeon E5 v3/Core i7 System Address Decoder & Broadcast Registers (rev 02) ff:0f.6 System peripheral: Intel Corporation Xeon E5 v3/Core i7 System Address Decoder & Broadcast Registers (rev 02) ff:10.0 System peripheral: Intel Corporation Xeon E5 v3/Core i7 PCIe Ring Interface (rev 02) ff:10.1 Performance counters: Intel Corporation Xeon E5 v3/Core i7 PCIe Ring Interface (rev 02) ff:10.5 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Scratchpad & Semaphore Registers (rev 02) ff:10.6 Performance counters: Intel Corporation Xeon E5 v3/Core i7 Scratchpad & Semaphore Registers (rev 02) ff:10.7 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Scratchpad & Semaphore Registers (rev 02) ff:12.0 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Home Agent 0 (rev 02) ff:12.1 Performance counters: Intel Corporation Xeon E5 v3/Core i7 Home Agent 0 (rev 02) ff:13.0 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Integrated Memory Controller 0 Target Address, Thermal & RAS Registers (rev 02) ff:13.1 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Integrated Memory Controller 0 Target Address, Thermal & RAS Registers (rev 02) ff:13.2 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel Target Address Decoder (rev 02) ff:13.3 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel Target Address Decoder (rev 02) ff:13.4 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel Target Address Decoder (rev 02) ff:13.5 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel Target Address Decoder (rev 02) ff:13.6 System peripheral: Intel Corporation Xeon E5 v3/Core i7 DDRIO Channel 0/1 Broadcast (rev 02) ff:13.7 System peripheral: Intel Corporation Xeon E5 v3/Core i7 DDRIO Global Broadcast (rev 02) ff:14.0 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 0 Thermal Control (rev 02) ff:14.1 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 1 Thermal Control (rev 02) ff:14.2 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 0 ERROR Registers (rev 02) ff:14.3 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 1 ERROR Registers (rev 02) ff:14.6 System peripheral: Intel Corporation Xeon E5 v3/Core i7 DDRIO (VMSE) 0 & 1 (rev 02) ff:14.7 System peripheral: Intel Corporation Xeon E5 v3/Core i7 DDRIO (VMSE) 0 & 1 (rev 02) ff:15.0 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 2 Thermal Control (rev 02) ff:15.1 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 3 Thermal Control (rev 02) ff:15.2 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 2 ERROR Registers (rev 02) ff:15.3 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Integrated Memory Controller 0 Channel 3 ERROR Registers (rev 02) ff:16.0 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Integrated Memory Controller 1 Target Address, Thermal & RAS Registers (rev 02) ff:16.6 System peripheral: Intel Corporation Xeon E5 v3/Core i7 DDRIO Channel 2/3 Broadcast (rev 02) ff:16.7 System peripheral: Intel Corporation Xeon E5 v3/Core i7 DDRIO Global Broadcast (rev 02) ff:17.0 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Integrated Memory Controller 1 Channel 0 Thermal Control (rev 02) ff:17.4 System peripheral: Intel Corporation Xeon E5 v3/Core i7 DDRIO (VMSE) 2 & 3 (rev 02) ff:17.5 System peripheral: Intel Corporation Xeon E5 v3/Core i7 DDRIO (VMSE) 2 & 3 (rev 02) ff:17.6 System peripheral: Intel Corporation Xeon E5 v3/Core i7 DDRIO (VMSE) 2 & 3 (rev 02) ff:17.7 System peripheral: Intel Corporation Xeon E5 v3/Core i7 DDRIO (VMSE) 2 & 3 (rev 02) ff:1e.0 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Power Control Unit (rev 02) ff:1e.1 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Power Control Unit (rev 02) ff:1e.2 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Power Control Unit (rev 02) ff:1e.3 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Power Control Unit (rev 02) ff:1e.4 System peripheral: Intel Corporation Xeon E5 v3/Core i7 Power Control Unit (rev 02) ff:1f.0 System peripheral: Intel Corporation Xeon E5 v3/Core i7 VCU (rev 02) ff:1f.2 System peripheral: Intel Corporation Xeon E5 v3/Core i7 VCU (rev 02) Link to comment
jonp Posted January 31, 2016 Share Posted January 31, 2016 Hmm, so you're saying that you have passed through the HD audio controller but the analog audio (stereo jacks) don't work? Link to comment
wedge22 Posted January 31, 2016 Author Share Posted January 31, 2016 Yes that's right I am using the analogue connections on the motherboard but get no audio. When I check in Windows settings I cannot change from the optical audio option to analogue. Link to comment
mikeyosm Posted February 1, 2016 Share Posted February 1, 2016 Yes that's right I am using the analogue connections on the motherboard but get no audio. When I check in Windows settings I cannot change from the optical audio option to analogue. Any solution to this problem? I went out and bought the X99P-SLI and plan on using the onboard audio. Link to comment

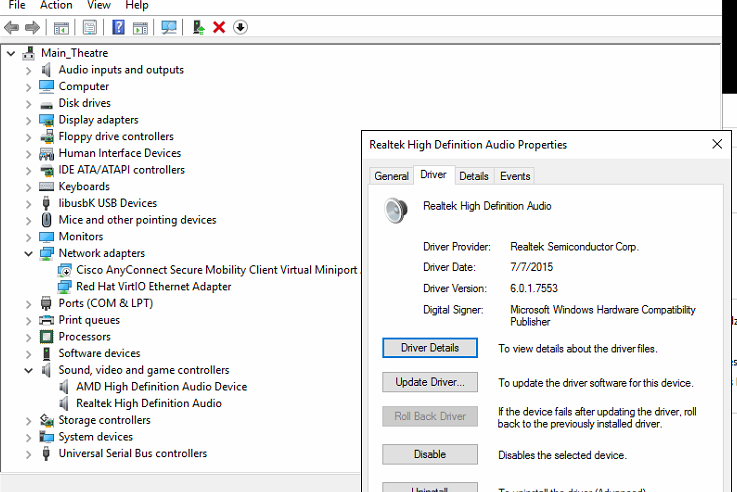

bungee91 Posted February 1, 2016 Share Posted February 1, 2016 Overlooking you XML, things look in order, however you should also pass the GPU audio even if you don't plan to use it. Why? Well you can't use it elsewhere, and others have reported stability issues without passing it. You can easily add a 2nd audio device in the VM management page by hitting the plus to the left. Have you tried installing the Realtek drivers (assume its a Realtek), as opposed to the default Windows ones? Edit: I have the exact same board as you and don't have this issue... Let me look in to my drivers. See attached picture, does yours show a different driver/version? Any solution to this problem? I went out and bought the X99P-SLI and plan on using the onboard audio. This is not a global problem, I have an X99 Gigabyte board and the analog audio (+HDMI audio) work fine. Link to comment
wedge22 Posted February 1, 2016 Author Share Posted February 1, 2016 I have installed the Realtek drivers but for some reason the analogue audio is still not detected only the optical. Link to comment
saarg Posted February 1, 2016 Share Posted February 1, 2016 Have you checked that it's not a hardware issue in either the audio socket, cable or speakers? Any possibility to boot a live cd/USB with a Linux version to check if it works? And a last must ask even though it's most likely not the case, but did you connect the cable to the right socket on the motherboard? Link to comment
wedge22 Posted February 1, 2016 Author Share Posted February 1, 2016 I will try a live cd tonight and see if it works. The motherboard is new for me so I cannot confirm it worked previously. The speakers and cable work as I have tested with my phone. Link to comment
wedge22 Posted February 2, 2016 Author Share Posted February 2, 2016 I have tested a Ubuntu live USB and that worked fine with my headphones, I booted back into the Windows 10 VM and get no audio, it does not even detect any hardware connected to the analogue audio jacks in the Realtek software Link to comment
heilage Posted February 2, 2016 Share Posted February 2, 2016 I suspect that the root issue here is in Windows, actually. I have previously (although not in unRAID setups) had problems with Windows being finicky about which audio outputs were enabled/disabled and presedence. Could you show a screenshot of your output devices from Windows? (Right click on the sound icon in the taskbar) Link to comment
wedge22 Posted February 3, 2016 Author Share Posted February 3, 2016 I managed to resolve the issue, there is a setting in the Realtek HD Audio manager that lets you disable the automatic detection when an audio device is connected, disabling this resolved the issue. Link to comment
jonp Posted February 3, 2016 Share Posted February 3, 2016 I managed to resolve the issue, there is a setting in the Realtek HD Audio manager that lets you disable the automatic detection when an audio device is connected, disabling this resolved the issue. Figured it'd be something like that. Glad you got it resolved. Link to comment
