September 13, 20169 yr I'm currently using an Time Machine with an AFP share. It works OK except that my Mac looses the mount every so often. SMB became the preferred way for mounting volumes in 10.11 but AFP was still required (or preferred?) for Time Machine. UnRaid has a special share option for this - "TimeMachine This setting enables various special options for TimeMachine; in particular a "volume size limit"." In Sierra apparently Time Machine can now use SMB. Is anyone using this? Do I simply switch off the AFP share and enable the SMB one. There is no special Time Machine option within unRaid for SMB. Many thanks.
September 30, 20169 yr To anyone else who found this post trying to resolve Unraid + MacOS Sierra 10.12 Time Machine issues, I followed the following steps on the Synology forum and it resolved the issue on both my machines. I'm assuming it will be patched in a future MacOS release. [*]Mount the time machine volume as AFP volume: In macOS Finder -> CMD+k (use afp://ip.address/share_name) [*]Go to macOS System Preferences -> Time Machine -> Select Disk, select the volume you just mounted. [*]Unmount the share you manually mounted [*]Time Machine will try to log on and will mount the volume again. [*]After it finishes up checking it will unmount the volume automagically.
October 3, 20169 yr I haven't been able to get an SMB mount to show up as an option in TimeMachine. Apple's documentation states "Note: Some SMB and AFP disks from manufacturers other than Apple don’t support Time Machine. If your network uses an SMB or AFP disk, but the disk doesn’t appear in the list of devices available for Time Machine backups, contact the disk’s manufacturer." So not sure what needs to happen for this to work on unRAID, but would love to see it happen. I know Lime Tech has wanted to shut off AFP for a while, this is the path to make that happen!

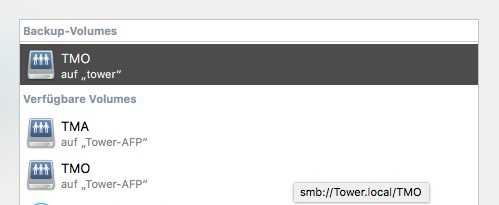

October 19, 20169 yr I am running Time Machine via SMB as the picture is showing (TMO auf "tower) but it seems that I still have to activate the same share via AFP ("TMO auf Tower-AFP" as available device for Time Machine) As soon as I am switching off AFP Time Machine stops working and doesn't find the share anymore. Maybe we need a kind of "Time Machine" switch similar to that what is available in AFP? Not sure what it does....
October 19, 20169 yr Here's Apple's official guide for Time Machine over SMB. https://developer.apple.com/library/content/releasenotes/NetworkingInternetWeb/Time_Machine_SMB_Spec/ Is unRAID's SMB version 3.x?
October 19, 20169 yr I think unRaid is using SMB 2 still, but that will only be one part of the issue. As far as I can tell, unRaid doesn't have any Bonjour support. My guess is that most of the other requirements are not currently supported and some may not be unRaid issues but rather Samba.
October 19, 20169 yr I think unRaid is using SMB 2 still, but that will only be one part of the issue. As far as I can tell, unRaid doesn't have any Bonjour support. My guess is that most of the other requirements are not currently supported and some may not be unRaid issues but rather Samba. Please don't post speculation. unRAID has supported SMB3 for a long time, as well as AVAHI, aka zeroconf, aka "Bonjour". The work required to get Samba to support TimeMachine via SMB is in process: https://bugzilla.samba.org/show_bug.cgi?id=12380 As soon as it's ready it will show up in an unRAID pre-release. In the meantime, has anyone tried this method? http://www.makeuseof.com/tag/turn-nas-windows-share-time-machine-backup/
October 20, 20169 yr The work required to get Samba to support TimeMachine via SMB is in process: https://bugzilla.samba.org/show_bug.cgi?id=12380 As soon as it's ready it will show up in an unRAID pre-release. In the meantime, has anyone tried this method? http://www.makeuseof.com/tag/turn-nas-windows-share-time-machine-backup/ That is great news!! I am using Time Machine over SMB - see my post above. Working really well as long as I am keeping AFP switched on.
October 20, 20169 yr The work required to get Samba to support TimeMachine via SMB is in process: https://bugzilla.samba.org/show_bug.cgi?id=12380 As soon as it's ready it will show up in an unRAID pre-release. In the meantime, has anyone tried this method? http://www.makeuseof.com/tag/turn-nas-windows-share-time-machine-backup/ That is great news!! I am using Time Machine over SMB - see my post above. Working really well as long as I am keeping AFP switched on. AVAHI (Bonjour) is turned on and off with the AFP Share Settings. http://lime-technology.com/forum/index.php?topic=20653.msg183055#msg183055
October 20, 20169 yr The work required to get Samba to support TimeMachine via SMB is in process: https://bugzilla.samba.org/show_bug.cgi?id=12380 As soon as it's ready it will show up in an unRAID pre-release. In the meantime, has anyone tried this method? http://www.makeuseof.com/tag/turn-nas-windows-share-time-machine-backup/ That is great news!! I am using Time Machine over SMB - see my post above. Working really well as long as I am keeping AFP switched on. AVAHI (Bonjour) is turned on and off with the AFP Share Settings. http://lime-technology.com/forum/index.php?topic=20653.msg183055#msg183055 That is no longer true. avahi enable/disable is independent of afp and actually there is no webGui control to turn avahi on/off. There are a set of avahi-related config settings on the flash in config/share.cfg: shareAvahiEnabled="yes" shareAvahiSMBName="%h" shareAvahiSMBModel="Xserve" shareAvahiAFPName="%h-AFP" shareAvahiAFPModel="Xserve" If you want to turn off avahi you can edit that file and change yes to no. If for some reason it's set to no in your server you can change to yes. When TimeMachine support has been properly integrated into Samba we plan to overhaul the OSX integration in unRAID.
November 2, 20178 yr Any advance in this matter? I have seen now unRAID has support for VFS_FRUIT with the option called "Enhanced OS X interoperability:" I've enabled that option for all my shares, but Time Machine keeps offering the server for backups just through AFP as usual (not visible though SMB).
November 2, 20178 yr 24 minutes ago, almarma said: Any advance in this matter? I have seen now unRAID has support for VFS_FRUIT with the option called "Enhanced OS X interoperability:" I've enabled that option for all my shares, but Time Machine keeps offering the server for backups just through AFP as usual (not visible though SMB). I wouldn’t use the enhanced setting. It alters permissions on files that you write to the share and can cause issues sharing files between users, apps, dockers, etc.
November 6, 20178 yr I was able to successfully set up TimeMachine and outlined how i did it here Edited November 6, 20178 yr by Can0nfan spelling
December 30, 20178 yr On 2/11/2017 at 2:50 PM, wgstarks said: I wouldn’t use the enhanced setting. It alters permissions on files that you write to the share and can cause issues sharing files between users, apps, dockers, etc. Could you please elaborate more on that or post a link? I'm surprised it can damage the permissions. I thought that option would work better with Macs, as that's the point of the option and that's what I'm using and will keep using in the future. So I don't understand why it would be troublesome :(.
December 30, 20178 yr 2 hours ago, almarma said: Could you please elaborate more on that or post a link? I'm surprised it can damage the permissions. I thought that option would work better with Macs, as that's the point of the option and that's what I'm using and will keep using in the future. So I don't understand why it would be troublesome :(. Here’s a link to the defect report I submitted- https://forums.lime-technology.com/topic/59899-635permission-issues-with-smb-shares-when-connecting-from-a-mac/ I suspect this isn’t really an unRAID issue, but rather a VFS_fruit issue. I’ve seen other complaints of this sort regarding VFS_fruit but haven’t been able to find anything concrete. Just complaints of improper permissions.
