[Support] Linuxserver.io - Oscam


Recommended Posts




Application Name: Oscam

Application Site: http://www.streamboard.tv/oscam/

Docker Hub: https://hub.docker.com/r/linuxserver/oscam/

Github: https://github.com/linuxserver/docker-oscam



Please post any questions/issues relating to this docker you have in this thread.



If you are not using Unraid (and you should be!) then please do not post here, instead head to linuxserver.io to see how to get support.

Edited by linuxserver.io
Link to comment

Edit: Nevermind guys. It was set up as bridged...gotta be a host obviously. All running now.



Hey guys,

used to run Oscam on a raspi, now wanna use this docker. I copied my settings over pretty much, but even with some tinkering I cant get my clients to show up/connect. This might be port related, although even clients within the same network dont connect. The clients use cccam.

I'm confused by port 10000 used by the docker, anyway, here are some basic infos to ports and C-line:

Unraid machine ip(local): 192.168.178.56

WebIF:8888 (docker default)

Port:10000 (docker default,whatever this is used for)

CCcam Port in Oscam.conf: 49384

In the router, port 49384 gets redirected to 49384 on 192.168.178.56.

C-line on client:

C: 192.168.178.56 49384 username password

I tried forewarding 49384 to 10000 on 192.168.178.56 as well, since I have no idea what the second port is used for, but no luck as well.

Yes, the machine and client are in the same network.



Can anybody point me in the right direction ?



Edit: Im fairly sure its my C-Line...do i have to enter something other than the unraids machine ip ?



Link to comment

Edit: Nevermind guys. It was set up as bridged...gotta be a host obviously. All running now.



Hey guys,

used to run Oscam on a raspi, now wanna use this docker. I copied my settings over pretty much, but even with some tinkering I cant get my clients to show up/connect. This might be port related, although even clients within the same network dont connect. The clients use cccam.

I'm confused by port 10000 used by the docker, anyway, here are some basic infos to ports and C-line:

Unraid machine ip(local): 192.168.178.56

WebIF:8888 (docker default)

Port:10000 (docker default,whatever this is used for)

CCcam Port in Oscam.conf: 49384

In the router, port 49384 gets redirected to 49384 on 192.168.178.56.

C-line on client:

C: 192.168.178.56 49384 username password

I tried forewarding 49384 to 10000 on 192.168.178.56 as well, since I have no idea what the second port is used for, but no luck as well.

Yes, the machine and client are in the same network.



Can anybody point me in the right direction ?



Edit: Im fairly sure its my C-Line...do i have to enter something other than the unraids machine ip ?

The 10000 port is just the default one I put in and you can use whatever you like. The only thing you need to do is add a new port mapping for each port you are using in the template. No need to run it with host network.



Their should be no reason to do port forwarding in your local network.

Link to comment

That is weird though. If I have the same C-Line, and set up Oscam exactly the same, except changing the network from bridged to host...On bridged, I dont get any connection. On host, I do right away. Local network client.

If you'd like to investigate this, let me know. Otherwise, are there any disadvantages running it as host ?

Link to comment

What would be the correct way to map it then, considering my first posts information ?  :-[

You add a new port in the template for each port you have in the c-lines.

So 49384 on both host and container port. The same for any other port you want to use.

Post a screenshot of the template after you done it with a list of ports if you want it confirmed that its right.

Link to comment

Hello,



When I enable cccam or newcamd modules in oscam, I have the following errors in log and I cannot access Web interface:

- in case of cccam:

23:06:23 00000000 s (net) cccam: Bind request failed (Permission denied), waiting another 106 seconds

- in case of newcamd:

(net) newcamd: Bind request failed (Permission denied), waiting another 87 seconds



I tried with different Network modes, the same.

When I do telnet from unraid to the appropriate ports it says "Connection refused"

Might be Docker general network configuration issue?



Thank you in advance for your help,

Link to comment

Hello,



When I enable cccam or newcamd modules in oscam, I have the following errors in log and I cannot access Web interface:

- in case of cccam:

23:06:23 00000000 s (net) cccam: Bind request failed (Permission denied), waiting another 106 seconds

- in case of newcamd:

(net) newcamd: Bind request failed (Permission denied), waiting another 87 seconds



I tried with different Network modes, the same.

When I do telnet from unraid to the appropriate ports it says "Connection refused"

Might be Docker general network configuration issue?



Thank you in advance for your help,



Did you add the ports you use in the oscam template?

Link to comment



Did you add the ports you use in the oscam template?



Hi,

If you mean add ports while adding new container - yes, if I should add the ports to docker's xml file (which was stored later) - no.

On the other hand, when I disable the modules, I can access oscam interface at 8888 port

Link to comment



Did you add the ports you use in the oscam template?



Hi,

If you mean add ports while adding new container - yes, if I should add the ports to docker's xml file (which was stored later) - no.

On the other hand, when I disable the modules, I can access oscam interface at 8888 port



Tell me which ports you use, and a screenshot of the oscam template.

Link to comment

When I do telnet from unraid to the appropriate ports it says "Connection refused"



Can you telnet across to Oscam ports?  I didn't know that.  But I know nothing about Oscam I suppose.



I don't think so...



I think you can.

This is the easiest way to check, if a port (socket) of a server is available. For example start oscam and from unraid prompt write:



telnet 192.168.1.xxx 8888



If there is no error, it means that the port is available. Telnet will tell you: "Connected to 192.168.1.xxx".



You can start web browser or if you wrote HTTP request :) , you would receive HTML answer (Web page) from oscam.

The cccam module creates server socket that listens for incoming connections, in this case telnet is good tool to check, if the port is accessible.

Link to comment



Tell me which ports you use, and a screenshot of the oscam template.



I use port 876 for cccam.

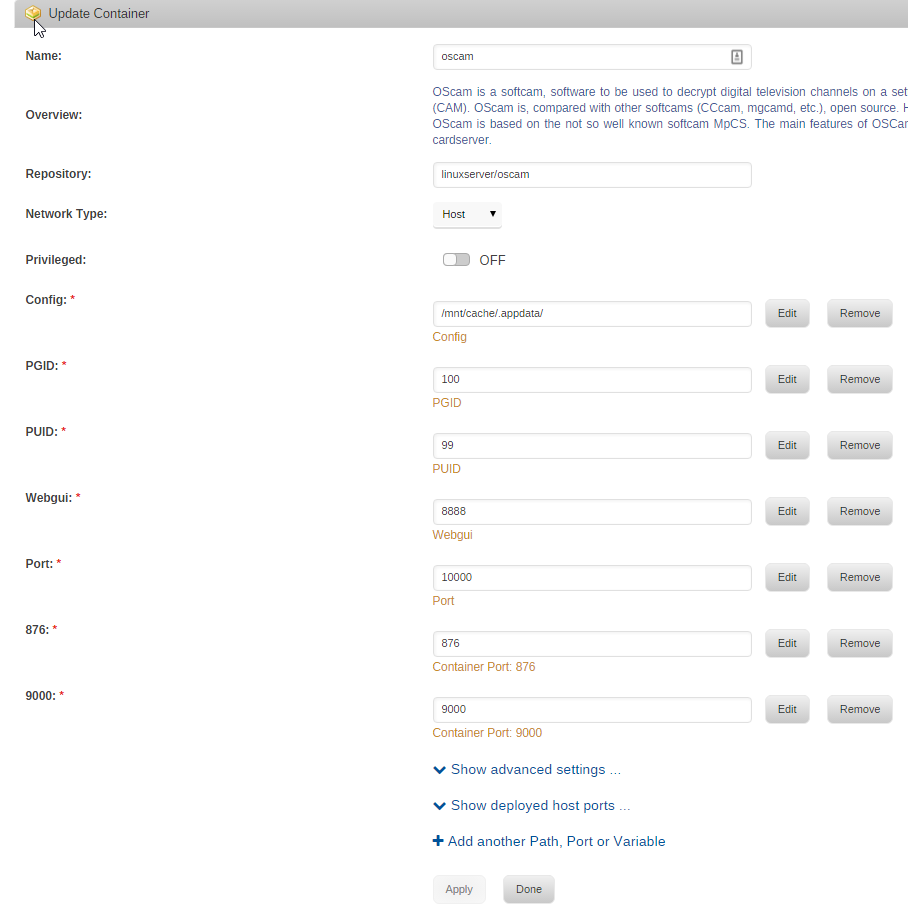

Please look into attachment for the container set up.



Thank you



Who have you set the network to host? There should be no need to. Change it back to bridge and try again.

Link to comment



Tell me which ports you use, and a screenshot of the oscam template.



I use port 876 for cccam.

Please look into attachment for the container set up.



Thank you



Who have you set the network to host? There should be no need to. Change it back to bridge and try again.



I checked both 'host' and 'bridge' modes, in both cases the error occurred.



But I switched port from 876 to 8765 and it looks that the problem disappeared :)

It was late and I could not check the port accessibility, but at least, there were no error messages in the log.



Maybe the issue is related to ports lower than 1024. I do not know, if there are any restrictions in docker for ports.



I will check if the port is accessible and check if the solution works for other modules.

I will do a test with numbers like 877 or similar.





Link to comment



Tell me which ports you use, and a screenshot of the oscam template.



I use port 876 for cccam.

Please look into attachment for the container set up.



Thank you



Who have you set the network to host? There should be no need to. Change it back to bridge and try again.



I checked both 'host' and 'bridge' modes, in both cases the error occurred.



But I switched port from 876 to 8765 and it looks that the problem disappeared :)

It was late and I could not check the port accessibility, but at least, there were no error messages in the log.



Maybe the issue is related to ports lower than 1024. I do not know, if there are any restrictions in docker for ports.



I will check if the port is accessible and check if the solution works for other modules.

I will do a test with numbers like 877 or similar.



It might be that it's reserved for some other service. It's best to use higher port numbers than 1024 for dockers.

Link to comment
  • 3 months later...

Hey guys,

Quick question, how do I add the --device tag to the docker? do I add a variable?



Greetings gl3nn

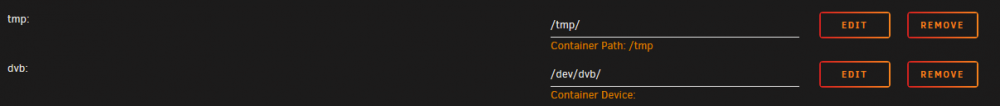

Either by adding a device clicking on the add port, variable, volume, device button (do not add the tag itself, only the device) or switch to advanced view and add the tag in the extra parameters box.

Link to comment
