Mike G Posted June 9, 2018 Share Posted June 9, 2018 (edited) Hi all, first time user here. Currently using win10 and plex to stream to rokus around the house. I have to expand my storage and build in some redundancy so I figured I'd give Unraid a shot. So far I've created the boot USB drive using the "getting started" instructions. Its a 32gb sandisk cruzer fit. Unraid boots fine in my main gaming rig, but will not boot up in the media box; the screen is just blank. Media Box is running ASUS H87Iplus - Bios v 2003 11/05/2014, with i5-4670 onboard gpu. Things I've tried: A different 2gb usb drive (again boots fine in gaming machine) Fast boot: on/off Multiple USB ports 3.0/2.0 UEFI: on/off Mass Storage - Forced FDD/Auto There's other settings in the bios related to USB (USB legacy support, Intel xHCI, EHCI hand-off) but I'm not sure what they do... Any help is appreciated! Edited June 14, 2018 by Mike G Quote Link to comment
Mike G Posted June 9, 2018 Author Share Posted June 9, 2018 Been trying a different bios settings, usb drives fat32 and fat for 3 hours now, nothing works. Should I accept the fact that unraid doesn't work with the H87iplus? Quote Link to comment
Squid Posted June 9, 2018 Share Posted June 9, 2018 Have you tried manually selecting the boot order when the system boots up and then selecting the flash drive? Quote Link to comment
_0m0t3ur Posted June 9, 2018 Share Posted June 9, 2018 Mike. Have you looked at the video, Configuring Your Bios? Here's the link, top row and third from the left. https://lime-technology.com/videos/ Quote Link to comment
trurl Posted June 9, 2018 Share Posted June 9, 2018 I have this mobo but unfortunately running headless. I believe I did have to do something with legacy support originally, but I don't know if that is what I have currently since UEFI booting became available for unRAID. If you don't get it going I will try to take mine down sometime this weekend and attach a monitor to see what I have. Quote Link to comment
Mike G Posted June 10, 2018 Author Share Posted June 10, 2018 4 hours ago, DoItMyselfToo said: Mike. Have you looked at the video, Configuring Your Bios? Here's the link, top row and third from the left. https://lime-technology.com/videos/ Yea i set what i could. I'll post the full settings later to see if you guys see something i missed. Quote Link to comment
_0m0t3ur Posted June 10, 2018 Share Posted June 10, 2018 Cool.Sent from my iPhone using Tapatalk Quote Link to comment
PeteB Posted June 10, 2018 Share Posted June 10, 2018 Have a look at your secure boot settings. It should be set to "other os"Sent from my SM-N920I using Tapatalk Quote Link to comment
Mike G Posted June 10, 2018 Author Share Posted June 10, 2018 6 hours ago, PeteB said: Have a look at your secure boot settings. It should be set to "other os" Sent from my SM-N920I using Tapatalk Set to "other os" = still no bot screen Quote Link to comment

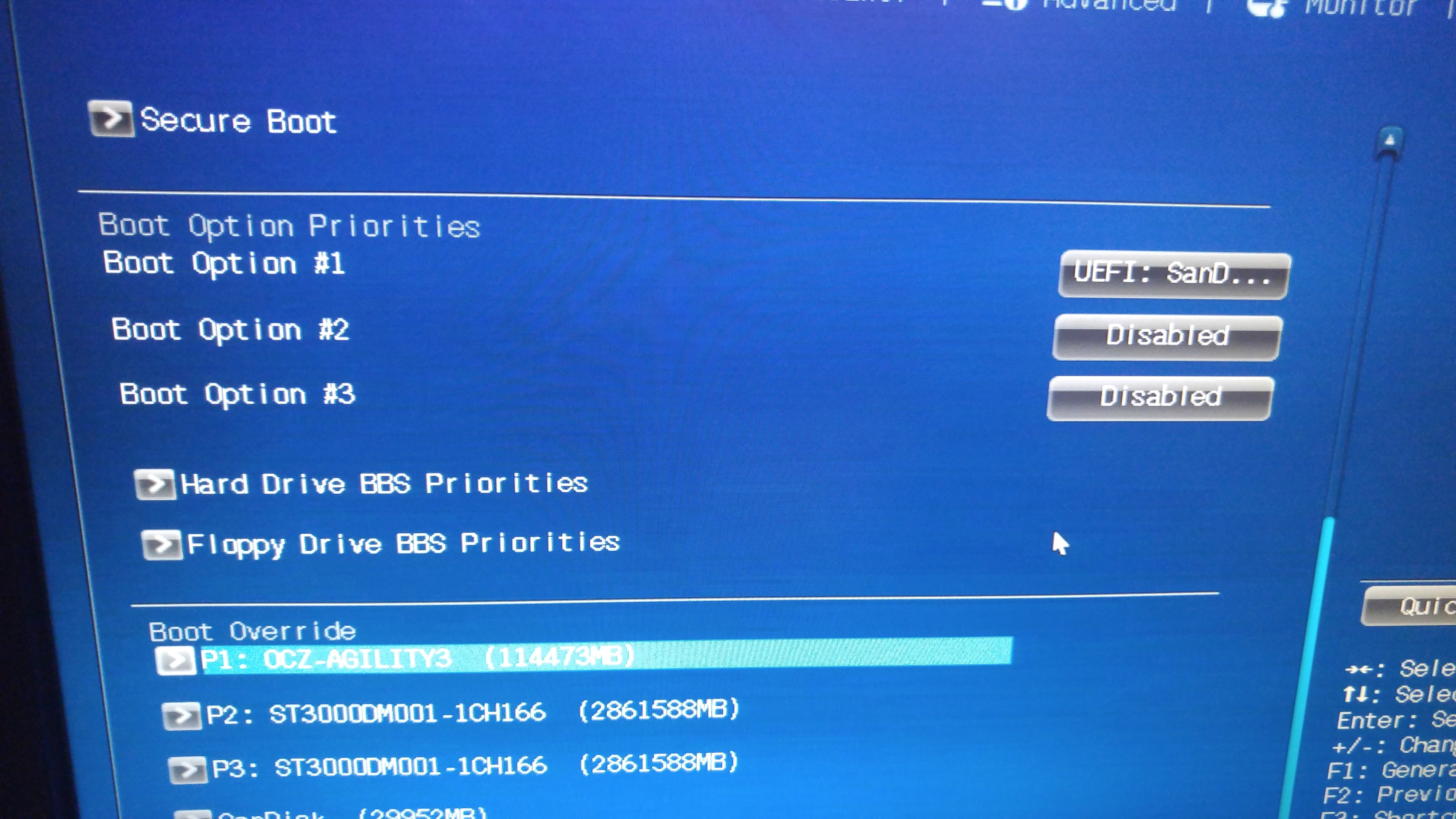

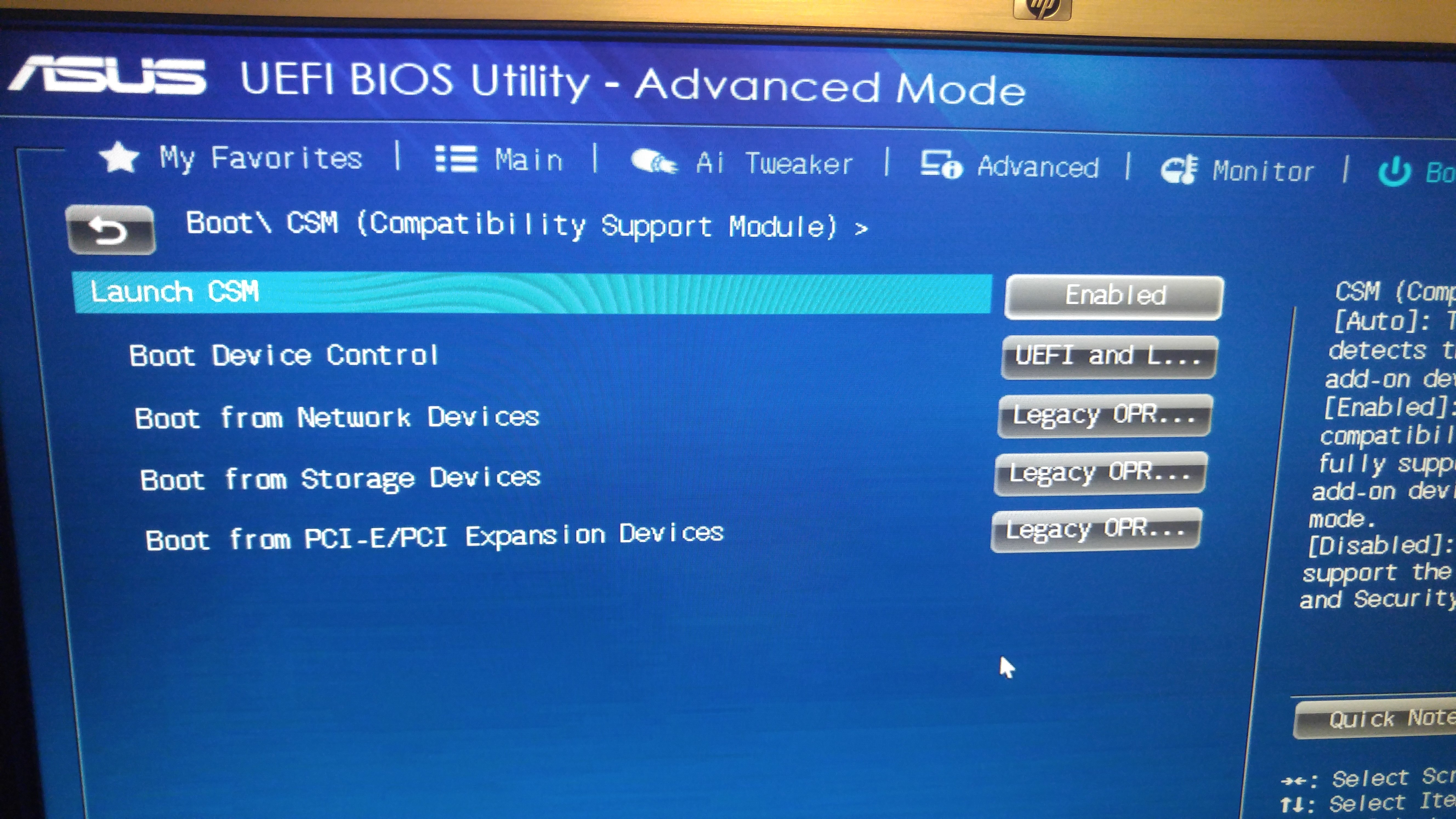

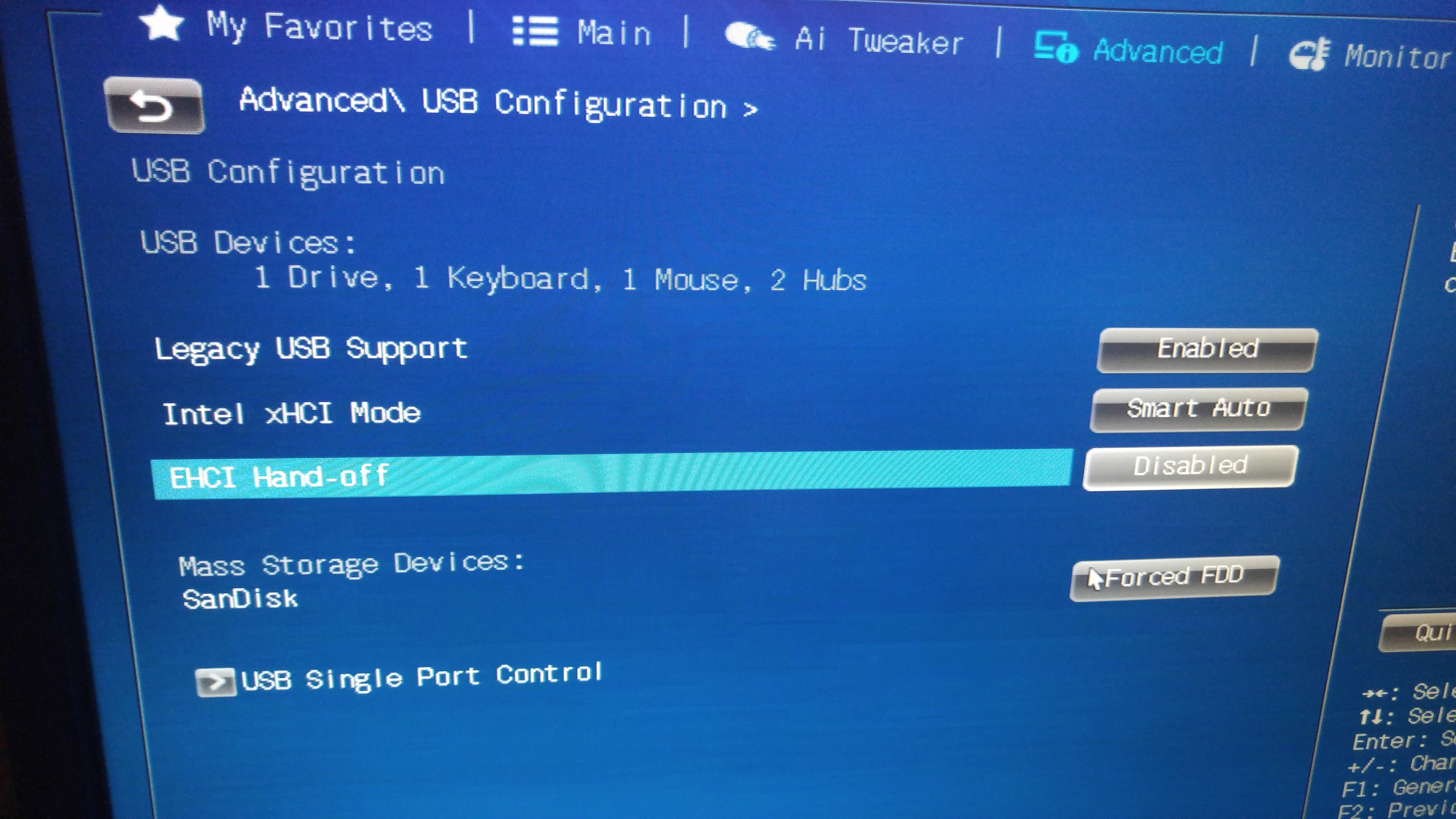

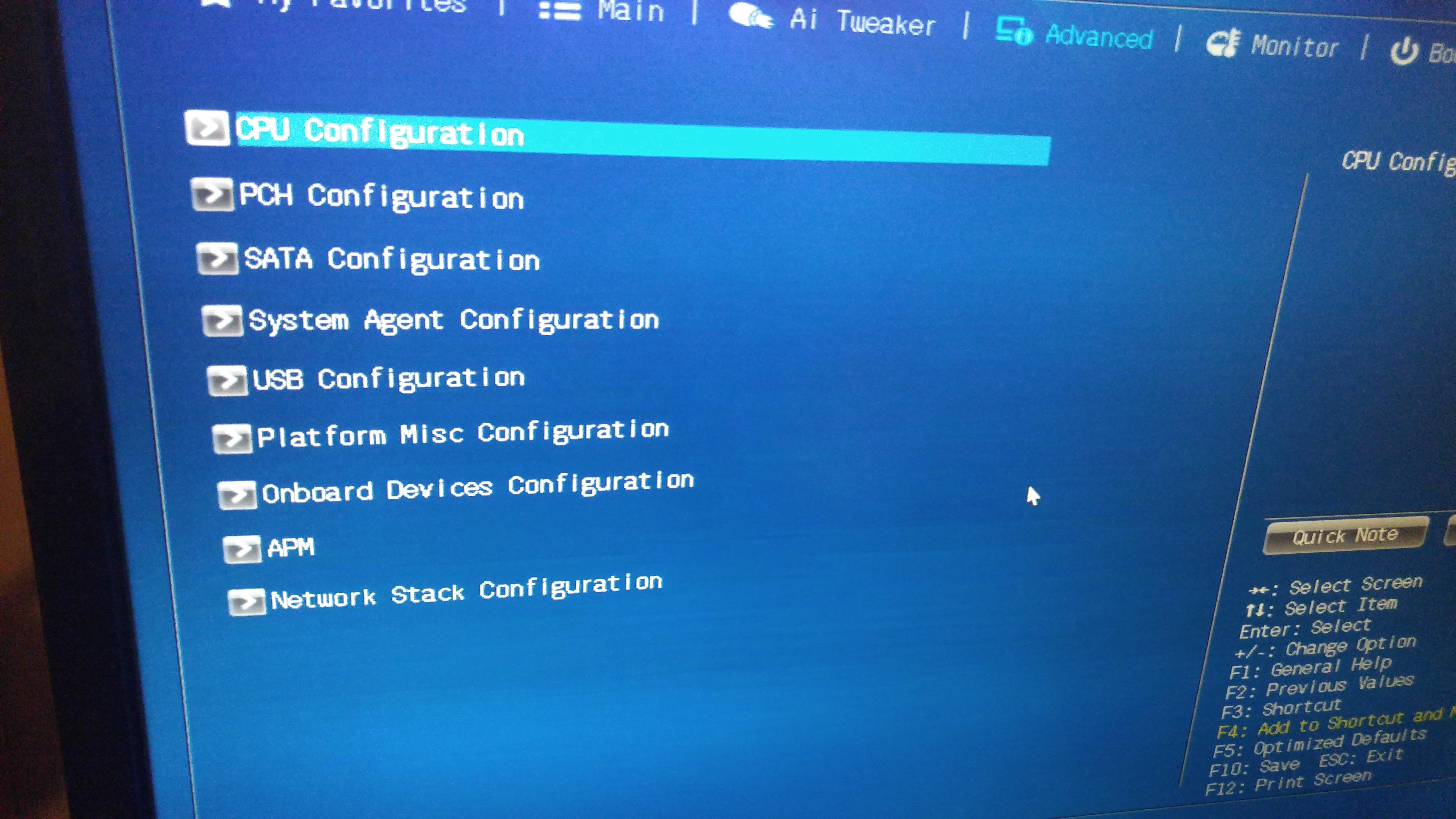

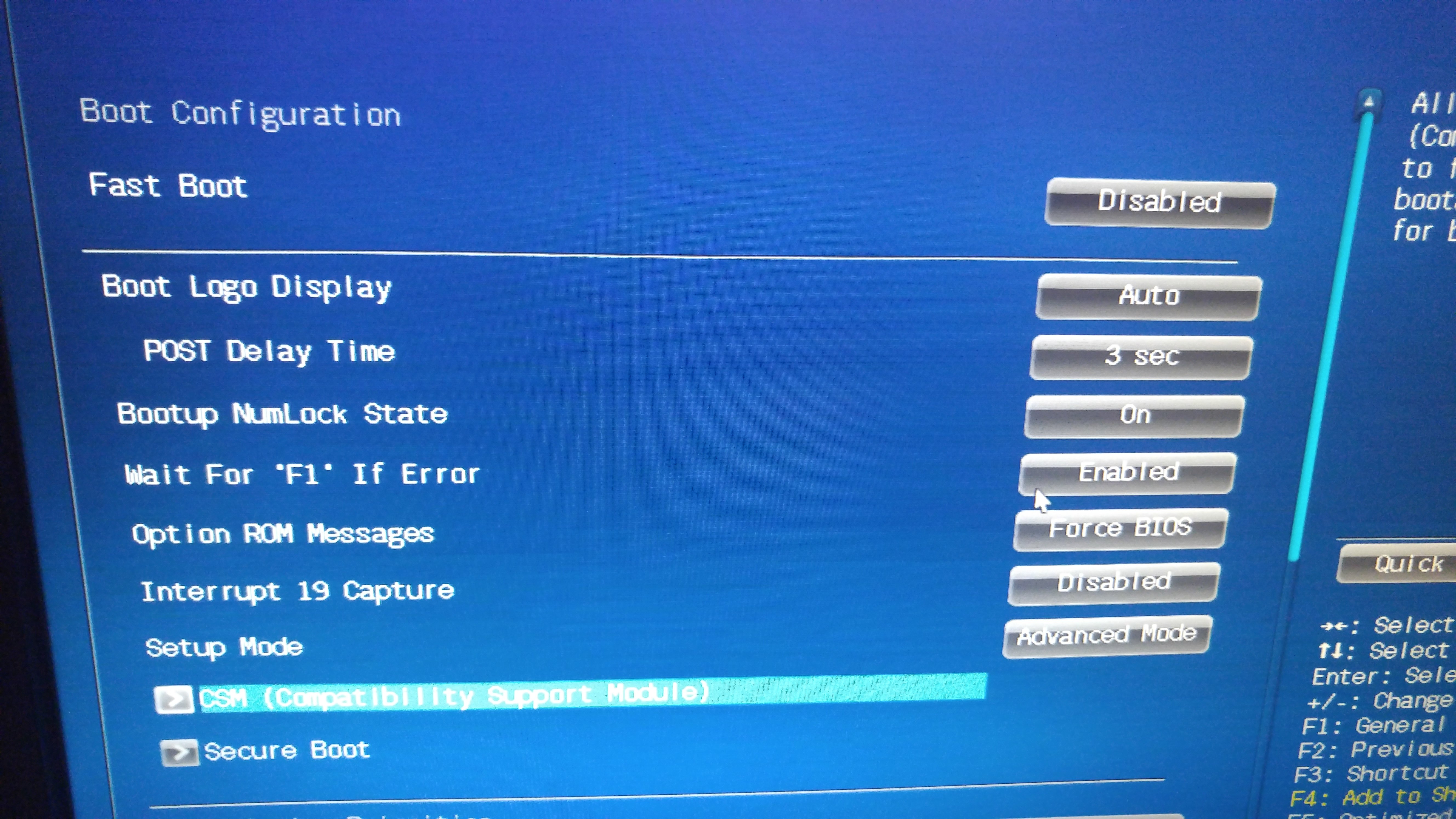

Mike G Posted June 10, 2018 Author Share Posted June 10, 2018 Here's the screen shots of my bios pages. I've noticed when I set the boot priority to "UEFI Sandisk" the computer goes right to the bios screen, if I set to "Sandisk" it posts, then blank screen. Quote Link to comment
Frank1940 Posted June 10, 2018 Share Posted June 10, 2018 I would be trying moving the SanDisk to the top of the Boot Override list. Quote Link to comment
Frank1940 Posted June 10, 2018 Share Posted June 10, 2018 (edited) Also Google ASUS H87Iplus boot issues unraid and ASUS H87Iplus boot issues Double check that you are running the latest BIOS. There seems to be some issues with this MB. Edited June 10, 2018 by Frank1940 Quote Link to comment
Mike G Posted June 10, 2018 Author Share Posted June 10, 2018 Solution!! Set "Legacy USB" to disable, in CSM change all to UEFI first. Boots like a champ. Thanks! 1 Quote Link to comment
_0m0t3ur Posted June 10, 2018 Share Posted June 10, 2018 5 minutes ago, Mike G said: Solution!! Set "Legacy USB" to disable, in CSM change all to UEFI first. Boots like a champ. Thanks! Great job, Mike! Glad you found success. Quote Link to comment
Frank1940 Posted June 10, 2018 Share Posted June 10, 2018 (edited) Typical!!! Solution achieved by trying permutations of all possible settings... ? Edited June 10, 2018 by Frank1940 Quote Link to comment
mrbusiness Posted September 26, 2020 Share Posted September 26, 2020 I fixed it by doing what eschultz said: Quote Try booting using UEFI by renaming the EFI- folder to EFI (remove the dash) on the flash drive and set the boot order to #1 UEFI (Flash Drive) in your BIOS. Quote Link to comment
benediktleb Posted March 1, 2021 Share Posted March 1, 2021 On 9/26/2020 at 11:24 AM, mrbusiness said: I fixed it by doing what eschultz said: Thank you so much! I know this thread is old, but I'm sure people will eventually have the problem on an Asrock J4125B board, too. Removing the dash worked. Quote Link to comment
triki Posted March 21, 2021 Share Posted March 21, 2021 On 3/1/2021 at 3:51 PM, benediktleb said: Thank you so much! I know this thread is old, but I'm sure people will eventually have the problem on an Asrock J4125B board, too. Removing the dash worked. This saved me as well ! Currently running 6.8.3. Thank you so much !! 1 Quote Link to comment
Caithlen Posted June 11, 2021 Share Posted June 11, 2021 On 6/10/2018 at 9:25 PM, Mike G said: Solution!! Set "Legacy USB" to disable, in CSM change all to UEFI first. Boots like a champ. Thanks! Thank you. Works for me aswell. Quote Link to comment
Trucking Geek Posted June 11, 2021 Share Posted June 11, 2021 So I was having this same issue, but with a much newer ASUS motherboard. Was trying everything to get it to boot, but kept going back to the BIOS. That last hint about renaming EFI- to just EFI fixed it for me!!!! Thank you so much everyone!!! Quote Link to comment
SLCBurrito Posted October 18, 2021 Share Posted October 18, 2021 On 6/10/2018 at 1:25 PM, Mike G said: Solution!! Set "Legacy USB" to disable, in CSM change all to UEFI first. Boots like a champ. Thanks! Reporting in from Oct 2021 and this post helped me fix my upgrade to an Asus TUF GAMING X570-PRO motherboard. Specifically, it was the latter CSM bit that helped me. Thank you for the post/thread! Quote Link to comment
demo Posted December 29, 2022 Share Posted December 29, 2022 I had the same issue on an ASUS Gryphon Z97 with an Intel Xeon E3-1231v3. Fixed it by renaming the EFI- folder to EFI on the usb stick. Works like a charm. Thanks! Quote Link to comment
chaosthebomb Posted February 25, 2023 Share Posted February 25, 2023 This solved my boot issue when I upgraded to an Asus x570-e board. Turned Legacy USB disabled and switched CSM to UEFI. Thanks! Quote Link to comment
