Zandor300 Posted December 23, 2018 Share Posted December 23, 2018 (edited) Hi, This morning, I woke up with a notification on my phone because a disk has gone into disabled state. I'm far from home (London) and only get back on Tuesday (The Netherlands) but when I downloaded diagnostics remotely, I found a bunch of write errors in a bunch of different sectors on Disk 1. So my question: Did my disk die, has the cable gone bad (again), did my port go bad, or has something else gone wrong? I had someone which is at the place of my server send me pictures from the outside and external cables and all that is fine. Also note, I just found out about all the bruteforce attacks the server has been getting, but that is a thing for when I get back. Kind regards, Zandor Smith oxygen-diagnostics-20181223-0943.zip Edited December 26, 2018 by Zandor300 Quote Link to comment
JorgeB Posted December 23, 2018 Share Posted December 23, 2018 Looks more like a connection problem, but since the disk dropped offline there's no SMART report, you'll need to power cycle the server to see if the disk comes online and post new diags. Quote Link to comment

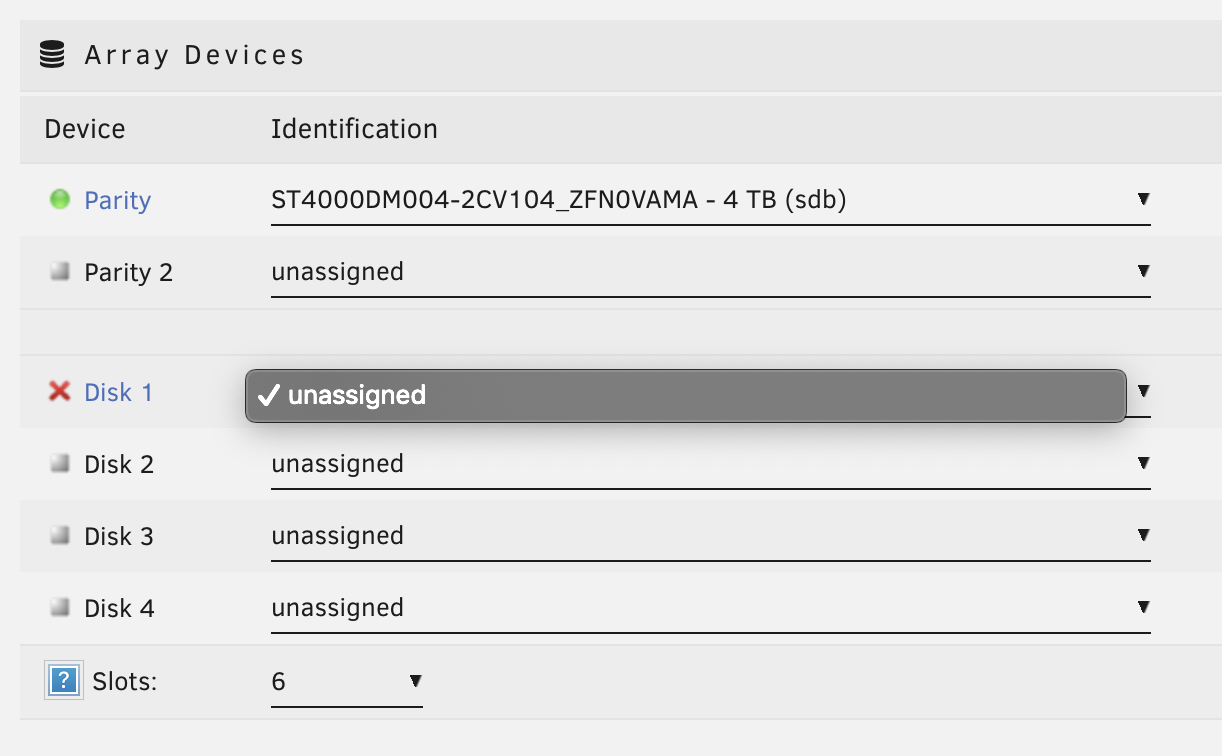

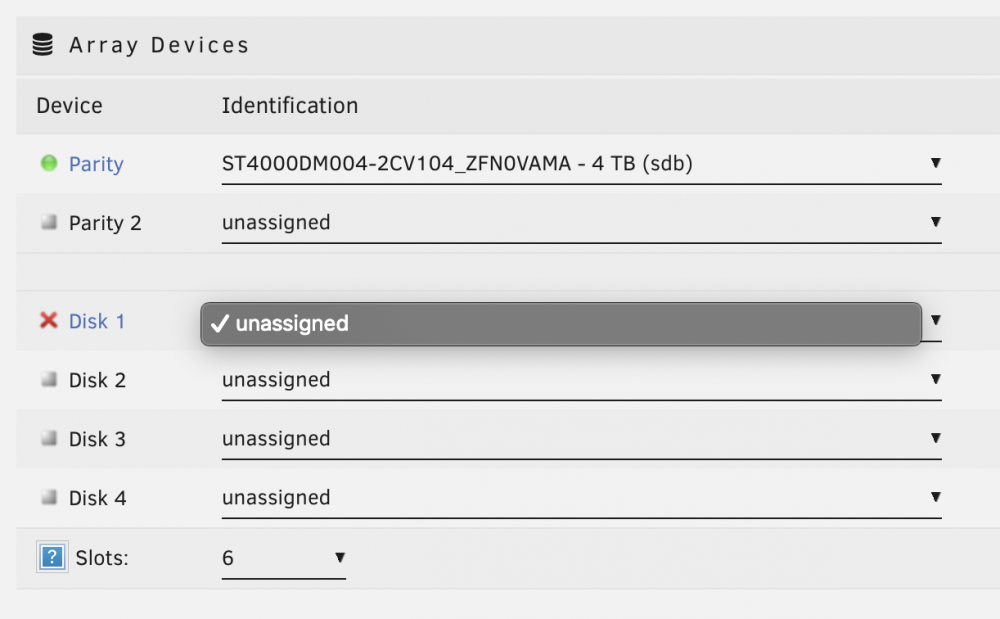

Zandor300 Posted December 24, 2018 Author Share Posted December 24, 2018 The server has been restarted and the disk isn't found by the bios. When going into the boot selection menu, the disk was not showing up. My parity was and my boot drive too. This is what I got to see after Unraid started up: This is a diagnostics file before starting the array. oxygen-diagnostics-20181224-0945.zip I will return tonight so I will check on the wiring tomorrow, swap some cables or connect it with a different port. Quote Link to comment
JorgeB Posted December 24, 2018 Share Posted December 24, 2018 Swap/replace cables and SATA ports on that disk, if it's not detect by the BIOS it also won't be detected by Unraid. Quote Link to comment
Zandor300 Posted December 25, 2018 Author Share Posted December 25, 2018 (edited) While I unplugged the parity drive (as I later found out I mixed up the drives), I might have accidentally nudged the Disk 1 SATA cable because after I started the machine, the drive showed up again in the boot menu. It is currently rebuilding Disk 1... If the disk goes down again I will replace the SATA cable. The other available SATA 3 port is broken and only have a SATA II port left so if the SATA port doesn't have a reliable connection, it might be a good excuse to replace it along with the memory and CPU. I've read that the AMD Athlon 64 X2 5000+ isn't very power efficient and the board doesn't have Gigabit ethernet. It's running on a PCIe nic. Edited December 25, 2018 by Zandor300 Quote Link to comment
trurl Posted December 26, 2018 Share Posted December 26, 2018 7 hours ago, Zandor300 said: While I unplugged the parity drive (as I later found out I mixed up the drives), Hope you didn't put a data drive in the parity slot. Quote Link to comment
Zandor300 Posted December 26, 2018 Author Share Posted December 26, 2018 (edited) 2 hours ago, trurl said: Hope you didn't put a data drive in the parity slot. I meant, physically, I thought the parity drive was my data drive but I found out even before booting into Unraid. Additionally, I always check serial numbers of the drives before changing array configurations. Also, don’t know if you know this, but if anyone would swap around drives, physically, Unraid doesn’t care and still correctly mounts the drives. Disk 1 has been rebuilt. Will change topic to solved for now. Edited December 26, 2018 by Zandor300 Quote Link to comment
trurl Posted December 26, 2018 Share Posted December 26, 2018 3 hours ago, Zandor300 said: Also, don’t know if you know this, but if anyone would swap around drives, physically, Unraid doesn’t care and still correctly mounts the drives. I've certainly explained that to other users in numerous posts. Disk serial number is the only thing that matters. I only use the word 'slot' when I am referring to Unraid assignments since that is the word Unraid uses in the syslog. I say 'port' (only occasionally) to refer to a connection and 'bay' (very seldom) to refer to a place in the case. Quote Link to comment
