[REQUEST] Meshcentral

[Ruthalas]

Appreciate it!

Configuration:

Name: MeshcCentral
Repository: uldiseihenbergs/meshcentral
WebUI: http://[IP]:[PORT:466]/
Network Type: Bridge
Console shell command: Shell
Privileged: Off
Port: Container 80, Host 82, TCP
Port (UI): Container 8443, Host 455, TCP
Port (Agents): Container 443, Host 466, TCP
Path (Data): Container /home/node/meshcentral/meshcentral-data, Host /mnt/user/appdata/meshcentral/data/, Read/Write
Path (Files): Container /home/node/meshcentral/meshcentral-files, Host /mnt/user/appdata/meshcentral/files/, Read/Write
Path (Web): Container /home/node/meshcentral/meshcentral-web, /mnt/user/appdata/meshcentral/web/, Read/Write
Path (Backup): Container /home/node/meshcentral/meshcentral-backup, /mnt/user/appdata/meshcentral/backup/, Read/Write

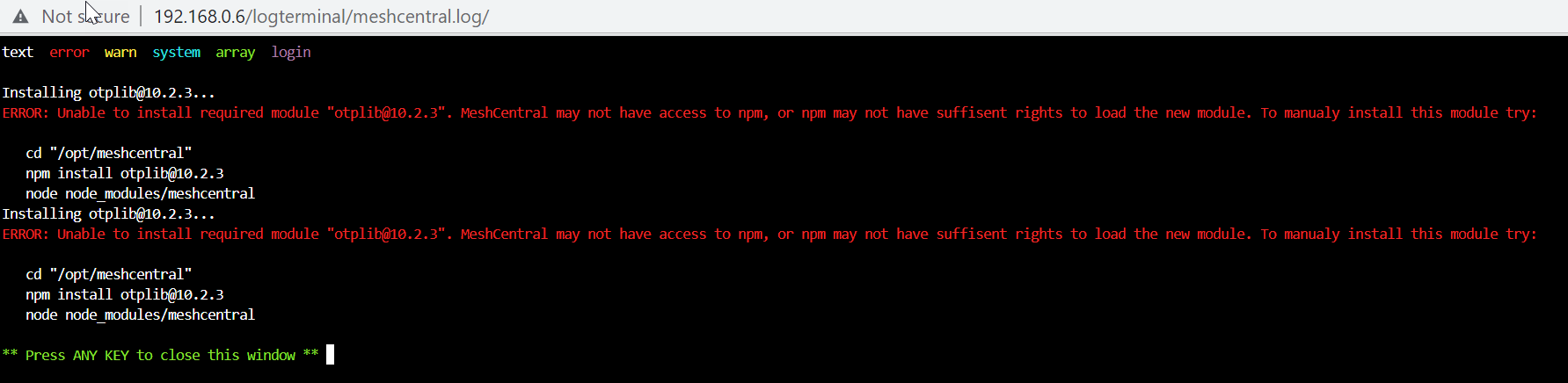

If the log you refer to is the one linked to in the unRAID UI, then this is the contents: (If there's another within the docker, let me know where it exists and I will fetch it!)

Installing [email protected]...
Installing [email protected]...
MeshCentral HTTP redirection server running on port 80.
MeshCentral v0.7.50, LAN mode.
Server has no users, next new account will be site administrator.
MeshCentral HTTPS server running on port 443.



I have removed the container/image and deleted it's folder in appdata and recreated it (with the above settings) and the result was the same.

[uldise]

1 hour ago, Ruthalas said:

WebUI: http://[IP]:[PORT:466]/

there is mistake, i wrote it already. you should use https

[Ruthalas]

Apologies!
I thought I had manually tried that previously, and hadn't realized the listing in unRAID was still incorrect.

I can reach the webUI now.
Thank you for your patience.

Edit: Got this all set up and had a single issue- Remote sessions would disconnect after about a minute. To resolve this I followed the advice given here.

Quote

...[add] the following line in the settings section of config.json

"AgentPong": 50,



Edited February 16, 2021 by Ruthalas
Added way to resolve another issue.

[Mr_Jay84]

I'm trying to get this running but still can't reach the WebUI.



Installing [email protected]...
Installing [email protected]...
MeshCentral HTTP redirection server running on port 80.
Generating certificates, may take a few minutes...
Generating root certificate...
Generating HTTPS certificate...
Generating MeshAgent certificate...
Generating Intel AMT MPS certificate...
MeshCentral v0.8.16, LAN mode.
Server has no users, next new account will be site administrator.
MeshCentral HTTPS server running on port 443.

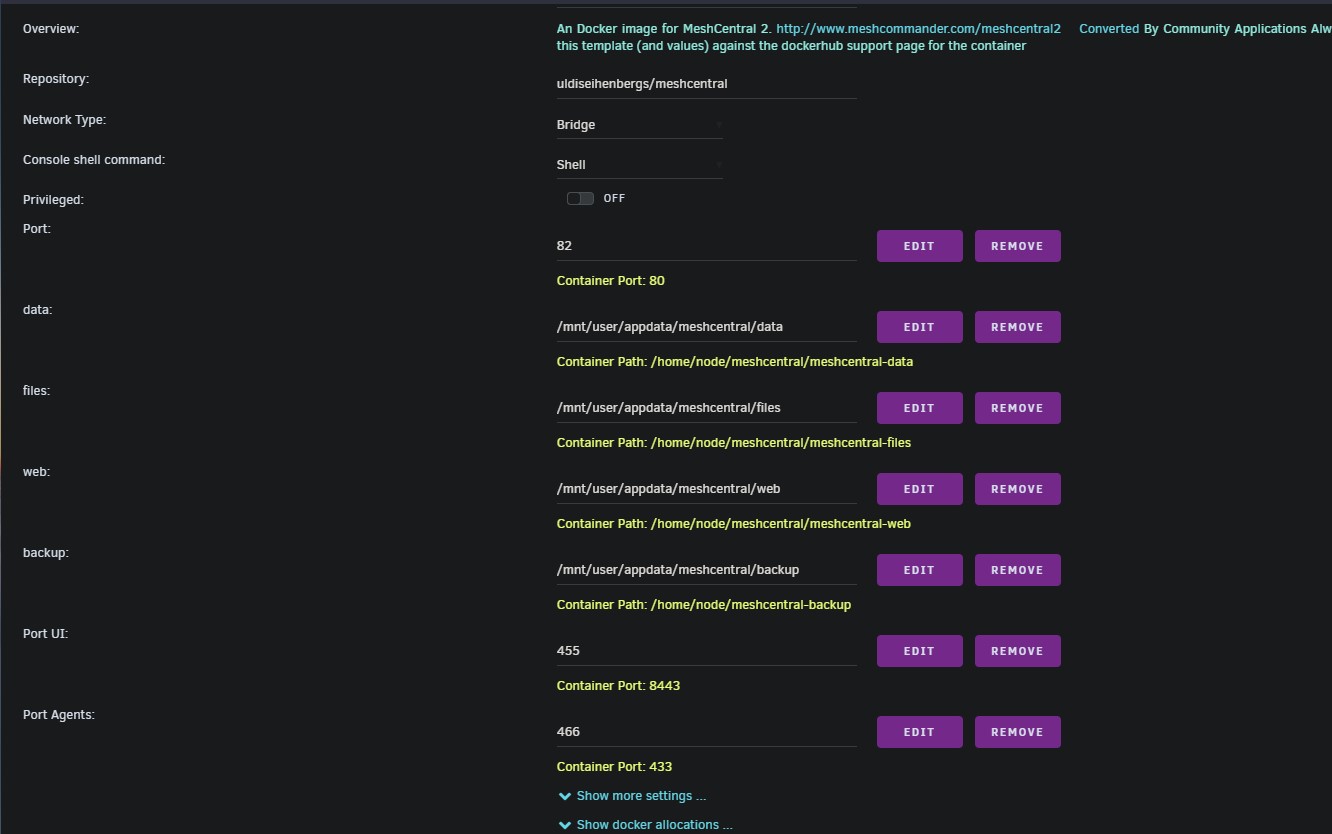

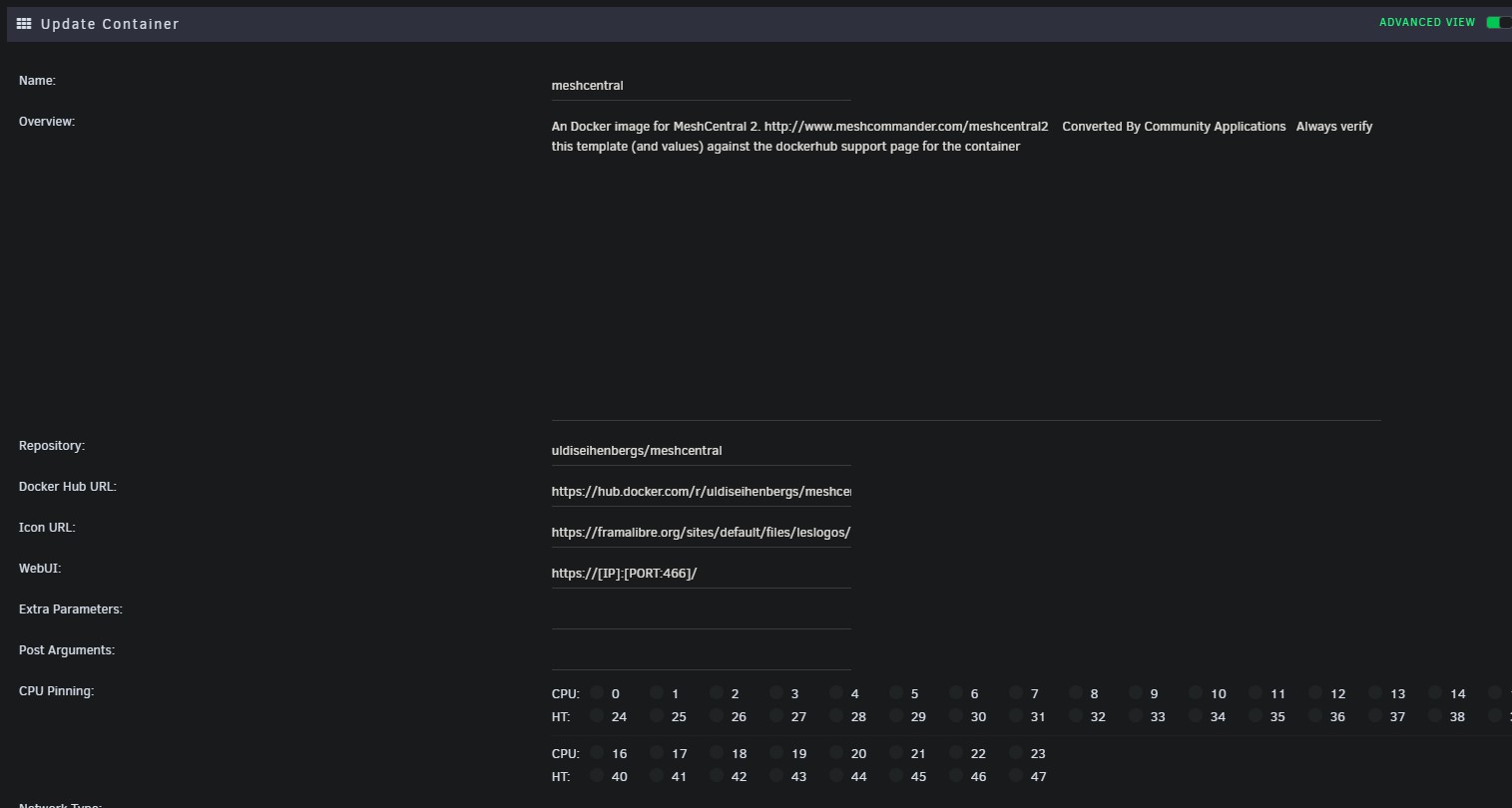

Docker Template in attached screenshots

[uldise]

@Mr_Jay84 seems like it's a first run, and you should access Webui with https://<yourLANIP>:466/

[Mr_Jay84]

1 hour ago, uldise said:

@Mr_Jay84 seems like it's a first run, and you should access Webui with https://<yourLANIP>:466/

No joy whatsoever unfortunately.

[uldise]

@Mr_Jay84 there is typo on your port mappings - on last row container port should be 443 but you have 433

[Mr_Jay84]

On 5/7/2021 at 4:00 PM, uldise said:

@Mr_Jay84 there is typo on your port mappings - on last row container port should be 443 but you have 433

Christ so it is! That will team me to install dockers when drinking! lol



Thanks awfully!

[tjustice86]

How do I edit the settings file? I don't see any files under my meshcentral-data folder unless I check from within the container itself. Inside the container I don't have nano or vi?

[uldise]

On 6/6/2021 at 4:19 AM, tjustice86 said:

I don't see any files under my meshcentral-data folder unless I check from within the container itself.

then it's something wrong with volume mapping. all config files should be accessible by host in mapped folder.

[tjustice86]

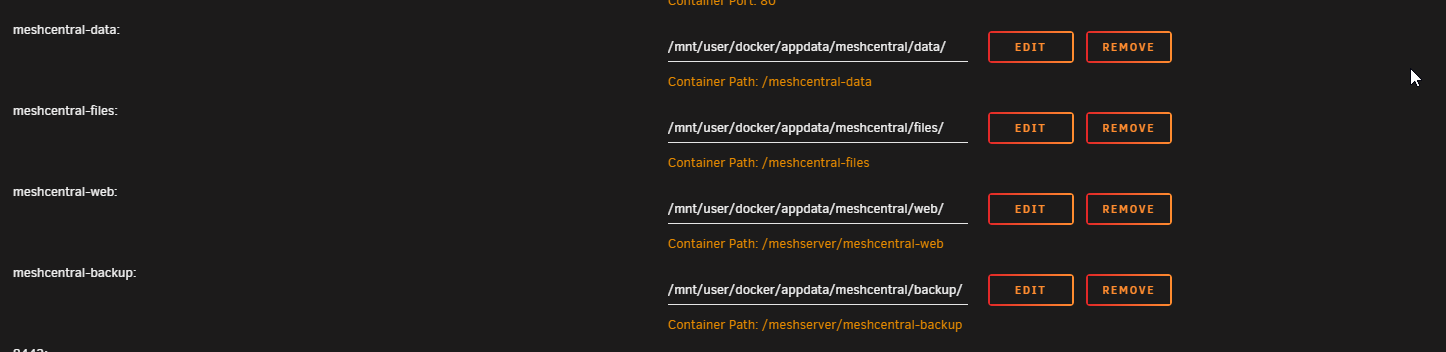

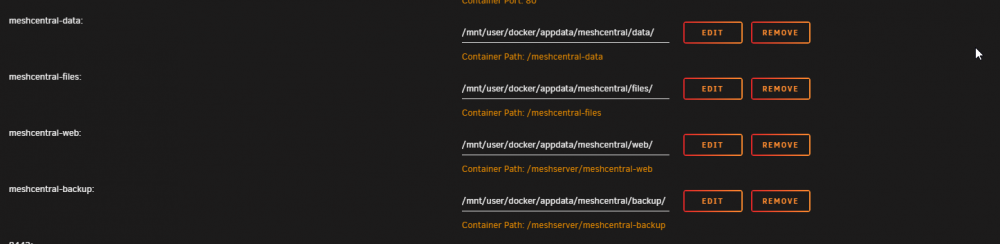

Here are my volume settings.

[uldise]

Container paths is wrong, see here: https://hub.docker.com/r/uldiseihenbergs/meshcentral

[turn8]

there is now a mesh central docker posted in community apps, when clicking the support thread it links to a webpage and not an actual support thread. has anyone gotten this working?

[casperse]

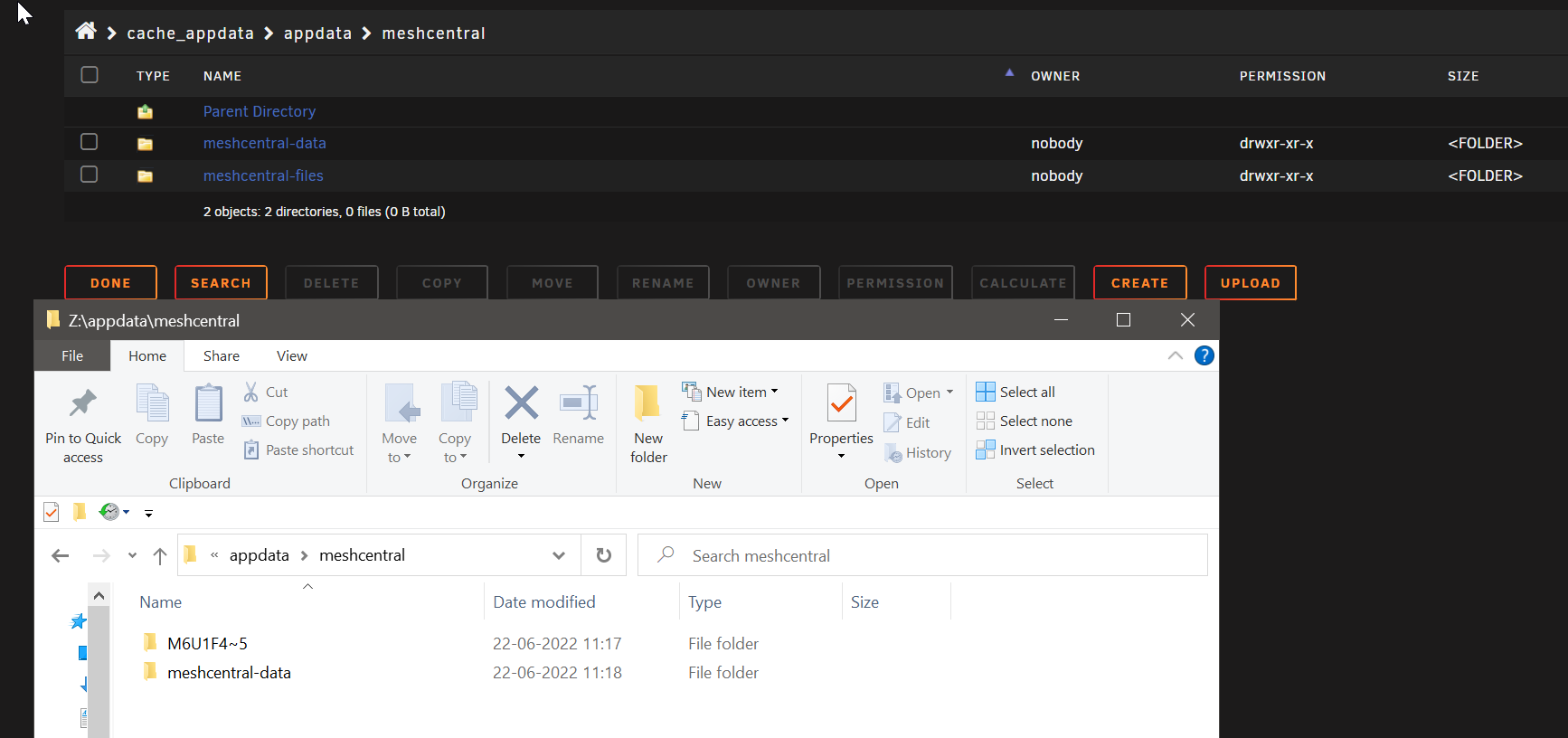

I tried the community app but I am having some problems?

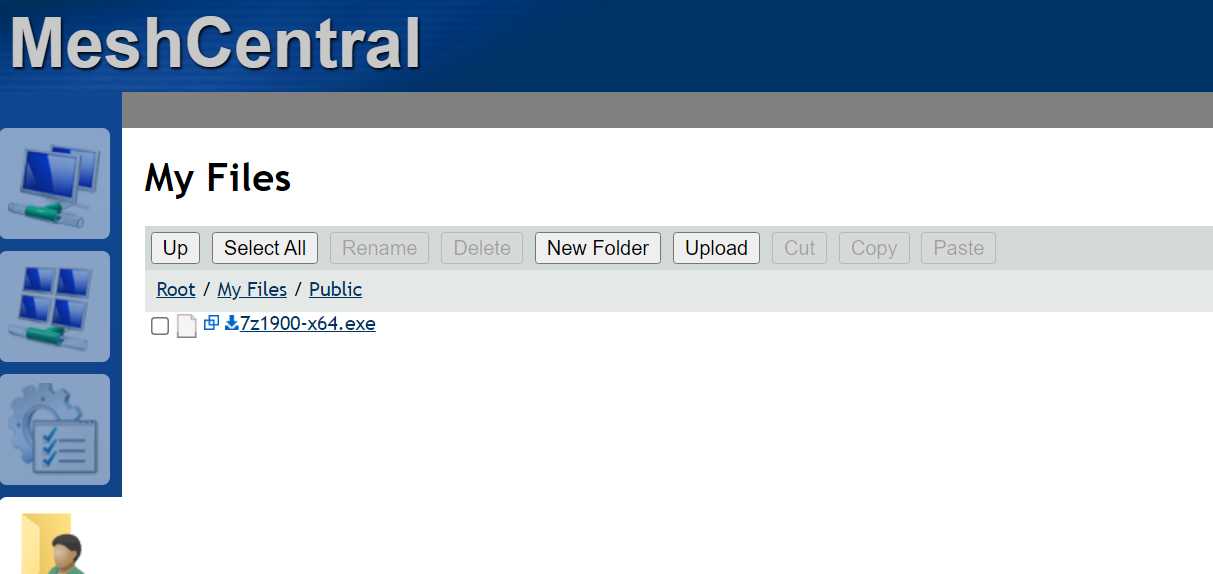

Uploading files does not get uploaded to the files folder?

Also windows share shows the folder strange? "M6U1...."

Also changing the port number breaks the "open webui" on the Unraid docker menu (But thats a smaller problem)







Edited June 22, 2022 by casperse

[casperse]

Seem to be some access problem?

[Bladeinger]

I don't know, if it's the right place to post this, but I'll give it a try.

A few weeks ago I stumbled upon MeshCentral and I am deeply impressed. The functionality is awesome!



Now, that the number of my agents is reaching 100, I want to change the database to an external one, as recommended.

Should be very easy, you start MeshCentral with the parameter "--dbexport", change the database in the config and start MeshCentral with the parameter "--dbimport".



But how do I do this in unraid? I searched the web and tried several things in the terminal, but nothing works.

Any suggestions on that?

Any help is greatly appreciated!



Edit:

Found the answer by myself! It has to be done in the running Docker Container via terminal. If anyone needs to know how, feel free to contact me.

Edited April 21 by Bladeinger
Solution found
