Hello!



I've installed the plugin for someone else, now on his unraid 6.3 we dont see any snapshots that are created by znapzend.

Reinstalling did not help.



*** backup plan: HDD ***
         enabled = on
         mbuffer = off
    mbuffer_size = 1G
   post_znap_cmd = off
    pre_znap_cmd = off
       recursive = on
             src = HDD
        src_plan = 24hours=>2hours,7days=>1day,30days=>7days,90days=>30days
        tsformat = %Y-%m-%d-%H%M%S
      zend_delay = 0

*** backup plan: NVME ***
           dst_0 = HDD/Backup/NVME
      dst_0_plan = 1day=>6hours
         enabled = on
         mbuffer = off
    mbuffer_size = 1G
   post_znap_cmd = off
    pre_znap_cmd = off
       recursive = on
             src = NVME
        src_plan = 24hours=>2hours,7days=>1day,30days=>7days,90days=>30days
        tsformat = %Y-%m-%d-%H%M%S
      zend_delay = 0



I've executed after creating:

pkill -HUP znapzend

Please advise.

Hello!   I've installed the plugin for someone else, now on his unraid 6.3 we dont see any snapshots that are created by znapzend. Reinstalling did not help.









*** backup plan: HDD ***        enabled = on        mbuffer = off   mbuffer_size = 1G  post_znap_cmd = off   pre_znap_cmd = off      recursive = on            src = HDD       src_plan = 24hours=>2hours,7days=>1day,30days=>7days,90days=>30days       tsformat = %Y-%m-%d-%H%M%S     zend_delay = 0*** backup plan: NVME ***          dst_0 = HDD/Backup/NVME     dst_0_plan = 1day=>6hours        enabled = on        mbuffer = off   mbuffer_size = 1G  post_znap_cmd = off   pre_znap_cmd = off      recursive = on            src = NVME       src_plan = 24hours=>2hours,7days=>1day,30days=>7days,90days=>30days       tsformat = %Y-%m-%d-%H%M%S     zend_delay = 0



I've executed after creating:











pkill -HUP znapzend

Please advise.











Znapzend runs on an interval, in your case every 2 hours for the 24 hour retention snapshots. You can make it run right away with the command





znapzend --runonce=HDD



See more @ https://github.com/oetiker/znapzend/blob/master/README.md



"If you don't want to wait for the scheduler to actually schedule work, you can also force immediate action by calling



znapzend --noaction --debug --runonce=src_dataset



"





Sent from my iPhone using Tapatalk

Hello stein, well problem is i've setup those snapshot rules 3 days ago, nothing is added to: zfs list -r -t snapshot

I'll see if run once will trigger the automated backups to start.



Thank you.

Have you ran the program and made it auto start on boot? See instruction in the first post of this thread.


Sent from my iPhone using Tapatalk

Oh my god, sorry for wasting your time... Totally overlooked that.

I've got the auto boot on file 'touched' into the appropriate directory, but it's not auto booting.  Could be an RC1 thing I guess?  Anyone else got this issue?

Im still on 6.8.3 but will see whats going on on my build server tomorrow


Sent from my iPhone using Tapatalk

Hi @all

i am new on unraid and want to setup ZFS autosnaps with znapzend



on my v6.8.3 i get after installed package always the issue:

 /usr/bin/perl: error while loading shared libraries: libnsl.so.2: cannot open shared object file: No such file or directory



what can i do to fix this ?





thanks alot

br faxour

@steini84 Had a quick look by running it manually.  I'm getting an out of space error, but actually there's a ton of space on the device, 47G actually - see below.



I'll try a few things to see if I can start it.  Also, the log has no details since the last successful backup, which was 21 December.



znapzend --logto=/var/log/znapzend.log --daemonize

Warning: unable to close filehandle GEN0 properly: No space left on device at /opt/znapzend-0.20.0/lib/ZnapZend.pm line 827.

znapzend (5197) is running in the background now.

Edited December 26, 20205 yr by Marshalleq

I may have found the problem, it appears the upgrade to RC2 or RC1 renamed the disks and left the USB boot drive with the name of a pre-existing raid array disk i.e. the usb disk drive is now named disk1.  Unfortunately unraid decided to put a backup share therefore, onto the usb drive and periodically an application would try to send data there filling up the USB drive.  Why it was empty when I looked I don't know, so there's some doubt in my mind, but this looks like the likely culprit.

Edit - Nope this is incorrect, I was confusing between two USB devices, one that is now a dummy array and another that is the boot device.  Geez, sometimes you just need more coffee.  But, for the first time now for some reason znapzend started working again so don't know why that is yet.

Edited December 27, 20205 yr by Marshalleq

So just checked in on it today and it's stopped again.  Comparing the last snapshot to the last reboot I can see that they are indeed correlated.  So this is frustrating.  @steini84 I have attached diagnostics which should include any startup errors and when it did eventually start manually (just now).  Will have a look through them again too and post back.  Perhaps the auto start 'touch' method outlined at the beginning of this post no longer works?



Of note, this is happening on both my unraid systems.

skywalker-diagnostics-20210106-1501.zip

Edited January 6, 20215 yr by Marshalleq

Did some testing and znapzend is definitely starting at boot, so something is stopping it at some later point, or perhaps it's intermittently starting at boot on both my servers.  So looks like logs will be key.



Edited January 7, 20215 yr by Marshalleq

I actually forgot all about this - have been away for work.  My last post when it was working was January 7.  I see it's been working well until January 18, upon which it stopped again (that's 7 days ago).



@steini84 Is there some way to turn on extra logging to a file?



Thanks.

Yeah this should do the trick:

znapzend --debug --logto=/var/log/znapzend.log --daemonize



I also want to let you know that I was using znapsend and ran in to some problems, for example after changing datasets. I moved over to Sanoid/Syncoid and have not had a single problem since.



Not saying that one solution is better than the other, but that was my experience and I would reccomend that you check it out

I'm posting a problem and solution, I found this exact error in a few other places but not here:



/usr/bin/perl: /lib64/libc.so.6: version `GLIBC_2.33' not found (required by /usr/lib64/perl5/CORE/libperl.so)



is what I get when I try running any znapzend command, to fix this I had to install the nerd pack then enable perl. Maybe obvious to others but it took me a bit to figure out.

Hi @steini84,



I just took my hands on this plugin and it's amazing! Thanks again for getting it available in Unraid.

Hi @steini84,

I just took my hands on this plugin and it's amazing! Thanks again for getting it available in Unraid. [emoji6]

Just to put it out there. I have personally moved to sanoid/syncoid


Sent from my iPhone using Tapatalk

12 minutes ago, steini84 said:

Just to put it out there. I have personally moved to sanoid/syncoid


Sent from my iPhone using Tapatalk

Good to know. 😆



For now, I'm having to much trouble with Sanoid, so I'm getting my hands with Znapzend to understand where I might have been wrong with Sanoid which seems indeed a bit more powerfull.

Seems not working on latest unraidOS 6.10.3



znapzend --debug --logto=/var/log/znapzend.log --daemonize
/usr/bin/perl: /lib64/libc.so.6: version `GLIBC_2.34' not found (required by /usr/bin/perl)
/usr/bin/perl: /lib64/libc.so.6: version `GLIBC_2.34' not found (required by /usr/lib64/perl5/CORE/libperl.so)



Edited July 2, 20224 yr by segator

37 minutes ago, segator said:

Seems not working on latest unraidOS 6.10.3



znapzend --debug --logto=/var/log/znapzend.log --daemonize
/usr/bin/perl: /lib64/libc.so.6: version `GLIBC_2.34' not found (required by /usr/bin/perl)
/usr/bin/perl: /lib64/libc.so.6: version `GLIBC_2.34' not found (required by /usr/lib64/perl5/CORE/libperl.so)



Fix is install perl and reboot!!, installing perl only was not enough for me

To get znapzend to work on 6.10.3 this is the steps I had to take. I have confirmed this methods on 5 different Unraid installs of version 6.10.3

Have "Dev Pack", "Nerd Pack", "ZFS", "ZFS-companion", "ZFS Master", and "ZnapZend" installed through the apps.

Next go to "Dev Pack" and install the following:

gc-8.0.4-x86_64-1.txz
gcc-9.2.0-x86_64-4.txz
gcc-gplus-9.2.0-x86_64-4.txz
glibc-2.30-x86_64-1.txz
guile-2.2.3-x86_64-2.txz
make-4.2.1-x86_64-3.txz

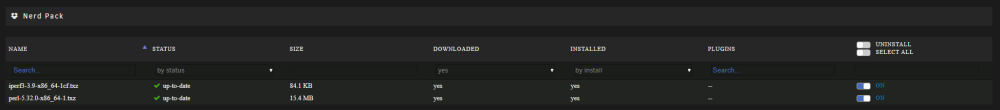

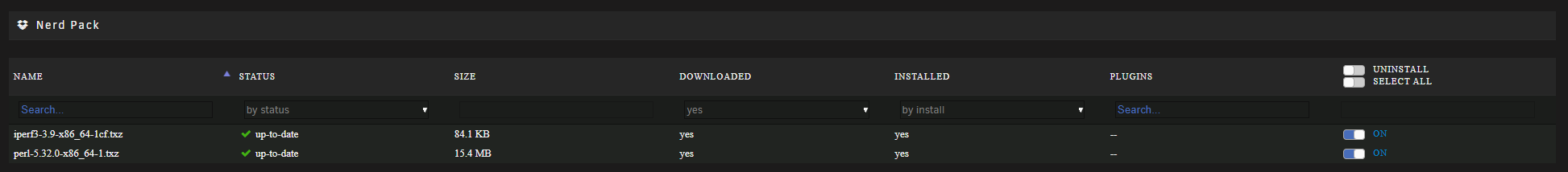

Next go to "Nerd Pack" and install the following:

perl-5.32.0-x86_64-1.txz

^ Note to everyone, it will say perl did not installed. Don't worry the script we run next fixes the issue and installs perl, having it set to be turned on in Nerd Pack is just an easy way to confirm it is downloaded and installed once finished.

Now we are going to open up terminal and run the following commands:

wget https://github.com/zfsonlinux/zfs-auto-snapshot/archive/upstream/1.2.4.tar.gz
tar -xzf 1.2.4.tar.gz
cd zfs-auto-snapshot-upstream-1.2.4
make install

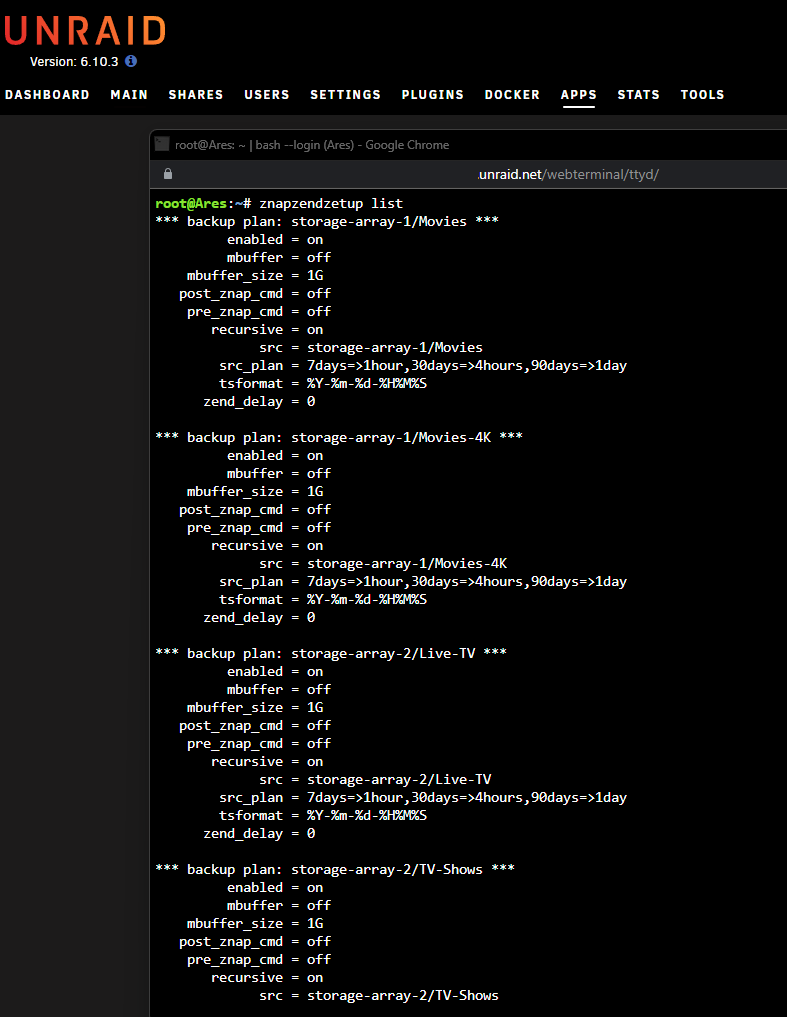

Reboot and once rebooted open terminal and check to see if install is working

znapzendzetup list

will do the trick.

To create a auto snapshout a basic command that I use is

znapzendzetup create --recursive SRC '7d=>1h,30d=>4h,90d=>1d' storage-array-1/Music

just replace "storage-array-1/Music" with your dataset.

Reboot once last time now that all your snapshots are setup, and your done!

P.S for those who liked having the "Dynamix System Temp" this also fixes it's issue as now perl is installed and working.

Edited September 17, 20223 yr by JJJonesJr33
Forgot a command at the end

Does this work for anyone on 6.12? I got it to run once after setup but it doesn’t run automatically, I set the service to start at boot and have a from for every hour.

4 hours ago, Jclendineng said:

Does this work for anyone on 6.12? I got it to run once after setup but it doesn’t run automatically, I set the service to start at boot and have a from for every hour.

Thanks for pointing this out, no mine isn't working either, timestamps stopped at time of upgrade.  So you're saying if I go an start it, it will then just snap everything every hour?  That's weird.

9 minutes ago, Marshalleq said:

Thanks for pointing this out, no mine isn't working either, timestamps stopped at time of upgrade.  So you're saying if I go an start it, it will then just snap everything every hour?  That's weird.

No it will run once but then not run again

28 minutes ago, Marshalleq said:

Thanks for pointing this out, no mine isn't working either, timestamps stopped at time of upgrade.  So you're saying if I go an start it, it will then just snap everything every hour?  That's weird.



18 minutes ago, Jclendineng said:

No it will run once but then not run again



You will need to run
```
znapzend --daemonize
```
```
touch /boot/config/plugins/unRAID6-ZnapZend/auto_boot_on
```



Then reboot. That should fix it. To test run the

```
znapzend --daemonize
```

command again after reboot and it should tell you it’s already running.
