Trx40 motherboards


Dent_

62 posts in this topic Last Reply

Recommended Posts

I know they are still very new but I am wondering if anyone has info on the various trx40 boards and their compatability with unraid and hardware pass through, iommu groupings and such. I am currently looking at the asrock trx40 creator, or the msi creator trx. I already have all the other parts for my upgrade including the 3960x, but it seems the mobo is the hardest part to decide on, and find. Leaning toward the asrock because I believe that was a board that level1 had good luck with the iommu grouping in the past, but for the price difference I would also like that 4 x nvme to pcie card.

Link to post
  • Replies 61
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

I finally got my 3970X and I've begun testing with an Asus Zenith II Extreme and an Aorus TRX40 Master. My main interests were in the rear panel USB controllers and M.2 connections to the CPU. My GPUs

I'm very much interested in hearing how things go.

I know they are still very new but I am wondering if anyone has info on the various trx40 boards and their compatability with unraid and hardware pass through, iommu groupings and such. I am currently

Posted Images

You are on the bleeding edge of tech, mate. Highly unlikely anyone on here is that fast.



But just in general terms, I would go for whichever brand that allows me to pick any arbitrary PCIe slot as primary GPU (i.e. what Unraid boots with).

TR4 (and Ryzen in general) IOMMU has been generally good across the brands (and failing that ACS Override to a certain extent) so it is more important to try to avoid error code 43 (assuming you are passing through Nvidia GPU).

Link to post

So not being able to find much other than one site that compared the asrock creator and msi creator I decided to go with the asrock creator and see if it has the options I want, such as setting the GPU slot for boot. If not, well darn haha.

Link to post
  • 2 weeks later...

I finally got my 3970X and I've begun testing with an Asus Zenith II Extreme and an Aorus TRX40 Master. My main interests were in the rear panel USB controllers and M.2 connections to the CPU. My GPUs have water blocks on them and it will be a while before I'm able to test passthrough using them.



Zenith II Extreme:



Surprisingly, the Zenith II Extreme only offers one dedicated M.2 connection to the CPU (M.2_1). M.2_2 connects directly to the CPU, but it shares 4 lanes of bandwidth with PCIE_X16_4, which makes it unusable for me because I will need all 8 lanes of that slot for an HBA.



USB Controllers:



1541361647_ROGZENITHIIEXTREME-BACKIOlabeled.thumb.png.963b8e95879c6efdde342372a8340e66.png

03:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Starship USB 3.0 Host Controller
22:00.0 USB controller: ASMedia Technology Inc. Device 3242
24:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Starship USB 3.0 Host Controller
49:00.1 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller
49:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller

The ports circled in red are connected to 49:00.3, the ports circled in blue are connected to  24:00.3, the ports circled in yellow are connected to 49:00.1, the ports circled in purple are connected to 03:00.3, and the port circled in pink is connected to 22:00.0.



The ASMedia controller and the AMD Starship controllers are in their own IOMMU group and can be reset. The AMD Matisse controllers are in the same IOMMU group and only one of them can be reset.



PCI Devices and IOMMU Groups:

IOMMU group 0:	[1022:1482] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 1:	[1022:1483] 00:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge
IOMMU group 2:	[1022:1482] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 3:	[1022:1482] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 4:	[1022:1482] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 5:	[1022:1482] 00:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 6:	[1022:1482] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 7:	[1022:1484] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 8:	[1022:1482] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 9:	[1022:1484] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 10:	[1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 61)
		[1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)
IOMMU group 11:	[1022:1490] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 0
		[1022:1491] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 1
		[1022:1492] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 2
		[1022:1493] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 3
		[1022:1494] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 4
		[1022:1495] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 5
		[1022:1496] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 6
		[1022:1497] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 7
IOMMU group 12:	[10de:1380] 01:00.0 VGA compatible controller: NVIDIA Corporation GM107 [GeForce GTX 750 Ti] (rev a2)
		[10de:0fbc] 01:00.1 Audio device: NVIDIA Corporation Device 0fbc (rev a1)
IOMMU group 13:	[1022:148a] 02:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function
IOMMU group 14:	[1022:1485] 03:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP
IOMMU group 15:	[1022:148c] 03:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Starship USB 3.0 Host Controller
IOMMU group 16:	[1022:1482] 20:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 17:	[1022:1482] 20:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 18:	[1022:1482] 20:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 19:	[1022:1483] 20:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge
IOMMU group 20:	[1022:1483] 20:03.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge
IOMMU group 21:	[1022:1482] 20:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 22:	[1022:1482] 20:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 23:	[1022:1482] 20:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 24:	[1022:1484] 20:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 25:	[1022:1482] 20:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 26:	[1022:1484] 20:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 27:	[144d:a804] 21:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM961/PM961
IOMMU group 28:	[1b21:3242] 22:00.0 USB controller: ASMedia Technology Inc. Device 3242
IOMMU group 29:	[1022:148a] 23:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function
IOMMU group 30:	[1022:1485] 24:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP
IOMMU group 31:	[1022:1486] 24:00.1 Encryption controller: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Cryptographic Coprocessor PSPCPP
IOMMU group 32:	[1022:148c] 24:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Starship USB 3.0 Host Controller
IOMMU group 33:	[1022:1487] 24:00.4 Audio device: Advanced Micro Devices, Inc. [AMD] Starship/Matisse HD Audio Controller
IOMMU group 34:	[1022:1482] 40:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 35:	[1022:1483] 40:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge
IOMMU group 36:	[1022:1482] 40:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 37:	[1022:1482] 40:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 38:	[1022:1482] 40:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 39:	[1022:1482] 40:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 40:	[1022:1482] 40:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 41:	[1022:1484] 40:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 42:	[1022:1482] 40:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 43:	[1022:1484] 40:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 44:	[1022:57ad] 41:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57ad
IOMMU group 45:	[1022:57a3] 42:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a3
IOMMU group 46:	[1022:57a3] 42:03.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a3
IOMMU group 47:	[1022:57a3] 42:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a3
IOMMU group 48:	[1022:57a3] 42:05.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a3
IOMMU group 49:	[1022:57a3] 42:06.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a3
IOMMU group 50:	[1022:57a3] 42:07.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a3
IOMMU group 51:	[1022:57a4] 42:08.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a4
		[1022:1485] 49:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP
		[1022:149c] 49:00.1 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller
		[1022:149c] 49:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller
IOMMU group 52:	[1022:57a4] 42:09.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a4
		[1022:7901] 4a:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)
IOMMU group 53:	[1022:57a4] 42:0a.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a4
		[1022:7901] 4b:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)
IOMMU group 54:	[144d:a808] 43:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM981/PM981/PM983
IOMMU group 55:	[1d6a:07b1] 44:00.0 Ethernet controller: Aquantia Corp. AQC107 NBase-T/IEEE 802.3bz Ethernet Controller [AQtion] (rev 02)
IOMMU group 56:	[1b21:0612] 45:00.0 SATA controller: ASMedia Technology Inc. ASM1062 Serial ATA Controller (rev 02)
IOMMU group 57:	[1b21:0612] 46:00.0 SATA controller: ASMedia Technology Inc. ASM1062 Serial ATA Controller (rev 02)
IOMMU group 58:	[8086:1539] 47:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
IOMMU group 59:	[8086:2723] 48:00.0 Network controller: Intel Corporation Wi-Fi 6 AX200 (rev 1a)
IOMMU group 60:	[1022:148a] 4c:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function
IOMMU group 61:	[1022:1485] 4d:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP
IOMMU group 62:	[1022:1482] 60:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 63:	[1022:1482] 60:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 64:	[1022:1482] 60:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 65:	[1022:1482] 60:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 66:	[1022:1482] 60:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 67:	[1022:1482] 60:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 68:	[1022:1484] 60:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 69:	[1022:1482] 60:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 70:	[1022:1484] 60:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 71:	[1022:148a] 61:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function
IOMMU group 72:	[1022:1485] 62:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP



TRX40 Aorus Master:



This board is much more practical for me. It offers the same VRM configuration as Gigabyte's top end boards and two M.2 drives from the CPU, which seems to be the most possible without reallocating lanes dedicated to the expansion slots.



USB Controllers:




03:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Starship USB 3.0 Host Controller
23:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Starship USB 3.0 Host Controller
47:00.1 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller
47:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller

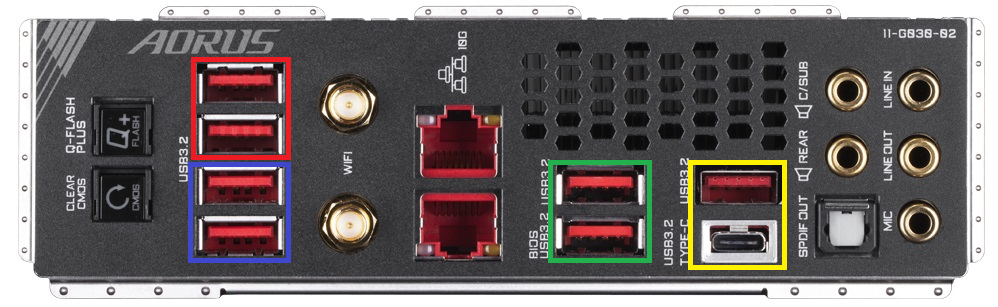

The ports circled in red are connected to 47:00.1, the ports circled in blue are connected to  23:00.3, and the ports circled in yellow are connected to 03:00.3.



The AMD Starship controllers are in their own IOMMU group and can be reset. The AMD Matisse controllers are in the same IOMMU group and only one of them can be reset.



PCI Devices and IOMMU Groups:

IOMMU group 0:	[1022:1482] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 1:	[1022:1483] 00:01.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge
IOMMU group 2:	[1022:1482] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 3:	[1022:1482] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 4:	[1022:1482] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 5:	[1022:1482] 00:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 6:	[1022:1482] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 7:	[1022:1484] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 8:	[1022:1482] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 9:	[1022:1484] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 10:	[1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 61)
		[1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)
IOMMU group 11:	[1022:1490] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 0
		[1022:1491] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 1
		[1022:1492] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 2
		[1022:1493] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 3
		[1022:1494] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 4
		[1022:1495] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 5
		[1022:1496] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 6
		[1022:1497] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 7
IOMMU group 12:	[144d:a804] 01:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM961/PM961
IOMMU group 13:	[1022:148a] 02:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function
IOMMU group 14:	[1022:1485] 03:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP
IOMMU group 15:	[1022:148c] 03:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Starship USB 3.0 Host Controller
IOMMU group 16:	[1022:1482] 20:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 17:	[1022:1482] 20:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 18:	[1022:1482] 20:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 19:	[1022:1483] 20:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge
IOMMU group 20:	[1022:1482] 20:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 21:	[1022:1482] 20:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 22:	[1022:1482] 20:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 23:	[1022:1484] 20:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 24:	[1022:1482] 20:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 25:	[1022:1484] 20:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 26:	[10de:1380] 21:00.0 VGA compatible controller: NVIDIA Corporation GM107 [GeForce GTX 750 Ti] (rev a2)
		[10de:0fbc] 21:00.1 Audio device: NVIDIA Corporation Device 0fbc (rev a1)
IOMMU group 27:	[1022:148a] 22:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function
IOMMU group 28:	[1022:1485] 23:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP
IOMMU group 29:	[1022:1486] 23:00.1 Encryption controller: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Cryptographic Coprocessor PSPCPP
IOMMU group 30:	[1022:148c] 23:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Starship USB 3.0 Host Controller
IOMMU group 31:	[1022:1487] 23:00.4 Audio device: Advanced Micro Devices, Inc. [AMD] Starship/Matisse HD Audio Controller
IOMMU group 32:	[1022:1482] 40:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 33:	[1022:1483] 40:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge
IOMMU group 34:	[1022:1482] 40:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 35:	[1022:1482] 40:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 36:	[1022:1482] 40:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 37:	[1022:1482] 40:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 38:	[1022:1482] 40:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 39:	[1022:1484] 40:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 40:	[1022:1482] 40:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 41:	[1022:1484] 40:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 42:	[1022:57ad] 41:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57ad
IOMMU group 43:	[1022:57a3] 42:01.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a3
IOMMU group 44:	[1022:57a3] 42:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a3
IOMMU group 45:	[1022:57a3] 42:05.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a3
IOMMU group 46:	[1022:57a3] 42:06.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a3
IOMMU group 47:	[1022:57a4] 42:08.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a4
		[1022:1485] 47:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP
		[1022:149c] 47:00.1 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller
		[1022:149c] 47:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller
IOMMU group 48:	[1022:57a4] 42:09.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a4
		[1022:7901] 48:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)
IOMMU group 49:	[1022:57a4] 42:0a.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a4
		[1022:7901] 49:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)
IOMMU group 50:	[144d:a808] 43:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM981/PM981/PM983
IOMMU group 51:	[8086:1539] 44:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
IOMMU group 52:	[1d6a:11b1] 45:00.0 Ethernet controller: Aquantia Corp. AQC111 NBase-T/IEEE 802.3bz Ethernet Controller [AQtion] (rev 02)
IOMMU group 53:	[8086:2723] 46:00.0 Network controller: Intel Corporation Wi-Fi 6 AX200 (rev 1a)
IOMMU group 54:	[1022:148a] 4a:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function
IOMMU group 55:	[1022:1485] 4b:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP
IOMMU group 56:	[1022:1482] 60:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 57:	[1022:1482] 60:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 58:	[1022:1482] 60:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 59:	[1022:1482] 60:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 60:	[1022:1482] 60:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 61:	[1022:1482] 60:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 62:	[1022:1484] 60:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 63:	[1022:1482] 60:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 64:	[1022:1484] 60:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 65:	[1022:148a] 61:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function
IOMMU group 66:	[1022:1485] 62:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP



I hope this information is helpful to someone. I'll be trying more stuff like setting up VMs soon.



Edited by jwoolen
Extra image removed
  • Like 1
  • Thanks 5
Link to post

I had a chance to play around with GPU passthrough to a VM today. I'm using a 3970X, an Asus Zenith II Extreme, and a GTX 970. Everything with setup went smooth. I followed Spaceinvader One’s latest video for advanced GPU passthrough. I'm using a dumped vBIOS rom file for the GTX 970. I tested the system using the Shadow of the Tomb Raider Benchmark. Here are some screenshots of the results. I'm getting roughly 90% of bare metal performance in the CPU Game metrics.










Edited by jwoolen
Link to post

I wanna throw a question out there!

Having a 3970x on a Asus Zenith 2 extreme.
It's impossible to get a Firewire card to work on that motherboard. Computer wont boot pass bios. Tried everything I could find on google. Nothing changes.

Anyone got this to work and could tell me which firewire card you are using?

Appriciate any help!
/Patrick

Link to post
On 12/27/2019 at 10:38 PM, jwoolen said:

Zenith II Extreme:



Surprisingly, the Zenith II Extreme only offers one dedicated M.2 connection to the CPU (M.2_1). M.2_2 connects directly to the CPU, but it shares 4 lanes of bandwidth with PCIE_X16_4, which makes it unusable for me because I will need all 8 lanes of that slot for an HBA.



Thanks for this very detailed info regarding USB ports and the IOMMU groups. The Zenith II and Aorus Master were the two boards I considered as well, so this information is spot on for my needs. I pulled the trigger on the Zenith II due to integrated 10G and better USB options before finding this thread, just waiting for the CPU to arrive (probably tomorrow).

Just one quick question I cannot seem to find an answer to:
The Zenith II has the Asus "DIMM.2" connector on board, which supports two PCIE4 x4 M.2 drives. I was under the impression that those were connected directly to the CPU, which would make it 3 dedicated M.2 slots (M2_1 + 2x DIMM.2) plus two "other" slots (M2_2 sharing with PCIE_X16_4 and M2_3 probably connected to the chipset?). Maybe you can tell me if that is correct. Or is the DIMM.2 also routed through the chipset?

Link to post

Answering my own question here 😃

I found this Zenith II block diagram, courtesy of the Anandtech review. Not sure how I didn't find that before.
Here we can see, that the DIMM.2 are indeed wired form the chipset, and the M2_1 and M2_2 slots are the only ones connected directly to the CPU. Anyone can decide themselves how "bad" that is for their use case. :)

https://www.anandtech.com/show/15152/asus-rog-zenith-ii-extreme-review

ASUS%20ROG%20Zenith%20II%20Extreme%20Blo

Edited by cleibig
spelling
Link to post

@cleibig Passthrough can be an issue but performance wise I think the fact that the chipset is wired via PCIe 4.0 x8 you won't have any issues. Using that slot for a cache drive would be preferred and the other 2 slots you might be able to passthrough without big issues of grouped devices. The big question is how the BIOS presents the devices to Unraid.

Link to post

I had a chance to play around with the Aorus TRX40 Xtreme this weekend. The results are below.



USB Controllers:



71781375_GIGABYTETRX40AorusXtremeRearPanellabeled.png.dd094c08790195bc5fff1bab88f42e06.png

04:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Starship USB 3.0 Host Controller
23:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Starship USB 3.0 Host Controller
45:00.0 USB controller: ASMedia Technology Inc. ASM2142 USB 3.1 Host Controller
48:00.1 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller
48:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller

The ports circled in red are connected to 23:00.3, the ports circled in blue are connected to 04:00.3, the ports circled in green are connected to 48:00.1, and the ports circled in yellow are connected to 45:00.0.



The ASMedia controller and the AMD Starship controllers are in their own IOMMU group and can be reset. The AMD Matisse controllers are in the same IOMMU group and only 48:00.3 can be reset.



PCI Devices and IOMMU Groups:

IOMMU group 0:	[1022:1482] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 1:	[1022:1483] 00:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge
IOMMU group 2:	[1022:1483] 00:01.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge
IOMMU group 3:	[1022:1482] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 4:	[1022:1482] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 5:	[1022:1482] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 6:	[1022:1482] 00:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 7:	[1022:1482] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 8:	[1022:1484] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 9:	[1022:1482] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 10:	[1022:1484] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 11:	[1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 61)
		[1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)
IOMMU group 12:	[1022:1490] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 0
		[1022:1491] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 1
		[1022:1492] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 2
		[1022:1493] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 3
		[1022:1494] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 4
		[1022:1495] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 5
		[1022:1496] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 6
		[1022:1497] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 7
IOMMU group 13:	[144d:a808] 01:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM981/PM981/PM983
IOMMU group 14:	[144d:a804] 02:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM961/PM961
IOMMU group 15:	[1022:148a] 03:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function
IOMMU group 16:	[1022:1485] 04:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP
IOMMU group 17:	[1022:148c] 04:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Starship USB 3.0 Host Controller
IOMMU group 18:	[1022:1482] 20:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 19:	[1022:1482] 20:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 20:	[1022:1482] 20:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 21:	[1022:1483] 20:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge
IOMMU group 22:	[1022:1482] 20:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 23:	[1022:1482] 20:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 24:	[1022:1482] 20:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 25:	[1022:1484] 20:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 26:	[1022:1482] 20:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 27:	[1022:1484] 20:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 28:	[10de:128b] 21:00.0 VGA compatible controller: NVIDIA Corporation GK208B [GeForce GT 710] (rev a1)
		[10de:0e0f] 21:00.1 Audio device: NVIDIA Corporation GK208 HDMI/DP Audio Controller (rev a1)
IOMMU group 29:	[1022:148a] 22:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function
IOMMU group 30:	[1022:1485] 23:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP
IOMMU group 31:	[1022:1486] 23:00.1 Encryption controller: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Cryptographic Coprocessor PSPCPP
IOMMU group 32:	[1022:148c] 23:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Starship USB 3.0 Host Controller
IOMMU group 33:	[1022:1487] 23:00.4 Audio device: Advanced Micro Devices, Inc. [AMD] Starship/Matisse HD Audio Controller
IOMMU group 34:	[1022:1482] 40:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 35:	[1022:1483] 40:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge
IOMMU group 36:	[1022:1482] 40:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 37:	[1022:1482] 40:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 38:	[1022:1482] 40:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 39:	[1022:1482] 40:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 40:	[1022:1482] 40:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 41:	[1022:1484] 40:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 42:	[1022:1482] 40:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 43:	[1022:1484] 40:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 44:	[1022:57ad] 41:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57ad
IOMMU group 45:	[1022:57a3] 42:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a3
IOMMU group 46:	[1022:57a3] 42:03.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a3
IOMMU group 47:	[1022:57a3] 42:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a3
IOMMU group 48:	[1022:57a3] 42:05.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a3
IOMMU group 49:	[1022:57a4] 42:08.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a4
		[1022:1485] 48:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP
		[1022:149c] 48:00.1 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller
		[1022:149c] 48:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller
IOMMU group 50:	[1022:57a4] 42:09.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a4
		[1022:7901] 49:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)
IOMMU group 51:	[1022:57a4] 42:0a.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 57a4
		[1022:7901] 4a:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)
IOMMU group 52:	[8086:1563] 43:00.0 Ethernet controller: Intel Corporation Ethernet Controller 10G X550T (rev 01)
IOMMU group 53:	[8086:1563] 43:00.1 Ethernet controller: Intel Corporation Ethernet Controller 10G X550T (rev 01)
IOMMU group 54:	[1b21:2142] 45:00.0 USB controller: ASMedia Technology Inc. ASM2142 USB 3.1 Host Controller
IOMMU group 55:	[1b21:0612] 46:00.0 SATA controller: ASMedia Technology Inc. ASM1062 Serial ATA Controller (rev 02)
IOMMU group 56:	[8086:2723] 47:00.0 Network controller: Intel Corporation Wi-Fi 6 AX200 (rev 1a)
IOMMU group 57:	[1022:148a] 4b:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function
IOMMU group 58:	[1022:1485] 4c:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP
IOMMU group 59:	[1022:1482] 60:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 60:	[1022:1482] 60:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 61:	[1022:1482] 60:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 62:	[1022:1482] 60:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 63:	[1022:1482] 60:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 64:	[1022:1482] 60:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 65:	[1022:1484] 60:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 66:	[1022:1482] 60:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
IOMMU group 67:	[1022:1484] 60:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
IOMMU group 68:	[1022:148a] 61:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function
IOMMU group 69:	[1022:1485] 62:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP



Edited by jwoolen
Link to post

I was also curious to see how the performance of an NVME drive running through the chipset was affected. I didn’t do any in depth testing. I simply ran CrystalDiskMark on a Samsung 970 Pro 512GB NVME drive connected each way. Running the NVME drive through the chipset does slow down the reads somewhat.

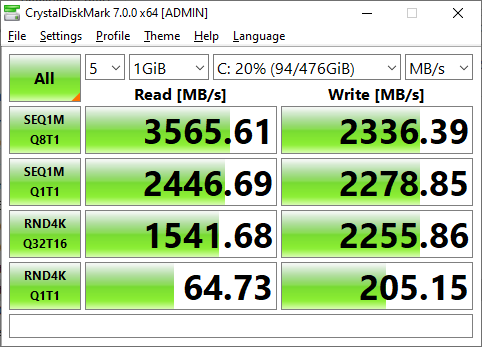

Here’s the result from the CPU.

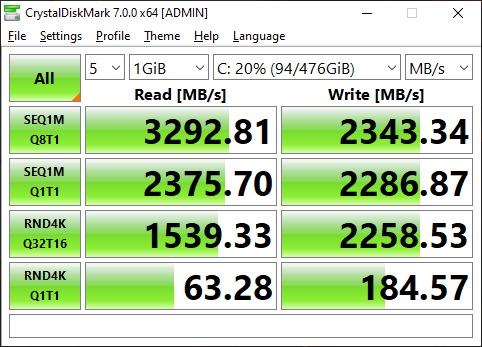

Here’s the result from the chipset.

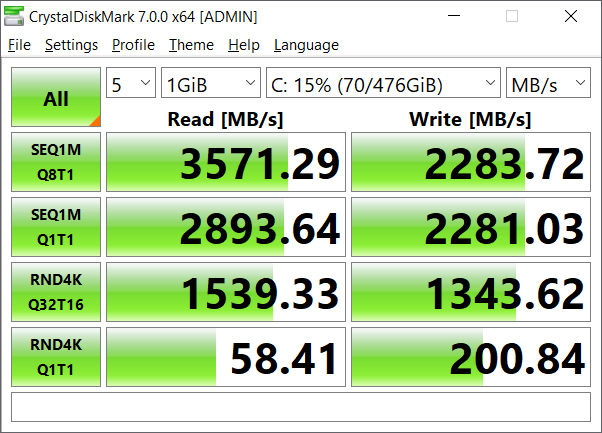

The two results above were run on bare metal. For reference, here is a result from the CPU inside of a VM.


Edited by jwoolen
Link to post

@jwoolen The numbers are so close together that you kinda can ignore the differences. A slight difference in temperature can already reduce the performance of the drive. A single run won't produce genuine results. You have to make sure the start temperature of the drive is always the same, nothing else in the backround hits the drive, drivers are the same and cooling is always the same. There are to many factors you have to count in.



Other question are the IOMMU groupings with ACS patch?

Link to post
14 hours ago, jwoolen said:

I was also curious to see how the performance of an NVME drive running through the chipset was affected. I didn’t do any in depth testing. I simply ran CrystalDiskMark on a Samsung 970 Pro 512GB NVME drive connected each way. Running the NVME drive through the chipset does slow down the reads somewhat.

That may be due to a slightly higher latency having to go through the chipset - considering you benched with 5x1GB files. At 3.x GB/s, each 1GB file takes less than 1/3s, almost stepping a toe into the random IO. 😅

I typically bench CDM on NVMe with 8GB file.

Link to post
3 minutes ago, jwoolen said:

The groupings are without any ACS overrides

Wow. I didn't expected that answer. 3 out of 5 USB controllers separated, onboard audio, all networking devices in it's own groups. That looks really really promising. Thanks for the info.

Link to post

I finally got some water on my 2080 Ti. The results using it seem a bit low. I had to use vfio-pci.ids on the serial bus and USB controllers on the 2080 Ti in order to be able to pass it through to the VM. I passed the USB and serial bus controllers using multifunction in the XML.










Edited by jwoolen
Link to post
  • 3 weeks later...

Sorry it has been a while since I made this post but life has been getting in the way of playing with this new setup. I was recently asked a question about the Asrock board and I tried to answer as best I could and thought I would pate that answer here in case anyone else was curious. As stated in this reply if anyone has questions I will do my best to answer but I am no expert, just someone who like to play.



 So far (only really been running it for a week now) everything is looking very nice. I currently have multiple dockers (Unmaniac, unifi controller, tatulli, ombi, sickchill, radarr, nextcloud, and a few others, Plex will be migrated to it in the soonish future) as well as a VM with a 980 passed through to it, and one more lightweight VM running True Command for freenas and it has not faltered...yet, again it has only been a week. I did have problems getting the Gaming VM to start with the 980 and its audio passed through. I currently have an old amd card in slot one and the 980 in slot 3 (both full x16) which I did not want. I wanted only the 980 in slot one and no other vid card to save on the PCIe slots. In the end I had to add a line to a config file for the 980 to pass through. In the future I will probably try and make it work with just the one card again. As for the board I was a little concerned with the power phases as a lot of other boards have 16 and if I recall this one has 8, but so far no issue at all, and I don't plan to do any big overclocks as I want stability so should not be an issue. After I bought the board Wendell at Levelone techs did a review on it and set aside a lot of my worries. I will put the video at the bottom. I am by no means an expert in any of this, just some one who likes to play around so if there are more questions I will do my best to answer, but I may not always be right as a heads up.



As for IOMMU groupings here is what I see under system devices



IOMMU group 0:[1022:1482] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 1:[1022:1483] 00:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge

IOMMU group 2:[1022:1482] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 3:[1022:1482] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 4:[1022:1482] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 5:[1022:1482] 00:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 6:[1022:1482] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 7:[1022:1484] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]

IOMMU group 8:[1022:1482] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 9:[1022:1484] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]

IOMMU group 10:[1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 61)

[1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)

IOMMU group 11:[1022:1490] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 0

[1022:1491] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 1

[1022:1492] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 2

[1022:1493] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 3

[1022:1494] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 4

[1022:1495] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 5

[1022:1496] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 6

[1022:1497] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 7

IOMMU group 12:[1002:68f9] 01:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Cedar [Radeon HD 5000/6000/7350/8350 Series]

[1002:aa68] 01:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Cedar HDMI Audio [Radeon HD 5400/6300/7300 Series]

IOMMU group 13:[1022:148a] 02:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function

IOMMU group 14:[1022:1485] 03:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP

IOMMU group 15:[1022:148c] 03:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Starship USB 3.0 Host Controller

IOMMU group 16:[1022:1482] 20:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 17:[1022:1482] 20:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 18:[1022:1482] 20:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 19:[1022:1483] 20:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge

IOMMU group 20:[1022:1482] 20:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 21:[1022:1482] 20:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 22:[1022:1482] 20:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 23:[1022:1484] 20:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]

IOMMU group 24:[1022:1482] 20:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 25:[1022:1484] 20:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]

IOMMU group 26:[10de:13c0] 21:00.0 VGA compatible controller: NVIDIA Corporation GM204 [GeForce GTX 980] (rev a1)

[10de:0fbb] 21:00.1 Audio device: NVIDIA Corporation GM204 High Definition Audio Controller (rev a1)

IOMMU group 27:[1022:148a] 22:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function

IOMMU group 28:[1022:1485] 23:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP

IOMMU group 29:[1022:1486] 23:00.1 Encryption controller: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Cryptographic Coprocessor PSPCPP

IOMMU group 30:[1022:148c] 23:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Starship USB 3.0 Host Controller

IOMMU group 31:[1022:1487] 23:00.4 Audio device: Advanced Micro Devices, Inc. [AMD] Starship/Matisse HD Audio Controller

IOMMU group 32:[1022:1482] 40:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 33:[1022:1483] 40:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge

IOMMU group 34:[1022:1483] 40:01.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge

IOMMU group 35:[1022:1483] 40:01.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge

IOMMU group 36:[1022:1482] 40:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 37:[1022:1482] 40:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 38:[1022:1483] 40:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge

IOMMU group 39:[1022:1482] 40:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 40:[1022:1482] 40:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 41:[1022:1482] 40:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 42:[1022:1484] 40:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]

IOMMU group 43:[1022:1482] 40:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 44:[1022:1484] 40:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]

IOMMU group 45:[1022:57ad] 41:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse Switch Upstream

IOMMU group 46:[1022:57a3] 42:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge

IOMMU group 47:[1022:57a3] 42:03.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge

IOMMU group 48:[1022:57a3] 42:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge

IOMMU group 49:[1022:57a3] 42:05.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge

IOMMU group 50:[1022:57a4] 42:08.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge

[1022:1485] 47:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP

[1022:149c] 47:00.1 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller

[1022:149c] 47:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller

IOMMU group 51:[1022:57a4] 42:09.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge

[1022:7901] 48:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)

IOMMU group 52:[1022:57a4] 42:0a.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge

[1022:7901] 49:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)

IOMMU group 53:[1b21:3242] 43:00.0 USB controller: ASMedia Technology Inc. Device 3242

IOMMU group 54:[1d6a:07b1] 44:00.0 Ethernet controller: Aquantia Corp. AQC107 NBase-T/IEEE 802.3bz Ethernet Controller [AQtion] (rev 02)

IOMMU group 55:[8086:2723] 45:00.0 Network controller: Intel Corporation Wi-Fi 6 AX200 (rev 1a)

IOMMU group 56:[10ec:8125] 46:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8125 2.5GbE Controller (rev 01)

IOMMU group 57:[8086:f1a8] 4a:00.0 Non-Volatile memory controller: Intel Corporation SSD 660P Series (rev 03)

IOMMU group 58:[8086:f1a8] 4b:00.0 Non-Volatile memory controller: Intel Corporation SSD 660P Series (rev 03)

IOMMU group 59:[1000:0072] 4c:00.0 Serial Attached SCSI controller: Broadcom / LSI SAS2008 PCI-Express Fusion-MPT SAS-2 [Falcon] (rev 03)

IOMMU group 60:[1022:148a] 4d:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function

IOMMU group 61:[1022:1485] 4e:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP

IOMMU group 62:[1022:1482] 60:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 63:[1022:1482] 60:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 64:[1022:1482] 60:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 65:[1022:1482] 60:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 66:[1022:1482] 60:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 67:[1022:1482] 60:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 68:[1022:1484] 60:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]

IOMMU group 69:[1022:1482] 60:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 70:[1022:1484] 60:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]

IOMMU group 71:[1022:148a] 61:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function

IOMMU group 72:[1022:1485] 62:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP











Link to post

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Restore formatting

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
