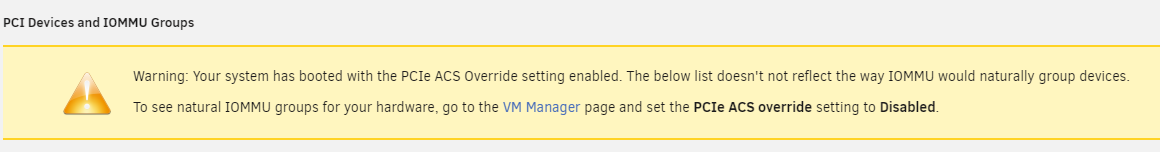

AceRimmer Posted June 16, 2020 Posted June 16, 2020 (edited) I've got an Asus Rog Crosshair Viii motherboard and im paired with an MSI 2070 super GPU. Motherboard BIOS is up to date, running latest stable unraid. I've had to do the PCIe ACS override option to get Windows 10 to accept my GPU. Otherwise it just won't pass through. (i think because the GPU has a usb controller and serial bus controller on it as well as the regular gpu and audio under the original iommu group and i cant figure out how to pass the 2 additional through to the VM). So on to the problem... i have the 2070 selected for GPU, then i select the 2070 for audio pass through and when i select a 2nd sound card (my mainboard's sound) and start the VM it stays on stopped (with the spinning icon) and the VM section of unraid hangs and becomes completely unresponsive. If i try shut down the VM it doesn't give me an option. When i open a second page and head to the main dash it shows my VM as "paused" and if i try start or stop it just hangs the dashboard page as well. Eventually all of unraid hangs and i need to do a hard reboot to get it going again. If i remove the onboard audio the VM boots up fine. for reference im trying to pass this through: IOMMU group 38:[1022:1487] 0b:00.4 Audio device: Advanced Micro Devices, Inc. [AMD] Starship/Matisse HD Audio Controller Any suggestions for audio short of forking out for a pci-e sound card? Edited June 17, 2020 by CatMilk Quote
rachid596 Posted June 16, 2020 Posted June 16, 2020 Hello for Audio you have to use a kernel with flr patch like thishttps://forums.unraid.net/index.php?/topic/82625-[KERNEL]custom-kernel-build-with-treaks-(2020.03.07-v6.8.3|5.5.8|4.19.108|NAVI|VEGA|NFSv4|R8125|Zen2)And for your gpu you have to bind the USB controller of your gpu and passthrough him.You have to add this in your syslinux configuration with your id of usb of your gpu. Envoyé de mon HD1913 en utilisant Tapatalk Quote
bastl Posted June 16, 2020 Posted June 16, 2020 @CatMilk I had the same issue on my Gigabyte TRX40 board. Passing through the Starship/Matisse HD Audio Controller and starting the VM ended up in Unraid freezing and finally crashing. For me the Starship/Matisse Controller splits into 2 extra sound devices shown as USB audio. One is for the front panel connectors and one for the backside 7.1 connections and can be used by 2 different vms at the same time. Took me some time to figure it out. Check if you also have an extra USB audio device shown up like for me. Maybe Asus did something similar with there layout. FLR patch didn't helped in my case. For reference my post in another thread: Quote
rachid596 Posted June 16, 2020 Posted June 16, 2020 I have asus rog crosshair viii hero wifi too and i have to use flr patch Envoyé de mon HD1913 en utilisant Tapatalk Quote
bastl Posted June 16, 2020 Posted June 16, 2020 @rachid596 Whenever i read "Starship/Matisse HD Audio Controller" I get tilted. I had spend a couple days till I finally found the solution which was in front of me all the time. Even the block diagram of my board showed the 2 USB audio controllers. RTFM! 😂 Quote
rachid596 Posted June 16, 2020 Posted June 16, 2020 Yes i see tour post last week [emoji23].Trx40 Board is différent from a x570 thats Why you do not have to install patch. Envoyé de mon HD1913 en utilisant Tapatalk Quote
AceRimmer Posted June 16, 2020 Author Posted June 16, 2020 6 hours ago, rachid596 said: I have asus rog crosshair viii hero wifi too and i have to use flr patch Envoyé de mon HD1913 en utilisant Tapatalk Is it possible for me to grab a copy of your kernal and use it on my own machine? I've never patched or built a kernal before. Or is that something that shouldn't be done? Quote
AceRimmer Posted June 16, 2020 Author Posted June 16, 2020 6 hours ago, bastl said: @CatMilk I had the same issue on my Gigabyte TRX40 board. Passing through the Starship/Matisse HD Audio Controller and starting the VM ended up in Unraid freezing and finally crashing. For me the Starship/Matisse Controller splits into 2 extra sound devices shown as USB audio. One is for the front panel connectors and one for the backside 7.1 connections and can be used by 2 different vms at the same time. Took me some time to figure it out. Check if you also have an extra USB audio device shown up like for me. Maybe Asus did something similar with there layout. FLR patch didn't helped in my case. For reference my post in another thread: I don't see any usb audio devices Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 001 Device 002: ID 05e3:0610 Genesys Logic, Inc. 4-port hub Bus 001 Device 003: ID 2516:0051 Bus 001 Device 004: ID 0b05:18f3 ASUSTek Computer, Inc. Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 003 Device 002: ID 174c:2074 ASMedia Technology Inc. ASM1074 High-Speed hub Bus 003 Device 003: ID 0461:4e22 Primax Electronics, Ltd ASM107x Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 004 Device 002: ID 174c:3074 ASMedia Technology Inc. ASM1074 SuperSpeed hub Bus 004 Device 007: ID 152d:0578 JMicron Technology Corp. / JMicron USA Technology Corp. USB to ATA/ATAPI Bridge Bus 005 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 006 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 007 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 007 Device 002: ID 046d:c31c Logitech, Inc. Keyboard K120 Bus 007 Device 003: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 008 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Quote
rachid596 Posted June 16, 2020 Posted June 16, 2020 Is it possible for me to grab a copy of your kernal and use it on my own machine? I've never patched or built a kernal before. Or is that something that shouldn't be done?Look pm Envoyé de mon HD1913 en utilisant Tapatalk Quote
AceRimmer Posted June 17, 2020 Author Posted June 17, 2020 I can confirm that this issue has been resolved by @rachid596 over a team-viewer session. The solution as suggested was a custom kernel loaded onto the Unraid flash drive and after a reboot and passing through the onboard audio i had fully working sound within my Windows 10 VM. No more Unraid crashes and tearing my hair out. I just hope the Unraid folk patch this in the next update as it is most certainly a bug with an x570 board when paired with the Unraid OS. Thank you once again to @rachid596 1 Quote
rachid596 Posted June 17, 2020 Posted June 17, 2020 3 minutes ago, CatMilk said: I can confirm that this issue has been resolved by @rachid596 over a team-viewer session. The solution as suggested was a custom kernel loaded onto the Unraid flash drive and after a reboot and passing through the onboard audio i had fully working sound within my Windows 10 VM. No more Unraid crashes and tearing my hair out. I just hope the Unraid folk patch this in the next update as it is most certainly a bug with an x570 board when paired with the Unraid OS. Thank you once again to @rachid596 No problem. have a good day. 1 1 Quote
bigbangus Posted August 1, 2020 Posted August 1, 2020 On 6/17/2020 at 3:55 PM, CatMilk said: I can confirm that this issue has been resolved by @rachid596 over a team-viewer session. Yeah @rachid596 got me setup with a custom build too. Super helpful and then I learned to make my own thanks to @ich777 's helper container. FYI the issue is fixed in kernel 5.7.5 and after for AMD audio and USB passthrough. So Unraid 6.9beta24 and after will have this fix. 1 Quote
ich777 Posted August 1, 2020 Posted August 1, 2020 7 minutes ago, bigbangus said: Yeah @rachid596 got me setup with a custom build too. Super helpful and then I learned to make my own thanks to @ich777 's helper container. FYI the issue is fixed in kernel 5.7.5 and after for AMD audio and USB passthrough. So Unraid 6.9beta24 and after will have this fix. The next version of Unraid-Kernel-Helper have the ability to build it with iSCSI Target. 1 Quote
bigbangus Posted August 3, 2020 Posted August 3, 2020 On 8/1/2020 at 8:57 AM, ich777 said: build it with iSCSI Target. Ooo what's that? Any literature I can read to understand what that means for my unraid server? Quote
ich777 Posted August 3, 2020 Posted August 3, 2020 A quick search gives me this: Click It gives you the ability to mount a drive (yes on windows it appears as a drive) from you unraid server (but you don't have to use it). 1 Quote
ich777 Posted August 4, 2020 Posted August 4, 2020 12 hours ago, bigbangus said: Ooo what's that? Any literature I can read to understand what that means for my unraid server? iSCSI support is now implemented and ready to download. 1 Quote
mhubenka Posted January 4, 2021 Posted January 4, 2021 On 6/15/2020 at 11:53 PM, rachid596 said: Hello for Audio you have to use a kernel with flr patch like this https://forums.unraid.net/index.php?/topic/82625-[KERNEL]custom-kernel-build-with-treaks-(2020.03.07-v6.8.3|5.5.8|4.19.108|NAVI|VEGA|NFSv4|R8125|Zen2) And for your gpu you have to bind the USB controller of your gpu and passthrough him. You have to add this in your syslinux configuration with your id of usb of your gpu. Envoyé de mon HD1913 en utilisant Tapatalk @rachid596 Like @CatMilk I am having the same problem. Can you PM me your Kernal build? Or possibly help me get this fixed? Like them I am running a MSI B450 Tomahawk ATX. with [AMD] Starship/Matisse HD Audio Controller. I attempted to update to UNRAID verson 6.9.0 Beta with no luck Quote
rachid596 Posted January 4, 2021 Posted January 4, 2021 Very strange because 6.9 include the patch for Audio. Your iommu group is OK for passthrough ? Quote
mhubenka Posted January 4, 2021 Posted January 4, 2021 Yes, IOMMU group 29:[1022:1487] 28:00.4 Audio device: Advanced Micro Devices, Inc. [AMD] Starship/Matisse HD Audio Controller. I thought the same thing. Reason why I just updated to the beta. When I made the change the first time I had the problem with the VM locking up and a single core locked out at 100. I made a small change by just adding a sound card and having both the NVIDIA HD Audio controller and the AMD onboard controller but no luck. The VM would boot but would not recognize anything I had plugged into the ports. Quote
rachid596 Posted January 4, 2021 Posted January 4, 2021 Yes some times acs override is not good. Try Only passthrough the audio non gpu and try. Quote
mhubenka Posted January 4, 2021 Posted January 4, 2021 I have it because I already pass through USB controller. Quote
k0vw Posted June 15, 2021 Posted June 15, 2021 On 6/18/2020 at 6:01 AM, rachid596 said: No problem. have a good day. Hello, I'm having the same issues with passing through USB controllers with a Asrock Rack x470d4u and Ryzen 3900x. I'm running unraid version 6.9.2 and was able to passthrough the usb controller with my 2600 installed but after upgrading to the 3900x I'm running into the freeze issue. Would a custom kernal help with this problem do you know? Thanks Quote
rachid596 Posted June 15, 2021 Posted June 15, 2021 5 hours ago, k0vw said: Hello, I'm having the same issues with passing through USB controllers with a Asrock Rack x470d4u and Ryzen 3900x. I'm running unraid version 6.9.2 and was able to passthrough the usb controller with my 2600 installed but after upgrading to the 3900x I'm running into the freeze issue. Would a custom kernal help with this problem do you know? Thanks Hello, Your iommu has changed between 2600 and 3900x? Quote
k0vw Posted June 16, 2021 Posted June 16, 2021 12 hours ago, rachid596 said: Hello, Your iommu has changed between 2600 and 3900x? Yeah it's the drivers that have changed i think? They're now the USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller that everyone has been having trouble with. The groups themselves haven't changed. I've deleted the VFIO config file from the USB and tried to rebuild it but still having the same issues no matter what. It's killing me haha Quote
