I'd try to do "Reset Config" in NUT Settings and start over with a fresh NUT configuration, it seems your configuration file includes a custom "bus" variable that's not supported by this driver. What kind of UPS do you have that's using this exotic UPS driver?

Well my solution is probably among the most paranoid and inconvenient ones, so it's surely not the best or most acceptable one. Ideally you'd just make sure to use a strong password and keep the client access limited to a necessary minimum (best measures = the most inconvenience you can accept basically). Of course these clients with access should be kept up to date with the latest updates and anti-virus definitions. If you then only install software from reputable sources and don't open executable files you have a bad feeling about on them I'd say you're golden. This applies on any kind of server or data access so it's not limited to Unraid, the problem isn't limited to Unraid either. I mean thousands of users likely don't apply any kind of precaution and never have any problems, you just got really unlucky there, so I wouldn't linger on it too much. But it's good to learn from such experiences and know what kind of precautions you can ideally do, because then you can decide on what kind of precautions you want to do and are acceptable comfort-wise.

Ransomware is more common these days and literally all it takes is one rogue executable on any Windows machine that's connected to a writable SMB user-share. Unraid is only ever as safe as you configure it to be and the underlying system is not the primary attack vector of interest for Ransomware, even if you carelessly expose some ports on the internet. It's much more flexible to just infect Windows devices and look for generic writable network shares of any OS, rather than spending all that time and effort exploiting that one specific Linux OS (that might be patched anytime rendering the whole exploit useless). The easiest safeguard against Ransomware is setting all your important user-shares to SMB read-only access and creating only a "quarantine" one with SMB read/write access. On Windows you'll move all your new files to the quarantine one instead (temporarily). From there you'll eventually move them to the important shares periodically (e.g. via user script or command line), but without ever granting any external (particularly Windows) system write access to those shares, so you'll do all that on UNRAID directly. That way the worst that can happen is your temporary "quarantine" share gets encrypted and you'll have only a week's worth of files lost instead of all of them.

You'll need to run memtest a bit longer than 39 minutes to have a reliable diagnostic there. I'd do at least 4 passes, depending on how much time you can sacrifice, the more would be the better. But honestly it looks like something on your system is shot from these frequent blackouts. NUT itself does nothing else than initiate a shutdown in a power loss scenario, so it wouldn't cause any of these problems. There's a ton of kernel-related messages in your logs, most of them seem to have something to do with your GPU. Once again I'd advise posting in the NVIDIA driver support topic (linked above) so maybe @ich777 can chime in there.

pfSense NUT and NUT in general will by default shutdown when the UPS sends the low battery signal "LOWBATT" (usually happens around 20% charge). The runtime remaining or battery percentage remaining thresholds which trigger the low battery condition are often configurable on the UPS itself. I also happen to have an Eaton 5P and you can configure this on the UPS screen here: So UNRAID also always does this as a last resort (shutting down on a low battery signal), but also has other additional shutdown conditions which act on top of that to ensure that UNRAID has sufficient time to shutdown before any such low battery signal. So setting a reasonable time for the additional shutdown condition (e.g. Time on Battery) on UNRAID while keeping the NUT defaults on the pfSense would ensure that UNRAID shuts down before the pfSense (and any other devices using basic NUT).

A quick search on Google returned another thing worth trying could be adding this on your pfSense: But judging from the screenshot of the original poster this shouldn't be necessary anymore. The requirement of an open TCP port 3493 for inbound/outbound on the LAN remains, so I think that's the main issue here.

Indeed it seems like the pfSense is dropping the incoming packets to your NUT server's port on TCP 3493. Please do report back if you managed to open the port and if it worked out for you eventually. 🙂

That's weird, is there anything in the UNRAID logs indicating a problem? Is it possible that pfSense (being a firewall) blocks LAN-access in/out from TCP Port 3493 (NUT)?

Ah, my bad, in that case you'll put the pfSense's configured Slave username and password (that'd be monslave and yourpassword in the original screenshot) into the respective NUT Monitor username and password fields on the UNRAID server. NUT Mode would, of course, be Slave on the UNRAID server. 🙂 The second credential fields were recently hidden because they were unused in NUT Mode Slave. That's also the reason it didn't matter the user from the screenshot had the same values in them.

You need to set NUT Mode to Netserver.

Hello! This is caused by the pfSense side and is the fallout of the following bug: https://github.com/networkupstools/nut/issues/2104 You cannot fix this from the UNRAID side, you need to update NUT on your pfSense to the latest version. The bug is already fixed in NUT 2.8.1 (or 2.8.2 on pfSense), so please check the pfSense's NUT version again because it looks like a version before 2.8.1. from the logs! After updating to the latest version on the pfSense, you can then test it by running a manual battery self-test on the UPS and checking if it still shuts down the pfSense (it shouldn't anymore). On UNRAID itself no changes are needed as it's already fixed there. 🙂

You can also try the AFP protocol if you can't get SMB to work properly, although it's deprecated some users have had better results:

I've just pushed an update including mergerFS-Tools, beware you need to install Python 3.x to use the mergerFS-Tools. Python 3.x. can be installed - for example - via NerdTools, if you don't already have it installed on your system for something else. 🙂

Not in that sense, as that's usually a hardware configuration feature directly on the UPS (APC calls them Outlet Groups, I think). Some UPS devices offer this kind of configuration through the display on the UPS itself, my Eaton device does for example. Alternatively, if your UPS has a network card you might be able to do this configuration via the UPS web interface. Did you ever try to wait when it's stuck, like what happens after say 10 or 20 minutes? It would be interesting if some kind of stuck operation eventually times out and gives an error message. That would help to narrow down what plugin (or not) causes the operation that's stuck, so we would know that... 🙂 Did you ever attempt to replicate the situation with the NVIDIA plugin disabled? It might also be worth asking here, that's the support topic for the NVIDIA driver: This report also looks interesting and a bit (but not entirely) similar to your case:

I just checked your diagnostics package, the next thing in line after NUT installation is the NVIDIA driver. Which returns us to your GPU, something that's happening with the GPU or GPU driver hangs your system up. When you replicated this, was your network also down - because there's some network unreachable errors in the logs. Is it possible you also have network equipment connected to the UPS that's not 100% up yet when your server reboots? It's possible one of your plugins keeps trying to pull files from the internet while the network is still down and hangs up there. That'd be the only explanation that makes sense to me, considering it only happens when recovering from power loss and not otherwise. It'd be interesting what happens after a power loss reboot not into regular UNRAID but UNRAID safe mode (no plugins), if also still happens there.

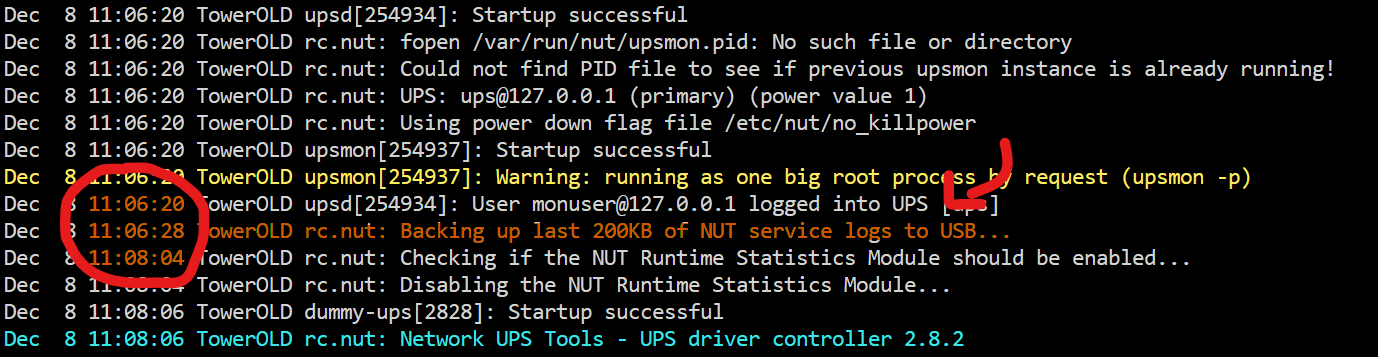

The NUT messages are all normal and part of the regular NUT startup process (it's checking for duplicate instances before starting up the services). In fact there seems to be some kind of transfer (not by NUT) happening after NUT startup is already completed, this CURL output before the login prompt is caused by something else that's not NUT. I'll check your diagnostics package if I can find some clues.

4 minutes seems reasonable considering a 20 minutes estimated runtime of your UPS. The poweroff command is fine, that command results in a graceful shutdown of your system. The powerdown script would also work, but it's deprecated now and probably should no longer be used. It's possible 60 seconds weren't enough and left your GPU drivers in an inconsistent state when forcing shutdown. Increasing it is probably a good idea, I use 120 seconds myself and factored this in when choosing the NUT on-battery timeout.

I agree to the advice given above about UPS Settings, enough battery reserves should be considered. But you foremost need to figure out why you're sometimes getting kernel panics and stuck when booting up. An unclean shutdown (or multiple) from a NUT/UPS misconfiguration might explain a triggered parity check, but not that. I'd stress test the GPU and memtest the memory (RAM) to figure out any hardware-side problems first. Then I'd attempt to eliminate driver-related errors by updating any driver plugins to their latest versions. If that doesn't help then I'd attempt to deactivate any driver plugins and see if that resolves the issue for you. In any case we'll need a diagnostics package as well, so we can help you identify any configuration problems.

No, unfortunately, it's built directly into the NUT backend (which is not developed by me).

It's possible the frequent blackouts before you started using a UPS with NUT fried something in your server. It seems to happen around the time normally your GPU drivers would be loaded, perhaps a memory (RAM) or GPU issue. I'd first run an extensive memtest on the system to see if your memory (RAM) is OK. Blackouts can wreak havoc on system components, so making sure everything is OK hardware-wise would be the first step. Quick google brings up a lot of NVIDIA-related results, for "Oops: 0000 [#1] PREEMPT SMP NOPTI". Do you have any custom graphic driver (plugins) installed for your GPU? GPU working normally otherwise? Please post here a diagnostics package, so we can take a look at the software-side of things in the meantime.

Did you change anything in the server? Is it possible there's too much dust or in a confined space with not enough airflow? It's possible your CPU maxed out under normal load due to thermal throttling.

So is it fixed now or not after uninstalling NUT? Because you say the problem disappeared but yet you can't boot your system? Sorry I'm just trying to make sense of this, because it looks like your problem isn't resolved.

As written in the support topic where you claimed uninstalling NUT solved your problem (but didn't): This seems more of a general hardware or configuration problem, rather than one caused by NUT. I'd advise killing the power to your server at this stage, checking the HDD cables and running memtest. If you have any logs indicating an actual problem with NUT, I'll be happy to do my best to help you... 🙂

Nothing was changed in the backend between the last updates, only optical changes in the GUI. Can you provide logs from before you uninstalled the plugin, or perhaps a diagnostics package? 11 minutes ago you say "all works fine" after uninstalling NUT. Two minutes ago you say nothing works in another topic about your problem? 😐 This seems more of a general hardware or configuration problem, rather than one caused by NUT. If you have any logs indicating an actual problem with NUT, I'll be happy to do my best to help you... 🙂

Exos - würde immer nur Neuware kaufen gerade bei Festplatten.
