CyrIng Posted February 20 Share Posted February 20 (edited) Thanks Please follow issue on GitHub Edited February 20 by CyrIng Quote Link to comment
ich777 Posted February 21 Author Share Posted February 21 10 hours ago, KaitsuN6 said: Hello Please do the following: Place the two attached files somewhere on your server Open up a Unraid terminal Navigate to the folder where you've placed the files Issue the command: installpkg corefreq_INTEL-develop-x86_64-1.txz Go to the plugin page and try to retest and see if it now loads fine. Let us know how it went. Feel free to reach out if you have further questions. corefreq_INTEL-develop-x86_64-1.txz corefreq_INTEL-develop-x86_64-1.txz.md5 Quote Link to comment

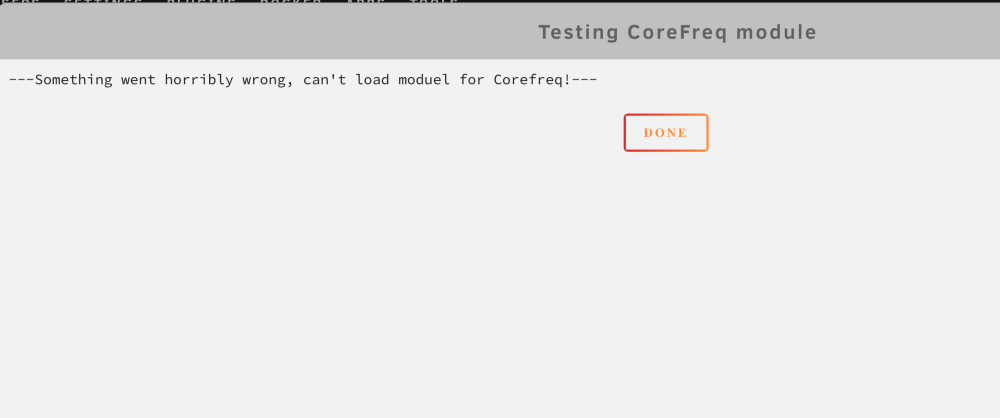

KaitsuN6 Posted February 21 Share Posted February 21 5 hours ago, ich777 said: Please do the following: Place the two attached files somewhere on your server Open up a Unraid terminal Navigate to the folder where you've placed the files Issue the command: installpkg corefreq_INTEL-develop-x86_64-1.txz Go to the plugin page and try to retest and see if it now loads fine. Let us know how it went. Feel free to reach out if you have further questions. corefreq_INTEL-develop-x86_64-1.txz 304.65 kB · 0 downloads corefreq_INTEL-develop-x86_64-1.txz.md5 33 B · 0 downloads Hello, The behaviour the same. Attaching photos and various logs and diagnostics. syslog_b syslog-previous_b qnap-diagnostics-20240221-1420.zip 1 1 Quote Link to comment
CyrIng Posted February 21 Share Posted February 21 (edited) 3 hours ago, KaitsuN6 said: The behaviour the same. Hello, Sorry again for this crash. Another special archive of CoreFreq for Goldmont is left in repo but also here. I hope it will successfully run. If true, please provide the output of `corefreq-cli -s -n -m -n -M -n -u` (because I need to find a feature discriminant among Goldmont processors) CoreFreq_Goldmont.tar.gz Edited February 21 by CyrIng Quote Link to comment
KaitsuN6 Posted February 21 Share Posted February 21 46 minutes ago, CyrIng said: ... I hope it will successfully run. If true, please provide the output of `corefreq-cli -s -n -m -n -M` (because I need to find a feature discriminant among Goldmont processors) CoreFreq_Goldmont.tar.gz 708.92 kB · 1 download Hello, I'm sorry, but don't know what to do with this archive. 😞 Quote Link to comment
CyrIng Posted February 21 Share Posted February 21 (edited) 1 minute ago, KaitsuN6 said: I'm sorry, but don't know what to do with this archive. Please juste wait for @ich777 instructions If it works then provides this output from the CLI corefreq-cli -s -n -m -n -M -n -u Edited February 21 by CyrIng 1 Quote Link to comment
ich777 Posted February 21 Author Share Posted February 21 34 minutes ago, KaitsuN6 said: I'm sorry, but don't know what to do with this archive. 😞 No worries, same as before but slightly different because this archive is named differently: Place the two attached files somewhere on your server Open up a Unraid terminal Navigate to the folder where you've placed the files Issue the command: installpkg corefreq_INTEL-goldmont-x86_64-1.txzcorefreq_INTEL-develop-x86_64-1.txz Go to the plugin page and try to retest and see if it now loads fine After that please provide the output from: corefreq-cli -s -n -m -n -M -n -u for @CyrIng. corefreq_INTEL-goldmont-x86_64-1.txz corefreq_INTEL-goldmont-x86_64-1.txz.md5 Quote Link to comment
KaitsuN6 Posted February 21 Share Posted February 21 Ok, plugin working fine. Sent CyrIng the output. 1 1 Quote Link to comment
ich777 Posted February 23 Author Share Posted February 23 On 2/21/2024 at 6:29 PM, KaitsuN6 said: Ok, plugin working fine. @CyrIng produced a new build, can you please test? Please do the following (but please follow these exact steps) : Remove the plugin entirely Reboot Place the two attached files somewhere on your server Install CoreFreq from the CA App Open up a Unraid terminal Navigate to the folder where you've placed the files Issue the command: installpkg corefreq_INTEL-test2-x86_64-1.txz Go to the plugin page and try to retest. corefreq_INTEL-test2-x86_64-1.txz corefreq_INTEL-test2-x86_64-1.txz.md5 1 Quote Link to comment
CyrIng Posted February 23 Share Posted February 23 (edited) @KaitsuN6 Once the plugin run, you will find a dump of registers in the kernel log surrounded by those marker lines --- DEVICE (DUMP) --- ... --- MCHBAR (START) --- ... --- MCHBAR (STOP) --- I need this dump to study the memory controller. By the way, this plugin includes the Vcore fix. Please have a look to the voltage, idle and stressed cases. Thank you Edited February 24 by CyrIng Quote Link to comment
CyrIng Posted February 25 Share Posted February 25 @ich777Hello, Not sure if you're informed but @KaitsuN6has encountered the following issue with the test plugin: Quote Link to comment
ich777 Posted February 25 Author Share Posted February 25 2 hours ago, CyrIng said: Not sure if you're informed No. 2 hours ago, CyrIng said: has encountered the following issue with the test plugin @KaitsuN6 are you still on Unraid 6.12.8? Quote Link to comment
ich777 Posted February 26 Author Share Posted February 26 @KaitsuN6 I have now tried the new test package and it is working fine on my server: Quote Link to comment
CyrIng Posted February 26 Share Posted February 26 (edited) Please let me know when I can get the memory registers dump as I have a short delay window to program it. Sincerely Edited February 26 by CyrIng Quote Link to comment
KaitsuN6 Posted February 27 Share Posted February 27 Sorry, been out of town... output_for_CyrIng_5.txt Quote Link to comment
CyrIng Posted February 27 Share Posted February 27 (edited) @KaitsuN6I like to see this Vcore. Will study IMC data. Thank you EDIT: Unfortunately MCH failed to remap. Edited February 27 by CyrIng Quote Link to comment
CyrIng Posted February 27 Share Posted February 27 (edited) 6 minutes ago, KaitsuN6 said: Looks kind funny As default there is a single sensor for whole processor. You can try other Voltage scope in window "Settings" Also we have to find/work on Northbridge or System Agent or SoC voltage Edited February 27 by CyrIng Quote Link to comment
CyrIng Posted February 27 Share Posted February 27 @KaitsuN6You can change Voltage scope to SMT then apply individual CPU load and tell if Vcore is a discrete value or not ? Quote Link to comment
KaitsuN6 Posted February 27 Share Posted February 27 Ok, changed fro "Packace" to "Core". Now it looks better. Quote Link to comment
CyrIng Posted February 27 Share Posted February 27 3 minutes ago, KaitsuN6 said: Ok, changed fro "Packace" to "Core". Now it looks better. Now you can select Single Core stress, Random or Round Robbin Quote Link to comment
KaitsuN6 Posted February 27 Share Posted February 27 Scope in "Core# and Turbo Select CPU. Scope in SMT and Turbo Select CPU. Quote Link to comment
CyrIng Posted February 27 Share Posted February 27 (edited) 24 minutes ago, KaitsuN6 said: Scope in "Core# and Turbo Select CPU. Scope in SMT and Turbo Select CPU. This confirmes there is a single voltage sensor in this processor architecture About the Power, are you reading some meaningful values ? Example from the view "Power" : Edited February 27 by CyrIng Quote Link to comment

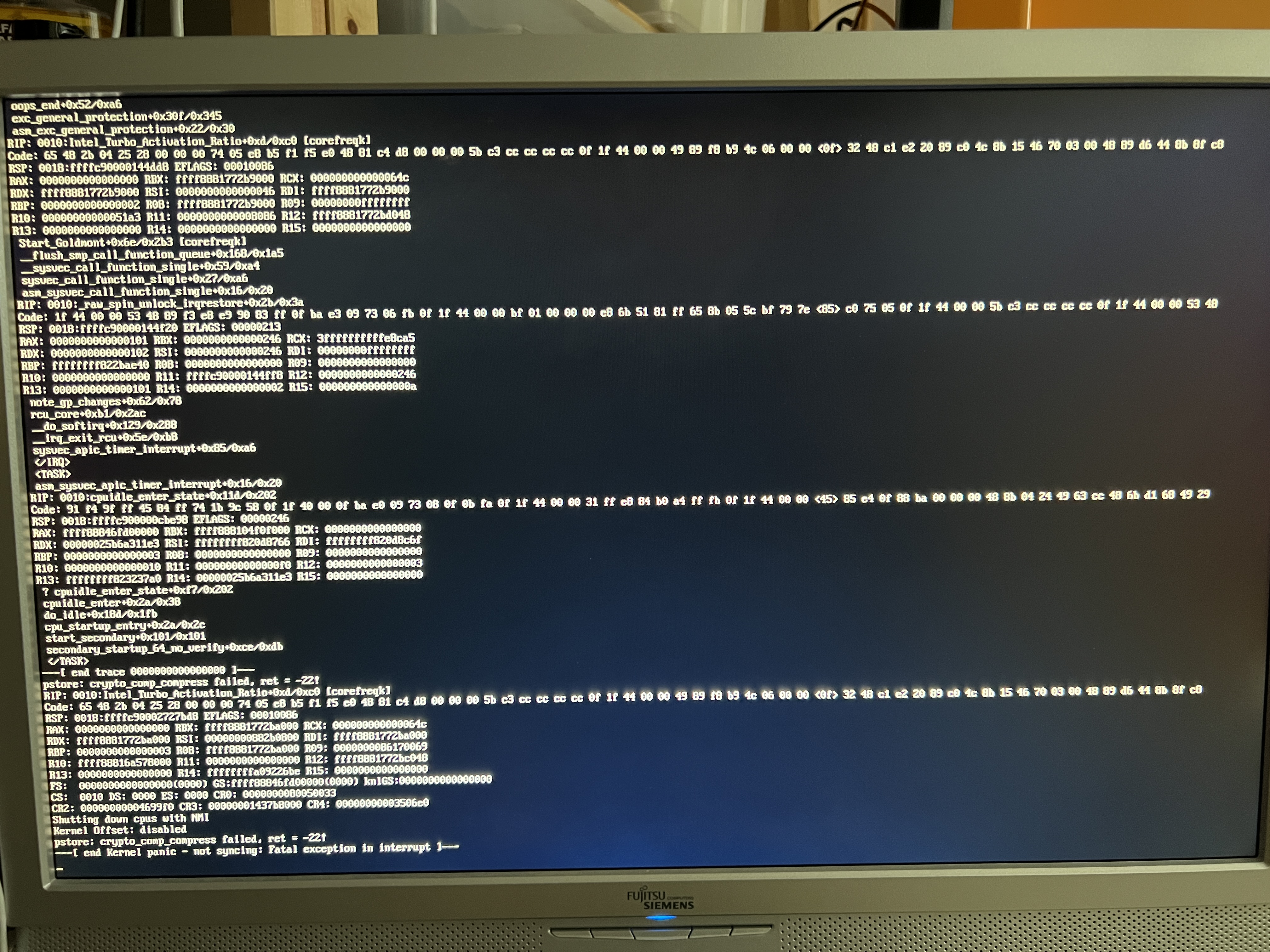

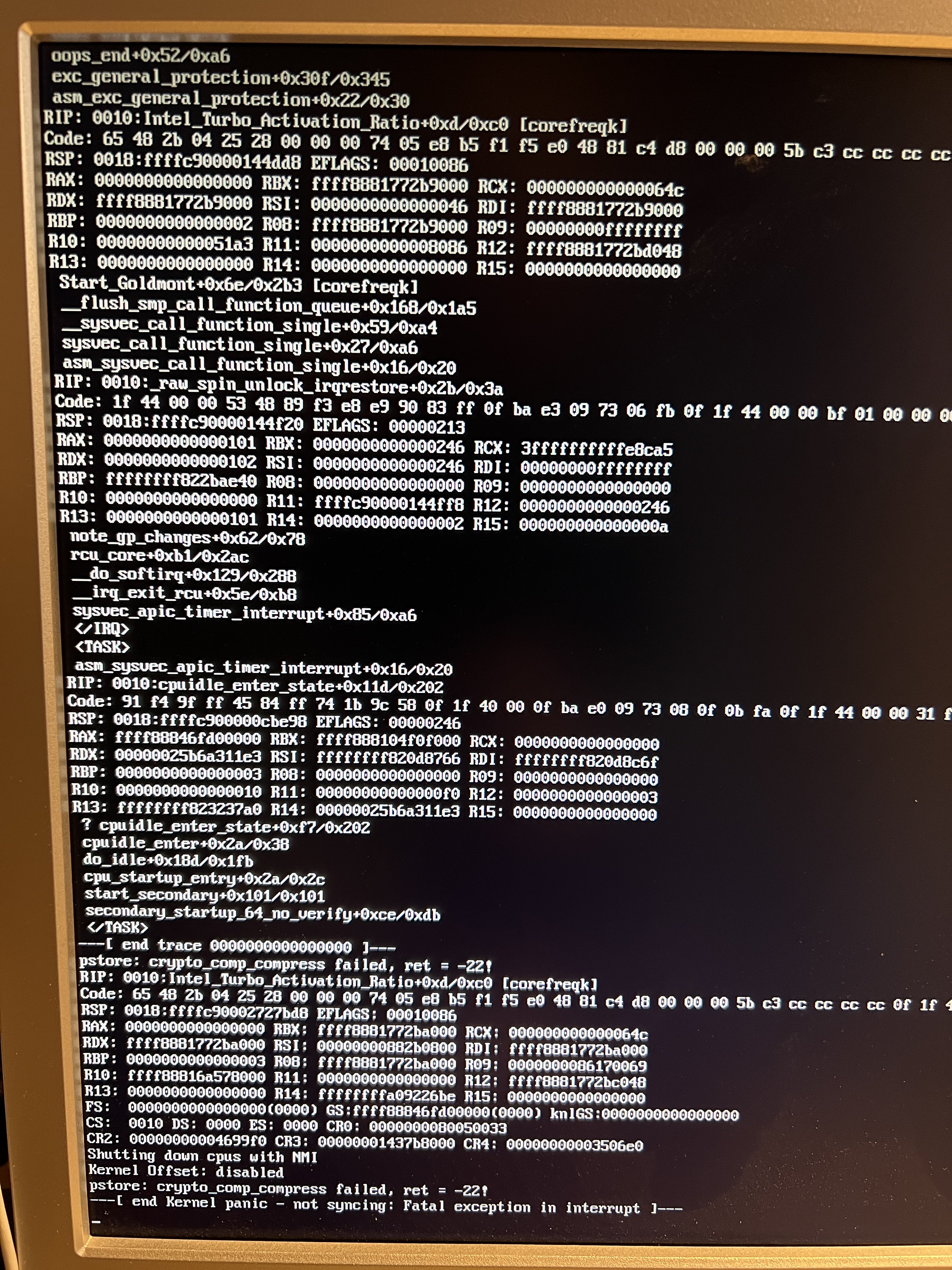

KaitsuN6 Posted February 27 Share Posted February 27 Hi, went out for lunch and meanwhile the corefrq-cli had stopped. Trying to start it again and I got this answer: The plugin was not running so I went to the page. The plugin was stopped. i started it, and then unraid crashed. Went throug uninstall, reboot, installpkg etc. The Power option on: Waiting for if the crash happens again... 1 Quote Link to comment
CyrIng Posted February 27 Share Posted February 27 24 minutes ago, KaitsuN6 said: Waiting for if the crash happens again... If it happens please grab the log files About Power, values shown as Pkg and Cores seem wrong; unrelated with the stressed load Quote Link to comment
